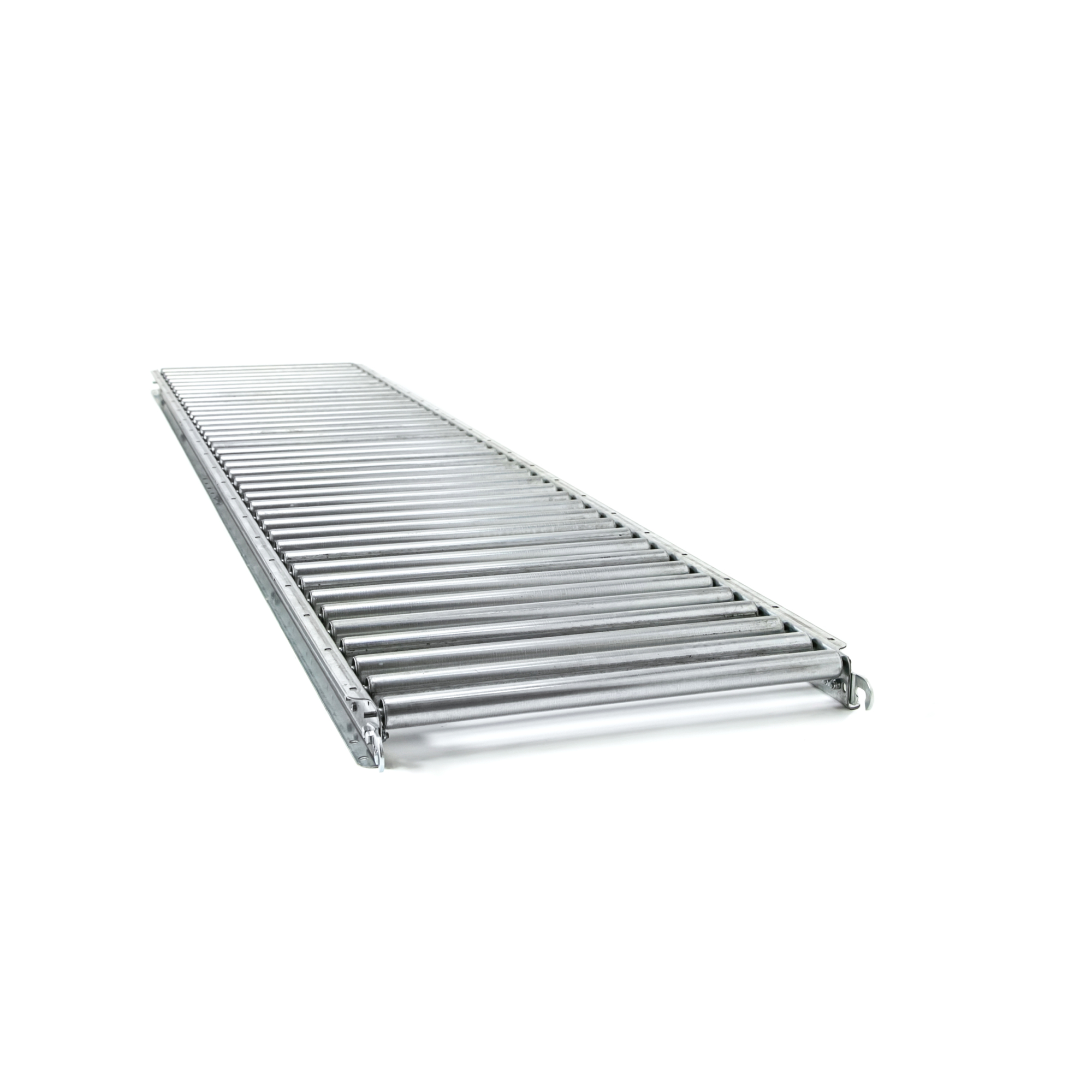

Unex, 18in.W Gravity Conveyor 10ft. long 3in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS30X10

Item# 4478458
Unex, 18in.W Gravity Conveyor 10ft. long 3in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS30X10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Unex, 18in.W Gravity Conveyor 10ft. long 3in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS30X10

Click or Tap image to Zoom

$369.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Unex Gravity Conveyor is a versatile and efficient solution designed for conveying lightweight packages in various settings, including warehousing and shipping areas. Measuring 18 inches in width and 10 feet in length, this conveyor features rollers with a diameter of 1.38 inches, spaced 3 inches apart, ensuring smooth and consistent movement of items. With a robust capacity of 500 lbs., the conveyor is built to handle substantial loads while maintaining reliable performance. Its gravity-based operation eliminates the need for power, making it an eco-friendly and cost-effective choice for temporary or portable conveyor lines. The durable construction and practical design of the Unex Gravity Conveyor make it an essential addition to any facility looking to enhance productivity and streamline material handling processes.

What's Included

    (1) Conveyor Straight

Features + Benefits

  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

Key Specs

AttributeSpecification

item#

4478458

Brand

Unex

Manufacturer's Warranty

5 year limited warranty

Ship Weight

135.0 LB

Conveyor Length

120 in

Width Between Frame

16 in

Product Type

Conveyor

Min. Height

7.75 in

Max. Height

70.75 in
AttributeSpecification

Folding

No

Material

Galvanized Steel

Width

18 in

Roller (qty.)

40

Roller Diameter

1.38 in

Motorized

No

Capacity

500 lb

Product Weight

85.0000 lb

Dimensions L x W x H (in.)

120.0 x 18.0 x 2.5 in
