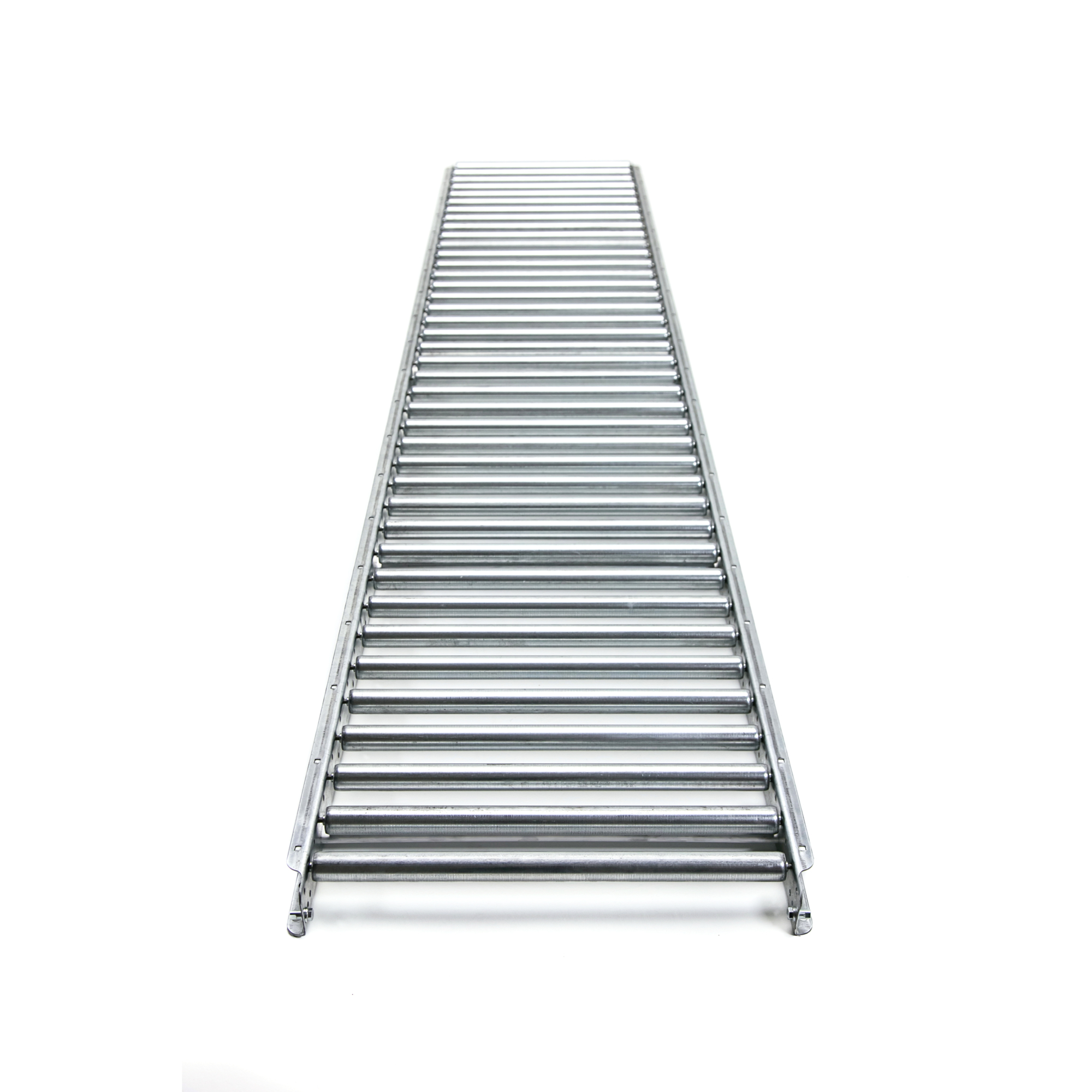

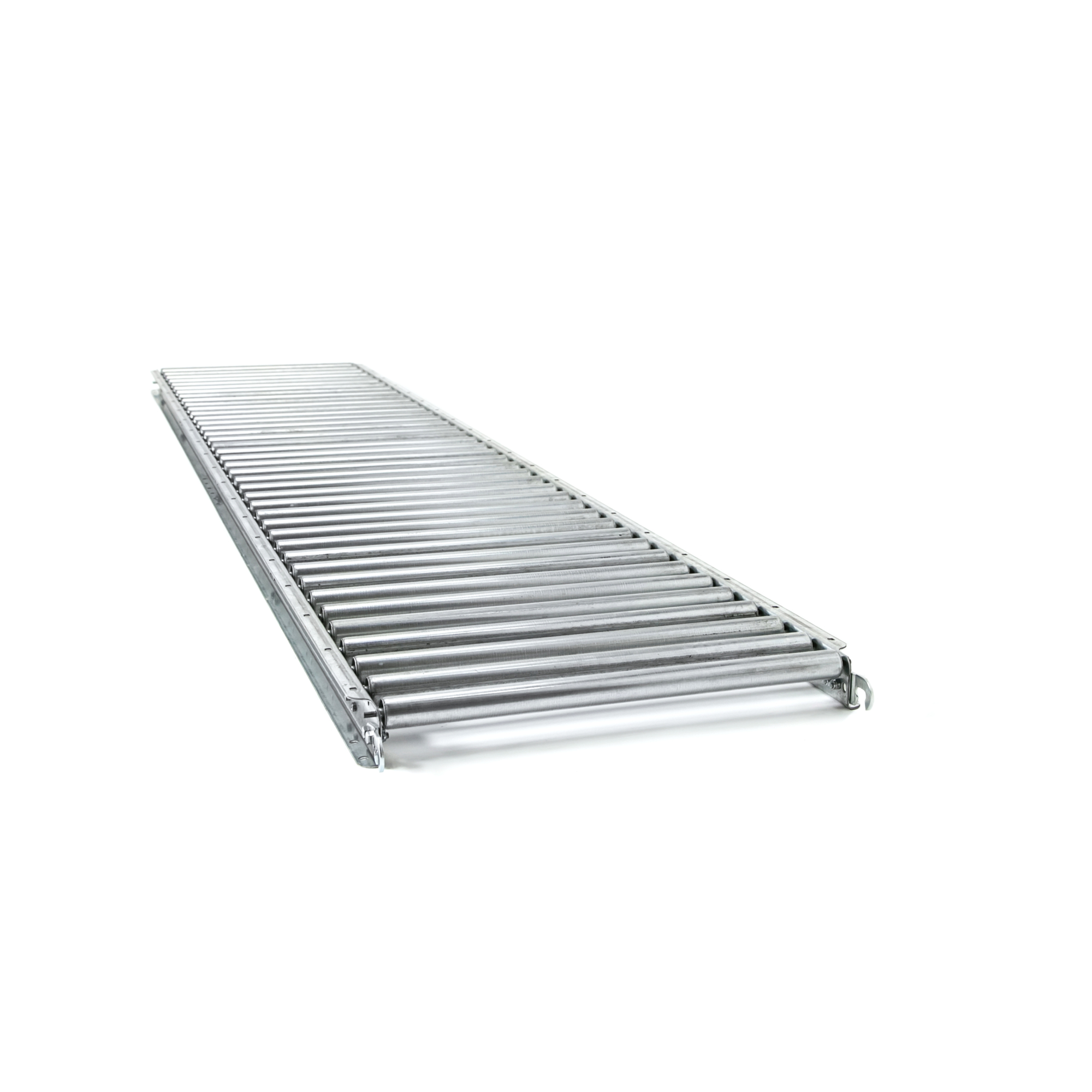

Unex, 18in.W Gravity Conveyor 10ft. long 4.5in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS4.5X10

Item# 4479098
Unex, 18in.W Gravity Conveyor 10ft. long 4.5in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS4.5X10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Unex, 18in.W Gravity Conveyor 10ft. long 4.5in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS4.5X10

Click or Tap image to Zoom

$259.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The UNEX Gravity Conveyor is a versatile and efficient solution designed for conveying lightweight packages in various operations, including warehousing and shipping areas. Measuring 10ft. in length and 18in. in width, this gravity conveyor features 1.38in. diameter rollers spaced 4.5in. apart, providing smooth and reliable movement of items. With a robust capacity of 500 lbs., it is capable of handling a wide range of materials while ensuring durability and performance. The conveyor's portable and temporary design makes it an ideal choice for dynamic work environments where flexibility and ease of setup are essential. Its sturdy construction and efficient roller spacing ensure consistent operation, making the UNEX Gravity Conveyor a valuable addition to any material handling system.

What's Included

    (1) Conveyor Straight

Features + Benefits

  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

Key Specs

AttributeSpecification

item#

4479098

Brand

Unex

Manufacturer's Warranty

5 year limited warranty

Ship Weight

120.0 LB

Conveyor Length

120 in

Width Between Frame

16 in

Product Type

Conveyor

Min. Height

7.75 in

Max. Height

70.75 in
AttributeSpecification

Folding

No

Material

Galvanized Steel

Width

18 in

Roller (qty.)

27

Roller Diameter

1.38 in

Motorized

No

Capacity

500 lb

Product Weight

68.0000 lb

Dimensions L x W x H (in.)

120.0 x 18.0 x 2.5 in

Reviews

Questions & Answers

Questions

  1. what is the space between the rollers.

    1 answer

    1. The rollers are spaced 4.5" center to center. The roller diameter is 1.38" leaving the space between rollers at 3.12".

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
