Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in. 1250-Lb. Capacity

Item# 572041
Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in. 1250-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in. 1250-Lb. Capacity

Click or Tap image to Zoom

$72.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    7 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Ultra-Pack system to easily repack bearings with grease
  • High-speed marine-grade hubs
  • High-quality cast iron construction
  • Includes dust cap installation tool

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

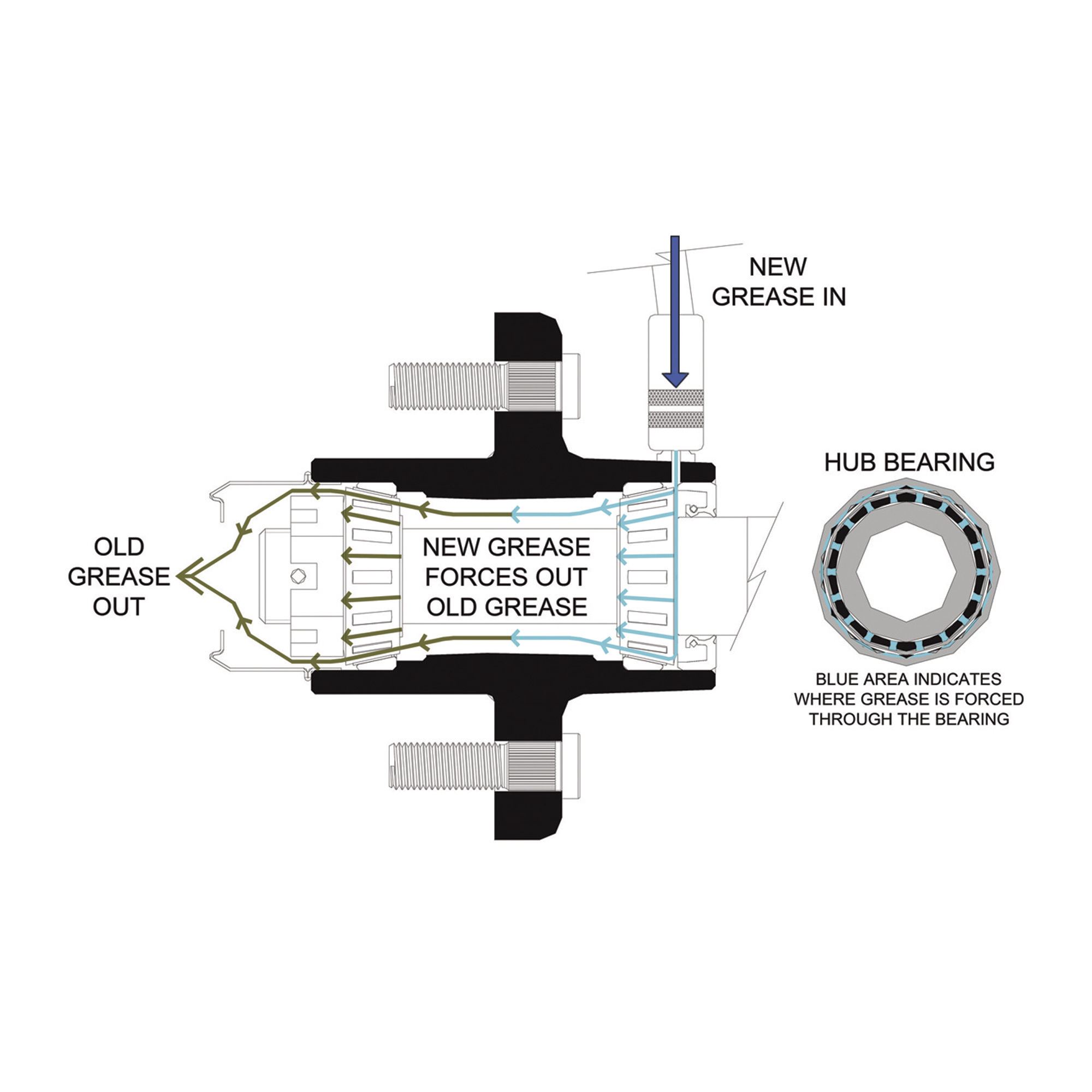

The Ultra-Tow XTP Ultra-Pack Trailer Hub is a fully assembled, prelubed hub designed to simplify bearing maintenance and extend service life. Its proprietary Ultra-Pack greasing system allows bearings to be repacked through an integrated zerk fitting without hub removal, pushing old grease out the front for a complete refresh while protecting the rear seal.

What's Included

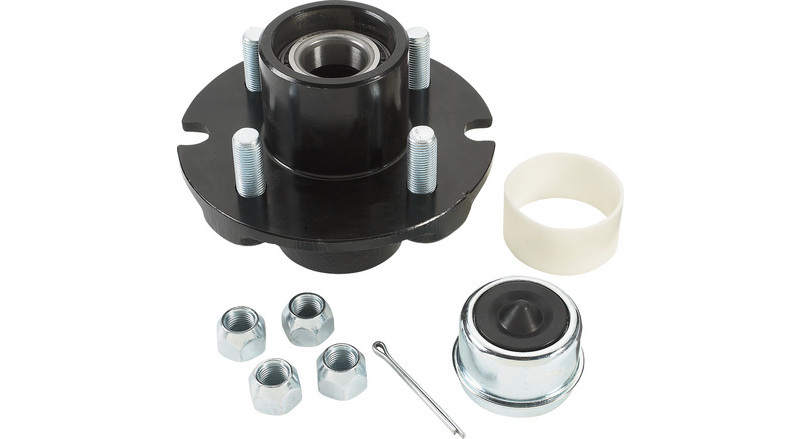

    (1) Ultra-Tow XTP Ultra-Pack Trailer Hub
Play Item Video

Features + Benefits

  • Ultra-Pack system to easily repack bearings with grease
  • High-speed marine-grade hubs
  • High-quality cast iron construction
  • Includes dust cap installation tool

Key Specs

AttributeSpecification

item#

572041

Brand

Ultra-Tow

Manufacturer's Warranty

2 year limited warranty

Ship Weight

6.73 LB

Studs (qty.)

4
AttributeSpecification

Bolt Circle Pattern

4 in

Weight Capacity Each

1,250 lb

Seal Size ID

1.25 in

Spindle Size

1 in

Reviews

Questions & Answers

32 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Is this for a 1inch axel

    1 answer

    1. This hub will fit a 1" axle spindle.

      Helpful?

  2. Will it fit the Ultra Tow 4x8 foldable aluminum trailer?

    1 answer

    1. This trailer hub does not fit the Ultra Tow folding trailer kit.

      Helpful?

  3. What is the hub depth?

    1 answer

    1. The length of the hub is 4 1/4" with out the dust cap and 5 5/8" with dust cap.

      Helpful?

  4. Will this work with spindle 5712453. Thanks

    1 answer

    1. This hub will work with the axle spindle, item 5712453.

      Helpful?

  5. Will 25mm bearings work on a 1” spindle?

    1 answer

    1. Using a 25mm bearing is not recommended with the 1" spindle. The fit of the bearing would be loose and sloppy.

      Helpful?

  6. Are the whole 3" apart

    1 answer

    1. This is a 4 on 4" hub. The adjacent studs are 2" apart.

      Helpful?

  7. Axle size and seal size dimensions in specs are backwards Correct dimensions Axle: 1” Seal: 1.25”

    1 answer

    1. The seal inside diameter is 1". The outside diameter of the seal is 1-1/4". This is compatible with a spindle like item #5712451. This is a 1-/4" spindle. The 1" diameter end of this spindle would fit through the hub.

      Helpful?

  8. what is the diameter where the wheel goes on the hub? I just bought new wheels and tires. The new wheel center hole is 2 3/4" the old wheels and hubs are 2 1/2".

    1 answer

    1. This hub requires a rim center hole (pilot) diameter of at least 2-1/2". A rim with a 2-3/4" pilot would fit this hub.

      Helpful?

  9. What is the size of the splines on the wheel studs. I know the studs are 1/2" x 20 x 2" but needing to replace one but find them with .54" and .63" splines?

    1 answer

    1. The spline size is 13.4 MM (0.52").

      Helpful?

  10. Grease Zerk Question?

    Is the grease zerk threaded, or is it the type that in driven into the hole in the hub. I have found the drive in type zerk fitting can come out when removing the grease gun from the zerk fitting.

    1 answer

    1. This hub has a grease zerk that is threaded into it.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
