There are three holes on each bracket. The front and back holes are oval shaped and are 9/16" wide by 1" long. The inner hole is round and is .875" in diameter.

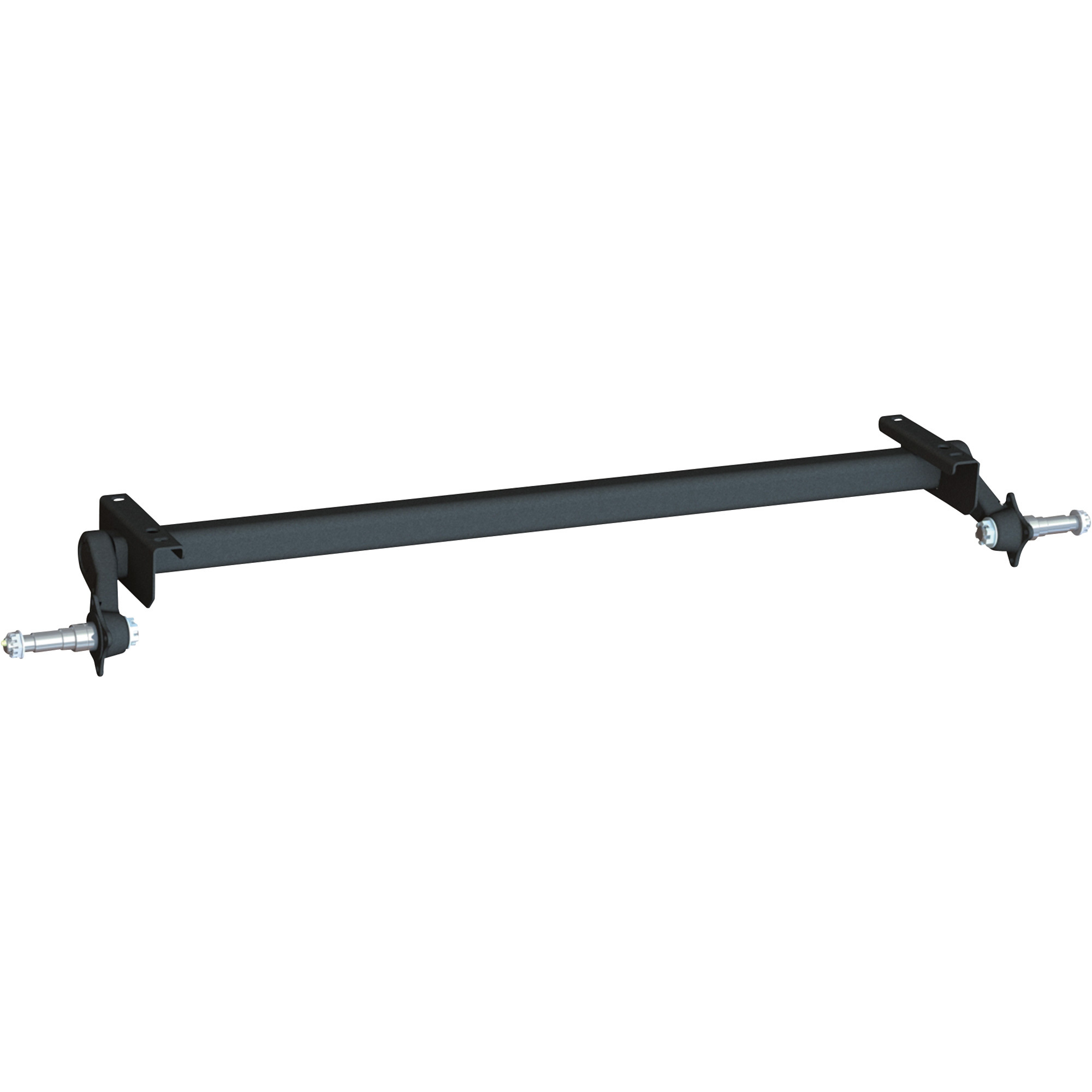

Ultra-Tow Torsion Trailer Axle, 3,500-Lb. Capacity, With Brackets, 1in. Above Axle Tube, 30° Down Start Angle, 69in. Hubface, 74 1/4in.L, 56in. Outside Frame
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Rubber-cushioned inside steel tube absorbs road shock and provides torque action that improves road handling, reduces shock transfer and trailer sway
- Fast Lube spindles allow you to re-grease the bearings without removing the hubs
- Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal
- Built-in brake flange
- Eliminates springs, shackles and U-bolts
See full description
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1750-Lb. Capacity
Item # 572061
$79.99
Reg $99.99Save $20.00
Order today to get this price.
See All Trailer Axles + Kits
See All Ultra-Tow Trailer Axles + Kits
Currently Viewing This Product
Specifications
Specifications
Ultra-Tow Torsion Trailer Axle, 3,500-Lb. Capacity, With Brackets, 1in. Above Axle Tube, 30° Down Start Angle, 69in. Hubface, 74 1/4in.L, 56in. Outside Frame
Ultra-Tow 2000-Lb. Capacity Complete Axle Kit — 60in. Hubface, 48in. Spring Center, 5-Stud Pattern, 4.5in. Hubs
Ultra-Tow Torsion Trailer Axle, 2200-Lb. Capacity, High-Rise Brackets, 3in. Above Axle Tube, 45° Down Start Angle, 73-1/2in. Hub Face, 78-1/2in.L, 60in. Outside Frame
Ultra-Tow 2000-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 59 1/2in. Hubface, 43in.-49in. Spring Center, 64 1/2in.L, Straight
Weight Capacity
Same
3,500 lb
2,000 lb
2,200 lb
2,000 lb
Axle Tube Type
Same
Square
Round
Square
Square
Seal Size ID
Same
1.71 in
1.25 in
1.25 in
1.25 in
Bearing Size ID
Same
1.375 in
1.0625 in
1.063 in
1.063 in
Bearing Size OD
Same
1.063 in
1.0625 in
1.063 in
1.063 in
Cambered
Same
Yes
-
Yes
No
Hubs Included
Same
No
Yes
No
No
Brakes Included
Same
No
No
No
No
Track Length
Same
69 in
-
73.5 in
59.5 in
Max. Spring Centers Length
Same
-
48 in
-
49 in
Studs (qty.)
Same
-
5
-
-
Bolt Circle Pattern
Same
-
4.5 in
-
-
Axle Outside Diameter
Same
-
1.75 in
-
1.5 in
Springs Included
Same
-
Yes
-
No
Product Type
Same
-
-
Torsion Axle
-
Min. Spring Centers Length
Same
-
-
-
43 in
