Ultra-Tow Pickup Truck Crane with Hand Winch, 1000-Lb. Capacity, 33in.–53-1/2in.L Boom

Item# 52514
"Ultra-Tow Pickup Truck Crane with Hand Winch, 1000-Lb. Capacity, 33in.–53-1/2in.L Boom"
Top Seller
Ultra-Tow Pickup Truck Crane with Hand Winch, 1000-Lb. Capacity, 33in.–53-1/2in.L Boom

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Pickup Truck Crane with Hand Winch, 1000-Lb. Capacity, 33in.–53-1/2in.L Boom

Click or Tap image to Zoom

$199.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Lifts up to 1,000 lbs. fully retracted, 500 lbs. fully extended
  • Rotates 360° to access items from all sides

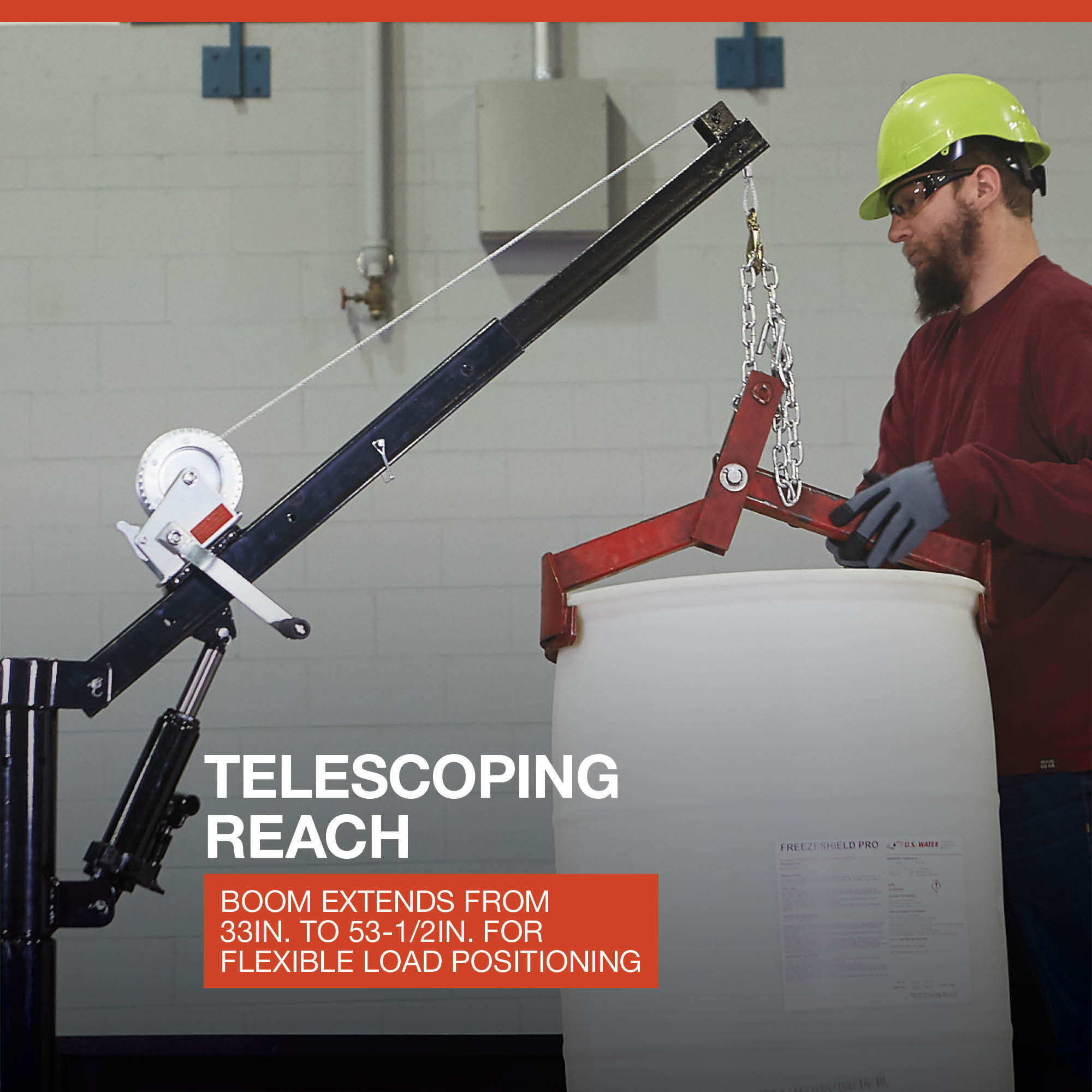

  • Telescopic boom extends from 33in.–53-1/2in.
  • Height range is from 38in.–84in.
  • Includes manual winch with 16ft. cable with hook to raise and lower cargo

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

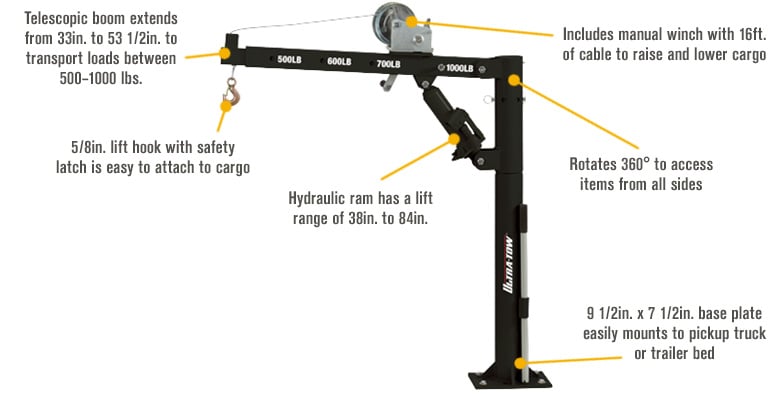

The Ultra-Tow Winch-Operated Pickup Truck Crane lifts up to 1,000 lbs. Rotates 360° to access cargo from all sides and features a telescopic boom that extends from 33in.–53-1/2in. Includes manual winch with 16ft. cable to raise and lower cargo. Mounts directly to truck or trailer bed with baseplate. All-steel construction.

What's Included

    (1) Truck crane

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Lifts up to 1,000 lbs. fully retracted, 500 lbs. fully extended
  • Rotates 360° to access items from all sides
  • Telescopic boom extends from 33in.–53-1/2in.
  • Height range is from 38in.–84in.
  • Includes manual winch with 16ft. cable with hook to raise and lower cargo
  • Mounts directly to truck or trailer bed with included 9-1/2in. x 7-1/2in. baseplate
  • All-steel construction

Key Specs

AttributeSpecification

item#

52514

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

81.0 LB

Max. Capacity

1,000 lb

Min. Lift

38 in

Max. Lift

84 in
AttributeSpecification

Min. Boom Length

33 in

Max. Boom Length

53.5 in

Manual or Electric

Manual

Cable Length

16 ft

Column Diameter

3.5 in

Height from Base to Top

40.18 in

Material

Carbon Steel

Reviews

Questions & Answers

73 Reviews This action will navigate to reviews.

Questions

1–10 of 32 Questions
Sort by:

  1. Does the winch hold the load in both directions? ie if you are cranking up or cranking down does the winch hold the load if you let go of the handle?

    1. The winch is a standard boat type winch. It holds when lifting automatically but not automatically when lowering. When lowering a small lever has to be activated to make it lock into position. I assumed this would be a problem for me since I was lifting 500lbs but the mechanism was smooth and surprisingly light for that weight.

      Helpful?

    2. There is a lock pin that can be used to lock the winch at the appropriate height.

      Helpful?

  2. Can the above crane be rotated with a load attached?

    1. Yes. Surprisingly easy too for the 500 lb I used it for.

      Helpful?

    2. This truck crane can be rotated with a load attached.

      Helpful?

  3. When fully raised what is the radius of the rotation at the farthest point? I am trying to figure out if this is a good option for lifting items to the top of my garage, where a hoist won't fit.

    1 answer

    1. When the rocker arm is raised to its maximum height, the turning radius is approximately 16".

      Helpful?

  4. what are the dimensions of the shipping box?

    1 answer

    1. The shipping dimensions are 45" long x 15" wide x 11" high.

      Helpful?

  5. Does it swivel?

    1 answer

    1. This truck crane can rotate a full 360 degrees, allowing access from every side.

      Helpful?

  6. Can this truck crane be mounted to a rolling flat cart for in shop use?

    1 answer

    1. This truck crane can be mounted to a rolling flat cart. Make sure the cart is rated to hold the crane as well as the load the crane will be lifting.

      Helpful?

  7. Can this be mounted to concrete floor

    1 answer

    1. This crane could be mounted to a concrete floor with the appropriate anchors; however, it is designed to be mounted to a truck bed or trailer bed. A jib crane may be a better option for this application.

      Helpful?

  8. Is it possible to order a replacement base for this?

    1 answer

    1. The base, part #UT52514.1, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  9. Can you use a electric winch on this

    1 answer

    1. We do not recommend modifying this truck crane with an electric winch. It could change the weight of the product and the capacity for lifting. It would also void the warranty.

      Helpful?

  10. I’m thinking if putting this on my boat to lift kayaks from the water to the too deck (about 20’). We’re in salt water most of the time and want to know if this material will be okay or will it easily rust? Thanks.

    1 answer

    1. This truck crane has an all steel construction, so it is prone to rusting in salt water over time.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
