Ultra-Tow High Speed Trailer Hub, 6 on 5 1/2in., 2750-Lb. Capacity, Single

Item# 57207
"Ultra-Tow High Speed Trailer Hub, 6 on 5 1/2in., 2750-Lb. Capacity, Single"
Clearance
Ultra-Tow High Speed Trailer Hub, 6 on 5 1/2in., 2750-Lb. Capacity, Single

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow High Speed Trailer Hub, 6 on 5 1/2in., 2750-Lb. Capacity, Single

Click or Tap image to Zoom

$44.99
Reg $74.99Save $30.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • High speed marine grade hubs
  • High quality cast iron construction
  • Dust cap installation tool

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This heavy-duty Ultra-Tow hub is preassembled, prelubed with premium grease and ready for easy assembly on your trailer axle. Use the Ultra-Tow Easy ID to easily identify the components you need. Constructed with ductile cast iron for higher tensile strength, less deflection and excellent corrosion resistance. Electroplated to resist rust and corrosion.

What's Included

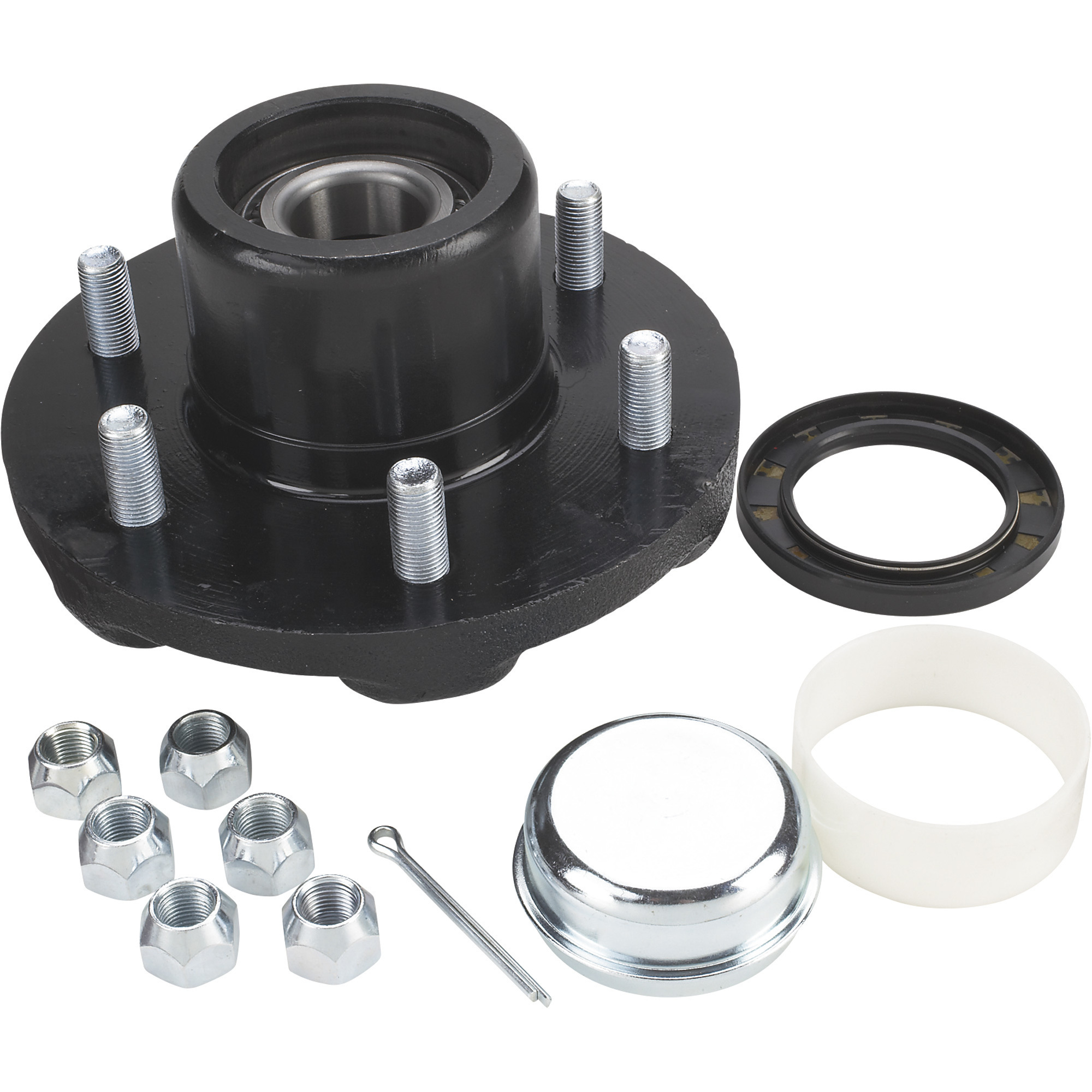

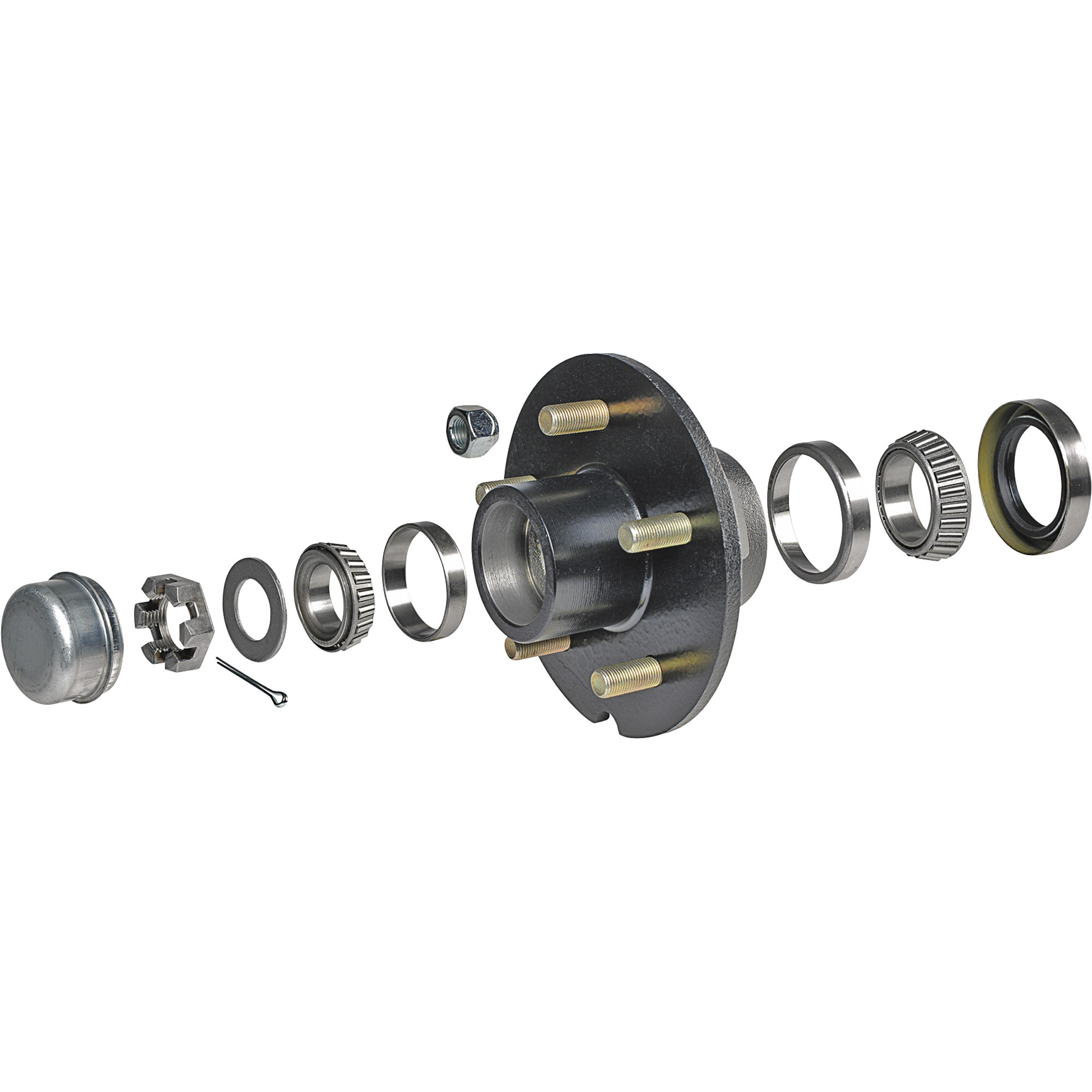

    (1) Hub assembly with bearing cup, studs, bearings and seal installed (1) Dust cap (1) Dust cap installation tool (1) Cotter pin (6) Lug nuts (2) Seals

Downloads

Product Manual
Play Item Video

Features + Benefits

  • High speed marine grade hubs
  • High quality cast iron construction
  • Dust cap installation tool

Key Specs

AttributeSpecification

item#

57207

Brand

Ultra-Tow

Manufacturer's Warranty

2 year limited warranty

Ship Weight

14.15 LB

Studs (qty.)

6

Bolt Circle Pattern

5.5 in
AttributeSpecification

Weight Capacity Each

2,750 lb

Seal Size ID

1.75 in

Bearing Size ID

1-3/4 in

Bearing Size OD

1-1/4 in

Spindle Size

2.25 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. How is this hub Item# 57207 different from hub Item# 572071

    1 answer

    1. This trailer hub does not include a Zerk fitting, unlike item 572071, which is equipped with one. A Zerk fitting is designed to allow the user to grease the wheel bearings or the spindle area without needing to disassemble the hub.

      Helpful?

  2. Are the bearings and inner seal included?

    1 answer

    1. This hub does include bearings and an inner seal.

      Helpful?

  3. Any idea width of entire hub from edge to edge , want to make sure it fits on my distance spindle

    1 answer

    1. The measurement from the outside of one bearing to the outside of the other bearing is 4". The measurement from the actual outside, hub end to hub end is 4-5/8".

      Helpful?

  4. Can these be used on a boat trailer.

    1 answer

    1. The trailer hubs are marine grade.

      Helpful?

  5. What is the required minimum diameter of the center wheel opening to fit these hubs? Thank you!

    1 answer

    1. The center hole wheel opening is 3.46" in diameter.

      Helpful?

  6. Bearings

    Is the outer bearing an LM67048 or a 15123?

    1 answer

    1. The outer bearing on the hub is a model number RT15123. We do not carry a replacement bearing kit for this hub.

      Helpful?

  7. Hub Dimensions

    What is the dimension (distance) from the face of the inner bearing - to - the wheel mounting surface?

    The inner bearing face would be where it meets the shoulder of the spindle.

    1 answer

    1. This hub features an estimated distance of 1-3/8" from the face of the inner bearing to the wheel mounting surface.

      Helpful?

  8. which type of wheel fits this hub (item #)?

    1 answer

    1. The high speed hub will work with a 6 bolt wheel with a 5-1/2 inch bolt circle. The wheel item number 121281 or the tire/wheel assembly item number 13963 will work with this hub.

      Helpful?

  9. what kind of spindle will i use for this kind of hub?

    or do you guys offer the spindle for the hub

    1 answer

    1. The hub will require a spindle with an 1 1/4" outer bearing, 1 3/4" inner bearing, and a 2.13" or 2.25" seal. The item number 12199 spindle will work with the hub.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
