Ultra-Tow High Speed Trailer Hub, 5 on 4 1/2in., 1750-Lb. Capacity, Single

Item# 57206
Ultra-Tow High Speed Trailer Hub, 5 on 4 1/2in., 1750-Lb. Capacity, Single

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow High Speed Trailer Hub, 5 on 4 1/2in., 1750-Lb. Capacity, Single

Click or Tap image to Zoom

  • High speed marine grade hubs
  • High quality cast iron construction
  • Dust cap installation tool

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This heavy-duty Ultra-Tow hub is preassembled, prelubed with premium grease and ready for easy assembly on your trailer axle. Use the Ultra-Tow Easy ID to easily identify the components you need. Constructed with ductile cast iron for higher tensile strength, less deflection and excellent corrosion resistance. Electroplated to resist rust and corrosion.

What's Included

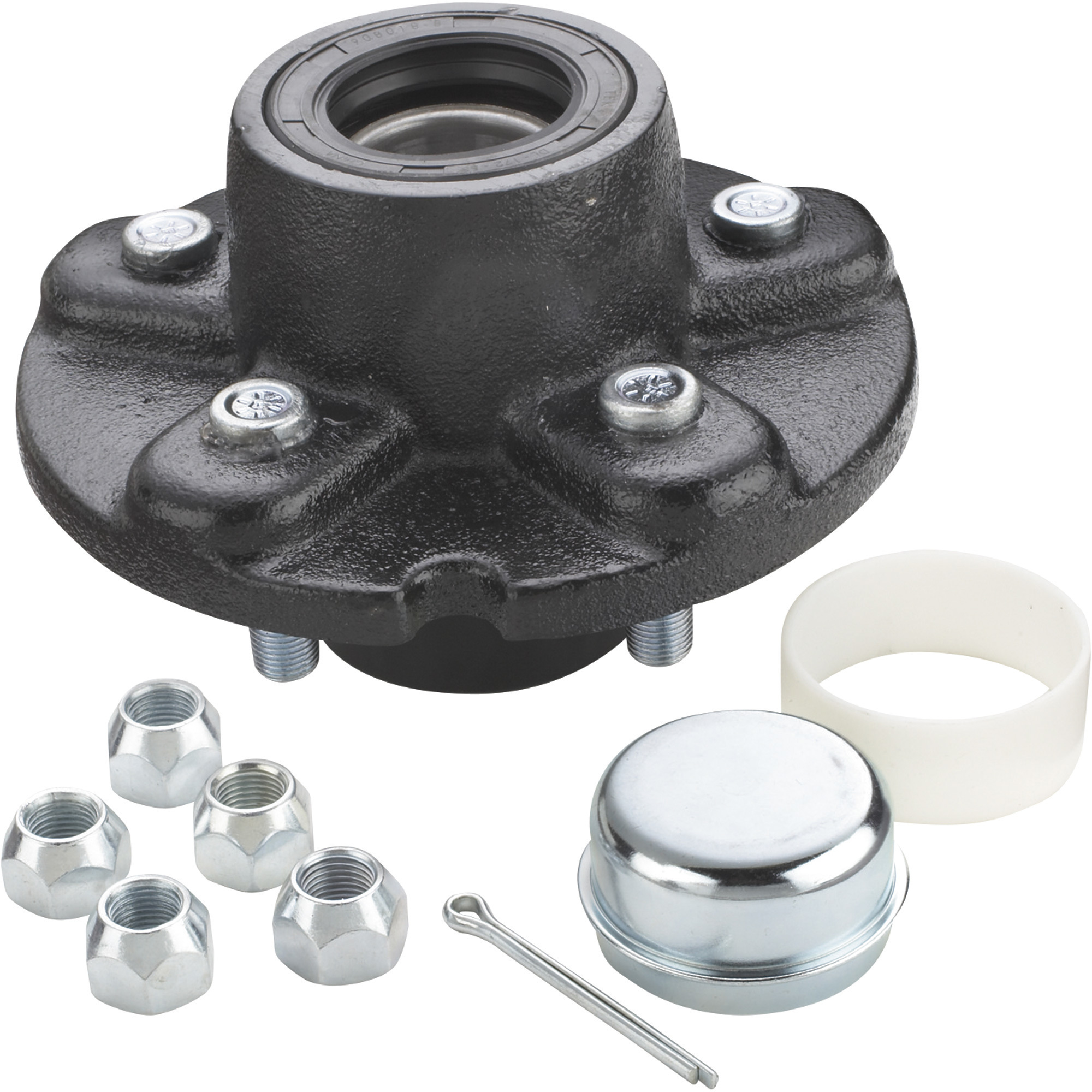

    (1) Hub assembly with bearing cup, studs, bearings and seal installed (1) Dust cap (1) Dust cap installation tool (1) Cotter pin (5) Lug nuts

Downloads

Product Manual
Play Item Video

Features + Benefits

  • High speed marine grade hubs
  • High quality cast iron construction
  • Dust cap installation tool

Key Specs

AttributeSpecification

item#

57206

Brand

Ultra-Tow

Manufacturer's Warranty

2 year limited warranty

Ship Weight

8.88 LB

Studs (qty.)

5

Bolt Circle Pattern

4.5 in
AttributeSpecification

Weight Capacity Each

1,750 lb

Seal Size ID

1.375 in

Bearing Size ID

1-3/8 in

Bearing Size OD

1-1/16 in

Spindle Size

1.72 in

Reviews

Questions & Answers

68 Reviews This action will navigate to reviews.

Questions

1–10 of 35 Questions
Sort by:

  1. Does this come with the castle nut?

    1. They do not come with the castle nut. I don't know why because they come with a cotter pin.

      Helpful?

    2. This high speed hub does not come with castle nut.

      Helpful?

  2. Is this the hub assembly that fits your 3500lb axle

    Is this the hub assembly that fits your reliable Underslung 71.25" 3500LB capacity axle? Looks like it is.

    1. The hub is designed to be used with a 3500 pound axle. The hub will work with axle item number 48193.

      Helpful?

    2. The most important thing to pay attention to is the size of the inner and outer bearings. Check the spindle size on the underslung axle for fit.
      Inner Bearing Size (in.)
      1 3/8
      Outer Bearing Size (in.)
      1 1/16
      Item #11126 has the 1750 lb capacity.

      Helpful?

  3. What wheels will fit this?

    1. This Ultra-Tow high speed hub will fit trailer wheels that have a 5 hole on 4-1/2 inch bolt circle pattern. The OD of the stub on the hub that will fit the center of the rim is 2 9/16". The wheel/tire assembly item number 121671 will work with the hub set.

      Helpful?

    2. Try a five lug rim of 10" or 12" inside diameter. They won't fit my standard 8" rims.

      Helpful?

  4. Is this 1750lbs for this hub…meaning it is designed for a 3500lbs trailer?

    1 answer

    1. The individual capacity of this hub is 1750 lbs. It is designed to be used with a 3500 lb. axle.

      Helpful?

  5. How could the ID be large than the OD?

    1 answer

    1. This hub has a tapered spindle. The inner bearing, #L68149 has a 1-3/8" ID. The outer bearing, #L44649, has a 1-1/6" ID.

      Helpful?

  6. Does it have a grease fitting hole

    1 answer

    1. This hub is not equipped with a grease Zerk. A similar hub that is equipped with a grease Zerk is our item 572061.

      Helpful?

  7. Do they require to be greased prior to install?

    1 answer

    1. These hubs come pre-greased.

      Helpful?

  8. What is the length of this hub from inside to outside when mounted on the spindle?  I need a hub that is 4” total length because my spindle is 4.5” long.

    1 answer

    1. The length of this hub assembly is 5.04".

      Helpful?

  9. WHAT IS THE INSIDE DIMENSION FOR THE TWO BEARINGS.

    1 answer

    1. The inner bearing has an inside diameter of 1-3/8" and the outer bearing has an inside diameter of 1-1/16".

      Helpful?

  10. What size lug nut does this item use?

    1 answer

    1. The lug nuts have a 25/32" outside diameter, 1/2" inside diameter and are 5/8" tall.

      Helpful?
