Ultra-Tow A-Frame Electric Trailer Tongue Jack, 3500-Lb. Capacity, 12 Volts

Item# 99500
"Ultra-Tow A-Frame Electric Trailer Tongue Jack, 3500-Lb. Capacity, 12 Volts"
Ultra-Tow A-Frame Electric Trailer Tongue Jack, 3500-Lb. Capacity, 12 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow A-Frame Electric Trailer Tongue Jack, 3500-Lb. Capacity, 12 Volts

Click or Tap image to Zoom

$169.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    5 in stock at Fredericksburg VA - Pickup in under 1 hr

  • 12V electric trailer jack has 3,500-lb. lift capacity
  • Quick-plug-in operation with prewired 7-way blade trailer connecter power supply with plug
  • Durable hardened steel gears with water-resistant motor cover
  • Easy-to-use switch for raising and lowering trailer in seconds
  • Motor has auto thermal protection to prevent damage to motor as a result of overheating

See full description

Complete Your Solution

  • Ultra-Tow A-Frame Electric Trailer Tongue Jack, 3500-Lb. Capacity, 12 Volts
  • Permatex Dielectric Grease 0.33 Oz., PERM81150
  • Ultra-Tow Spare Tire Carrier, 100-Lb. Capacity, Locking Bracket, Mounts to Trailer Tongue
  • SmartStraps RatchetX Aluminum Tie-Downs, 14ft.L, 3,000-Lb. Breaking Strength, 4-Pack, Orange, Model# 349
Price for all four:

$248.76

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ultra-Tow 12 Volt, 3,500-Lb. A-Frame Electric Trailer Tongue Jack makes coupling and uncoupling from the hitch on travel trailers and boat trailers an easier operation. Raise or lower any A-frame trailer in seconds with this 3,500-lb. electric trailer jack. It's quicker and easier than hand cranking. Use the quick-plug-in 7-way blade connector to hook up to the rear of the vehicle. No wiring needed, just plug and go. Features a built-in LED light for easy operation in the dark. Oversized adjustable foot pad provides excellent stability.

What's Included

    (1) Ultra-Tow 3,500-Lb., 12V A-Frame Electric Trailer Jack (1) Manual crank (1) Removable foot plate (1) Mounting hardware kit

Downloads

Product Manual

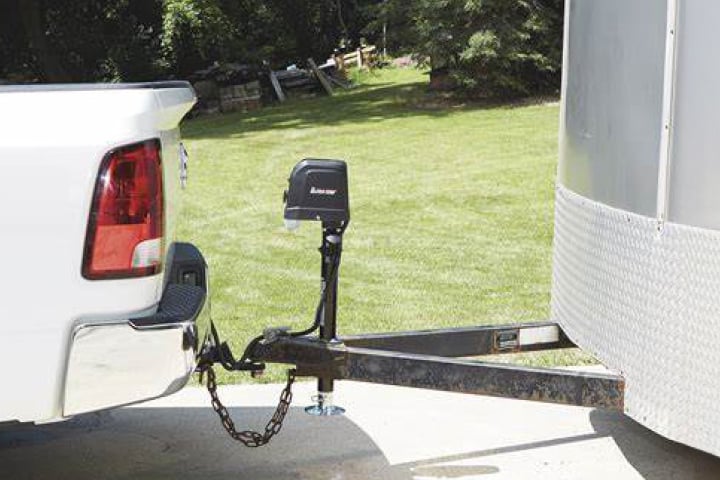

DURABILITY

Constructed with DURABLE HARDENED STEEL gears and a WATER-RESISTANT MOTOR cover to withstand the elements and rigorous use

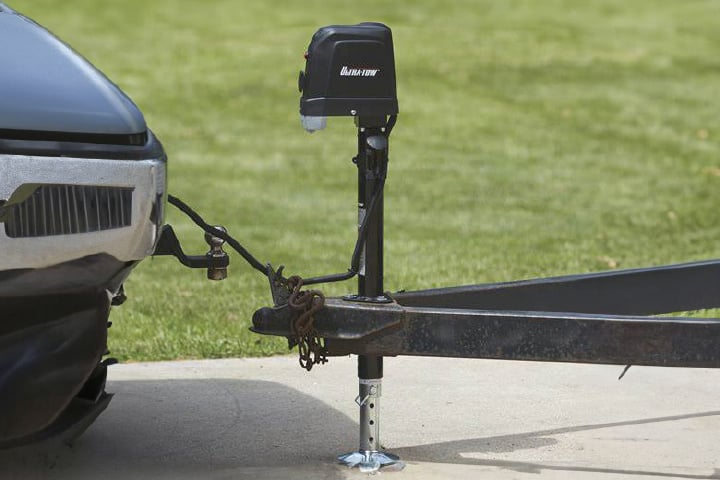

EASE OF USE

The simple switch operation allows for RAISING AND LOWERING THE TRAILER IN SECONDS, eliminating the physical strain and time consumption associated with hand cranking

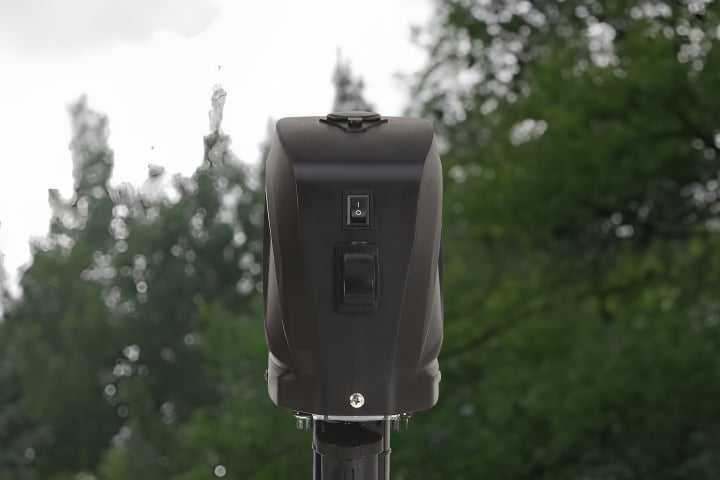

EMERGENCY PREPAREDNESS

Includes a manual crank option, ensuring that the trailer can be OPERATED EVEN IN THE EVENT OF A POWER FAILURE

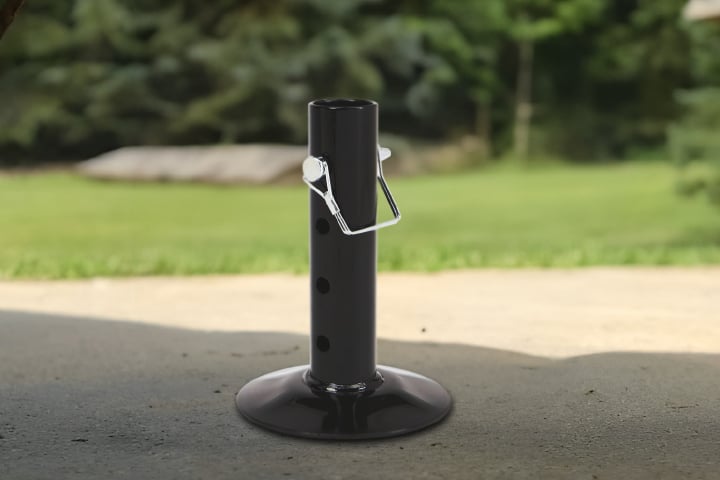

ADAPTABLE DESIGN

The ADJUSTABLE FOOT PAD not only provides SUPERIOR STABILITY but can also be modified to suit different ground surfaces and conditions

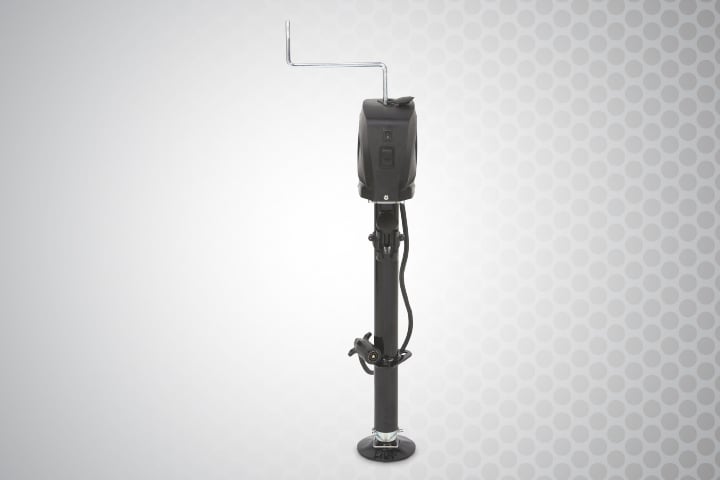

EFFICIENT OPERATION

The ADJUSTABLE FOOT PAD not only provides SUPERIOR STABILITY but can also be modified to suit different ground surfaces and conditions

Features + Benefits

  • 12V electric trailer jack has 3,500-lb. lift capacity
  • Quick-plug-in operation with prewired 7-way blade trailer connecter power supply with plug
  • Durable hardened steel gears with water-resistant motor cover
  • Easy-to-use switch for raising and lowering trailer in seconds
  • Motor has auto thermal protection to prevent damage to motor as a result of overheating
  • LED light for easy operation in the dark
  • Oversized adjustable foot pad provides excellent stability
  • A-frame lift range is 9in.–22.5in.H
  • Includes manual crank for emergency use

Key Specs

AttributeSpecification

item#

99500

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

24.6 LB

Lift Capacity

3,500 lb

Jack Type

A-Frame

Mount Type

Bolt-On

Length Extended

22.5 in

Length Retracted

9 in
AttributeSpecification

Clearance: Bracket to Jack Top

22 in

Support Capacity

5,000 lb

Ground Support

Foot Plate

Mount Height

9 in

Drop Leg Travel

4.5 in

Length of Travel

18 in

Product Weight

26.0000 lb

Dimensions L x W x H (in.)

37.2 x 10.8 x 7.08 in

Reviews

Questions & Answers

97 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. where can I buy another crank for my ultra jack I have lost mine

    1 answer

    1. Currently, parts are not available for this trailer jack.

      Helpful?

  2. If unplugged battery dead can you just plug in to truck and power will operate jack

    1 answer

    1. This jack is equipped with a quick-plug-in 7-way blade connector to hook up to the rear of the vehicle for power.

      Helpful?

  3. What is the mounting hole width?

    1 answer

    1. The mounting holes measure 0.75" (19mm) x 0.41" (10.5mm).

      Helpful?

  4. How heavy of a trailer will this jack lift

    1 answer

    1. This jack has a lifting capacity of 3,500 lbs.

      Helpful?

  5. What is the speed of this jack?

    1 answer

    1. At no Load up & down speed: 87S/18". Under Load Speed: Up 145S/18", Down 90S/18".

      Helpful?

  6. cuctomer has an inteligent brake system that does not recognize the jack when plugged in what do you do for this?

    1 answer

    1. There is no "universal" plug to use this jack with different vehicles and brake systems. To resolve this issue, our suggestion is to move the “black hot” wire on the connector to match the vehicle. The 7-way connector has 7 metal terminals installed in the connector, but only the black and white wires are necessary to power the jack. Move the black wire to a different location to bypass the computer issue so the plug can get power and allow the jack to function properly.

      Helpful?

  7. What is the amp draw at full lift capacity??

    1 answer

    1. Under a full load of 3500 lbs. this has a maximum draw of 30 amps.

      Helpful?

  8. What is the retracted length below the mounting flange

    1 answer

    1. The retracted length below the mounting flange is 9".

      Helpful?

  9. What is the diameter of the main outer shaft

    1 answer

    1. The jack tube size is 2 1/4". The will fit a 2 1/4" mounting hole.

      Helpful?

  10. What is diameter of extended tongue tube 9that attaches to foot pad)

    1 answer

    1. The extended tongue tube that attaches to the foot pad is 1.73" (44mm) in diameter.

      Helpful?
