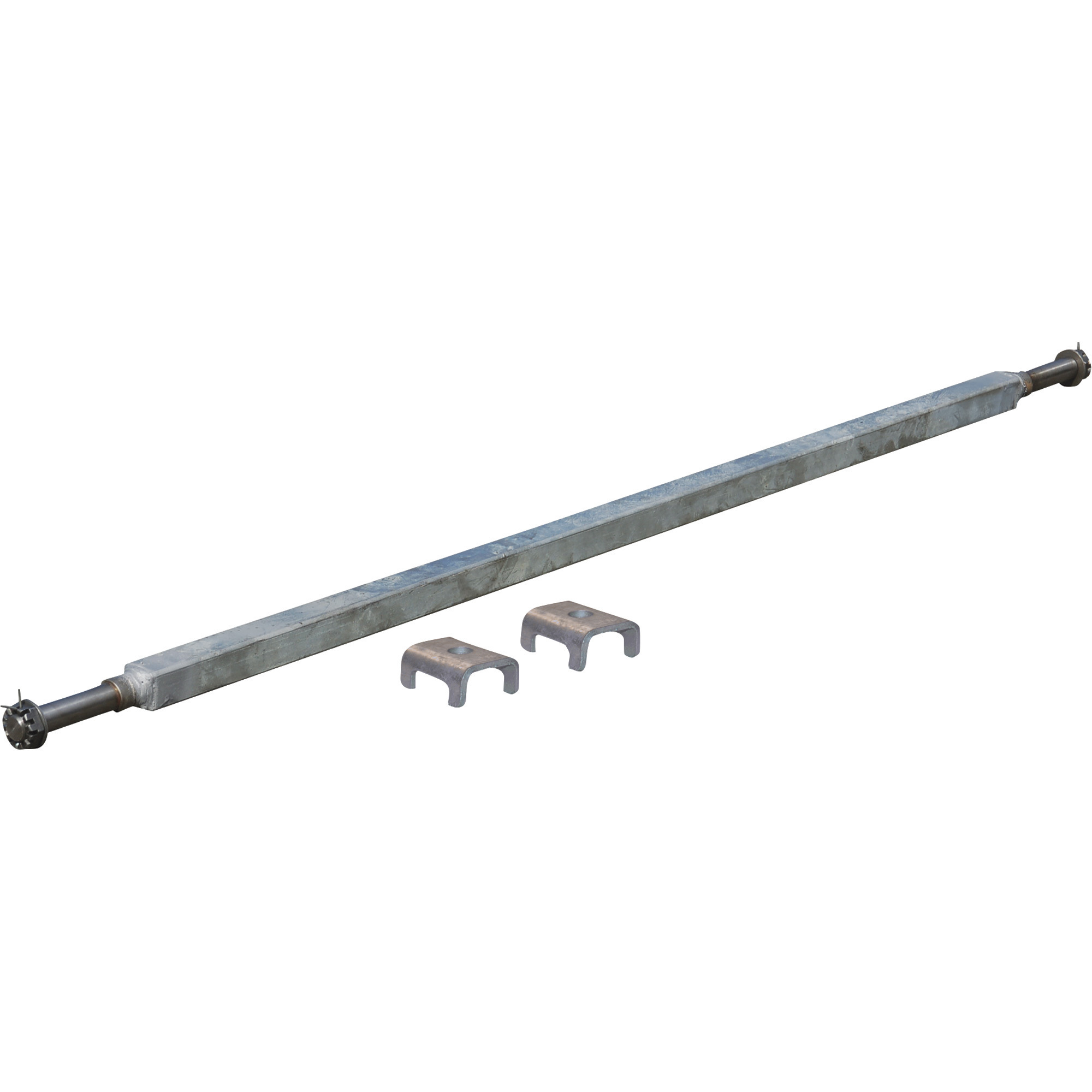

Ultra-Tow 2000-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 54in. Hub Face, 38in.–44in. Spring Center, 59in.L, Straight

Item# 49090
"Ultra-Tow 2000-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts — 54in. Hubface, 38in.–44in. Spring Center, 59in.L, Straight"
Ultra-Tow 2000-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 54in. Hub Face, 38in.–44in. Spring Center, 59in.L, Straight

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow 2000-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 54in. Hub Face, 38in.–44in. Spring Center, 59in.L, Straight

Click or Tap image to Zoom

  • Adjustable spring mounts offer a variety of mounting positions
  • Fast Lube spindles allow you to re-grease the bearings without removing the hubs
  • Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal
  • 1.5in. square tube steel axle is hot dip galvanized with adjustable spring centers
  • Can be under- or overslung

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The rugged Ultra-Tow Spring Trailer Axle with adjustable spring mounts features Fast Lube spindles that allow you to re-grease the bearings without removing the hubs (hubs not included). Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal. Adjustable spring mounts offer a variety of mounting positions. Square tube steel axle is hot dip galvanized, has adjustable spring centers and can be under- or overslung. Axle includes castle nuts, cotter pins and washers. Made in the U.S.A.

What's Included

    (1) Axle beam with adjustable spring mounts (1) Hardware kit (castle nuts, cotter pins, washers)

Features + Benefits

  • Adjustable spring mounts offer a variety of mounting positions
  • Fast Lube spindles allow you to re-grease the bearings without removing the hubs
  • Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal
  • 1.5in. square tube steel axle is hot dip galvanized with adjustable spring centers
  • Can be under- or overslung
  • Straight axle
  • 2,000-lb. capacity
  • 54in. hub face
  • 38in.–44in. adjustable spring centers
  • 59in. overall length
  • 1-1/16in. inner bearing
  • 1-1/16in. outer bearing
  • 1-1/4in. seal

Key Specs

AttributeSpecification

item#

49090

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.6 LB

Max. Spring Centers Length

44 in

Min. Spring Centers Length

38 in

Weight Capacity

2,000 lb

Product Type

Spring Axle

Axle Tube Type

Square

Seal Size ID

1.25 in
AttributeSpecification

Bearing Size ID

1.063 in

Bearing Size OD

1.063 in

Axle Outside Diameter

1.5 in

Springs Included

No

Cambered

No

Hubs Included

No

Brakes Included

No

Track Length

54 in

Adjustable Bracket

Yes

Reviews

Questions & Answers

37 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. What length is bearing surface only? Not including thread/seal area. Previous Q&A states square tube alone was 54” long which only leaves 2.5”/side for hub on 59” axle. Castle nut size? Thanks

    1 answer

    1. The length of the bearing surface without the thread/seal is 3.38". The bearings are 1.0625". The castle nut is 1"-14.

      Helpful?

  2. What's the spindle size?

    1 answer

    1. The spindle measures 4-13/16" long overall. This is measured from the end of the threaded section to the end of the 1-1/4" diameter seal section. It measures 3-3/8" long not including the threaded end. The diameter of the spindle is 1-1/16".

      Helpful?

  3. How long is the round axle stem? I need 4" replacing a 59" an 1.5"square overall length axle will this work?

    1 answer

    1. The smaller diameter section of the spindle measures 4.18" to the very end of the spindle (including threads).

      Helpful?

  4. I have hubs on hand that have 1 1/16" bearings, but their grease seal is 1 1/2". Will those work with this axle, which has a 1 1/4" grease seal? Thanks

    1 answer

    1. The seal size should also match up to prevent any grease from leaking too much.

      Helpful?

  5. CAN THIS BE USED WITH REGULAR TIRES THAT DONT NEED HUBS FOR A LAWN TRAILER

    1 answer

    1. If used without hubs, the spindle on this axle requires wheels with a 1-1/16" inner and outer bearing bore diameter.

      Helpful?

  6. Is the axle hollow?

    1 answer

    1. The tube axles are hollow.

      Helpful?

  7. What other parts do I need to complete the axle with hubs? Going to want a 4 lug hub.

    1 answer

    1. Please see our item #57224 and 572241 for 4-lug hubs that fit this axle.

      Helpful?

  8. What size spring leaf center bolt fits this spring mount

    1 answer

    1. The bolt hole size for the spring seat is 5/8".

      Helpful?

  9. How do the hubs attach to this axle?

    1 answer

    1. This axle will include castle nuts and cotter pins to keep the hubs on the spindles of this axle.

      Helpful?

  10. Is it galvanized

    1 answer

    1. This is a hot dipped galvanized axle.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Trailer Hubs

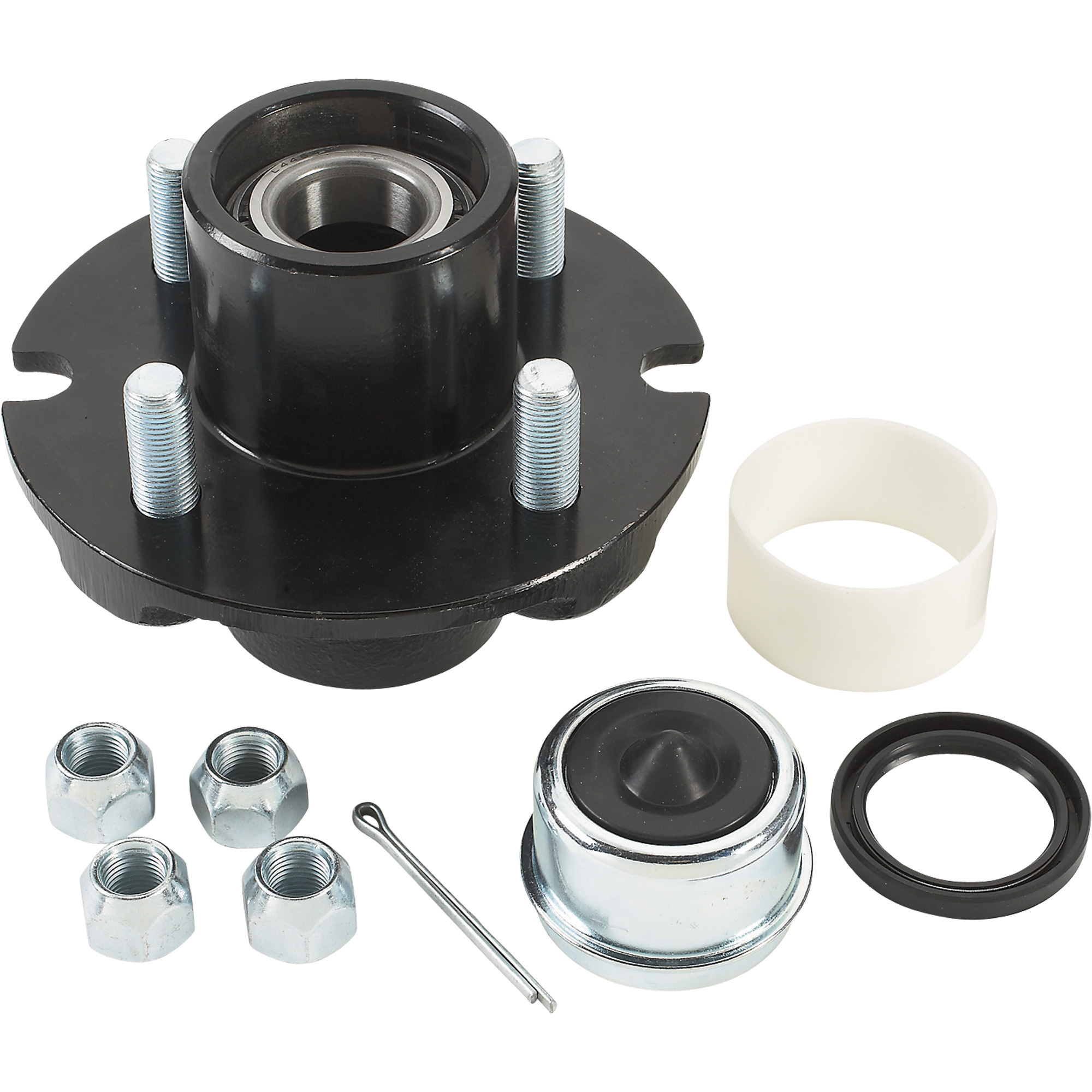

Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in., 1350-Lb. Capacity
4.7 out of 5 stars. 20 reviews

Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in., 1350-Lb. Capacity

Item # 572241

$71.99
Reg $79.99Save $8.00

Order today to get this price.

See All Trailer Hubs

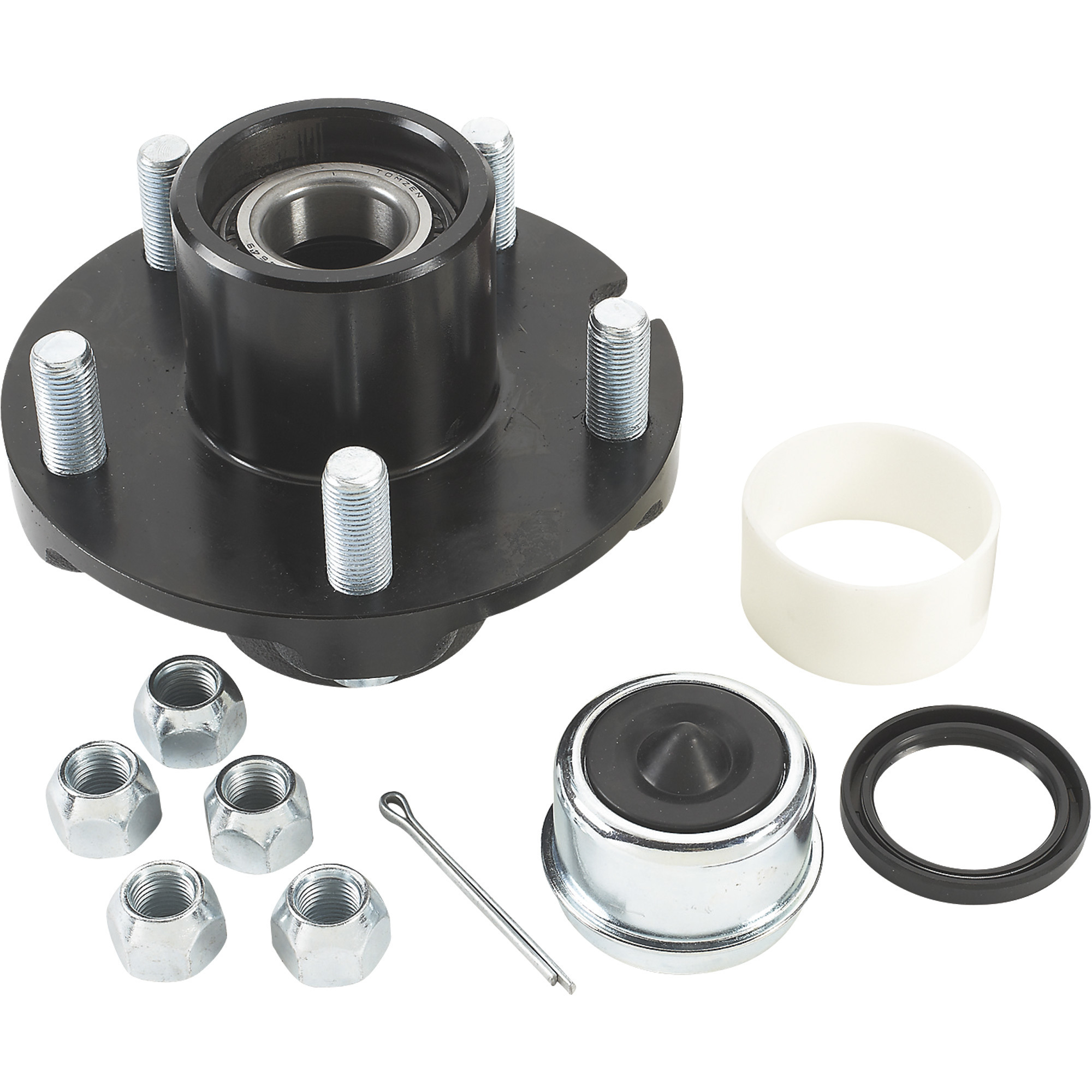

Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1350-Lb. Capacity
