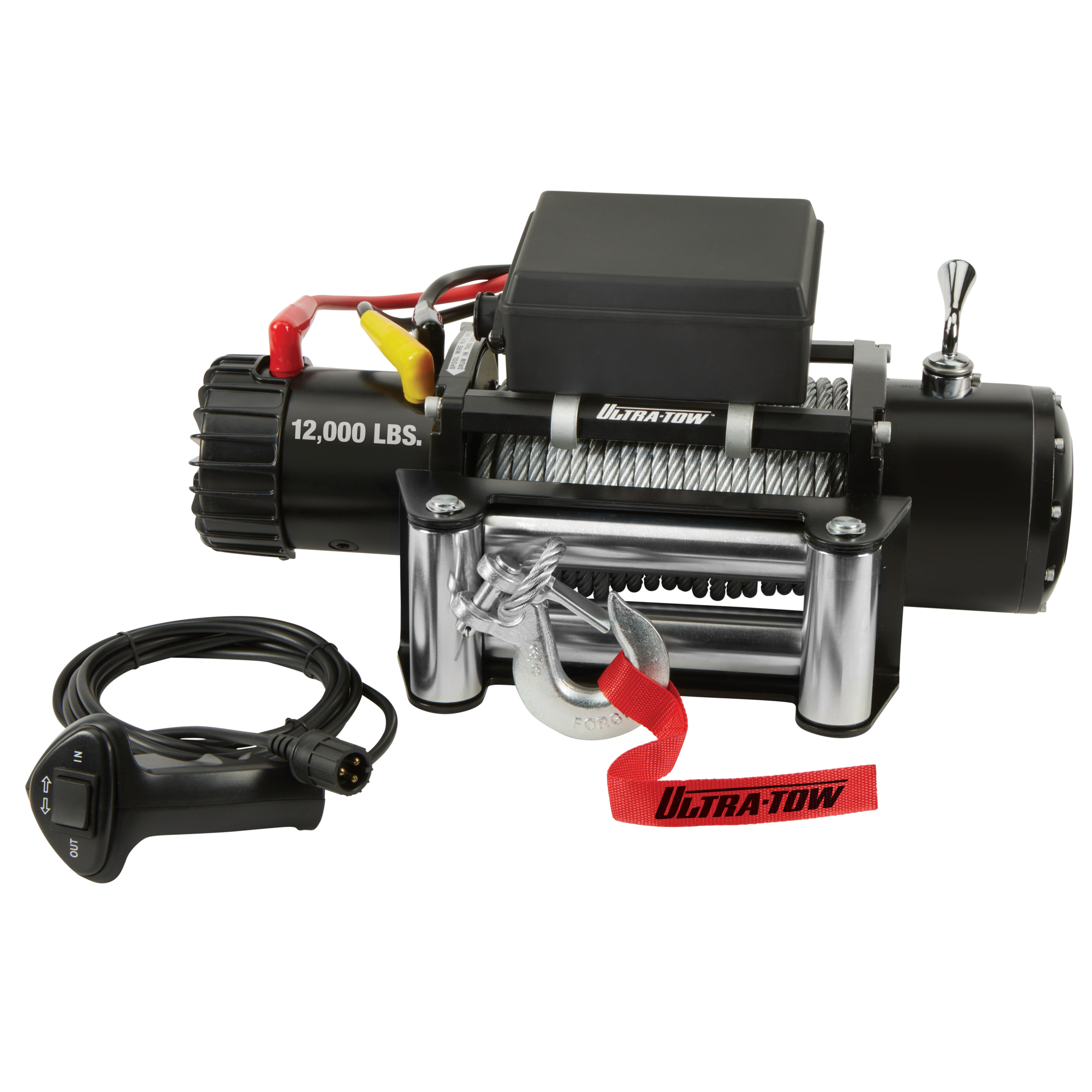

Ultra-Tow 12 Volt DC-Powered Off-Road Vehicle Winch, 12,000-Lb. Capacity, Galvanized Wire Rope

Item# 4995869
"Ultra-Tow 12 Volt DC-Powered Off-Road Vehicle Winch, 12,000-Lb. Capacity, Galvanized Wire Rope"
Top Seller
Ultra-Tow 12 Volt DC-Powered Off-Road Vehicle Winch, 12,000-Lb. Capacity, Galvanized Wire Rope

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow 12 Volt DC-Powered Off-Road Vehicle Winch, 12,000-Lb. Capacity, Galvanized Wire Rope

Click or Tap image to Zoom

$389.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Powerful 12V, 6 HP motor delivers up to 380 Amps max. and 12,000-lb. capacity line pull
  • Self-locking brake and auto load holding for safe operation
  • Planetary gears with 265:1 gear ratio
  • 22 ft./min. line speed
  • 92ft.L x 3/8in. dia. strong and durable galvanized steel wire winch rope

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Ultra-Tow 12 Volt DC-Powered Off-Road Vehicle Winch with 12,000-lb. pulling capacity delivers exceptional power and performance in the field. The winch is powered by a 12V, 6 HP motor that goes exactly where you need it to go and is extra tough to stand up to the task at hand. Includes a roller fairlead, hook and mounting hardware.

What's Included

    (1) Winch (1) Fairlead (1) Hook (1) Set of mounting hardware

Downloads

Product Manual

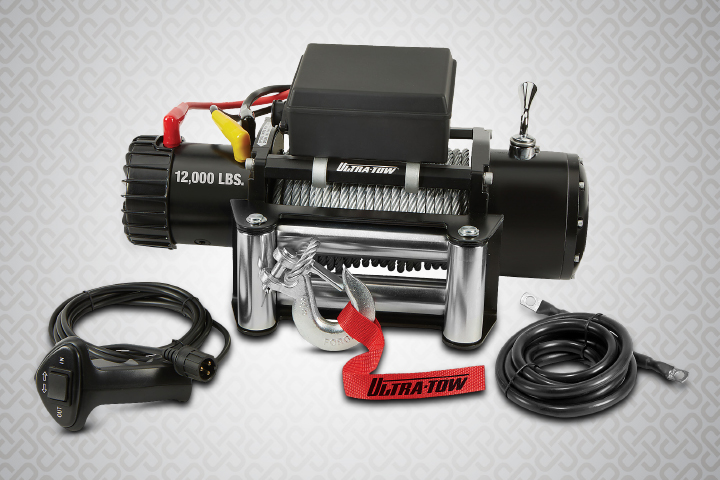

VERSATILE MOUNTING

The winch includes a ROLLER FAIRLEAD and MOUNTING HARDWARE, facilitating various mounting options to suit different vehicle SETUPS and RECOVERY REQUIREMENTS


RAPID DEPLOYMENT

FEATURES A CONVENIENT FREESPOOLING setting for fast and easy line out, increasing efficiency and readiness for use

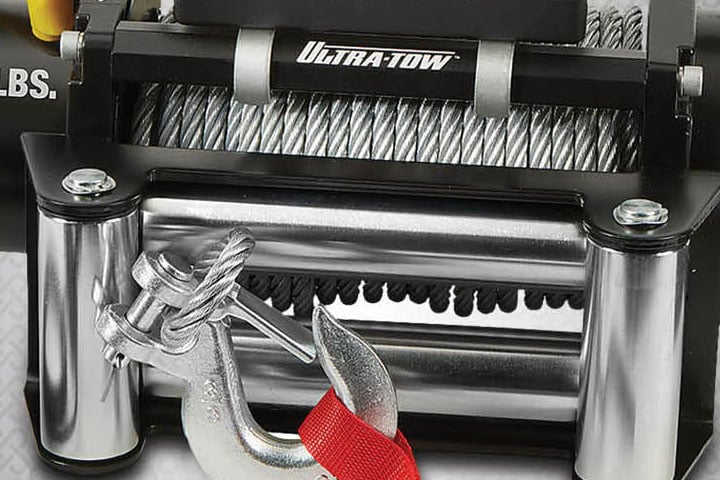

LONG-LASTING DURABILITY

The GALVANIZED STEEL WIRE ROPE is engineered for strength and durability, capable of handling intense loads and harsh conditions without FRAYING OR BREAKING

Features + Benefits

  • Powerful 12V, 6 HP motor delivers up to 380 Amps max. and 12,000-lb. capacity line pull
  • Self-locking brake and auto load holding for safe operation
  • Planetary gears with 265:1 gear ratio
  • 22 ft./min. line speed
  • 92ft.L x 3/8in. dia. strong and durable galvanized steel wire winch rope
  • Remote control with 12ft. cord for quick and easy control from up to 12ft. away from the winch
  • Convenient freespooling setting for fast and easy line out
  • Comes complete with roller fairlead, hook and mounting hardware
  • DC-powered operation

Key Specs

AttributeSpecification

item#

4995869

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

86.0 LB

Horsepower

6 HP

Capacity (Line Pull)

12,000 lb

Volts

12

Max. Amps

380

Application

Truck

Gear Type

Planetary

Line Speed

22 ft./min.

Gear Ratio

265:1

Rope Length

92 ft
AttributeSpecification

Rope Diameter

3/8 in

Rope Material

Galvanized Steel

Brake Type

Self-Locking

Remote

Yes

Remote Cord Length

12 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Roller

Underwater Use

Yes

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

21.0 x 6.0 x 9.0 in

Product Weight

84.0000 lb

Reviews

Questions & Answers

94 Reviews This action will navigate to reviews.

Questions

1–10 of 41 Questions
Sort by:

  1. Your video show a hitch mount, does the hitch mount come with the winch?

    If the hitch mount is not included with the winch, can it be mounted in a standard winch mount tray?

    1. A hitch mount is not included. Please see our item #54130 for a hitch mount that can be used with this winch.

      Helpful?

    2. NO IT DOSEN'T

      Helpful?

  2. Can this winch be mounted upside down

    1 answer

    1. This winch is not designed to be mounted upside down or used for lifting applications.

      Helpful?

  3. How does this winch hold up under long pulls

    1 answer

    1. This winch is designed for intermittent use only. Keep the duration of the pulling job as short as possible. If the motor becomes very hot to the touch, stop and let it cool down for several minutes. Do not pull the load. Do not maintain power to the winch if the motor stalls. Double line rigging will help prevent overloading and should be used whenever practical.

      Helpful?

  4. Can I buy a new seiloid box for this 12000pd wench?

    1 answer

    1. The control box assembly is part number UT4995869.32. Parts are no longer available through Northern Tool. To order, please contact our sister company Jacks Small Engines through the link provided. https://jackssmallengines.com/

      Helpful?

  5. Is the solenoid removable to be relocated?

    1 answer

    1. The solenoid box can be moved. It should be mounted in a place near enough to the winch to allow the cables to be routed properly.

      Helpful?

  6. how does it wire up

    1 answer

    1. Plan a route for the wiring from the point of the vehicle where the winch will be mounted, or used,
      to the battery. This route must be secure, out of the way of moving parts, road debris, or any
      possibility of being damaged by operation or maintenance of the vehicle. For example, you may
      wish to route the wires under the vehicle, attaching it to the frame using suitable fasteners. Do not
      attach the wires to the exhaust system, drive shaft, emergency brake cable, fuel line, or any other
      components which may create damage the wiring through heat or motion, or create a fire hazard.

      If you drill through the bumper or any part of the body to route the wires, be sure to install a rubber
      grommet in the hole to prevent fraying of the wires at that point.

      Route the cables from the solenoid to the battery and from the solenoid to the winch, following the
      precautions discussed above.

      Attach the red, black, and yellow cables to the terminals on the winch. The winch terminals are
      color-coded.

      Attach the black battery cable directly to the negative terminal of the battery.

      Lift the socket cover exposing the electrical switch connector. Insert the pendant connector into
      the socket.

      Note:
      The attachment of the motor cables determines the direction of the pendant controller’s button.
      After the unit is mounted and powered, check the direction of the power IN and power OUT on the
      pendant controller button, if you wish to change the direction on the pendant controller, disconnect
      the battery cables from the battery, switch the motor cable connections on the motor assembly,
      then reconnect the battery cables.

      Helpful?

  7. Replacement clutch lever part number?

    1 answer

    1. The clutch lever is not available as a replacement part at this time.

      Helpful?

  8. Need remote

    1 answer

    1. Parts are no longer available for this winch.

      Helpful?

  9. Can the winch be plugged-in and powered at the vehicle’s trailer light connection?

    1 answer

    1. The winch is unable to be powered by the trailer light connection. The winch will need to be attached directly to the vehicles battery.

      Helpful?

  10. How can I get a replacement control box and mounting hardware?

    1 answer

    1. The control box assembly, part #UT4995869.32, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability. The mounting hardware is currently not available as a separate part, it may be found locally.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
