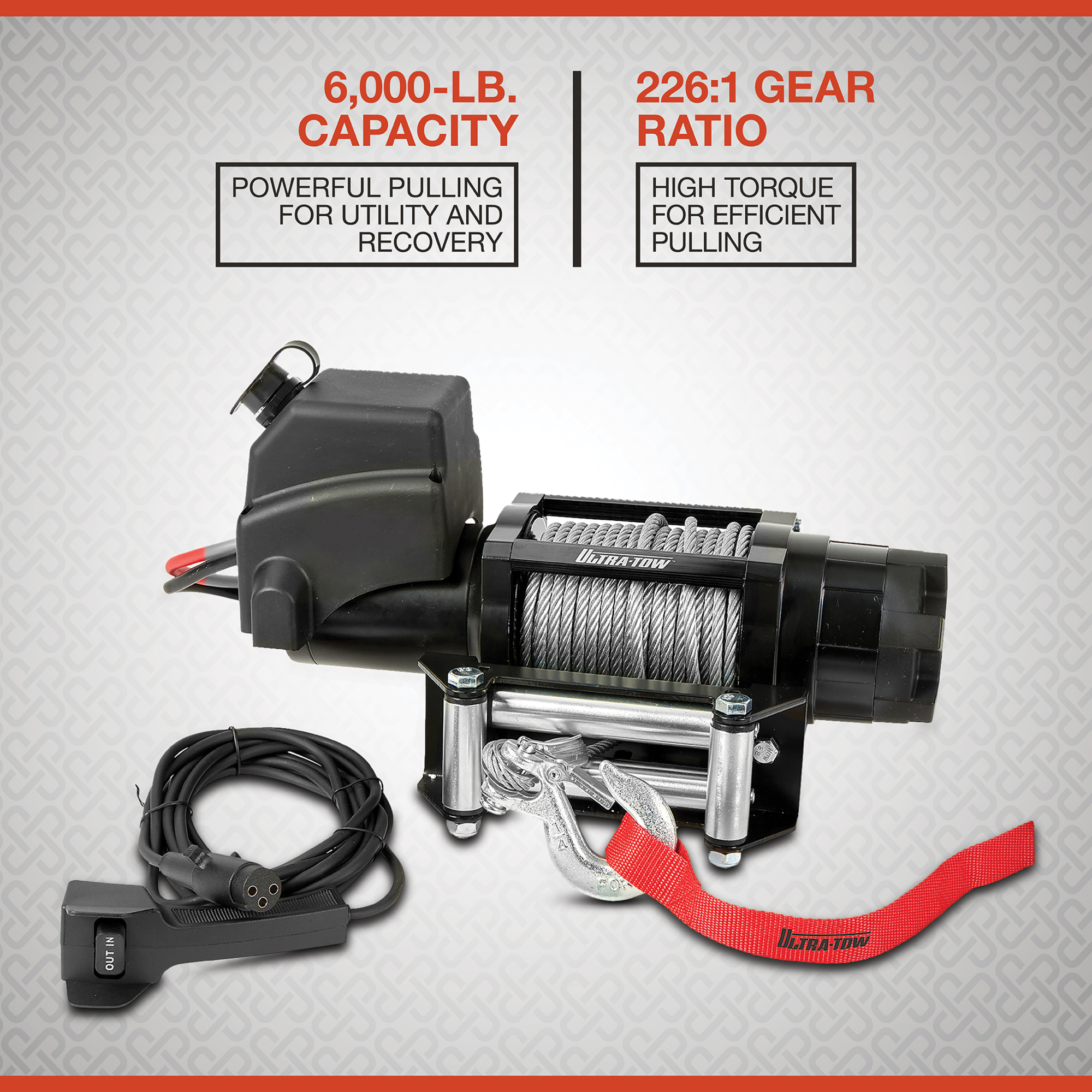

Ultra-Tow 12 Volt DC-Powered ATV/UTV Winch, 6000-Lb. Capacity, Galvanized Wire Rope

Item# 4995826
"Ultra-Tow 12 Volt DC-Powered ATV/UTV Winch, 6000-Lb. Capacity, Galvanized Wire Rope"
Top Seller
Ultra-Tow 12 Volt DC-Powered ATV/UTV Winch, 6000-Lb. Capacity, Galvanized Wire Rope

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow 12 Volt DC-Powered ATV/UTV Winch, 6000-Lb. Capacity, Galvanized Wire Rope

Click or Tap image to Zoom

$219.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Powerful 12V, 1-1/2 HP motor delivers up to 180 Amps max. and 6,000-lb. capacity line pull
  • Self-locking brake and auto load holding for safe operation
  • Planetary gears with 226:1 gear ratio
  • 13 ft./min. line speed
  • 55ft.L x 1/4in. dia. strong and durable galvanized steel wire winch rope

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Ultra-Tow 12 Volt DC-Powered ATV/UTV Winch with 6,000-lb. pulling capacity delivers dependable power and performance in the field. The winch is powered by a 12V, 1-1/2 HP motor that goes where you need it to go and is tough enough to stand up to the task at hand. Includes a roller fairlead, hook and mounting hardware.

What's Included

    (1) Ultra-Tow 12 Volt DC-Powered ATV/UTV Winch (1) Roller fairlead (1) 55ft.L x 1/4in. wire rope with hook (1) Set of mounting hardware

Downloads

Product Manual

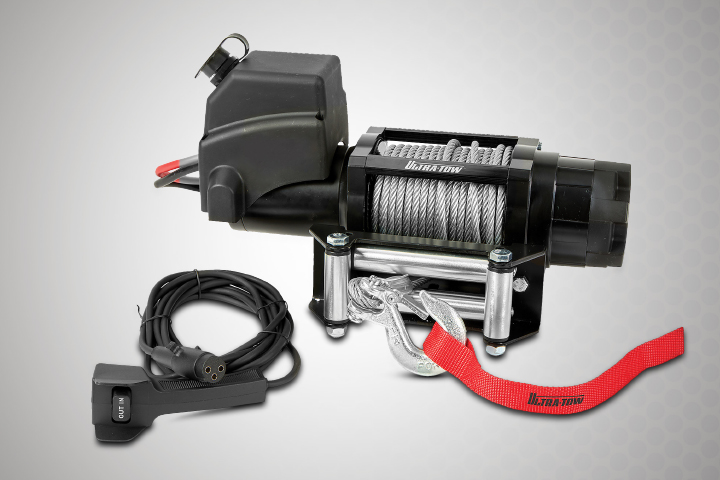

VERSATILE PERFORMANCE

Ideal for a WIDE RANGE OF APPLICATIONS, from recreational ATV PULLS to more serious UTV UTILITY TASKS, offering flexibility in various field conditions

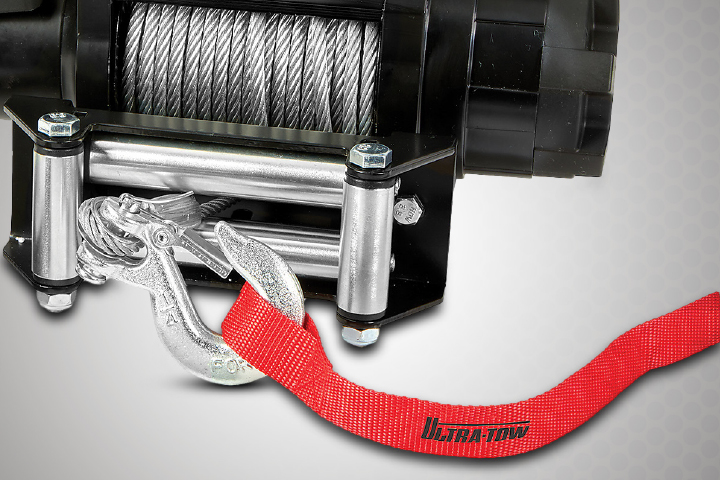

BUILT TO LAST

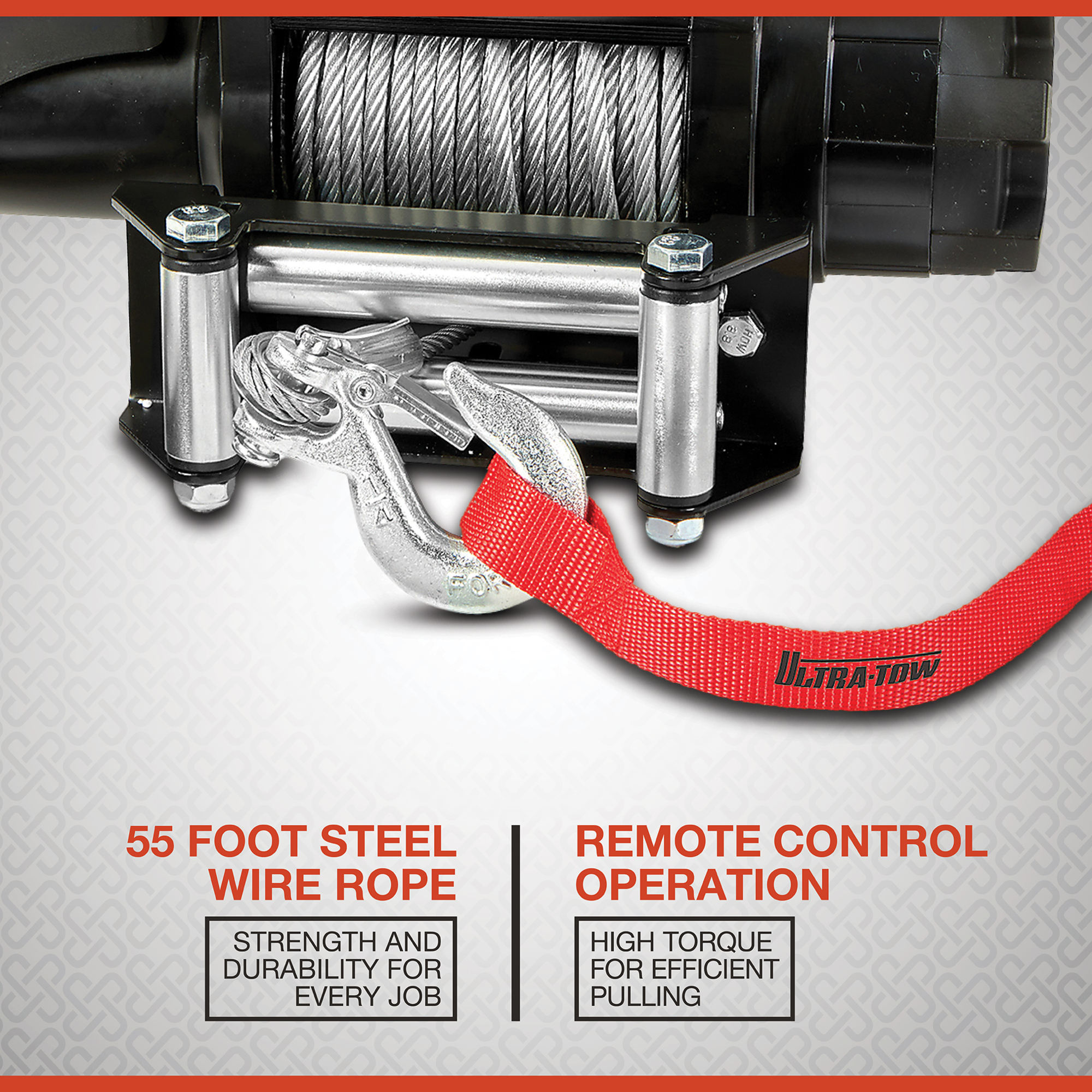

Constructed with a RUGGED ROLLER FAIRLEAD that reduces WEAR ON THE WIRE ROPE, extending the lifespan of both the rope and the winch

Features + Benefits

  • Powerful 12V, 1-1/2 HP motor delivers up to 180 Amps max. and 6,000-lb. capacity line pull
  • Self-locking brake and auto load holding for safe operation
  • Planetary gears with 226:1 gear ratio
  • 13 ft./min. line speed
  • 55ft.L x 1/4in. dia. strong and durable galvanized steel wire winch rope
  • Remote control with 12ft. cord for quick and easy control from up to 12ft. away from the winch
  • Convenient freespooling setting for fast and easy line out
  • Comes complete with roller fairlead, hook and mounting hardware
  • DC-powered operation

Key Specs

AttributeSpecification

item#

4995826

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

36.0 LB

Horsepower

1.5 HP

Capacity (Line Pull)

6,000 lb

Volts

12

Max. Amps

180

Application

Utility

Gear Type

Planetary

Line Speed

13 ft./min.

Gear Ratio

226:1

Rope Length

55 ft
AttributeSpecification

Rope Diameter

1/4 in

Rope Material

Galvanized Steel

Brake Type

Self-Locking

Remote

Yes

Remote Cord Length

12 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Roller

Underwater Use

Yes

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

15.0 x 5.0 x 5.0 in

Product Weight

31.0000 lb

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. How can it be attached to a receiver hitch mount on the deck of my car trailer?

    1 answer

    1. At this time, we do not offer a receiver hitch mount for this winch. This winch includes a mounting plate and hardware. The receiver hitch would need to be adapted to the mounting plate.

      Helpful?

  2. How to use with out the remote

    1 answer

    1. The remote is required for operating this winch.

      Helpful?

  3. I need the hand held switch for item #4995826

    1 answer

    1. At this time, replacement parts are not available for this winch.

      Helpful?

  4. I see this comes with 55' of cable. Can a longer cable be installed in place of the 55' cable.

    1 answer

    1. This winch was designed and tested with the 55' cable. We do not recommend modifying the winch in any way as it may affect the winch's performance and would void the warranty.

      Helpful?

  5. Am I able to purchase a wireless remote for this winch? I thought this winch came with a wireless remote.

    1 answer

    1. A wireless remote is currently not available for this winch.

      Helpful?

  6. what is the purpose of the box looking thing on the left side top of the unit. Appears to have a cap for some reason

    1 answer

    1. The box on the left side of the winch in the photo is the solenoid cover. The cap on top of that is where the remote control switch plugs in.

      Helpful?

  7. Will it power out as well as power in. Like forward and reversed with motor.

    1 answer

    1. This winch has power-in and power-out functions which can be controlled by the included remote.

      Helpful?

  8. Where are they manufactured?

    1 answer

    1. This winch is manufactured in China.

      Helpful?

  9. What are the mounting hole dimensions for the 6000 pound ultra tow winch?

    1 answer

    1. The mounting pattern measures 6-5/8" W x 3" H.

      Helpful?

  10. Will this run from just a battery or does it need to be hooked up to a running vehicle?

    1 answer

    1. This is recommended to be connected to the vehicle battery as it does require a 12V battery with a minimum of 650 CCA (cold cranking amps).

      Helpful?
