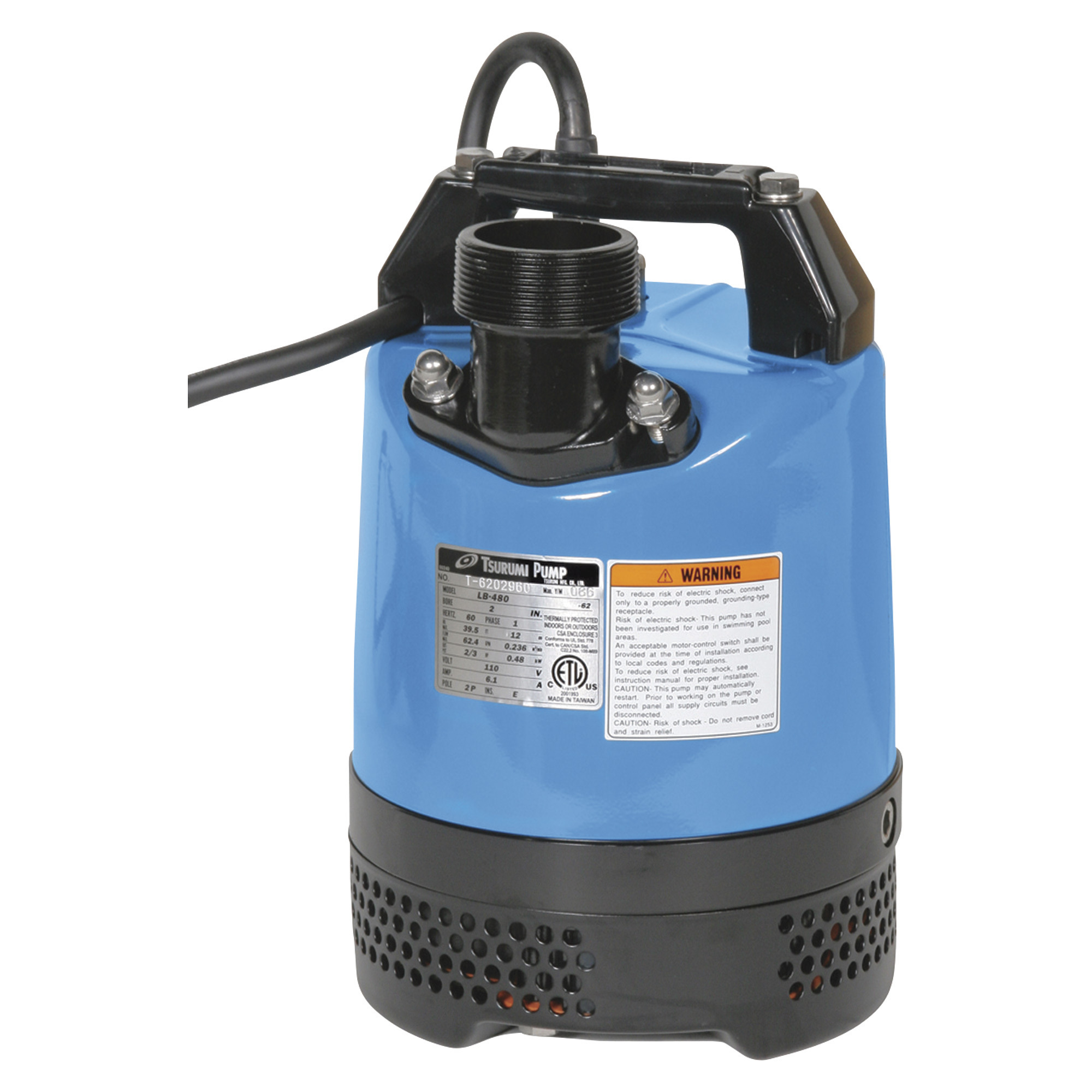

Tsurumi Submersible Water Pump, 3,810 GPH, 2/3 HP, 2in. Port, Model# LB-480-62

Item# 10980
Tsurumi Submersible Water Pump, 3,810 GPH, 2/3 HP, 2in. Port, Model# LB-480-62

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tsurumi Submersible Water Pump, 3,810 GPH, 2/3 HP, 2in. Port, Model# LB-480-62

Click or Tap image to Zoom

$450.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Patented oil lifter provides seal face lubrication down to 1/3 of the normal level and extends seal life by ten times
  • Urethane rubber-coated impeller is more abrasion-resistant and lasts up to 3 times longer than a cast iron impeller
  • Double inside mechanical seal with SIC faces provides a long operational life
  • V-ring seal protector protects mechanical seal from abrasive particles
  • Motor has built-in protector

See full description

Complete Your Solution

  • Tsurumi Submersible Water Pump, 3,810 GPH, 2/3 HP, 2in. Port, Model# LB-480-62
  • JGB Enterprises Water Pump Discharge Hose, 2in. x 25ft., Model# A008-0321-1625
Price for all two:

$549.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Tsurumi Pumps Submersible Water Pump is compact with excellent motor cooling efficiency. Allows continuous-duty operation at low water levels, plus extended dry run capability. Designed to pump sands and debris with minimal wear and clogging. V-ring system protects shaft seal from abrasives. Silicon carbide-faced mechanical seal. 2in. discharge bore. Includes 32ft. cable. Not for use in fish ponds.

What's Included

    (1) Submersible water pump (1) Cable

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Patented oil lifter provides seal face lubrication down to 1/3 of the normal level and extends seal life by ten times
  • Urethane rubber-coated impeller is more abrasion-resistant and lasts up to 3 times longer than a cast iron impeller
  • Double inside mechanical seal with SIC faces provides a long operational life
  • V-ring seal protector protects mechanical seal from abrasive particles
  • Motor has built-in protector
  • Discharge rotates 45°
  • Pumps down to 3 1/2in.
  • Surge Amperage: 30.5
  • Continuous Amperage: 6.1

Key Specs

AttributeSpecification

item#

10980

Brand

Tsurumi Pump

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

27.0 LB

Max. Flow

3,810 GPH
AttributeSpecification

Volts

110

Amps

5.4

Power Cord Length

384 in

Horsepower

0.66

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. what are the dimensions of this pump

    1 answer

    1. The diameter of pump is 7 3/8'' and the height is 11 3/16''.

      Helpful?

  2. Does this pump come with or have an optional flote

    1 answer

    1. The Tsurumi Submersible Water Pump does not have an optional float switch available.

      Helpful?

  3. Could this pump be connected to a external pressure tank ?

    I would like to put a submersible pump into my 5000 gal storage tank, and have a small 4 gal pressure tank to supply 20 psi water pressure. I would have a 20 psi electrical shutoff switch in series with the motor.
    Would this pump work to supply 20 psi / 10 GPM system?

    1 answer

    1. The Tsurumi Submersible Water Pump has an output rating of 3810 gallons per hour (63.5 gallons per minute) and thereby would not be an ideal fit for a system running at 10 gallons per minute without some modification, such as a feeder tank that the pump could fill and then have the tank gravity feed the lower flow pressure tank system.

      Helpful?

  4. can this pump be converted to a battery in my truck?

    1 answer

    1. This pump is an AC 110 volt pump. An inverter could be used to change the current from a truck battery/electric system from DC 12 Volt to AC 110 volt to power something like this pump. The inverter would have to be capable of handling the wattage and amperage requirements of this pump.

      Helpful?

  5. the right water pump

    I have a seasonal creek when running is a couple of feet deep. I have an adjacent stock pond(25 ft head) that I would like to pump water into. I do have power available

    1 answer

    1. The Tsurumi Submersible Water Pump is designed to move clean, clear water. If you would like to use a submersible in a creek, Northern recommends using a trash pump, which can handle small solids and debris that may be present in the creek. See link below.

      Helpful?

  6. Can this pump be used in ingroung swimming pool?

    1 answer

    1. Yes, The Tsurumi Pump can be used in a pool. We do sell pool pumps.

      Helpful?

  7. why can this not be used in a fish pond

    1 answer

    1. This Tsurumi Pumps submersible water pump is manufactured with oil that will harm fish.

      However, the oil can be removed and replaced with an FDA approved non-toxic oil, not harmful to fish.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

24 months parts/24months labor
