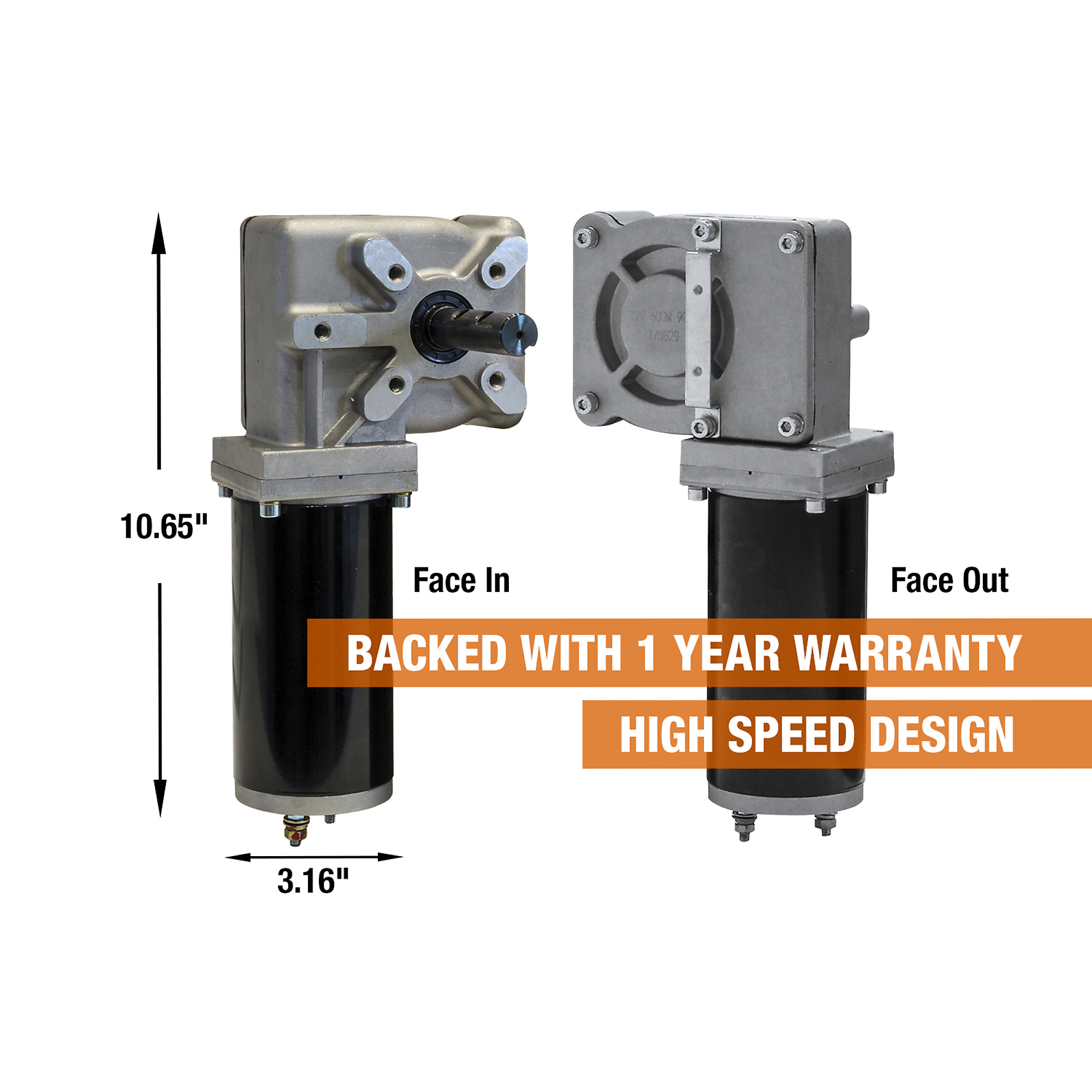

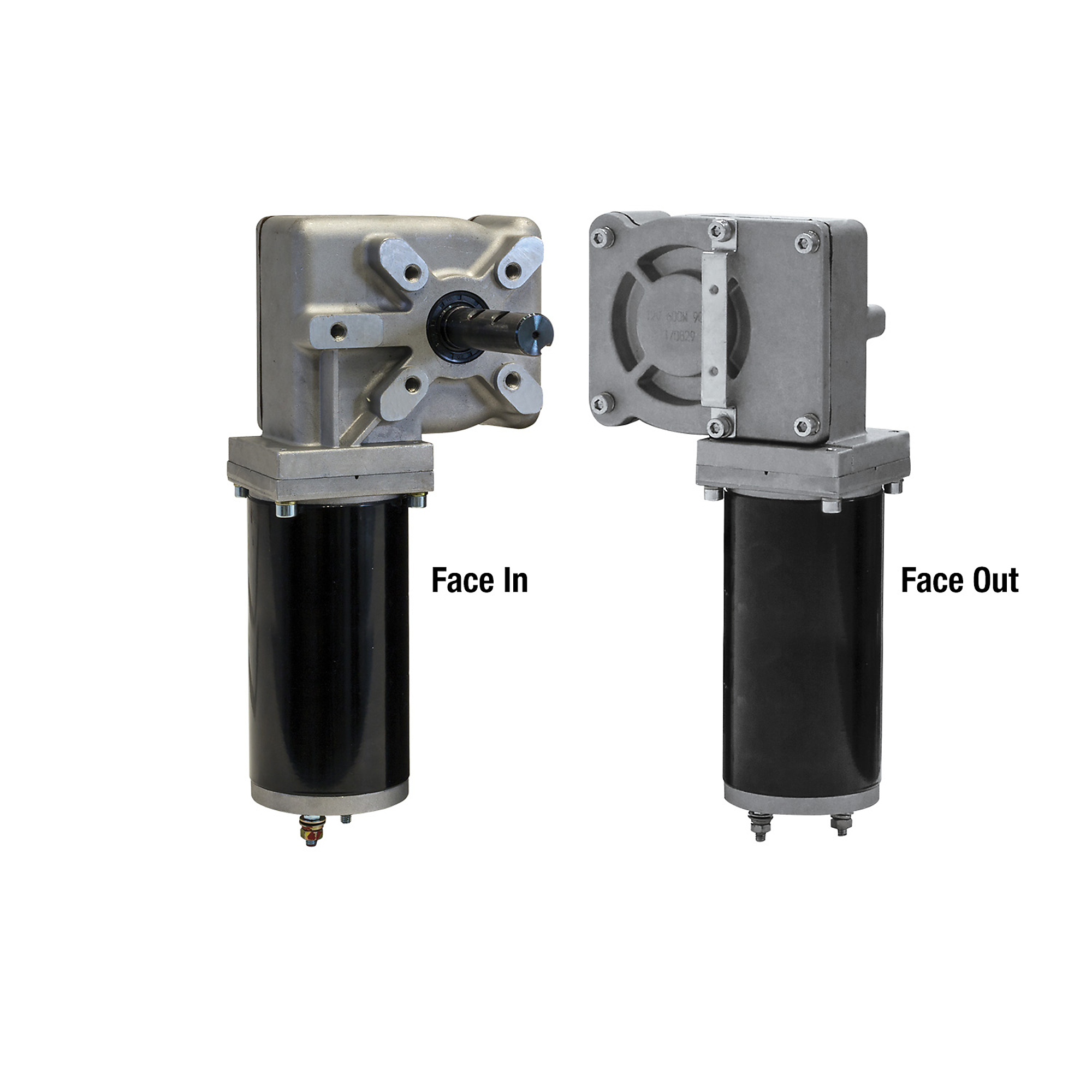

Truck Star, 900W/60:1 Electric Tarp Gear Motor - 1 Year Warranty, Horsepower 1.2 RPM 40 Volts 12 Model# 5541065

Item# 127775
Top Seller
Truck Star, 900W/60:1 Electric Tarp Gear Motor - 1 Year Warranty, Horsepower 1.2 RPM 40 Volts 12 Model# 5541065

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Truck Star, 900W/60:1 Electric Tarp Gear Motor - 1 Year Warranty, Horsepower 1.2 RPM 40 Volts 12 Model# 5541065

Click or Tap image to Zoom

$274.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Epoxy-sealed gearbox maintains lubrication
  • Fits 5-bolt mounting configurations
  • Sealed drive shaft and encased bearing prevent oil contamination in harsh environments
  • Chrome/plastic cover and fasteners included
  • 1.2 HP motor works at 40 RPM and requires 33 Amps

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

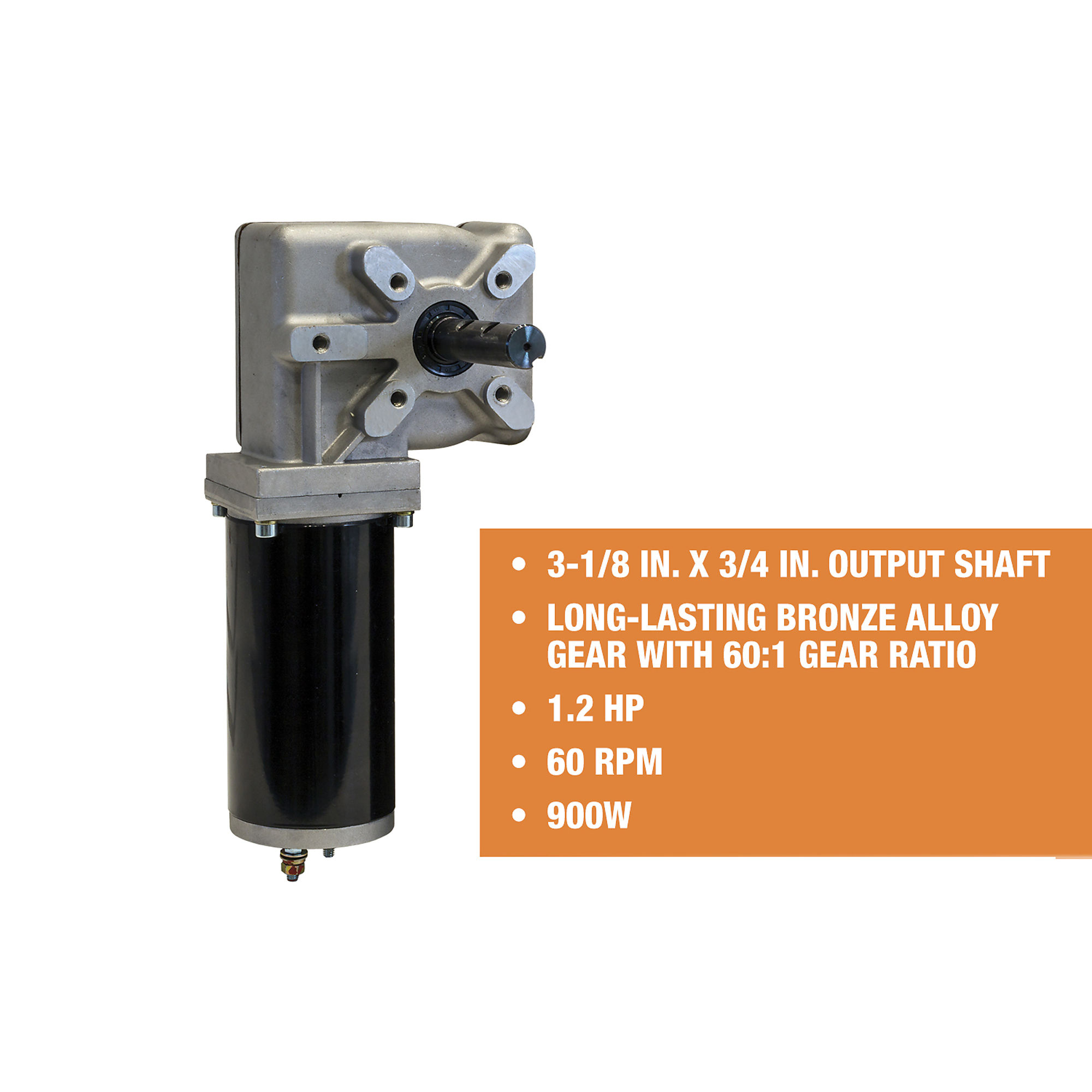

Buyers Products high-torque, direct drive 12V DC motor provides 836in.-lbs. of torque, and fits a wide range of tarp systems thanks to the 3 1/8in. x 3/4in. extended output shaft. Features forged, 90-tooth drive gear for more torque and extended life.

What's Included

    (1) 12V DC electric motor

Features + Benefits

  • Epoxy-sealed gearbox maintains lubrication
  • Fits 5-bolt mounting configurations
  • Sealed drive shaft and encased bearing prevent oil contamination in harsh environments
  • Chrome/plastic cover and fasteners included
  • 1.2 HP motor works at 40 RPM and requires 33 Amps
  • Designed for universal fit, the output shaft has two 5/16in. holes positioned 1-3/8in. and 2-1/8in. from the gearbox
  • Replaces Aero™ Power Plus, Donovan™ 61G/61L, Roll-Rite™ 1030/1031, US Tarp™ 11521/13655 and others

Key Specs

AttributeSpecification

item#

127775

Brand

Truck Star

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.5 LB

Horsepower

1.2

RPM

40

Mount Type

Other

Volts

12

Amps

33

Hertz

0

Motor Phase

Single-phase

Rotation

Bi-Directional
AttributeSpecification

Shank Diameter

3/4 in

Shank Length

3.125 in

Frame Size

0

Reversible

No

Enclosed Housing

No

Drip Proof Housing

No

Capacitor Start

No

Capacitor Run

No

Overload Protection

No

UL Listed

No

CSA Certified

No

Reviews

Questions & Answers

Questions

1–6 of 6 Questions
Sort by:

  1. What size is the output shaft how long is it

    1 answer

    1. The output shaft would be 3/4" diameter and 3 1/8" long.

      Helpful?

  2. is this motor DC brushed motor or DC permanent motor?

    1 answer

    1. This TruckStar Motor is a brush type motor.

      Helpful?

  3. this Motor has Duty intermitence,right?How long Motor run before It stop automaticaly?THANK YOU.

    1 answer

    1. This motor does not have a duty cycle or automatic shutoff.

      Helpful?

  4. How does gear ratio affect HP? It will only change torque. Please explain?

    1 answer

    1. This TruckStar Tarp Gear Motor is rated at 1.2 horsepower. Through the gear box it would provide 836 in.-lbs. of torque at the output shaft.

      Helpful?

  5. Is this motor actually 1.2 hp?

    The hp is listed at 1.2, is this correct or is it 1/2 hp like model # 5541095. How are these two motors different? They show almost identical specs in the comparison but different price.

    1 answer

    1. Yes, the correct horsepower is 1.2. The difference is in the gear ratios.

      Model # 5541065 = 60:1 gear ratio
      Model # 5541095 = 90:1 gear ratio

      Helpful?

  6. Does this motor run Forward and reverse?

    1 answer

    1. Reversing polarity of lead wiring will result in the motor running in reverse.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
