Buyers Products, 600W/90:1 Electric Tarp Gear Motor - 1 Year Warranty, Horsepower 0.5 RPM 40 Volts 12 Model# 5541095

Item# 578106
"Buyers Products, 600W/90:1 Electric Tarp Gear Motor - 1 Year Warranty, Horsepower 0.5 RPM 40 Volts 12 Model# 5541095"
Top Seller
Buyers Products, 600W/90:1 Electric Tarp Gear Motor - 1 Year Warranty, Horsepower 0.5 RPM 40 Volts 12 Model# 5541095

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products, 600W/90:1 Electric Tarp Gear Motor - 1 Year Warranty, Horsepower 0.5 RPM 40 Volts 12 Model# 5541095

Click or Tap image to Zoom

$234.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Epoxy-sealed gearbox maintains lubrication

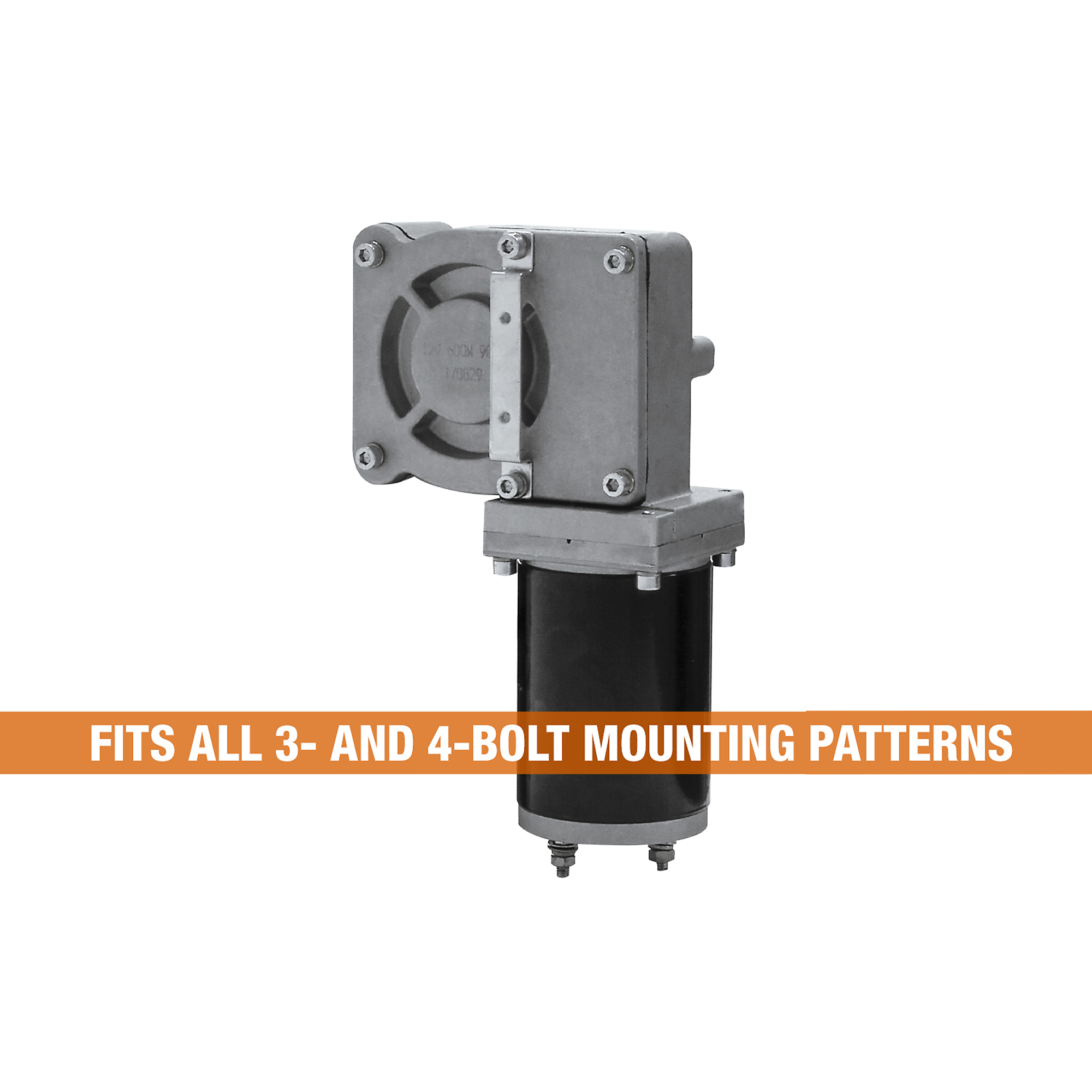

  • Fits 3- and 4-bolt mounting configurations
  • Sealed drive shaft and encased bearing prevent oil contamination in harsh environments
  • Chrome/plastic cover and fasteners included
  • 1/2 HP motor works at 40 RPM and requires 33 Amps

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Buyers Products Tarp Gear 12 Volt DC Motor with high-torque, direct drive design provides 836in.-lbs. of torque. Fits a wide range of tarp systems thanks to the 3 1/8in. x 3/4in. extended output shaft. Features forged, 90-tooth drive gear for more torque and extended life.

What's Included

    (1) Electric tarp gear motor

Features + Benefits

  • Epoxy-sealed gearbox maintains lubrication
  • Fits 3- and 4-bolt mounting configurations
  • Sealed drive shaft and encased bearing prevent oil contamination in harsh environments
  • Chrome/plastic cover and fasteners included
  • 1/2 HP motor works at 40 RPM and requires 33 Amps
  • Replaces Aero™ Power Plus, Donovan™ 61G/61L, Roll-Rite™ 1030/1031, US Tarp™ 11521/13655 and others

Key Specs

AttributeSpecification

item#

578106

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.0 LB

Horsepower

0.5

RPM

40

Mount Type

Other

Volts

12

Amps

33

Hertz

0

Motor Phase

Single-phase

Rotation

Bi-Directional
AttributeSpecification

Shank Diameter

3/4 in

Shank Length

3.13 in

Frame Size

0

Reversible

No

Enclosed Housing

Yes

Drip Proof Housing

No

Capacitor Start

No

Capacitor Run

No

Overload Protection

No

UL Listed

No

CSA Certified

No

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Is motor reversible

    1. Absolutely, just reverse the polarity of the wires. Very easy

      Helpful?

    2. This Truckstar motor is reversible.

      Helpful?

  2. Can this motor operate at variable speed?

    1. Nope, electricity in and motor runs, if not enough voltage then it simply does not run

      Helpful?

    2. This motor has only one speed and it is 40 rpm. (revolutions per minute) This motor cannot be modified to operate at variable speeds.

      Helpful?

  3. What is the torque output?

    1 answer

    1. The motor will be 60:1 high torque and 90:1 high speed.

      Helpful?

  4. What switch is recommended?

    1 answer

    1. The part number for the recommended switch is BUSW710. Please call the Northern Tool sales department at 1-800-657-0516 for pricing and availability.

      Helpful?

  5. What is the duty cycle of this motor?

    Is it rated for continuous duty?

    1 answer

    1. This motor is rated for continuous duty.

      Helpful?

  6. would this run off my truck battery

    I am looking for a 12v motor to operate a hoist on a dump trailer. would this motor handle the load?

    1 answer

    1. This TruckStar Products Tarp Gear Motor is designed for rolling/unrolling truck tarps. Depending on how your system works(electric actuators, hydraulics) you may call us at 1-800-221-0516 to find a motor that will work for you.

      Helpful?

  7. What are the physical sizes?

    1 answer

    1. The overall dimensions for this tarp gear motor is 11 inches long by six inches wide by six inches high. The shank length is 3 1/8 inches long, with a diameter of 3/4 inches.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
