Both the 1" and 1 1/16" bearings will have the same outer diameter of 1.98 inches. Both bearing options will fit into this hub regardless of the spindle size.

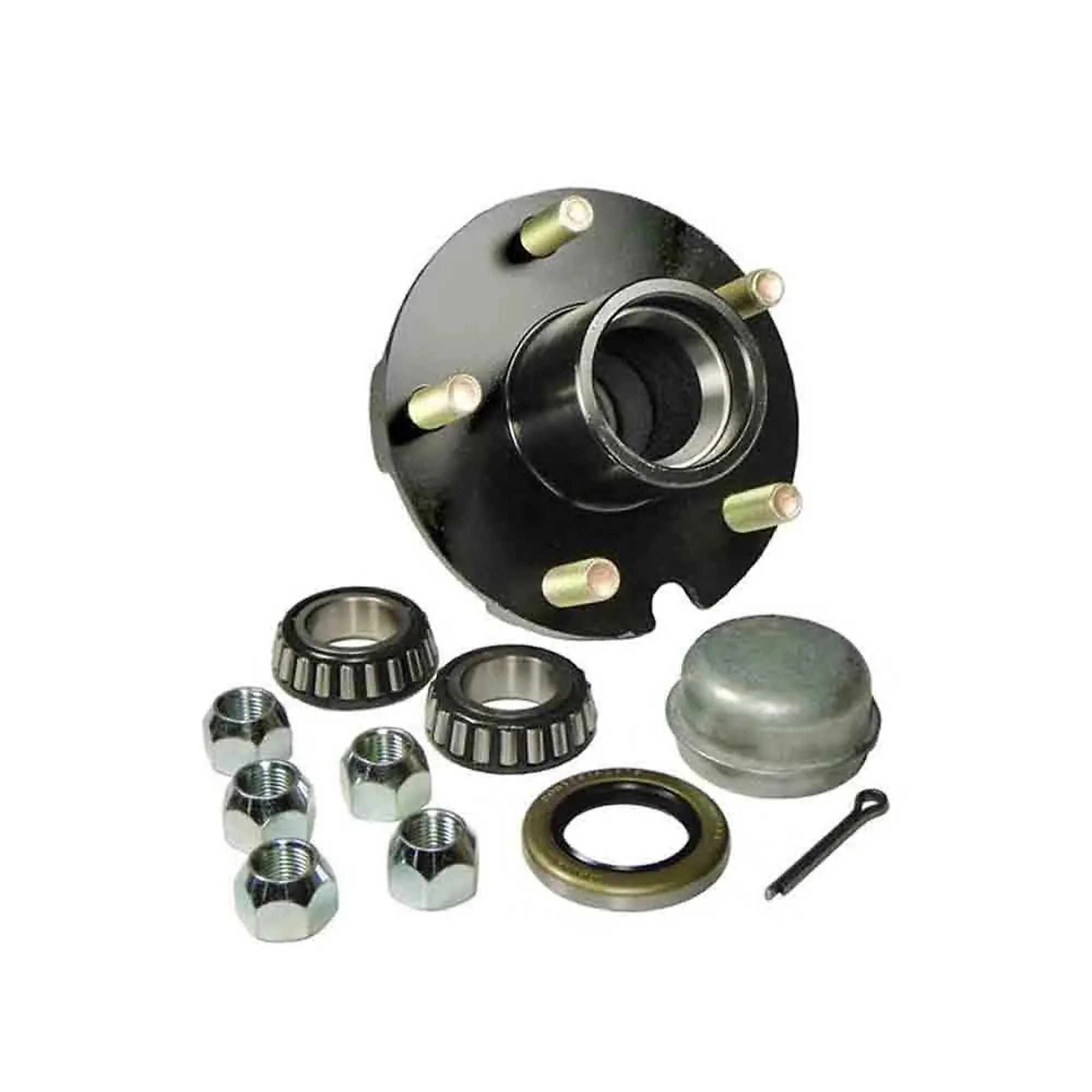

TRP, 5-Bolt Trailer Hub, 5 On 4-1/2 Bolt Circle, Fits 1 or 1-1/16 Inch Straight Spindles, 1250 lb Capacity, Model# BT-150-04
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$26.99

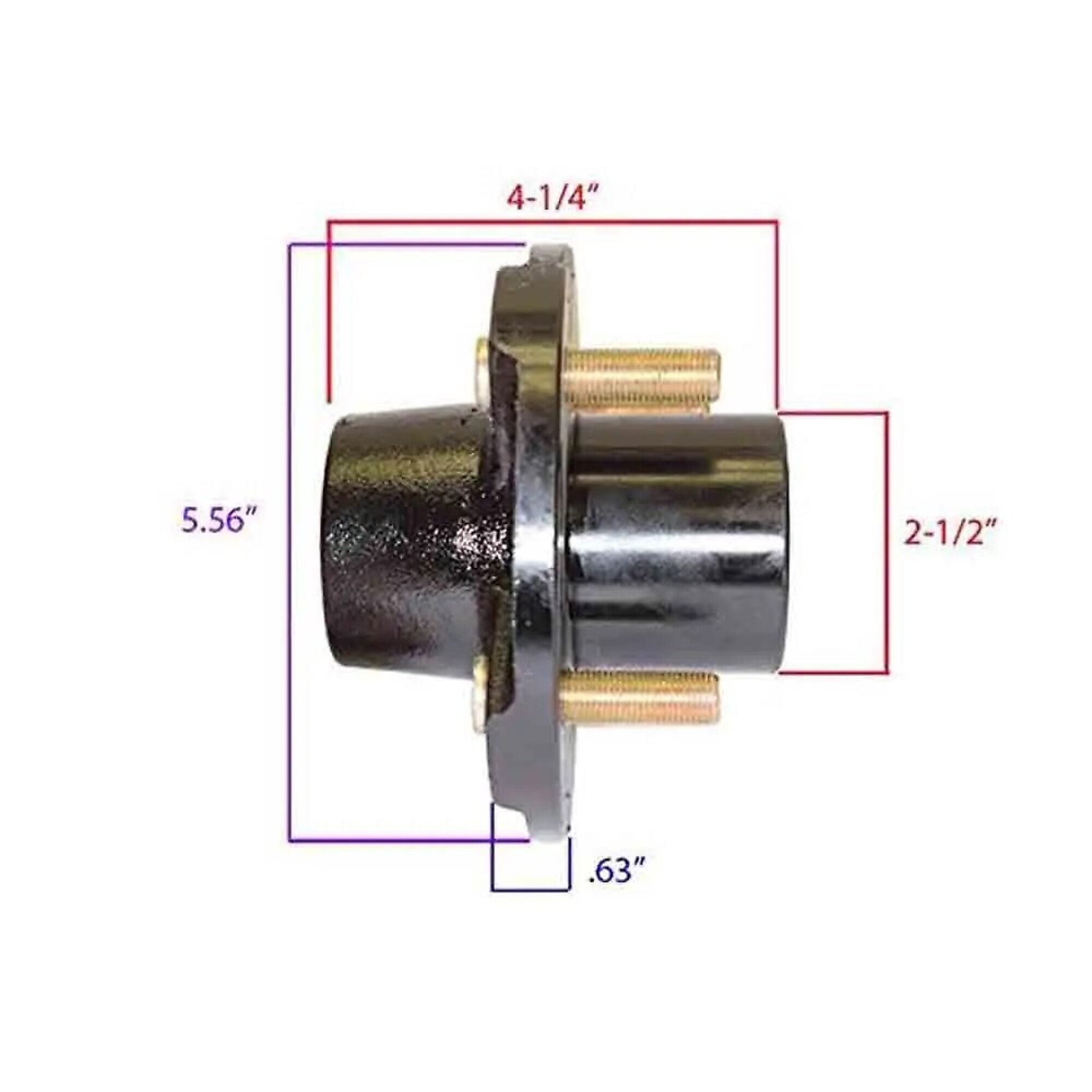

- Includes pressed in bearing races with a pilot diameter 2.5", flange diameter 5.56" and is 4-1/4" tall.
- Hub Only
- 1/2-20 Threads
See full description
See All Trailer Hubs
See All TRP Trailer Hubs
Currently Viewing This Product
Specifications
Specifications
TRP, 5-Bolt Trailer Hub, 5 On 4-1/2 Bolt Circle, Fits 1 or 1-1/16 Inch Straight Spindles, 1250 lb Capacity, Model# BT-150-04
C. E. Smith Trailer Hub Kit, Galvanized, 1in. Shaft, 5 Stud x 4.5in. Bolt Circle, 1250-Lb. Capacity, Model# 13215
C. E. Smith Trailer Hub Kit, Galvanized, 1 3/8in.-1 1/16in. Tapered Shaft, 5 Stud x 4.5in. Bolt Circle, 1750-Lb. Capacity, Model# 13515
C. E. Smith Trailer Hub Kit, Galvanized, 1 1/16in. Shaft, 5 Stud x 4.5in. Bolt Circle, 1350-Lb. Capacity, Model# 13315
Studs (qty.)
Same
5
5
5
5
Bolt Circle Pattern
Same
4.5 in
4.5 in
4.5 in
4.5 in
Weight Capacity Each
Same
1,000 lb
1,250 lb
1,750 lb
1,350 lb
Single-Lip
Same
No
-
-
-
Double-Lip
Same
Yes
-
-
-
Product Weight
Same
6.0000 lb
8 lb
9.3 lb
7.9 lb
Dimensions L x W x H (in.)
Same
7.0 x 6.0 x 6.0 in
-
-
-
Seal Size ID
Same
-
1 in
1.375 in
1.062 in
Bearing Size ID
Same
-
1-1/4 in
-
1-1/4 in
Spindle Size
Same
-
1.25 in
1.719 in
1.5 in
