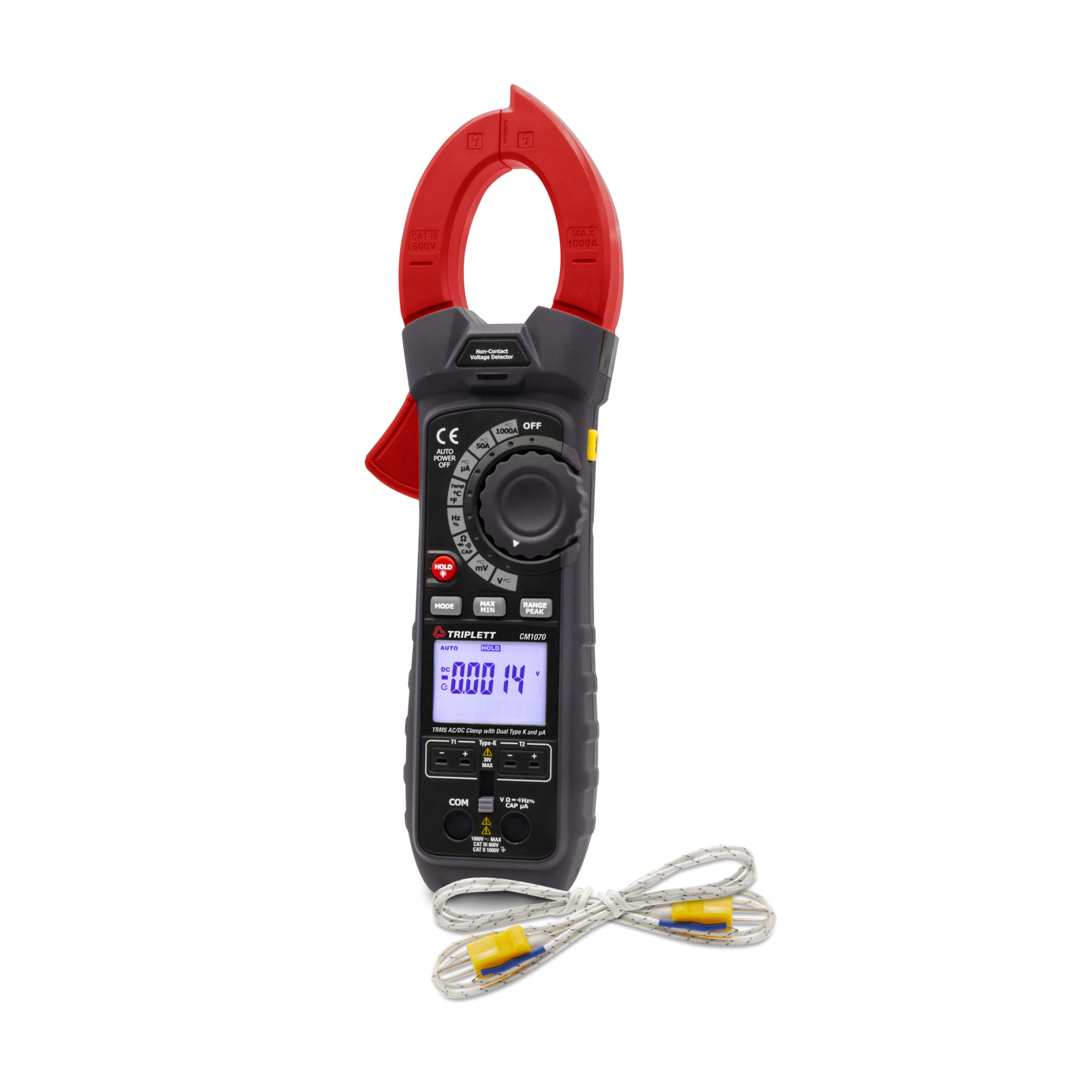

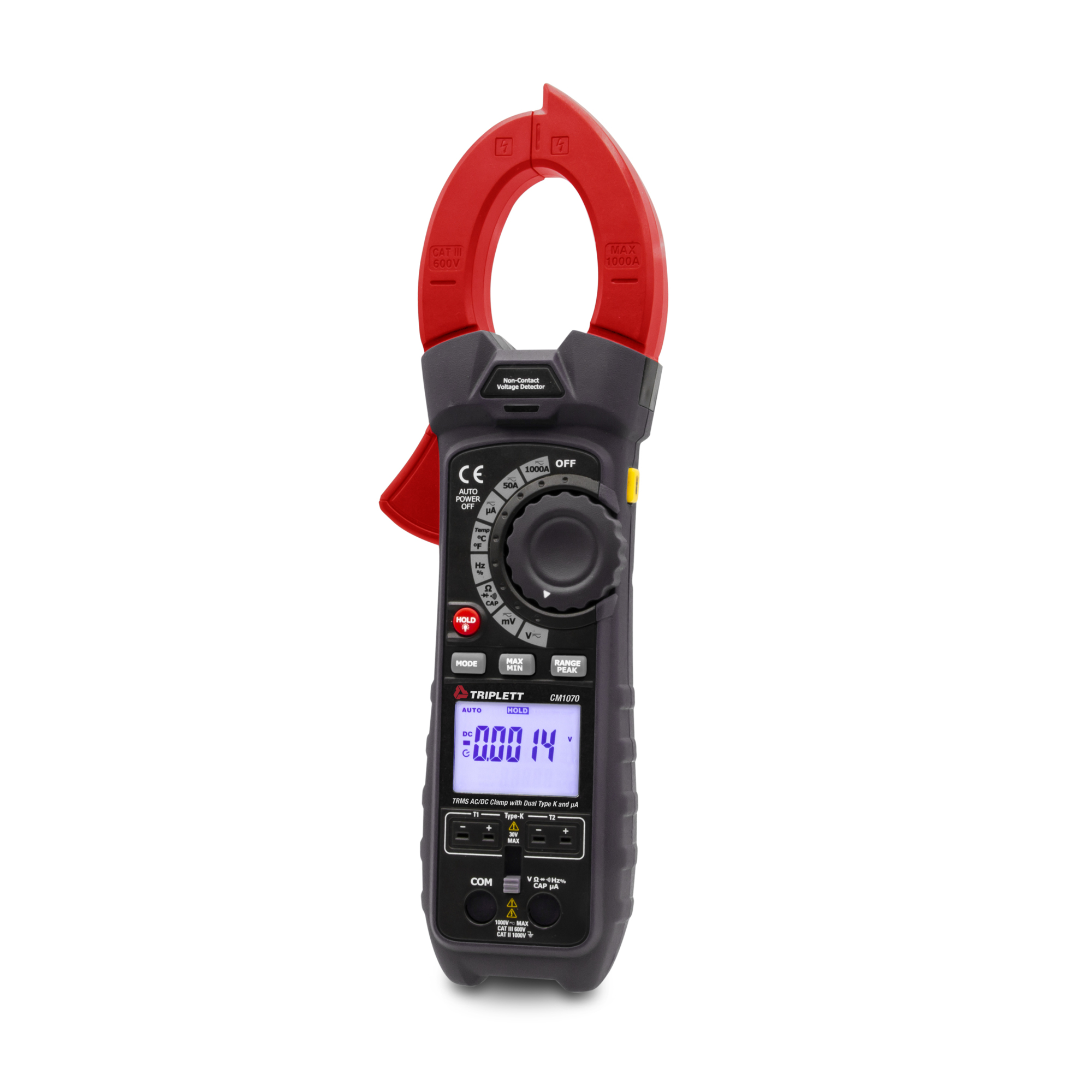

Triplett CM1070 TRMS AC/DC Clamp with Dual Type K and uA

Item# 7066109
Triplett CM1070 TRMS AC/DC Clamp with Dual Type K and uA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett CM1070 TRMS AC/DC Clamp with Dual Type K and uA

Click or Tap image to Zoom

$263.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Dual Type K Input: Allows for Superheat and Differential temperature measurement, enhancing its applicability.

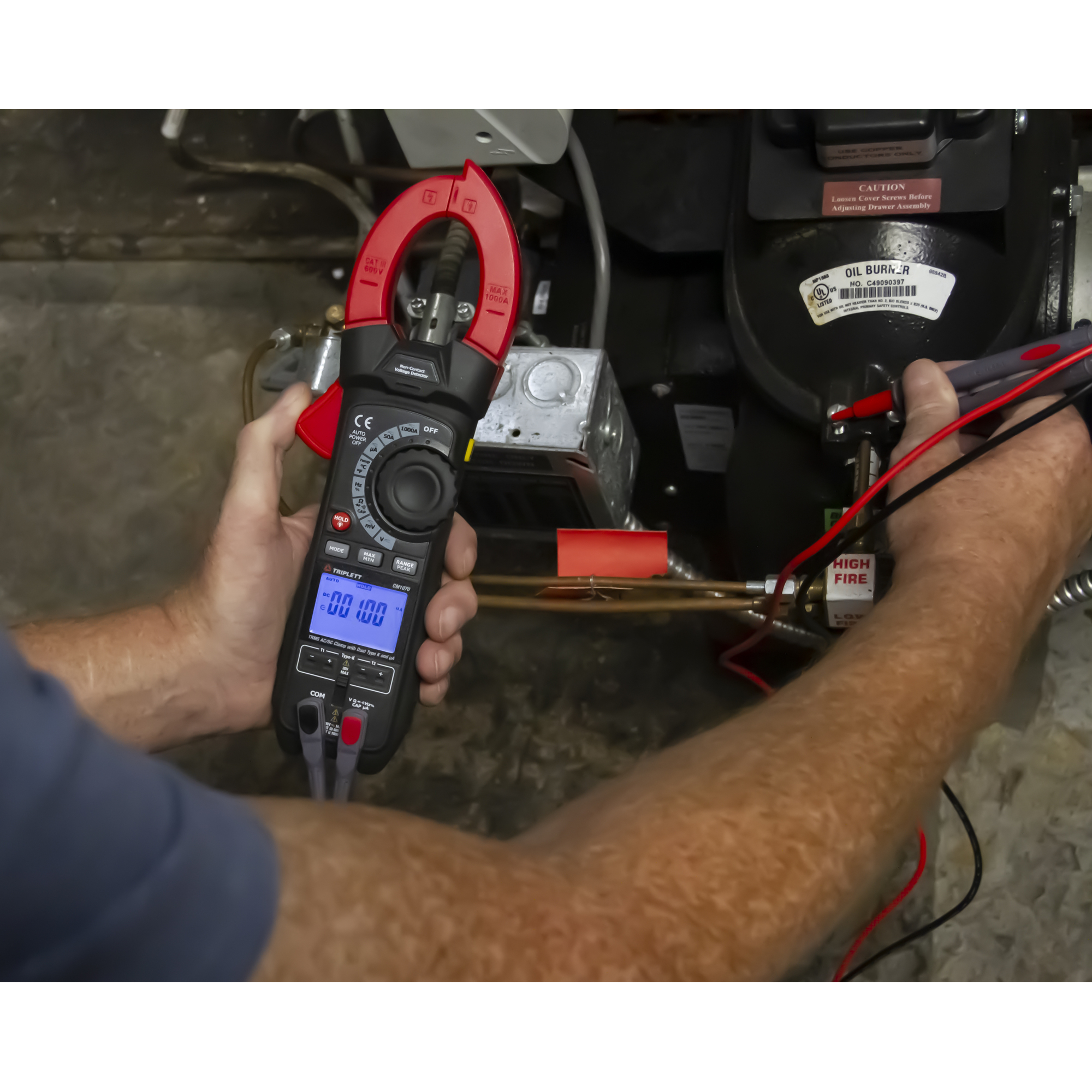

  • µA Measurement: Crucial for HVAC flame rod current measurements.
  • True RMS: Provides superior accuracy when dealing with non-sinusoidal or noisy waveforms.
  • Large Clamp Jaw: The 1.9" (48mm) clamp jaw allows for secure clamping around single conductors.
  • Non-Contact Voltage Detector: Features a built-in detector with LED, for safe and efficient voltage detection.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett Model CM1070 True RMS Clamp Meter is an essential tool for any electrical measurement task. Designed for efficiency, it measures AC and DC current up to 1000A without breaking the circuit by simply clamping around a single conductor. This not only saves time but also ensures the circuit remains undamaged. It boasts True RMS, which provides superior accuracy when measuring non-sinusoidal or noisy waveforms. The device's versatility is highlighted with additional measurements for Resistance, Capacitance, Frequency, Dual Temperature, Diode Test, and Continuity, all displayed on the dual 50,000 count backlit LCD. Other key features include Peak voltage capture, NCV Detector with LED, zero function for DCA and Capacitance, Auto power off, and a built-in flashlight. The Data Hold feature freezes the display for easy viewing. The product is categorized as CAT IV-600V for safety and comes with a 9V battery, test leads, (2) Type K thermocouple probes, a carrying case, and a 1-year warranty.

What's Included

    (1) TRMS AC/DC Clamp with Dual Type K and uA

Features + Benefits

  • Dual Type K Input: Allows for Superheat and Differential temperature measurement, enhancing its applicability.
  • µA Measurement: Crucial for HVAC flame rod current measurements.
  • True RMS: Provides superior accuracy when dealing with non-sinusoidal or noisy waveforms.
  • Large Clamp Jaw: The 1.9" (48mm) clamp jaw allows for secure clamping around single conductors.
  • Non-Contact Voltage Detector: Features a built-in detector with LED, for safe and efficient voltage detection.
  • Peak Voltage Measurement: Captures peak voltage in less than 1ms, ensuring precise measurements.
  • Zero Button: Includes a zero function for DCA and Capacitance, simplifying usage and increasing accuracy.
  • Advanced Functions: Offers Min/Max capture, Data Hold feature for easy viewing, and an Auto power-off function for energy conservation.

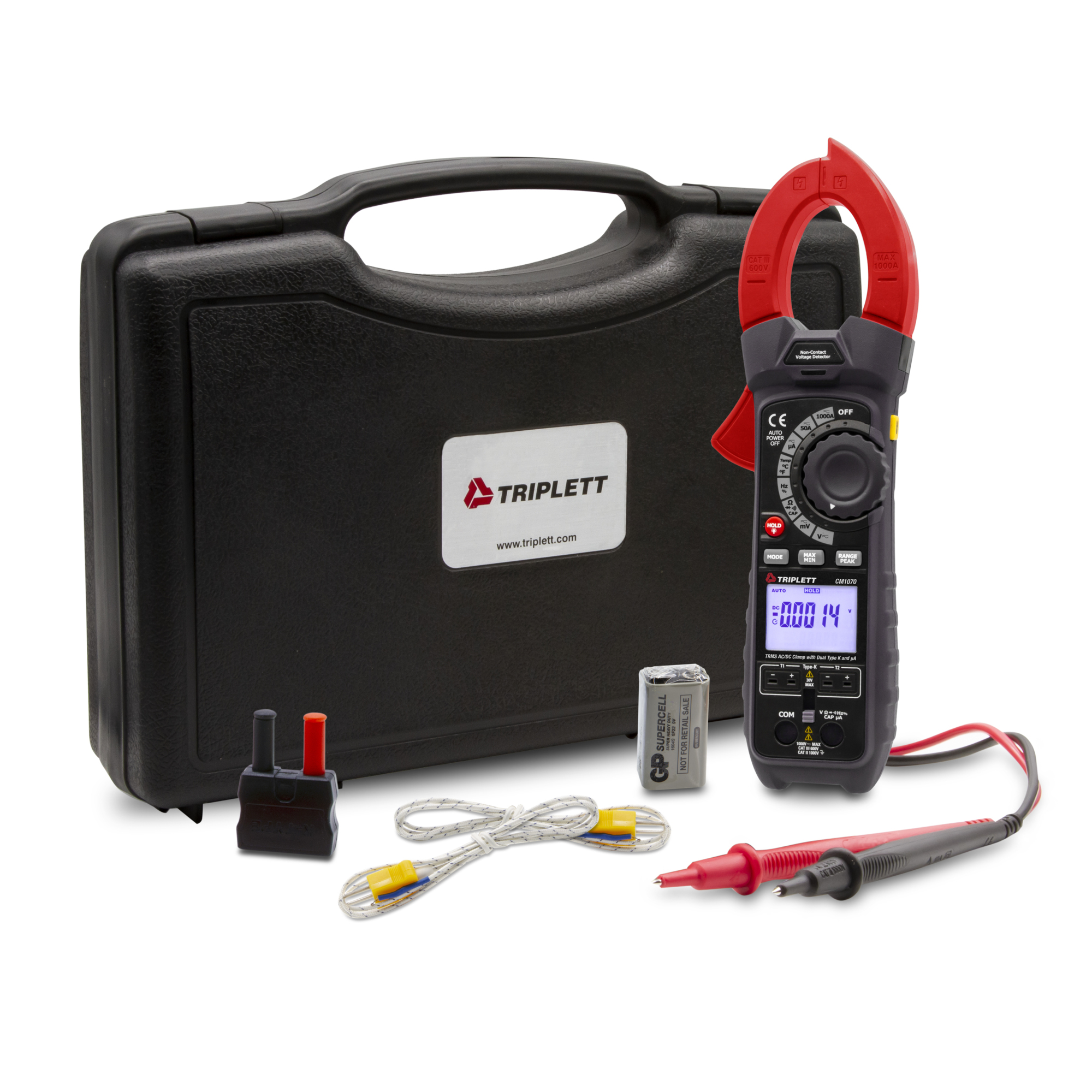

  • Includes Test Leads, (2) Type K Thermocouple Bead Probes, 9V battery, and carrying case

Key Specs

AttributeSpecification

item#

7066109

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.4 LB

Functions (qty.)

13

Jaw Capacity

1.9 in

Display Type

LCD

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

600

Max. AC Volts

600

Max. AC Amps

1,000

Max. DC Amps

1,000

Max. Resistance

50

Battery Size

9V
AttributeSpecification

Low Battery Indicator

Yes

Battery Type

Lithium Polymer

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Live Circuit Detection

Yes

UL Listed

Yes

Calibration Certificate Included

No

Max. Ohms

50

Application

Measure AC and DC current to up 1000A without breaking the circuit by clamping around a single conductor

Includes

Includes Test Leads, (2) Type K Thermocouple Bead Probes, 9V battery, and carrying case

Product Weight

1.4000 lb

Dimensions L x W x H (in.)

4.75 x 2.4 x 12.4 in
