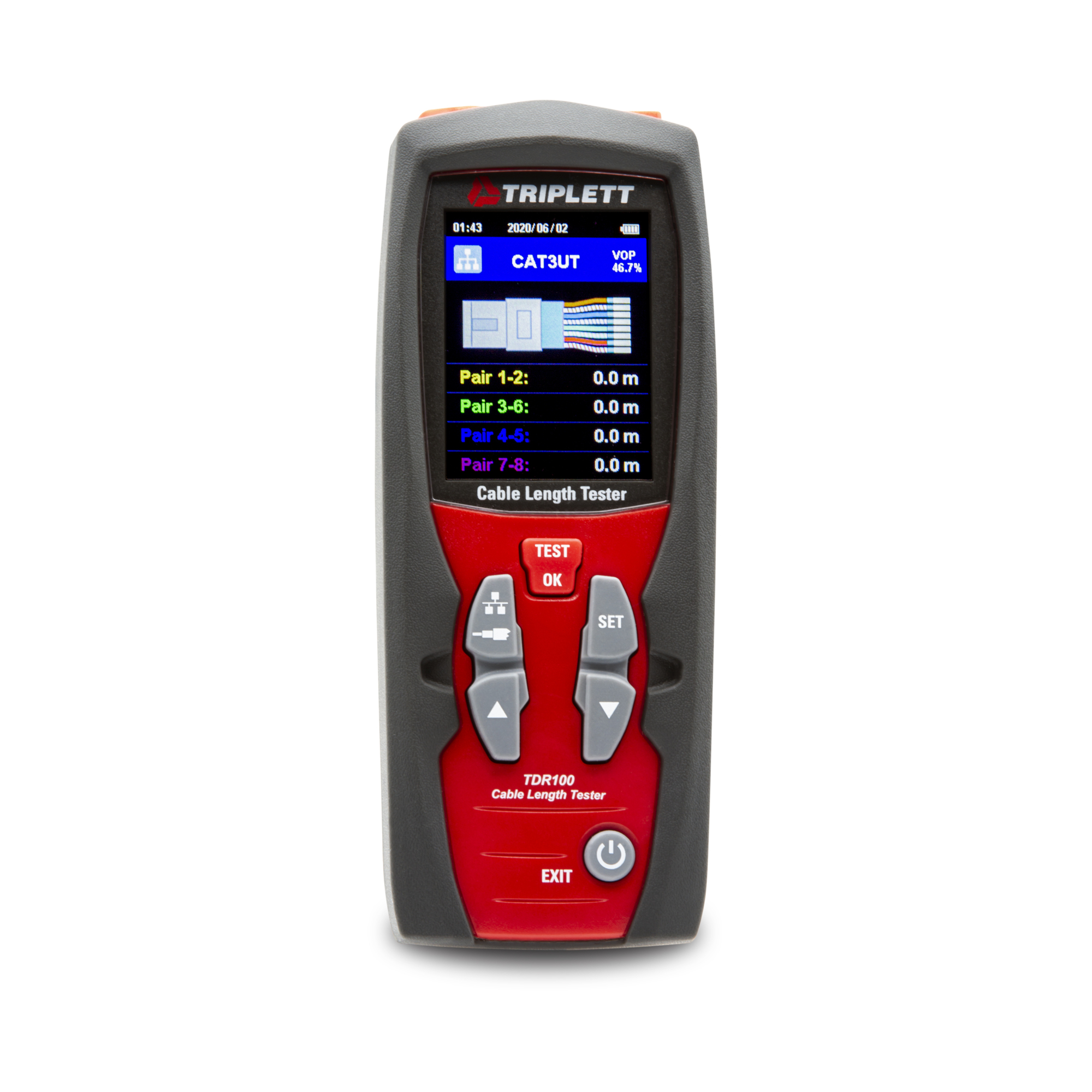

Triplett Cable Length Tester — TDR Technology, 2.4in. TFT Display, 99 Memory Locations, Model# TDR100

Item# 5851963
Triplett Cable Length Tester — TDR Technology, 2.4in. TFT Display, 99 Memory Locations, Model# TDR100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett Cable Length Tester — TDR Technology, 2.4in. TFT Display, 99 Memory Locations, Model# TDR100

Click or Tap image to Zoom

$229.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Uses TDR (Time Domain Reflectometer) technology to measure cable length

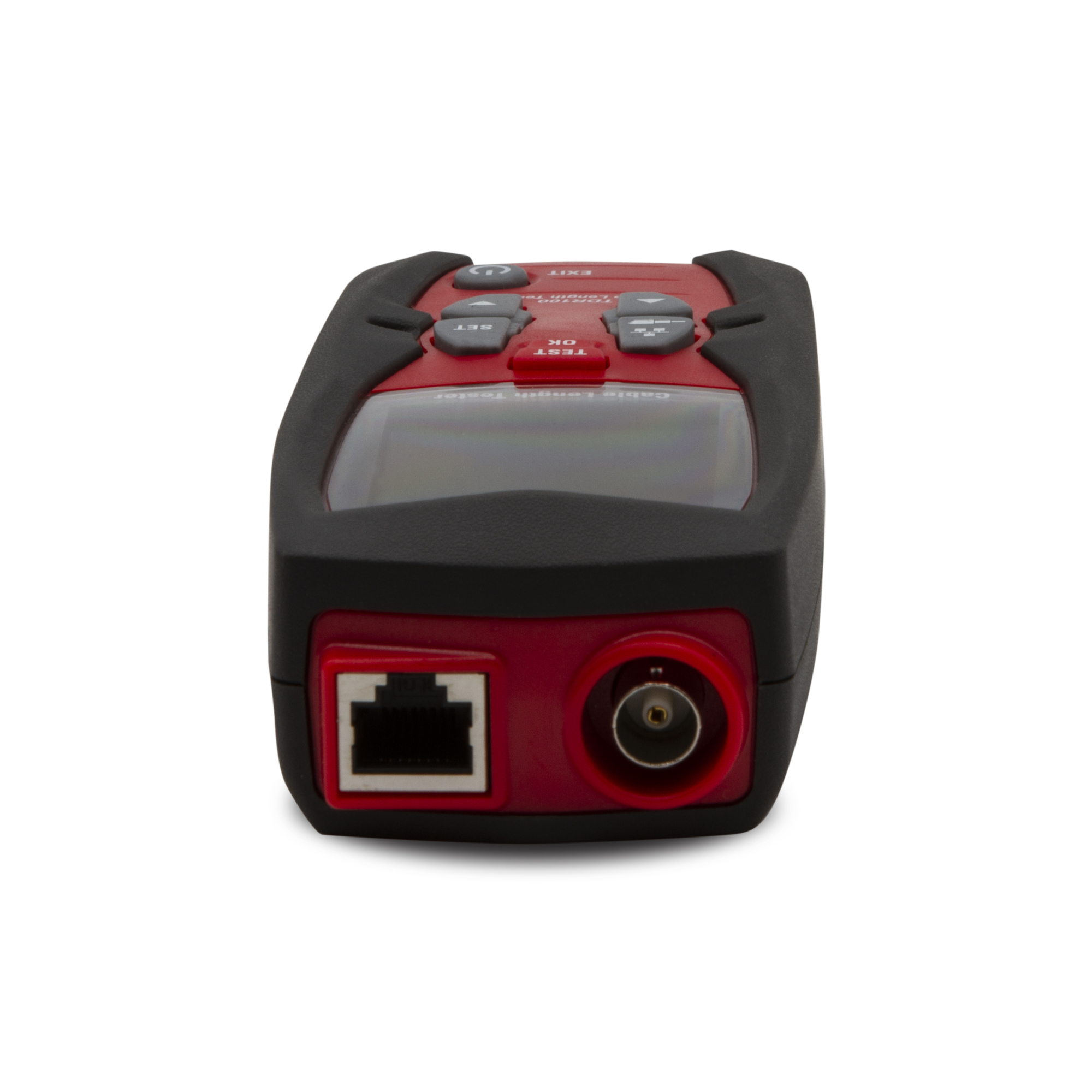

  • BNC and RJ45 input connectors
  • 2.4” TFT color display
  • Easy-to-use onscreen menu
  • Auto-Zero and Auto-Range

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett TDR100 is a precision cable tester that uses TDR (Time Domain Reflectometer) technology to measure cable length. It can be used for any cable consisting of at least 2in.sulated metallic elements, one of which may be the sheath or shield of the cable. The meter has automatic internal matching networks to allow testing with automatic selection range, which correspond to power, telephony, CAT V, LAN, etc. cables.The meter can be closely matched with the cable under test using the function selection keys. The velocity of propogation value (V.O.P.) can be similarly adjusted to match the cable under test, ensuring an accurate distance measurement. It features a 2.4” TFT color display with an easy-to-use onscreen menu, 20 built-in groups of standard cable V.O.P. (velocity of propagation) values, and 99 memory locations store traces for future analysis. An Auto-Sensitivity function provides a closer match to a wide range of cables with only the V.O.P. settings required. The meter comes complete with 2 AA batteries, BNC (M) connector to standard test leads, BNC (M) connector to alligator clips, BNC (M) connector to (M) F connector, and carrying case. 1-year warranty.

What's Included

    (1) Cable Length Tester

Features + Benefits

  • Uses TDR (Time Domain Reflectometer) technology to measure cable length
  • BNC and RJ45 input connectors
  • 2.4” TFT color display
  • Easy-to-use onscreen menu
  • Auto-Zero and Auto-Range
  • Built-in 20 groups of standard cable V.O.P. (velocity of propagation) values
  • Auto-Sensitivity provides a closer match to a wide range of cables with only the V.O.P. settings required
  • 99 memory locations store traces for future analysis
  • Includes 2 AA batteries, BNC (M) connector to standard test leads, BNC (M) connector to alligator clips, BNC (M) connector to (M) F connector, and carrying case
  • 1-year warranty
  • Includes 2 AA batteries, BNC (M) connector to standard test leads, BNC (M) connector to alligator clips, BNC (M) connector to (M) F connector, and carrying case

Key Specs

AttributeSpecification

item#

5851963

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.15 LB

Functions (qty.)

1

Display Type

LCD

Battery Size

AA

Low Battery Indicator

Yes

Battery Type

AA
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

Use TDR (Time Domain Reflectometer) technology to quickly measure cable length

Includes

Includes 2 AA batteries, BNC (M) connector to standard test leads, BNC (M) connector to alligator clips, BNC (M) connector to (M) F connector, and carrying case

Product Weight

0.1500 lb

Dimensions L x W x H (in.)

6.0 x 3.5 x 0.25 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
