Triplett, Fox Hound, Fox 2 Hound 3 Wire Tracing Kit, Model# 3399

Item# 5958808
Triplett, Fox Hound, Fox 2 Hound 3 Wire Tracing Kit, Model# 3399

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett, Fox Hound, Fox 2 Hound 3 Wire Tracing Kit, Model# 3399

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • The Fox & Hound wire tracing kit consists of a versatile Fox 2 Tone Generator (Toner) and a high performance Hound 3 Inductive Amplifier (Probe). This kit includes Fox 2, Hound 3, plastic duck bill, metal duck bill, headphones, and a sturdy weatherproof carry case. 3 year warranty.
  • The Fox 2 is a battery operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 120 VAC.

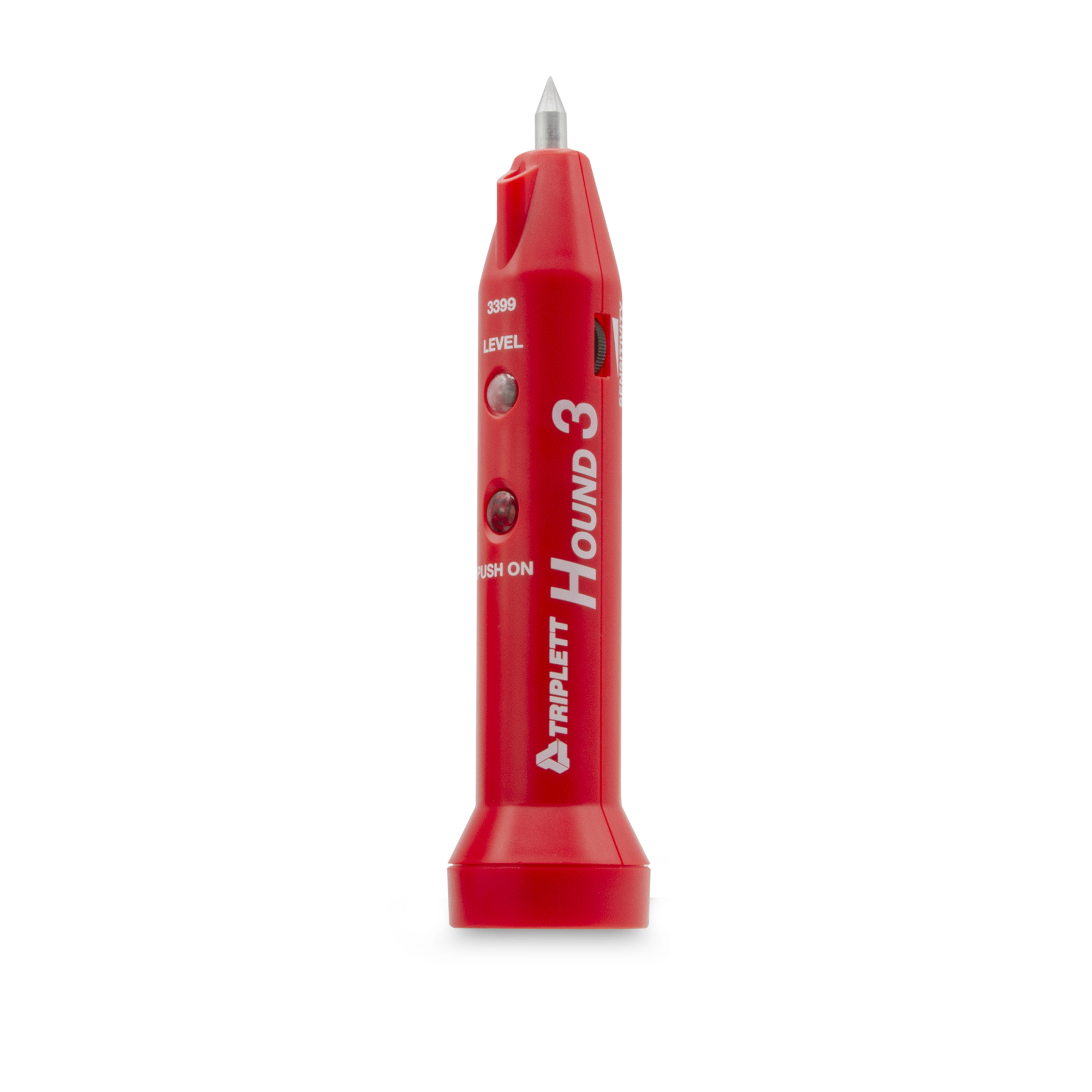

  • The Hound 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy access battery cover.
  • This Wire tracing kit a lightweight easy to use kit, constructed with high quality materials. Portable design allows you to trace wires whenever needed. Find non-energized wires in walls, ceilings, and floors. Inductive tracer with two probes indicates magnetic fields with audio and visual signals. Tracer filter helps suppress 60 Hz and high-frequency noise. Tone generator has three tones for guiding tracer to wires.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett 3399 FOX 2 and HOUND 3 wire tracing kit consists of a premium FOX 2 Tone Generator (Toner) and a newly designed HOUND 3in.ductive Amplifier (Probe). The FOX 2 is a battery operated handheld lightweight multi-function Toner that generates multiple tones, performs some basic telephone line tests (loop mA and line polarity), provides a visual and audible continuity test, and incorporates Triplett’s True Trace and TripLatch tests. The HOUND 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs (the HOUND and HOUND 2) with built-in LED illuminators, a bandpass filter, an earphone jack, and an easy access battery cover. An included convenient carrying case (with belt loop attachment) provides ease of use and protective storage for the FOX 2 and HOUND 3. 1 year warranty.

What's Included

    (1) Fox 2 & Hound 3 Wire Tracing Kit (1) convenient carrying case (with belt loop attachment) (1) FOX 2 Tone Generator (Toner) (1) HOUND 3 Inductive Amplifier (Probe)

Features + Benefits

  • The Fox & Hound wire tracing kit consists of a versatile Fox 2 Tone Generator (Toner) and a high performance Hound 3 Inductive Amplifier (Probe). This kit includes Fox 2, Hound 3, plastic duck bill, metal duck bill, headphones, and a sturdy weatherproof carry case. 3 year warranty.
  • The Fox 2 is a battery operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 120 VAC.
  • The Hound 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy access battery cover.
  • This Wire tracing kit a lightweight easy to use kit, constructed with high quality materials. Portable design allows you to trace wires whenever needed. Find non-energized wires in walls, ceilings, and floors. Inductive tracer with two probes indicates magnetic fields with audio and visual signals. Tracer filter helps suppress 60 Hz and high-frequency noise. Tone generator has three tones for guiding tracer to wires.

Key Specs

AttributeSpecification

item#

5958808

Brand

Triplett

Manufacturer's Warranty

12 months parts/12months labor
AttributeSpecification

Ship Weight

1.05 LB

Product Weight

lb

Dimensions L x W x H (in.)

4.5 x 3.5 x 1.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
