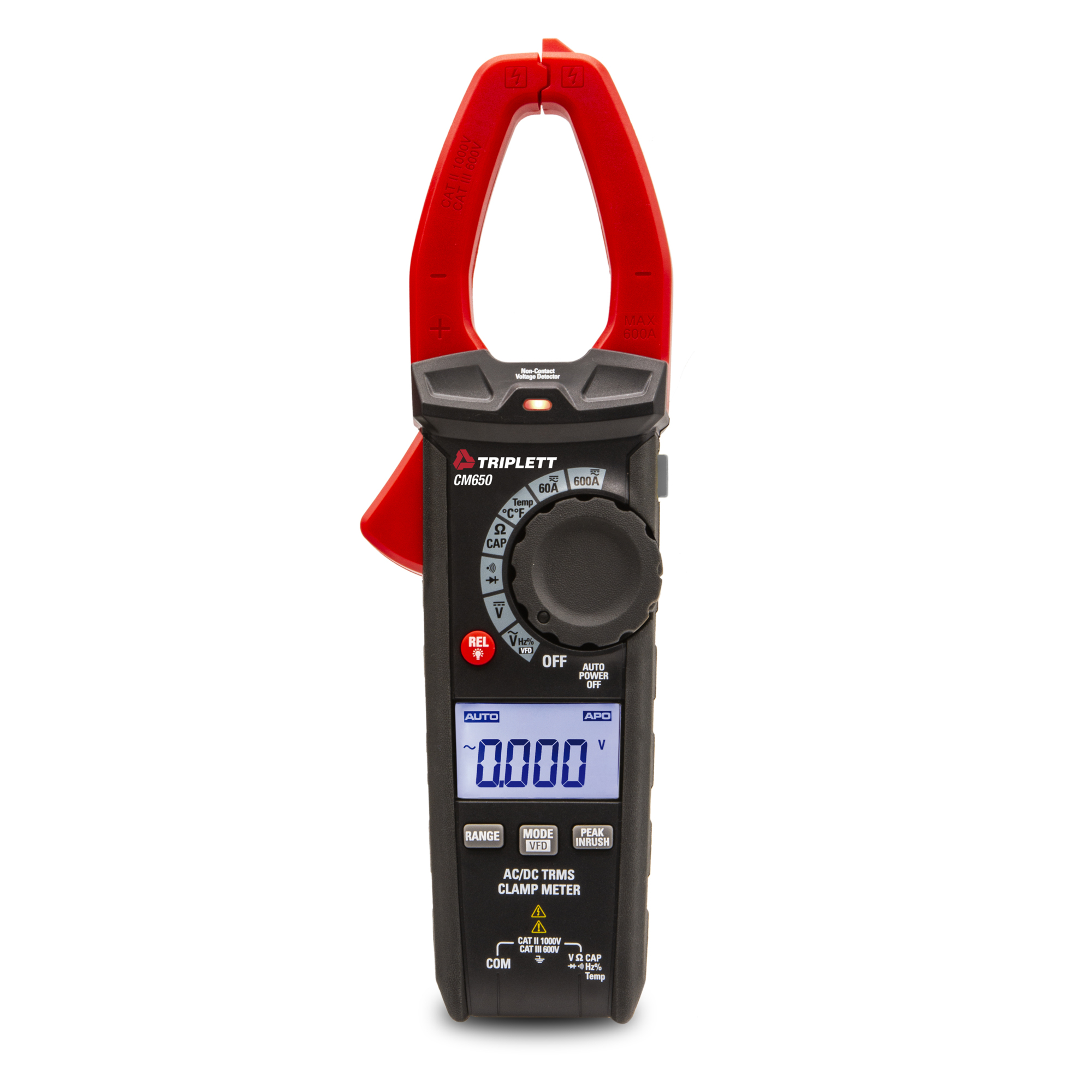

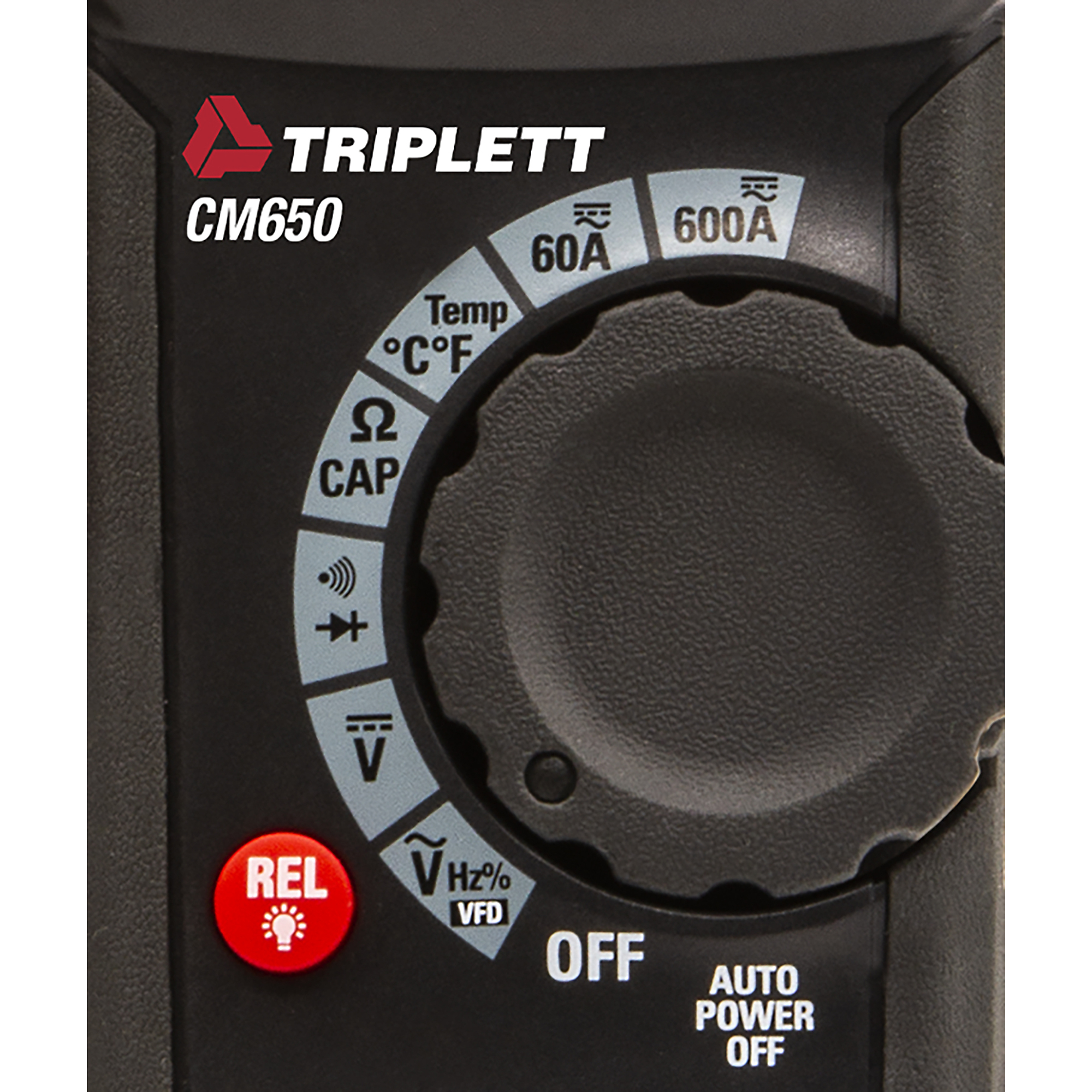

Triplett True RMS Clamp Meter — 600A AC/DC, 4000 Count LCD, Inrush Current Function, Model# CM650

Name: Triplett True RMS Clamp Meter — 600A AC/DC, 4000 Count LCD, Inrush Current Function, Model# CM650
Brand: Triplett
SKU: 5959317

Item# 5959317

Click or Tap image to Zoom

$108.99

Quantity

Save to List

Shipping:
Factory shipped

True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
Captures the instantaneous surge (inrush) current when power equipment is turned on
1.3" (33mm) clamp jaw opening
Built-in Non-Contact Voltage Detector with LED
Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives

See full description

Product Summary

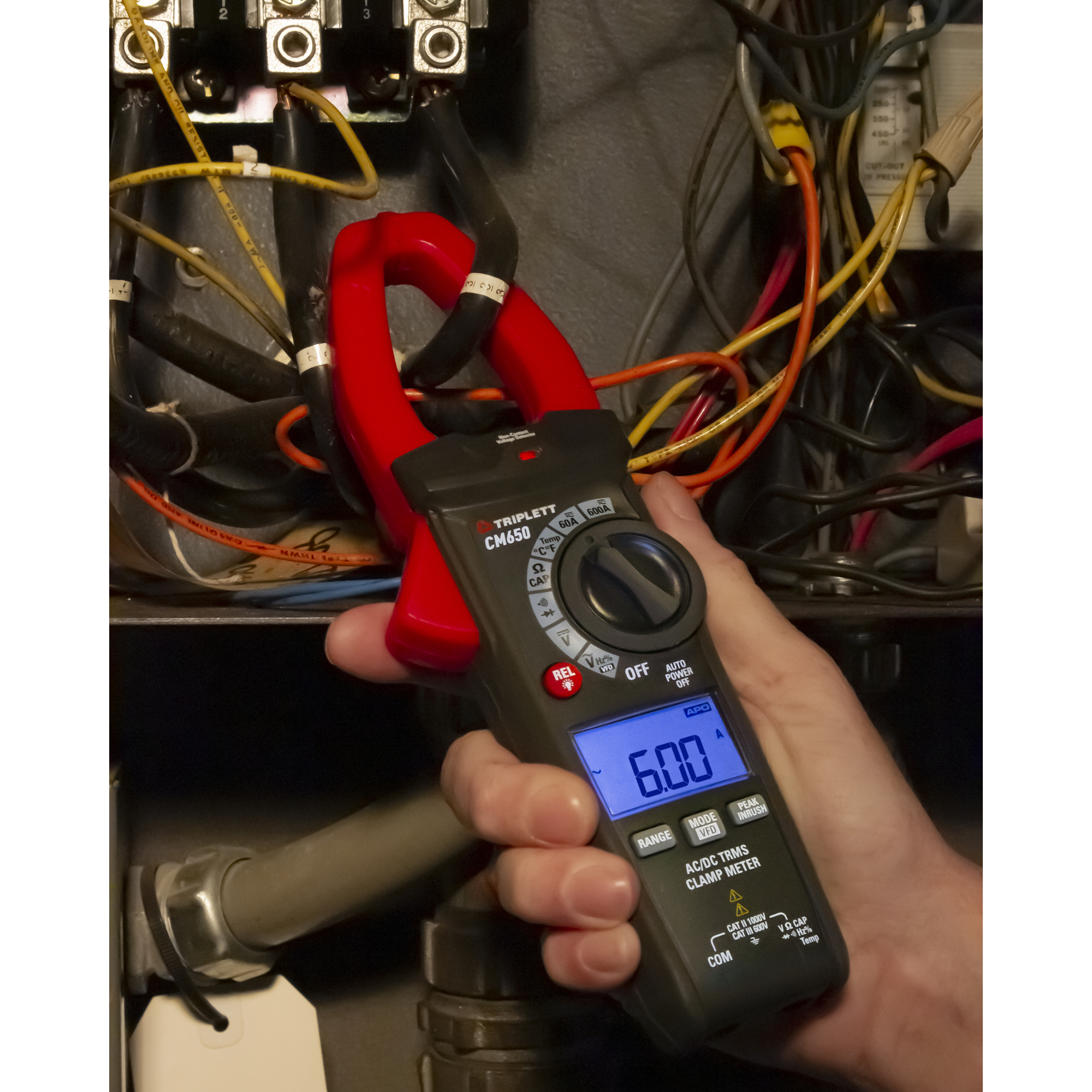

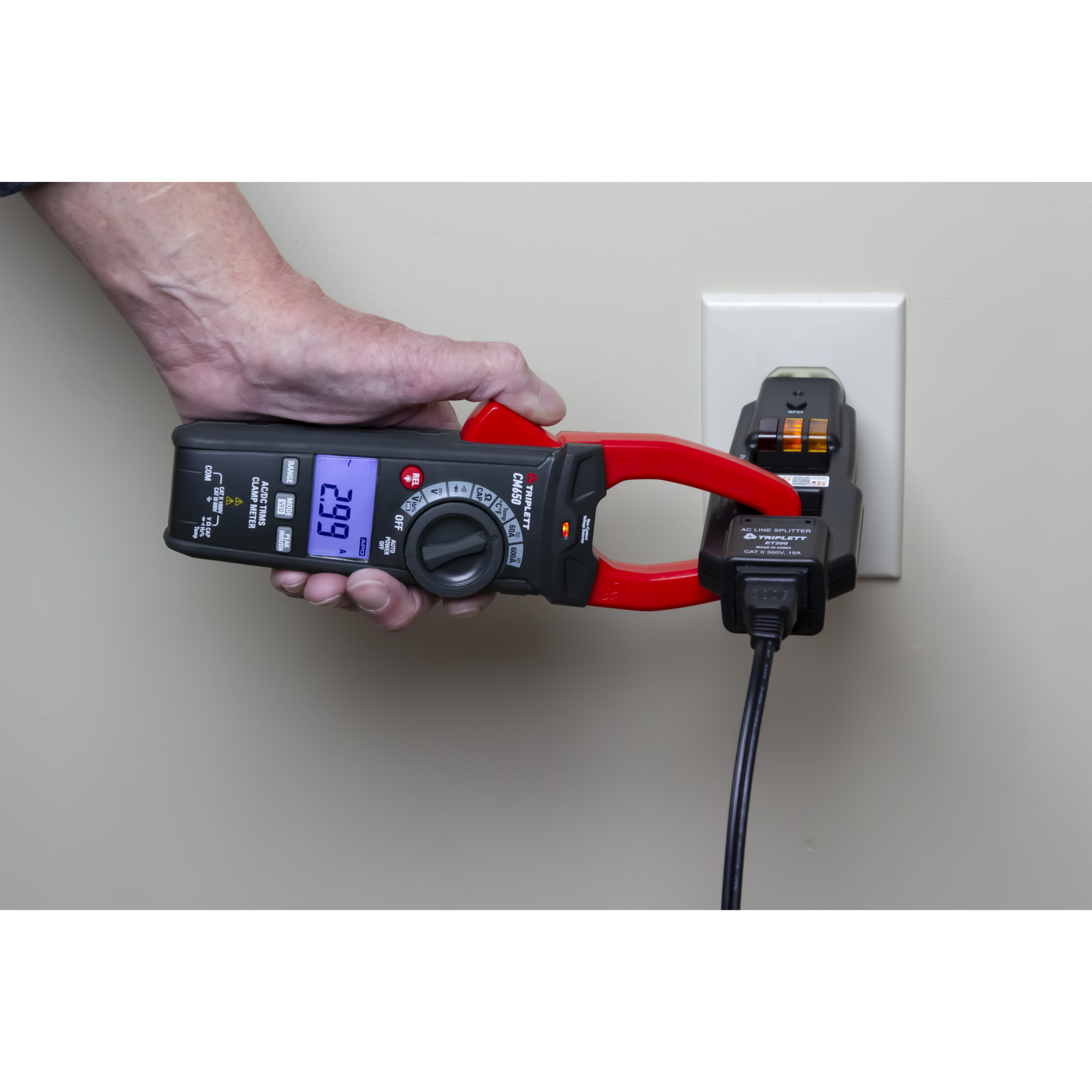

The Triplett Model CM650 True RMS Clampmeter can measure AC and DC current up to 600A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 4000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Features include: Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT III-600V safety category. Includes 3 AAA batteries, test leads, Type K thermocouple probe, and carrying case. 1-year warranty.

What's Included

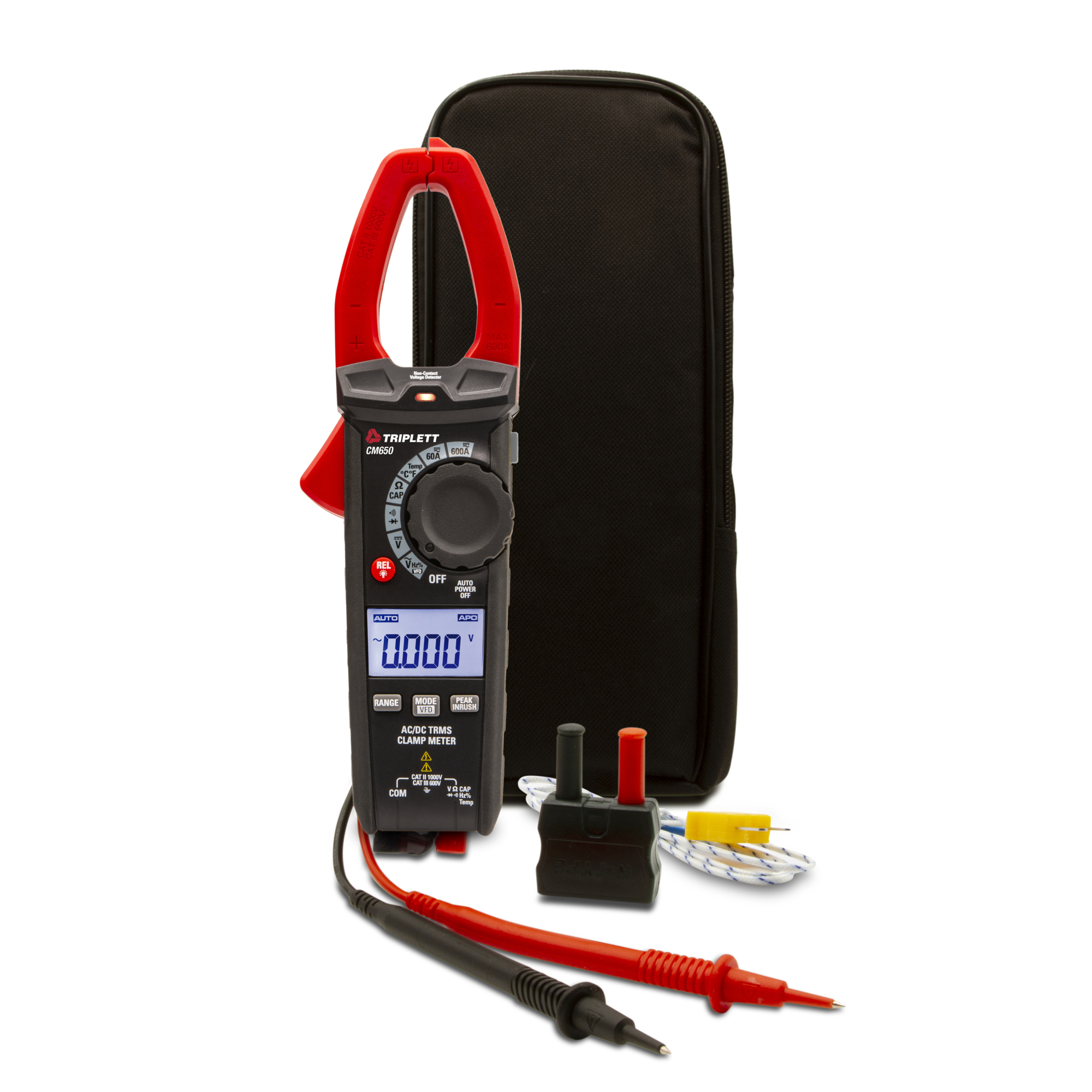

(1) 600A AC/DC True RMS Clamp Meter

Features + Benefits

True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
Captures the instantaneous surge (inrush) current when power equipment is turned on
1.3" (33mm) clamp jaw opening
Built-in Non-Contact Voltage Detector with LED
Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
Peak voltage measurement with Min/Max
Data Hold freezes the display
Relative Mode for making comparisons to a stored reference value and DC Zero
Auto power off with disable
Built-in Flashlight
Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case

Key Specs

Attribute	Specification
item#	5959317
Brand	Triplett
Manufacturer's Warranty	1 year limited warranty
Functions (qty.)	11
Jaw Capacity	1.3 in
Display Type	LCD
Circuit or Voltage Tester	Voltage Tester
Max. DC Volts	1000
Max. AC Volts	1000
Max. AC Amps	600
Max. DC Amps	600
Max. Resistance	60
Battery Size	Other
Low Battery Indicator	Yes
Battery Type	AAA
Battery Included	Yes
Capacitance Range	100mF
Frequency	100kHz
Accuracy	0.025

Attribute	Specification
Measures	Measures AC/DC Voltage and Current
Max. Temperature	1,832 °F
Case Included	Yes
Senses	AC Voltage
Common Usage	Measures AC/DC Voltage and Current
Auto On/Off	Yes
Water Resistant	No
Power Source	Battery
Live Circuit Detection	Yes
Alert Priority	Visual
UL Listed	Yes
Calibration Certificate Included	No
Max. Ohms	60
Material	Plastic
Application	Measure AC and DC current to up 600A without breaking the circuit by clamping around a single conductor
Includes	Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case
Product Weight	1.3200 lb
Dimensions L x W x H (in.)	4.75 x 2.4 x 12.4 in
