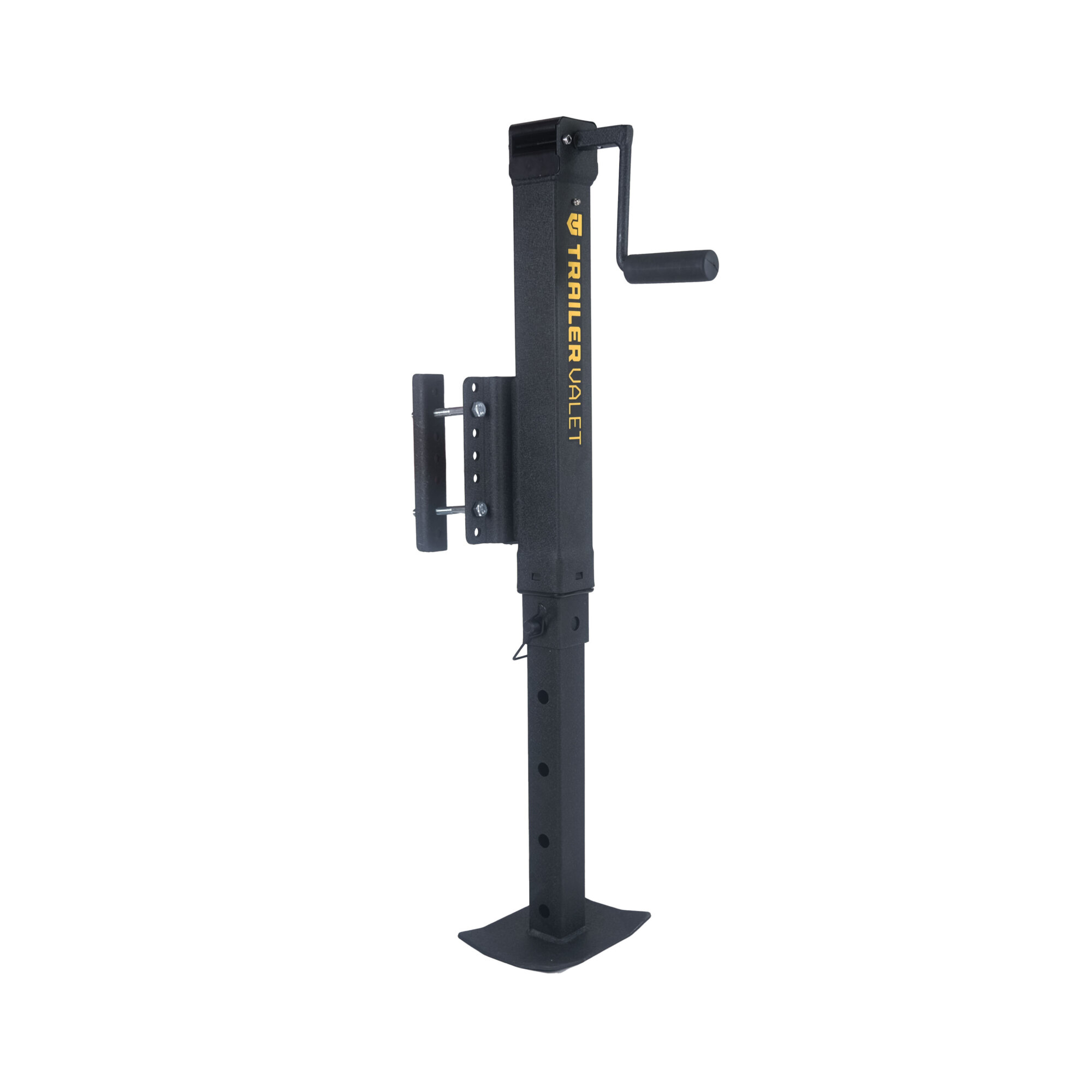

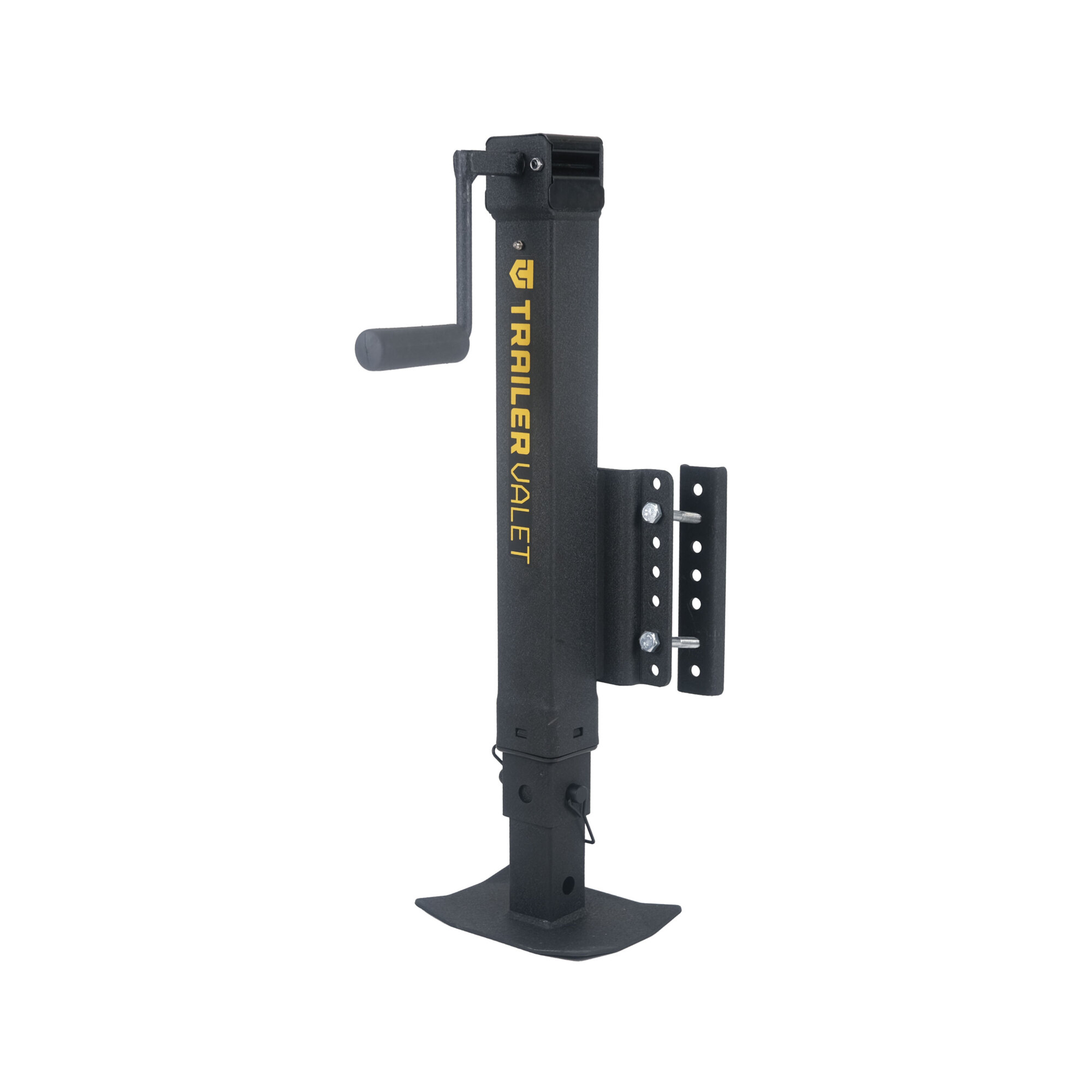

Trailer Valet Side-Mount Square Drill Jack - 7,000 lbs Static Capacity, 1,800 lbs Lift Capacity, 14in. Travel + 14in. Drop Leg, Wrinkle Black Finish, Includes Footplate and Drill Attachment, Model# TVJX7-S

Item# 5946794
Trailer Valet Side-Mount Square Drill Jack - 7,000 lbs Static Capacity, 1,800 lbs Lift Capacity, 14in. Travel + 14in. Drop Leg, Wrinkle Black Finish, Includes Footplate and Drill Attachment, Model# TVJX7-S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trailer Valet Side-Mount Square Drill Jack - 7,000 lbs Static Capacity, 1,800 lbs Lift Capacity, 14in. Travel + 14in. Drop Leg, Wrinkle Black Finish, Includes Footplate and Drill Attachment, Model# TVJX7-S

Click or Tap image to Zoom

$199.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Drill attachment for easy and fast height adjustment
  • Signature wrinkle black powder coating
  • Weather sleeve protects components and reduces friction
  • Patented gear system with 3:4 gear ratio
  • Larger, bolt-on mounting bracket for easy installation

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

"The Trailer Valet JX 7K side-mount jack joins our JX Series as the heavy hitter and best 7K jack on the market. The JX7-S was designed to meet the needs of those who demand speed, comfort, and longevity when it comes to heavy trailers. Whether you need a strong dump trailer jack Monday through Friday or you’re heading out with the boat on Saturdays, you can lift or lower your trailer in a matter of seconds with a 20-24V cordless drill. The JX7-S comes with a detachable hand crank, drill attachment, mount bracket hardware, and footplate. Easy and Fast Operation The JX7-S is an elbow saver that was built for speed. Forget waiting on slow electric trailer jacks or wearing out your arm with only a hand crank. The JX7-S comes with both a manual crank and drill chuck for use with any standard 20-24V cordless drill, so raising or lowering your jack has never been easier. Bringing the jack up or down is as simple as connecting the drill attachment and squeezing the trigger on your cordless drill. Unmatched Functionality No details were overlooked in designing the JX7-S to be the best heavy-duty, side crank trailer jack available. The JX7-S bolts onto your trailer frame with a fixed bracket for an easy mount. Each bracket has 6.4in. of space between the top and bottom holes so you’re able to get the perfect fit jack with no welding. The JX7-S is perfect for trailer leveling - using either the drill attachment or the optional hand crank gives you nearly 14in. of vertical travel. The adjustable drop leg provides another 13in., giving 27in. of total adjustment. When you’ve got the jack adjusted to the height you need, the welded-on footplate ensures a solid foundation for safe loading and unloading. Built to Last Built tough with a one-piece welded square tube and fixed bracket, the JX7-S power tongue jack is engineered with a static capacity of 8000 lbs. It also features an innovative weather sleeve that not only reduces metal-to-metal friction for smooth operation, but it protects the components from the elements. Inside the jack, our patented gear system was designed to reduce heat retention for smooth, long-lasting operation. Fully clad in our signature wrinkle black powder coating, the JX7-S stays protected against rust and corrosion so it’ll keep working long after other jacks fail."

What's Included

    (1) Includes Jack, Drill attachment, footplate, and hand crank

Features + Benefits

  • Drill attachment for easy and fast height adjustment
  • Signature wrinkle black powder coating
  • Weather sleeve protects components and reduces friction
  • Patented gear system with 3:4 gear ratio
  • Larger, bolt-on mounting bracket for easy installation
  • One-piece welded square tube for maximum strength
  • Includes hand crank for manual use

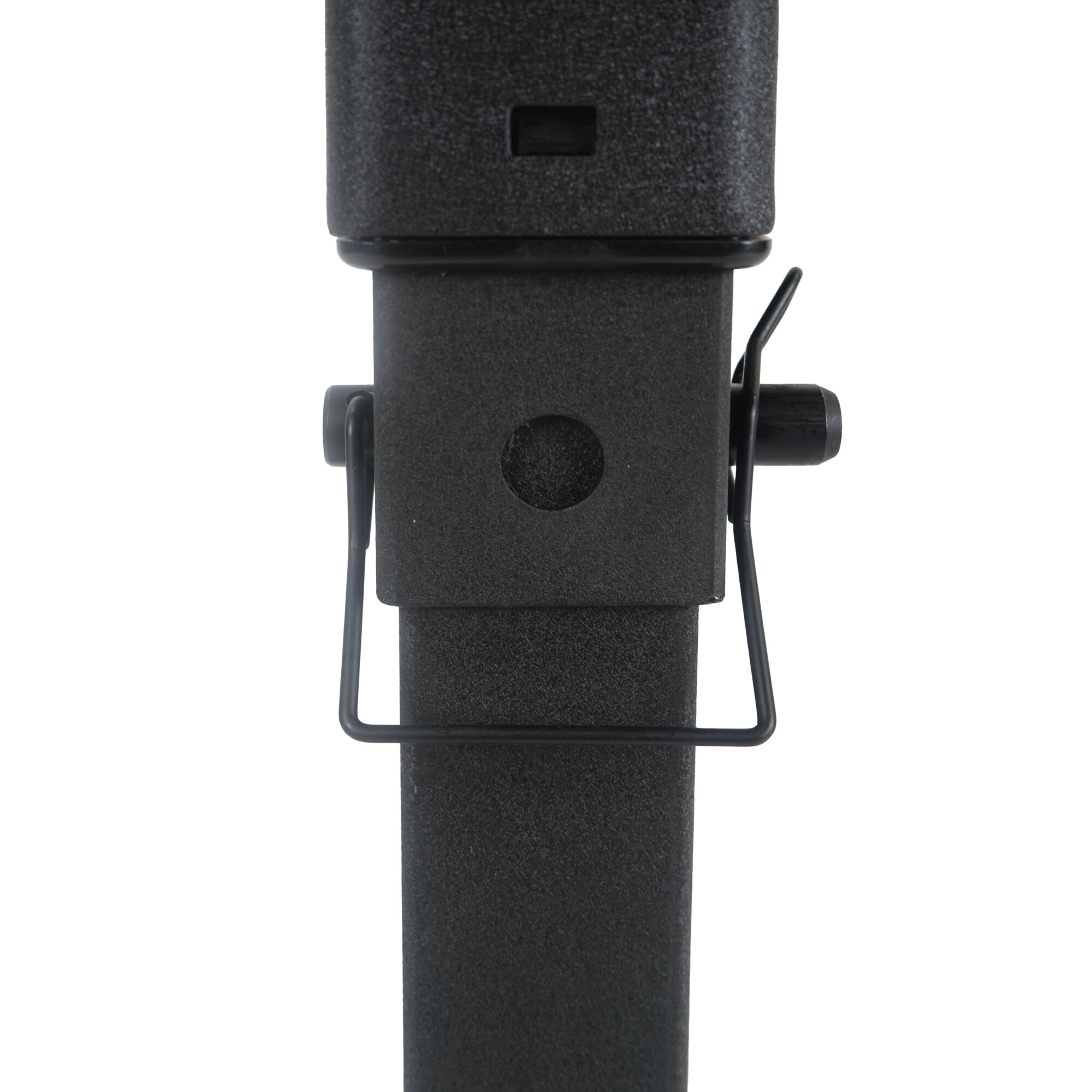

  • Heavy duty drop leg with welded-on footplate
  • Static Capacity: 7,000 lbs, Lift Capacity (Manual) 1800 lbs, Lift Capacity (w/ Drill): 900lbs
  • Retracted Height: 23 in Extended Height: 49 in
  • Retracted Height: 23 in Extended Height: 49 in Total Extension (Lift + Drop Leg Extension): 26 in Lift: 13 in Drop Leg Extension: 13 in
  • Outer Tube Dimension: 65 mm Square Inner Tube Dimension: 57 mm Square Drop Leg Tube Dimension: 50 mm Square
  • Clearance (bottom of bracket to top): 18.5 in Clearance (mount point to top of jack): 14.4 in Max Frame Size Fit: 6.00 in high, 3.75 in deep
  • Max Frame Size Fit: 4.75 in high, 3.75 in deep
  • Use your own bolt for deeper frames - Uses M10 1.5
  • Installation: Requires 8 in of clearance
  • For frames from 4.75 inches to 5.75 inches use the mounting bracket option TVJLMB Sold Separately

Key Specs

AttributeSpecification

item#

5946794

Brand

Trailer Valet

Manufacturer's Warranty

1 year limited warranty

Ship Weight

29.0 LB

Lift Capacity

1,800 lb

Mount Type

Weld-On

Tube Type

Square

Tube Size

2.25 in

Length Extended

50 in
AttributeSpecification

Length Retracted

23 in

Clearance: Bracket to Jack Top

12.2 in

Support Capacity

7,000 lb

Ground Support

Foot Plate

Mount Height

8.6 in

Drop Leg Travel

13 in

Length of Travel

26 in

Product Weight

27.5000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 23.0 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
