Trailer Star, Electric Jack, 3500 Lb, 12V, Model# 0093500
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom

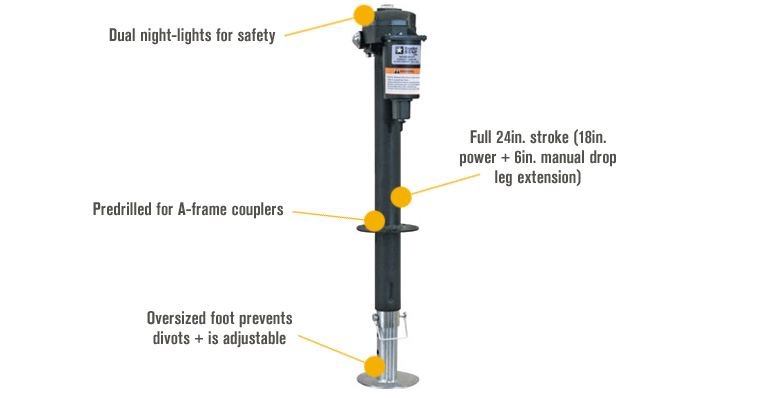

- The hardened steel gears and oversized 5 1/4in. zinc-plated foot pad are built tough to handle the toughest jobs
- A 18in. power stroke plus 6in. manual (24in. total) takes only 30 seconds
- Oversized foot prevents divots, and is adjustable on detachable 1 1/2in. centers
- Built-in leveling gauge

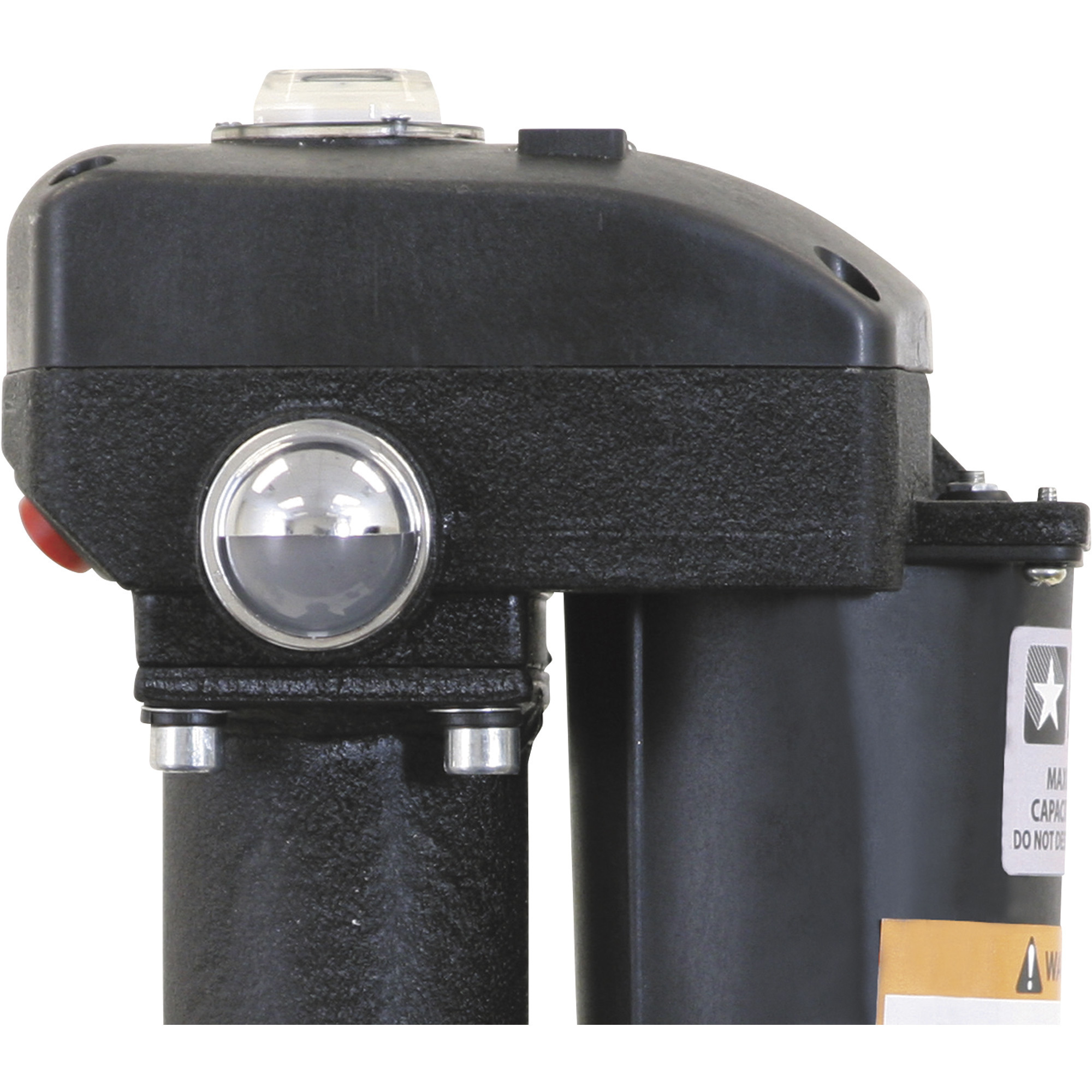

- Dual night lights for safety
See full description
What's Included
- (1) Jack
Downloads
The Fast and Easy Way to Level a Trailer
One-Touch Operation
No more cranking your arm off to raise or lower your trailer. With one simple push of a button the power stroke plus system raises or lowers your trailer 18 inches in just 30 seconds. And the manual crank override gives you an additional 6 inches of travel for 24in. total height.
Easy Plug and Go System
No hard wiring is required. Simply unplug your trailer connector, plug in the trailer jack to your vehicle's prewired 7-way connector, and push the button. The jack runs off your vehicle's 12V battery … it's as simple as that!
At-A-Glance Leveling
No need for laying your torpedo level across your trailer in an attempt to get an accurate reading. This jack features a built-in leveling gauge that lets you watch your progress as you raise or lower the jack. LED lights are built into both sides of the jack to make viewing what you're doing easy, even at night.
Anti-Divot Foot Adds Stability
An oversized 5 1/4in. dia. footpad provides the added surface area you need to get a solid footing on any terrain without sinking or taking a big divot out of the ground. The solid zinc-plated foot is also adjustable on detachable 1 1/2in. centers for the most stable positioning.
Fits Any A-Frame
This versatile jack is predrilled for compatibility with any trailer featuring an A-frame coupler. No guessing. If it's an A-frame, this jack will fit.
Toughness and Dependability in the Field
Never Leaves You Stranded
You never have to worry about this jack not doing its job. With a weather-sealed switch to keep the electrical drive running in any conditions, rain or shine, to the manual crank override that allows you to drop or raise the jack by hand, this jack is ready for any situation.
The Guts to Perform
This jack is built tough, all the way through. The hardened steel gears stand up to the test of time to prevent stripping and slipping for consistently smooth operation.
Measures Up to Your Needs
With 3,500 lbs. lifting capacity and 5,000 lbs. of breakaway capacity, this lightweight (only 19 lbs.) jack is up to the task. The jack measures 27in. from the mounting ring to the top of the motor and has a 26 1/2in. retracted height.
Shop with Confidence
Dependable Warranty
The Trailer Star Electric Trailer Jack comes with a manufacturer's 1-year limited warranty to give you extra peace of mind.
Guaranteed Satisfaction
Shop in complete confidence, knowing that Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need.
Features + Benefits
- The hardened steel gears and oversized 5 1/4in. zinc-plated foot pad are built tough to handle the toughest jobs
- A 18in. power stroke plus 6in. manual (24in. total) takes only 30 seconds
- Oversized foot prevents divots, and is adjustable on detachable 1 1/2in. centers
- Built-in leveling gauge
- Dual night lights for safety
- Weather-sealed switch and manual crank override so that it always works
- Predrilled for A-frame couplers
- Prewired to a 7-way connector
- No hard wiring required
- Simply unplug your trailer connector, plug in jack, lift or lower then plug your trailer connector back in
- 26 1/2in. retracted height
- 27in.L x 6in.W x 5in.D overall size
- Measures 27in. from mounting ring to top of the motor
See All Trailer Jacks
See All Trailer Star Trailer Jacks
Currently Viewing This Product
Item # 8561701
$87.99Reg $119.99Save $32.00Order today to get this price.
Item # 382291
$869.99Reg $939.99Save $70.00Order today to get this price.
Specifications
3,500 lb
40,000 lb
-
-
Electric
A-Frame
-
-
Bolt-On
Bolt-On
-
-
27.625 in
51 in
-
-
9.625 in
39 in
-
-
27 in
-
-
-
5,000 lb
100,000 lb
-
-
Foot Plate
Foot Plate
Foot Plate
Foot Plate
9.625 in
-
-
-
6 in
-
-
-
24 in
12 in
-
-
lb
147.0000 lb
-
-
27.0 x 6.0 x 5.0 in
26.69 x 23.75 x 40.0 in
-
-
