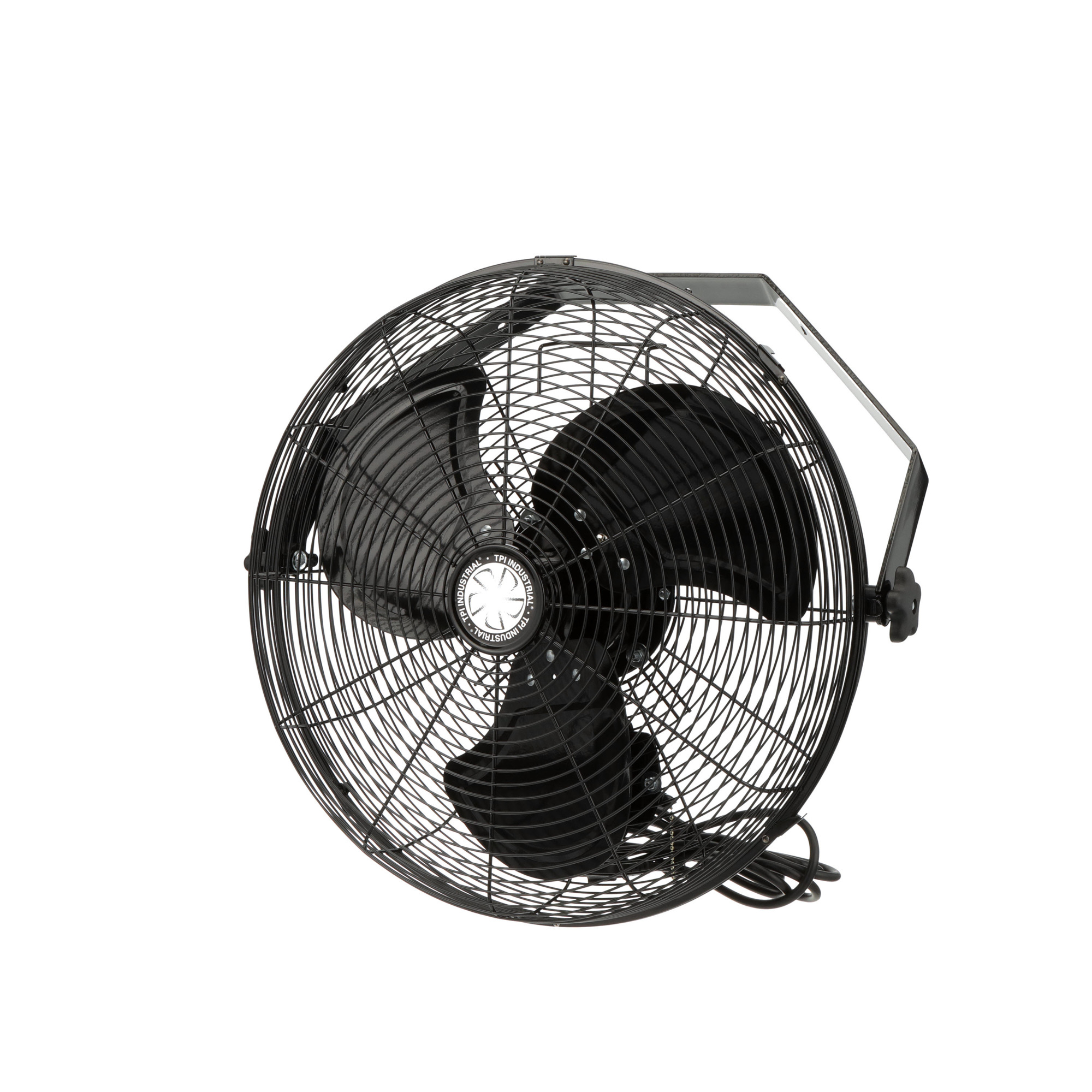

TPI Yoke Mount Workstation Fan - 18in. Diameter, 1900 CFM, 120V, 3-Speed, Steel Construction, Model# U18TEHD

Item# 4229591
TPI Yoke Mount Workstation Fan - 18in. Diameter, 1900 CFM, 120V, 3-Speed, Steel Construction, Model# U18TEHD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Yoke Mount Workstation Fan - 18in. Diameter, 1900 CFM, 120V, 3-Speed, Steel Construction, Model# U18TEHD

Click or Tap image to Zoom

$271.36

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Commercial air circulator, 18" blade diameter with steel yoke mount, shipped fully-assembled
  • Operates at 120-Volts generating up to 3.6-amps on single phase
  • Includes 9' long black SJT 3-conductor grounded molded plug
  • All steel construction with a high gloss powder coated black finish
  • Three speed, 1/10-HP direct drive motor constructed of a totally enclosed, thermally protected, sleeve bearing, and permanently lubricated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TPI Yoke Mount Workstation Fan is an 18-inch diameter fan designed to deliver powerful airflow and reliable performance in semi-protected outdoor environments like restaurants, coffee shops, and patios. With a robust steel construction, this fan is built to withstand the elements and provide long-lasting durability. The fan operates at 120 Volts and offers three-speed settings, allowing you to customize the airflow to suit your needs. It produces an impressive 1900 cubic feet per minute (CFM) of airflow, ensuring effective cooling and ventilation in various settings. The yoke mount design provides flexibility in positioning, making it easy to direct the airflow exactly where it is needed. Whether you need to enhance comfort in outdoor dining areas or improve air circulation in semi-protected spaces, the TPI Yoke Mount Workstation Fan is a versatile and efficient solution.

What's Included

    (1) Fan assembled unit

Features + Benefits

  • Commercial air circulator, 18" blade diameter with steel yoke mount, shipped fully-assembled
  • Operates at 120-Volts generating up to 3.6-amps on single phase
  • Includes 9' long black SJT 3-conductor grounded molded plug
  • All steel construction with a high gloss powder coated black finish
  • Three speed, 1/10-HP direct drive motor constructed of a totally enclosed, thermally protected, sleeve bearing, and permanently lubricated
  • Pull chain switch to operate the three speeds, fan head is stationary but will rotate: vertical axis (from the knobs) 180° rotation, horizontal axis (from the yoke) 360° rotation
  • Uses a 30" aluminum 3-paddle blade, coated black, generating 3,100 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a black finish
  • Agency tested and approved for semi-protected outdoor applications
  • Additional swing provided for higher mounting positions
  • UL Listed for the USA and Canada

Key Specs

AttributeSpecification

item#

4229591

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.0 LB

Fan Diameter

18 in

Air Delivery

1,900 cfm

Oscillating

No

Volts

120

Outdoor Rated

No

Assembly Required

Yes
AttributeSpecification

Primary Color

Black

Housing Material

Combination

Speeds (qty.)

3

Max. Fan Speed

1,625 rpm

Hardwired

No

Phase

Single-phase

Power Cord Length

10 ft

Watts

130

Product Weight

18.0000 lb

Dimensions L x W x H (in.)

10.5 x 21.5 x 20.5 in
