TPI Venturi-Mounted Exhaust Fan - 10in. dia., 680 CFM, 1/12 HP, 120V, 3-Speed, Model# CE10DV

Item# 4229523
TPI Venturi-Mounted Exhaust Fan - 10in. dia., 680 CFM, 1/12 HP, 120V, 3-Speed, Model# CE10DV

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Venturi-Mounted Exhaust Fan - 10in. dia., 680 CFM, 1/12 HP, 120V, 3-Speed, Model# CE10DV

Click or Tap image to Zoom

$356.48

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Venturi mount exhaust fan, bolts directly to an inside wall / vertical surface

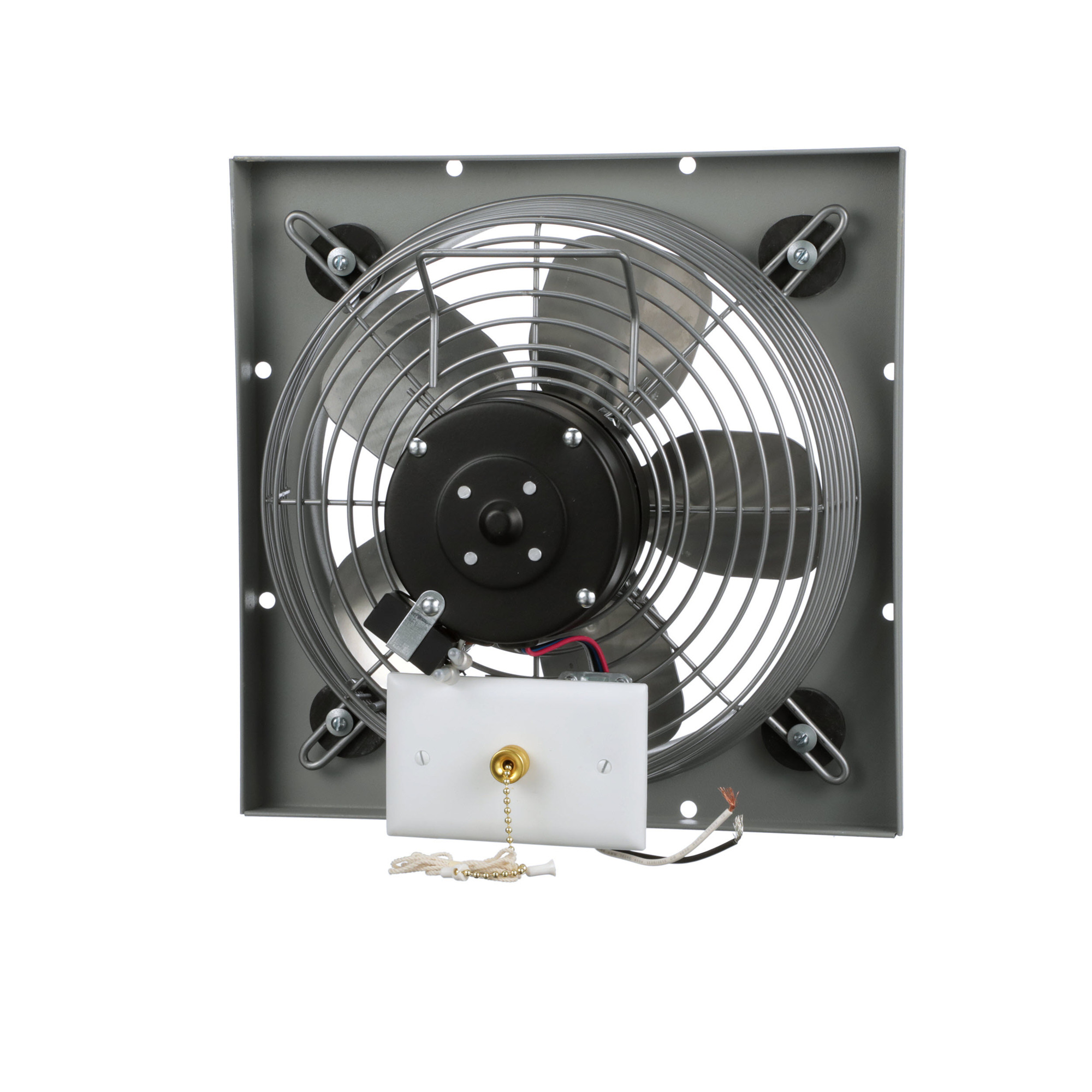

  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 1.0-amps using a totally enclosed motor
  • Three speed, 1/12-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Improves air quality and designed for harsh environments

What's Included

    (4) Frame, guard, blade, & motor

Features + Benefits

  • Venturi mount exhaust fan, bolts directly to an inside wall / vertical surface
  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 1.0-amps using a totally enclosed motor
  • Three speed, 1/12-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated
  • Steel frame has a gray powder coated finish and uses a 10" aluminum 5-paddle blade generating 680 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a silver finish
  • Can be used with or without external shutter (sold separately)
  • Designed for harsh industrial and commercial environments to improve air quality
  • UL recognized motor
  • Proudly Designed, Engineered, Tested and Assembled in the USA

Key Specs

AttributeSpecification

item#

4229523

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.0 LB

Drive Type

Direct

Fan Diameter

10 in

Air Delivery

680 cfm

Volts

120
AttributeSpecification

Watts

62

Hardwired

Yes

Speeds (qty.)

1,560

Assembly Required

Yes

Outdoor Rated

No

Phase

Single-phase

Product Weight

6.0000 lb

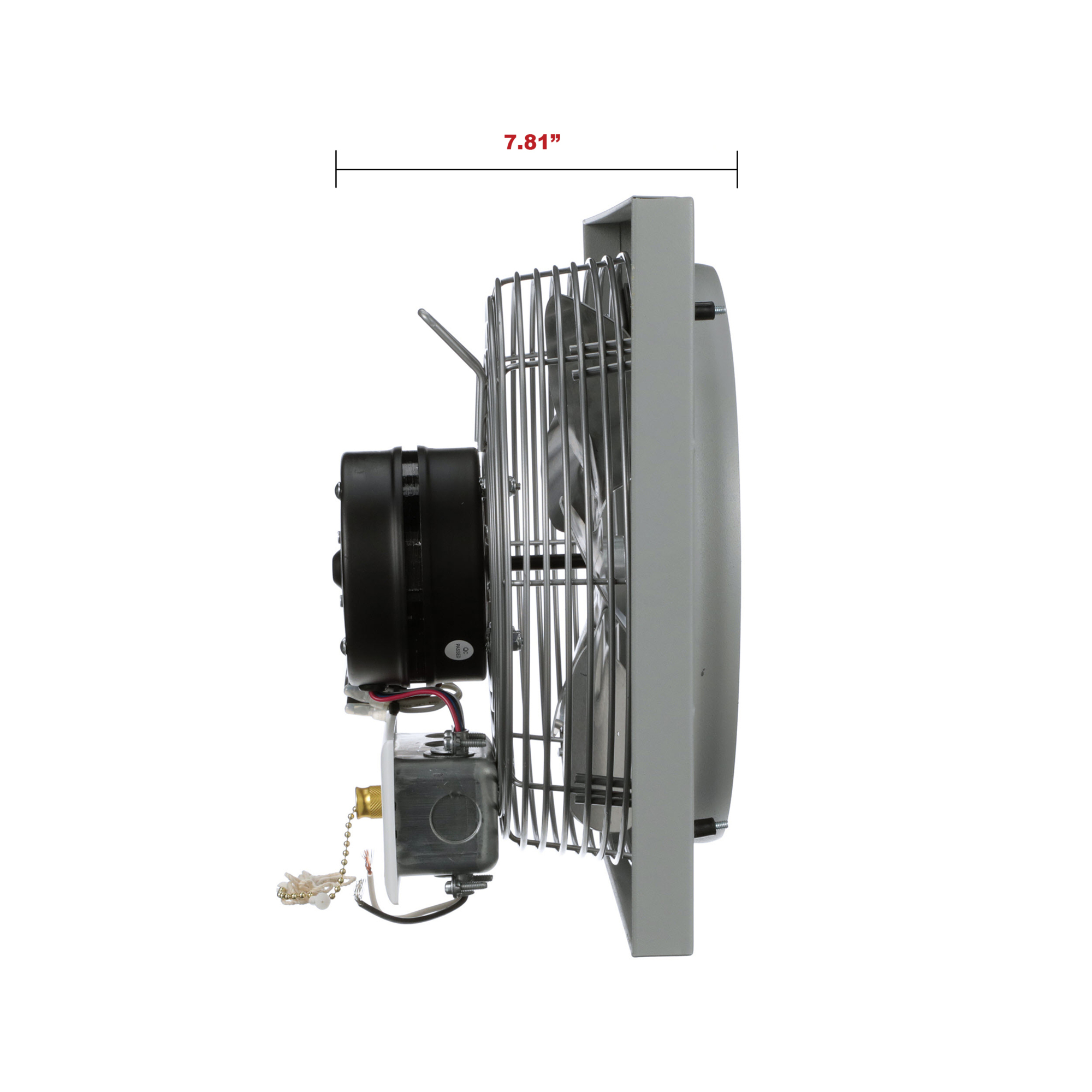

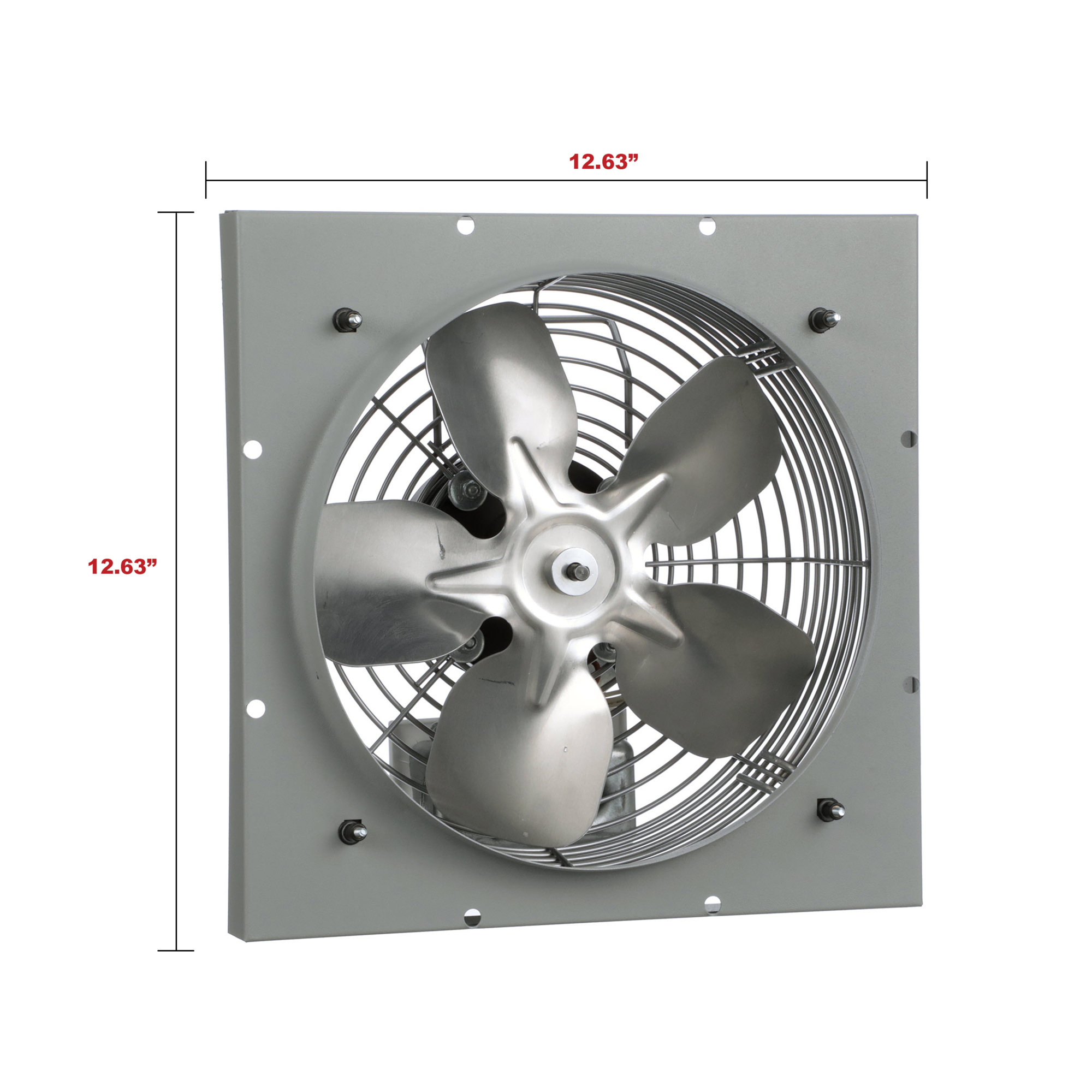

Dimensions L x W x H (in.)

7.81 x 12.63 x 12.63 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
