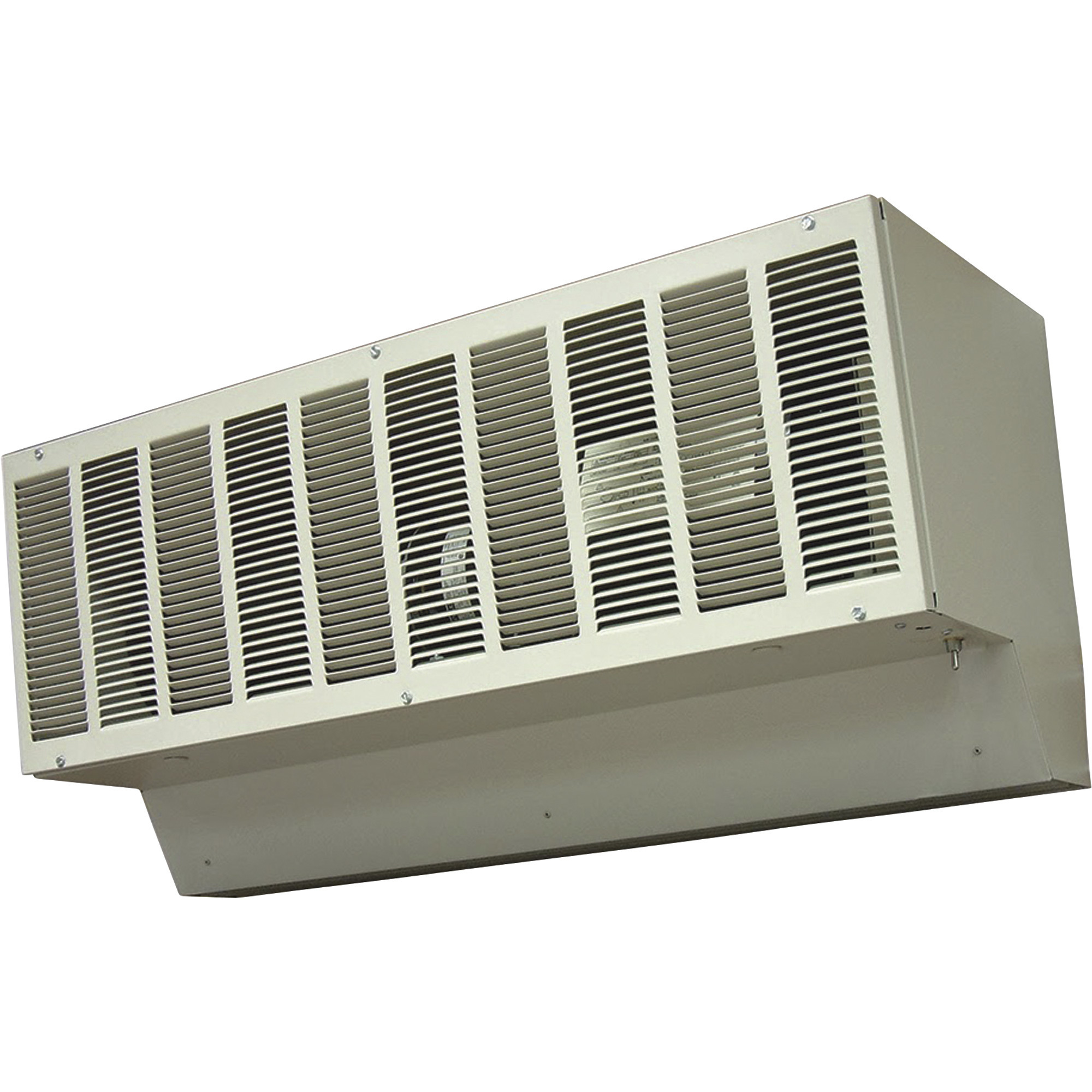

TPI Variable Speed Air Curtain - 48in., 4515 CFM, Adjustable Airflow, Heavy-Duty Steel, Model# CF48

Item# 2507586
1 of 4 reviewers received a sample product or took part in a promotion
Top Seller
TPI Variable Speed Air Curtain - 48in., 4515 CFM, Adjustable Airflow, Heavy-Duty Steel, Model# CF48

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Variable Speed Air Curtain - 48in., 4515 CFM, Adjustable Airflow, Heavy-Duty Steel, Model# CF48

Click or Tap image to Zoom

$2067.20

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Cabinet constructed of 20-gauge rigid steel with baked-on epoxy powder-coat paint for durability
  • Discharge vanes extends the entire width of the unit and are adjustable for optimum performance of air flow
  • Blowers are forward curved centrifugal type, DWDI with corrosion-resistant scroll and wheel
  • Motor is heavy duty, PSC, direct drive high efficiency and designed for use with SCR controller
  • Permanently lubricated for long life and has thermal overload protection

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TPI Variable Speed Air Curtain is a high-performance solution designed to maintain optimal indoor air quality by preventing outside air from entering and keeping conditioned air inside. Measuring 48 inches in length, this air curtain delivers an impressive airflow of 4515 CFM, making it suitable for a wide range of commercial and industrial applications. Constructed from heavy-duty steel, it ensures durability and long-lasting performance even in demanding environments. One of the key features of this air curtain is its adjustable discharge vanes that extend the entire length of the unit. These vanes can be precisely adjusted to optimize airflow performance, ensuring effective air separation and enhancing energy efficiency. The variable speed control allows for customizable airflow settings, providing flexibility to meet specific needs and conditions. Ideal for doorways, entrances, and other openings, the TPI Variable Speed Air Curtain helps to reduce energy costs, improve indoor comfort, and maintain a clean, controlled environment. Its robust construction and advanced features make it a reliable and efficient choice for businesses looking to enhance their HVAC systems and overall building performance.

What's Included

    (1) Air Curtain

Features + Benefits

  • Cabinet constructed of 20-gauge rigid steel with baked-on epoxy powder-coat paint for durability
  • Discharge vanes extends the entire width of the unit and are adjustable for optimum performance of air flow
  • Blowers are forward curved centrifugal type, DWDI with corrosion-resistant scroll and wheel
  • Motor is heavy duty, PSC, direct drive high efficiency and designed for use with SCR controller
  • Permanently lubricated for long life and has thermal overload protection
  • Has double insulation protection for quieter operation
  • Quick disconnects supplied to accommodate easy installation and service of motor
  • SCR Speed Controller supplied on all units compatible with the motor with low end adjustment for air volume control and savings in power consumption
  • Electric heat option available

Key Specs

AttributeSpecification

item#

2507586

Brand

TPI

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

86.0 LB

Fan Type

Cabinet
AttributeSpecification

Air Delivery

4,515 cfm

Outdoor Rated

No

Volts

120

Horsepower

0.5 HP

Max. Fan Speed

1,606 rpm
