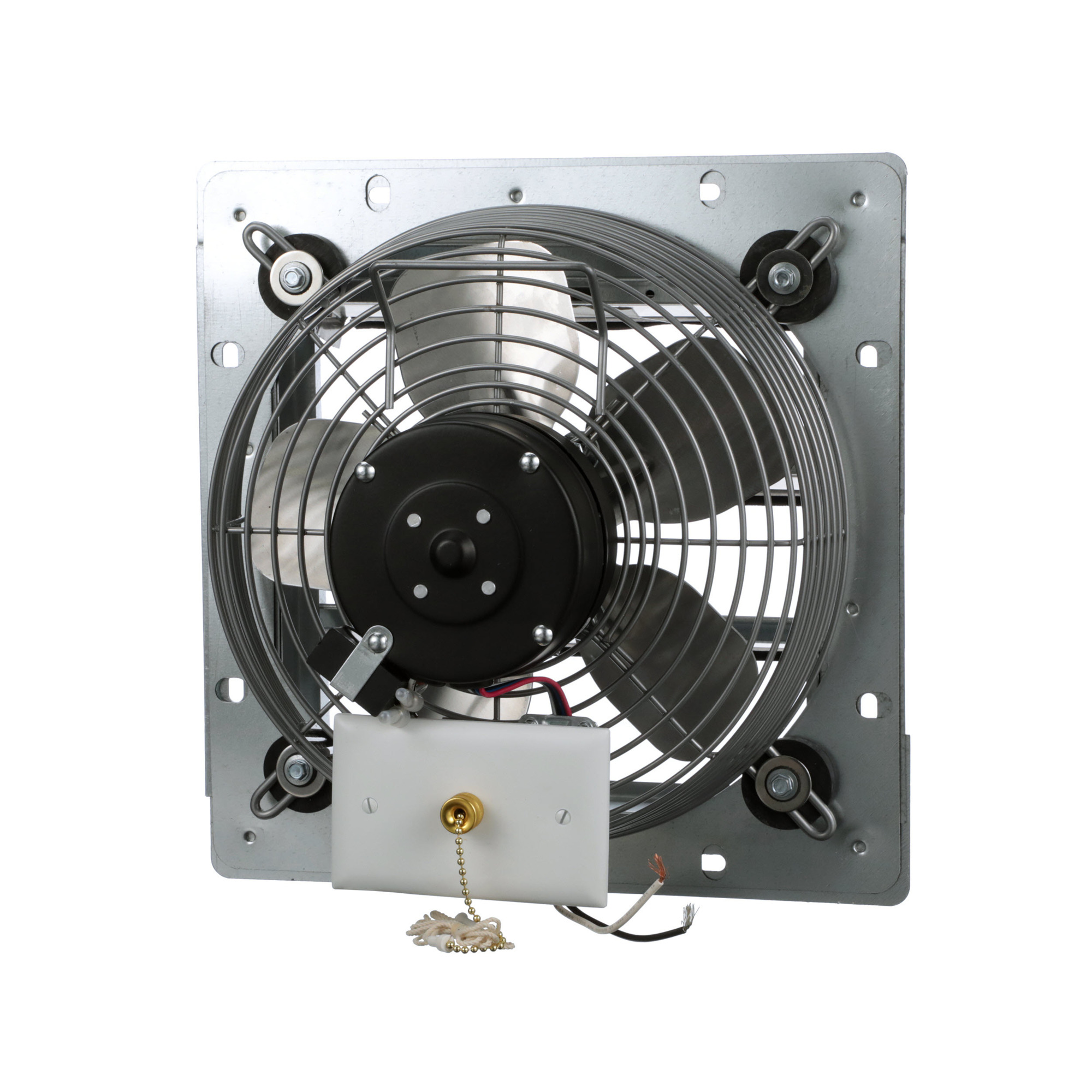

TPI Shutter-Mounted Exhaust Fan - 10in. Dia., Direct Drive, 680 CFM, 3 Speeds, Model# CE10DS

Item# 4229671
TPI Shutter-Mounted Exhaust Fan - 10in. Dia., Direct Drive, 680 CFM, 3 Speeds, Model# CE10DS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Shutter-Mounted Exhaust Fan - 10in. Dia., Direct Drive, 680 CFM, 3 Speeds, Model# CE10DS

Click or Tap image to Zoom

$356.48

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

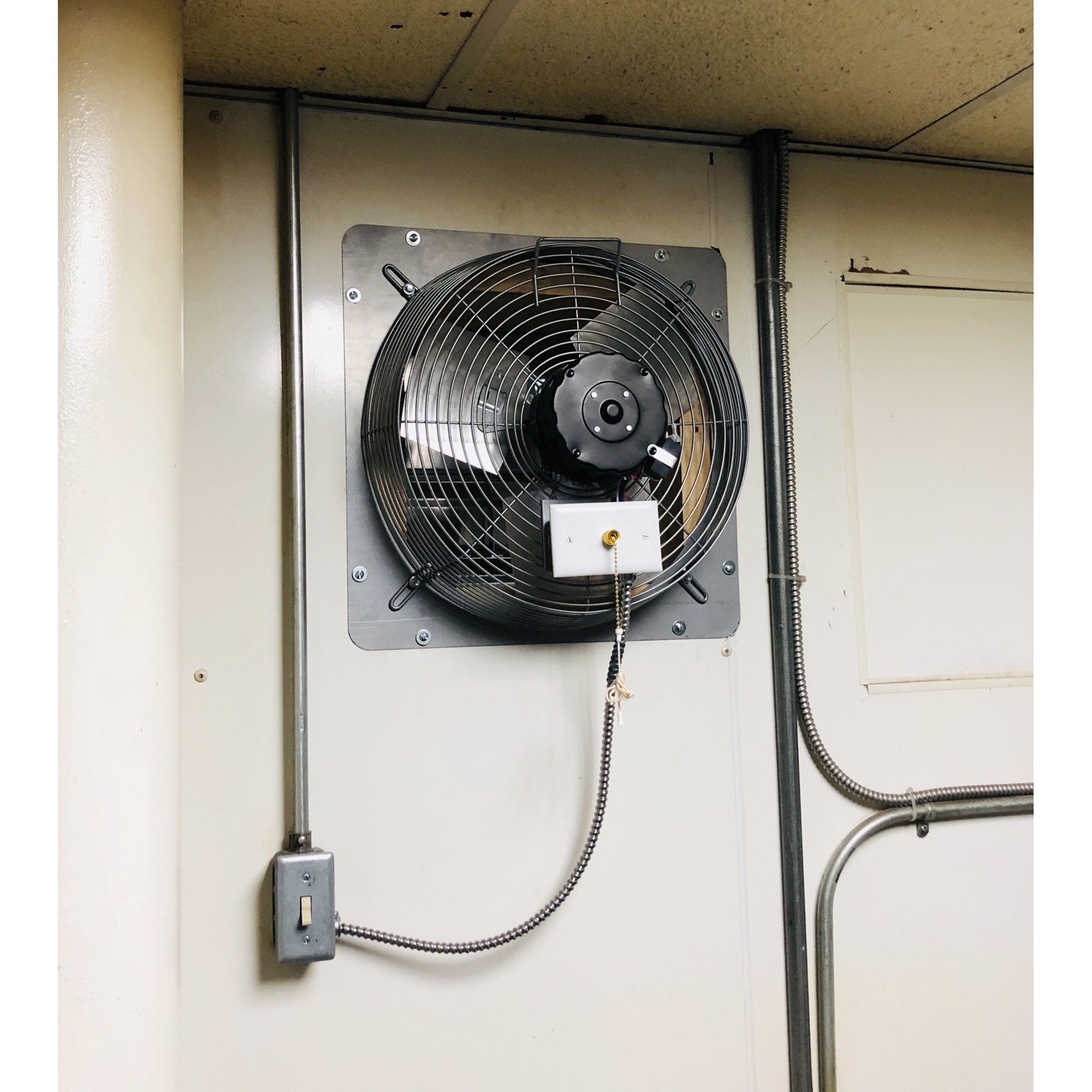

  • Shutter mount exhaust fan, bolts directly to an inside wall / vertical surface
  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 1.0-amps using a totally enclosed motor
  • Three speed, 1/12-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Improves air quality and designed for harsh environments

What's Included

    (2) Fan assembly & shutter

Features + Benefits

  • Shutter mount exhaust fan, bolts directly to an inside wall / vertical surface
  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 1.0-amps using a totally enclosed motor
  • Three speed, 1/12-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated
  • Uses a 10" aluminum 5-paddle blade generating 680 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a silver finish
  • Designed for harsh industrial and commercial environments to improve air quality
  • Shutter air open - gravity closed with seal
  • Shutter includes weather seal for tighter seal
  • UL recognized motor
  • Proudly Designed, Engineered, Tested and Assembled in the USA

Key Specs

AttributeSpecification

item#

4229671

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.0 LB

Drive Type

Direct

Fan Diameter

10 in

Air Delivery

680 cfm

Volts

120
AttributeSpecification

Watts

62

Hardwired

Yes

Speeds (qty.)

1,560

Assembly Required

Yes

Outdoor Rated

No

Phase

Single-phase

Product Weight

6.0000 lb

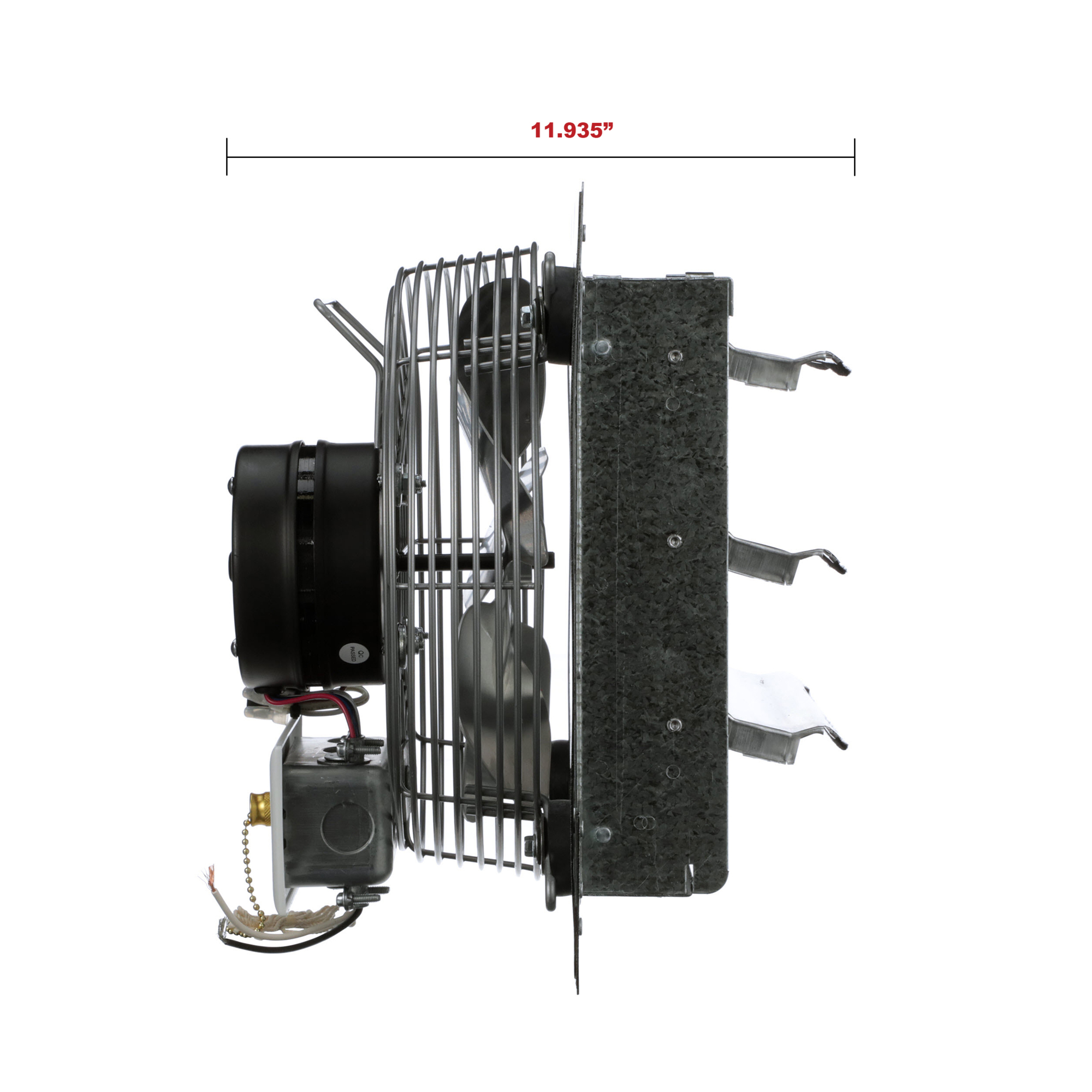

Dimensions L x W x H (in.)

11.935 x 13.125 x 13.125 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Is the motor on this fan suitable for high dust conditions and is it rated for continuous run?

    1 answer

    1. The fan should be used in a clean dry commercial application such as a school, shop, office or warehouse. It is not designed to run continuously.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
