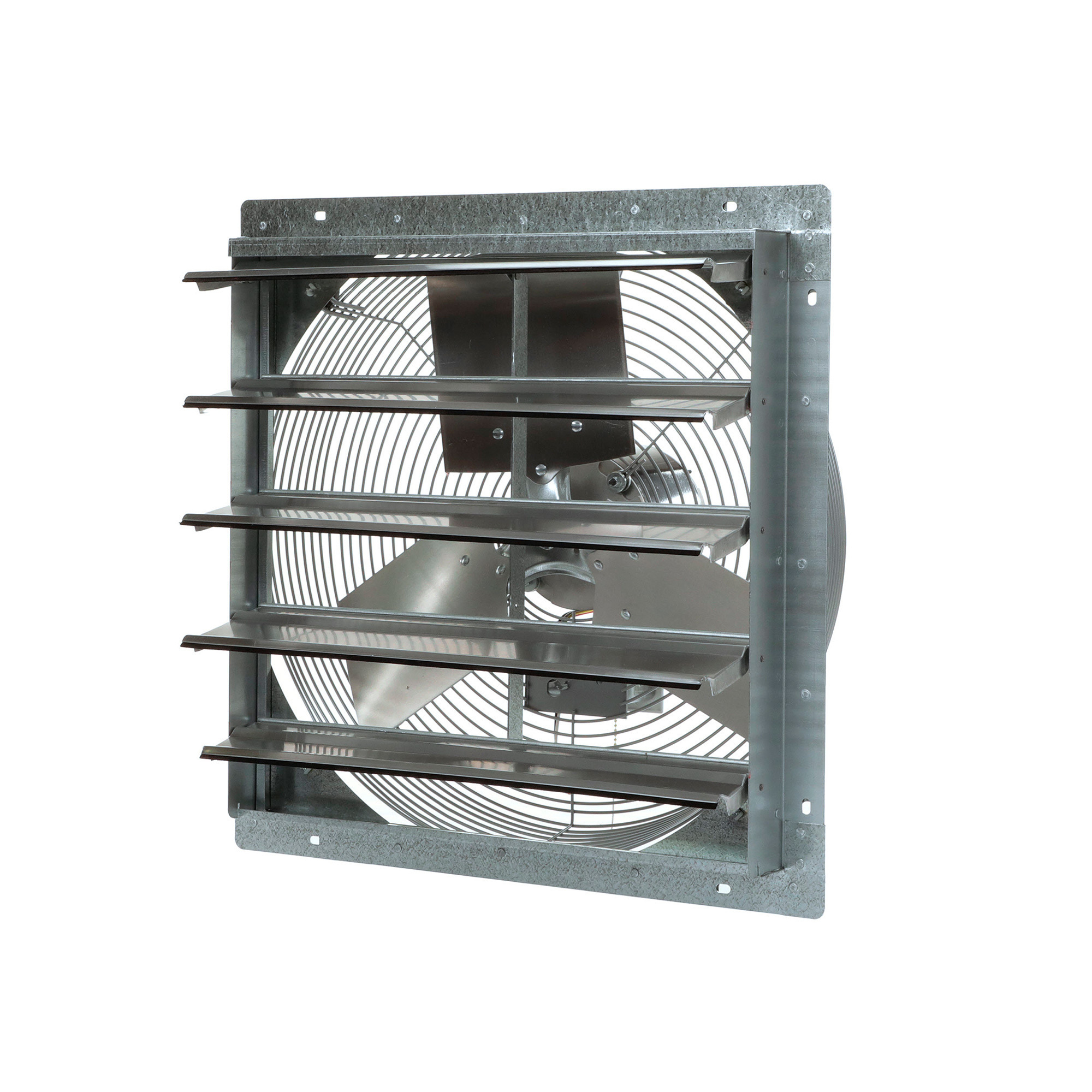

TPI Shutter-Mounted Direct Drive Exhaust Fan - 20in. Diameter, 2925 CFM, 1/4 HP, 2 Speeds, Model# CE-20-DS

Item# 255318
"TPI Shutter-Mounted Direct Drive Exhaust Fan - 20in. Diameter, 2925 CFM, 1/4 HP, 2 Speeds, Model# CE-20-DS"
TPI Shutter-Mounted Direct Drive Exhaust Fan - 20in. Diameter, 2925 CFM, 1/4 HP, 2 Speeds, Model# CE-20-DS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Shutter-Mounted Direct Drive Exhaust Fan - 20in. Diameter, 2925 CFM, 1/4 HP, 2 Speeds, Model# CE-20-DS

Click or Tap image to Zoom

$656.00

  • Shipping:

    Factory shipped

  • Store Pickup:

  • For new or existing construction
  • 2-speed, 2,925/2,380 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated

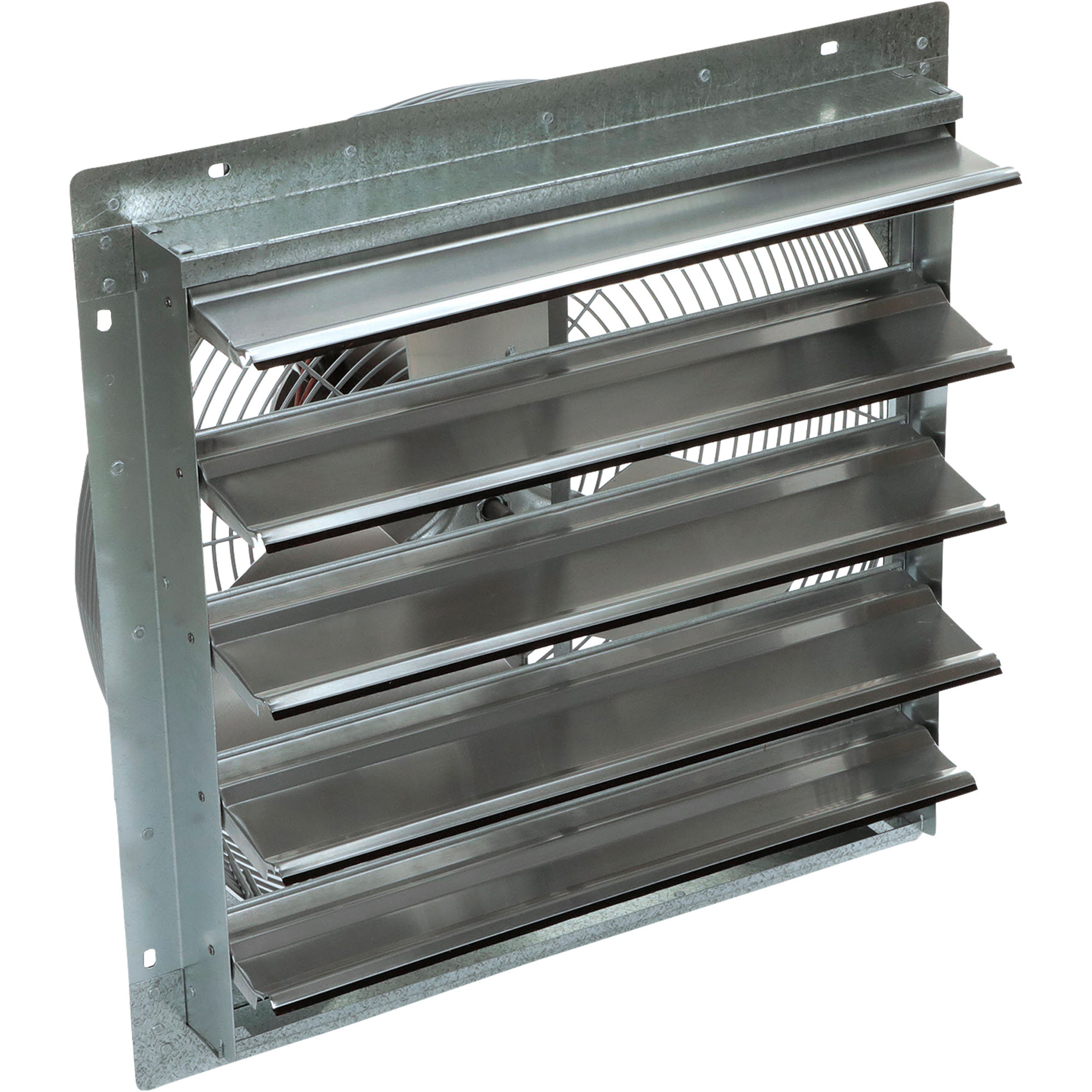

  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

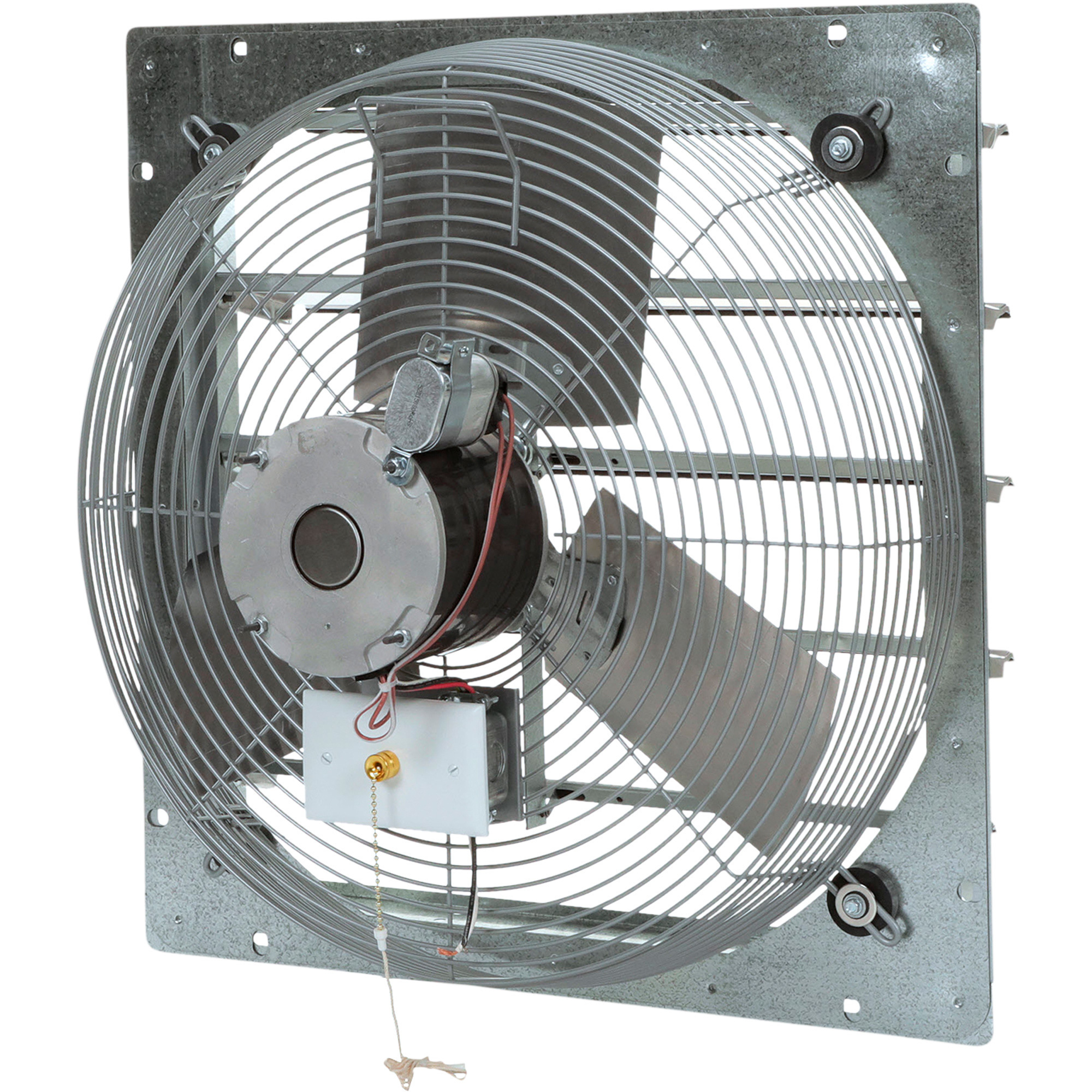

The TPI Shutter-Mounted Direct Drive Exhaust Fan is designed to exhaust stale air from rooms, barns, garages or small enclosed work areas. Can be installed from inside wall, eliminating the need for external framing and shutter. Totally enclosed 120V direct drive motor has 2 speeds and is permanently lubricated. 1/4 HP motor features pull chain switch, aluminum blades and steel spiral guards.

What's Included

    (1) Exhaust fan (1) Junction box

Downloads

Product Manual Product Manual2

Features + Benefits

  • For new or existing construction
  • 2-speed, 2,925/2,380 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated
  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise
  • 1/4 HP motor features pull chain switch
  • Aluminum blades
  • Steel spiral guards
  • Includes junction box for hardwiring
  • Shutter mounted fans install on inside wall and eliminate the need for external framing and shutter
  • Quiet operation makes it ideal for commercial environments
  • Aluminum blades are enclosed in a sturdy steel spiral wire guard
  • Adjustable shutters regulate flow of ventilation
  • Meets OSHA standards
  • UL listed

Key Specs

AttributeSpecification

item#

255318

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

33.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

20 in

Air Delivery

2,925 cfm

Volts

120

Horsepower

0.25 HP

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Can this be linked with both a thermostat and/or a motorized inlet shutter?

    1 answer

    1. This fan is not designed for use with a thermostat or a motorized inlet shutter. The motor features a pull-chain on/off switch. The shutters automatically open and close when the fan is turned on and off.

      Helpful?

  2. Please email me the thru-wall installation dimensions for this fan item # 255318-2651

    1 answer

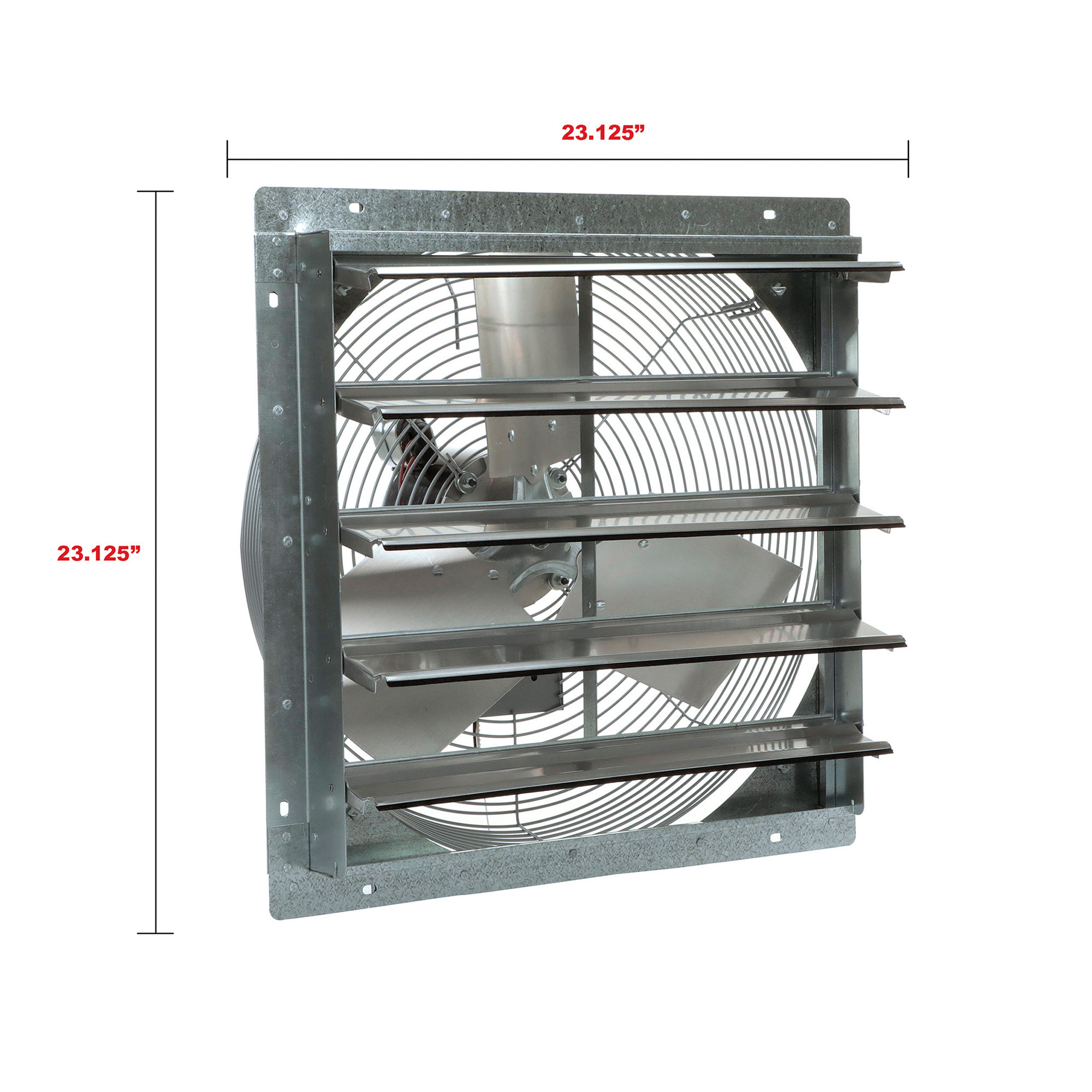

    1. The rough-in hole size for the Shutter-Mounted Direct Drive Exhaust Fan is 1/2" larger than the blade size of the fan itself. With the 20 inch fan, Rough in hole would be 20-1/2 inches x 20-1/2 inches.

      Helpful?

  3. What size rough opening do I need for this fan?

    1 answer

    1. To calculate rough hole size for exhaust fans, it would be one half inch larger than fan BLADE size.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
