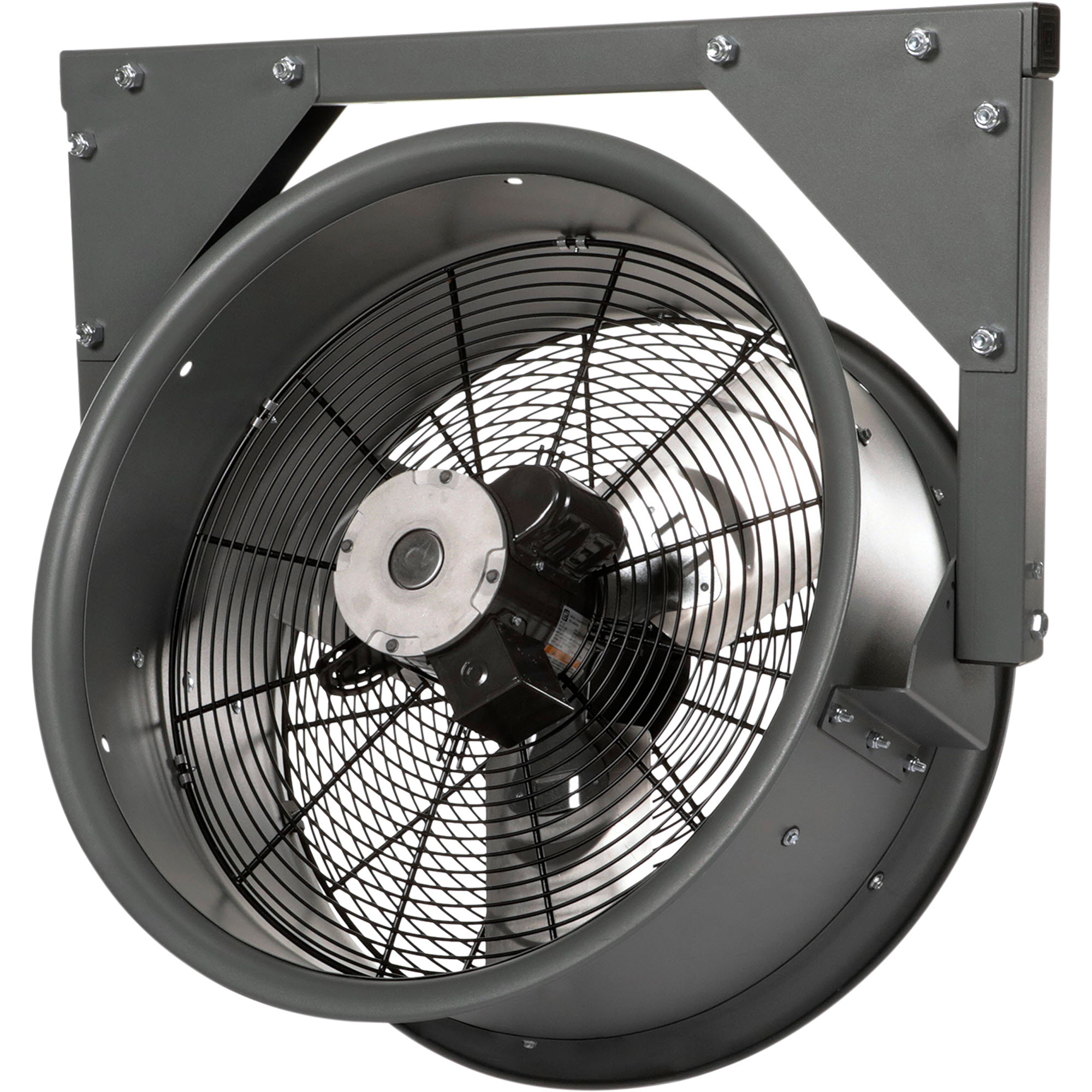

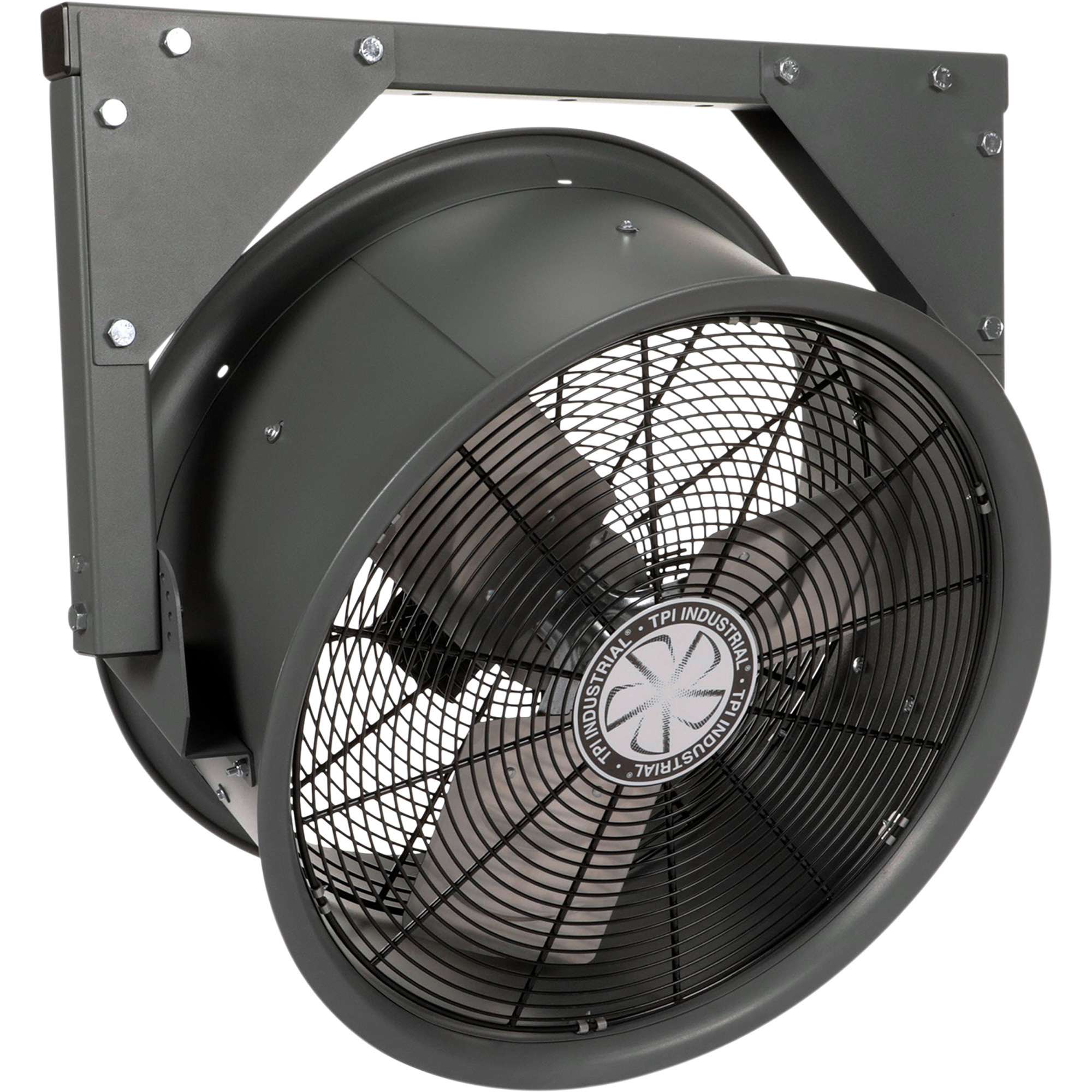

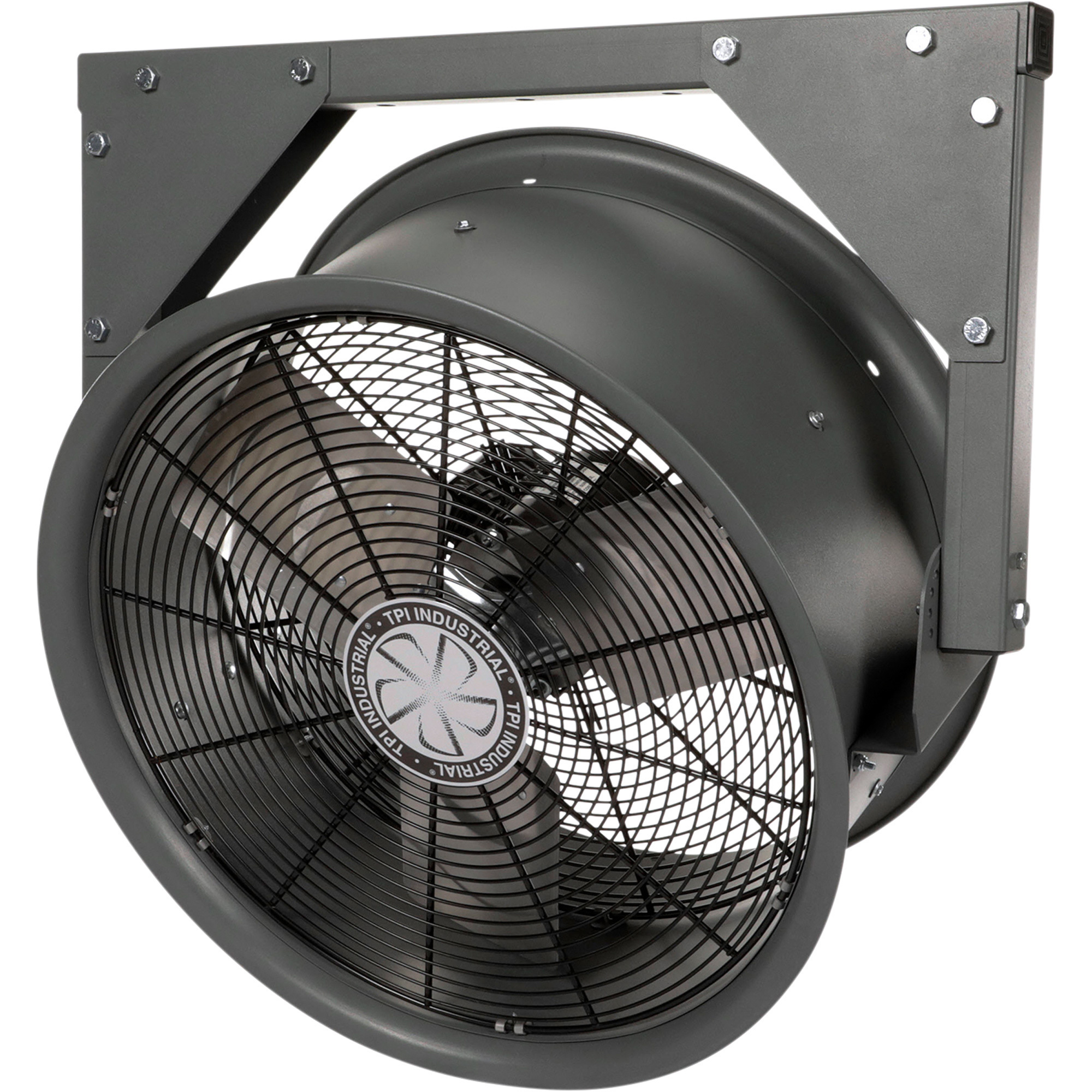

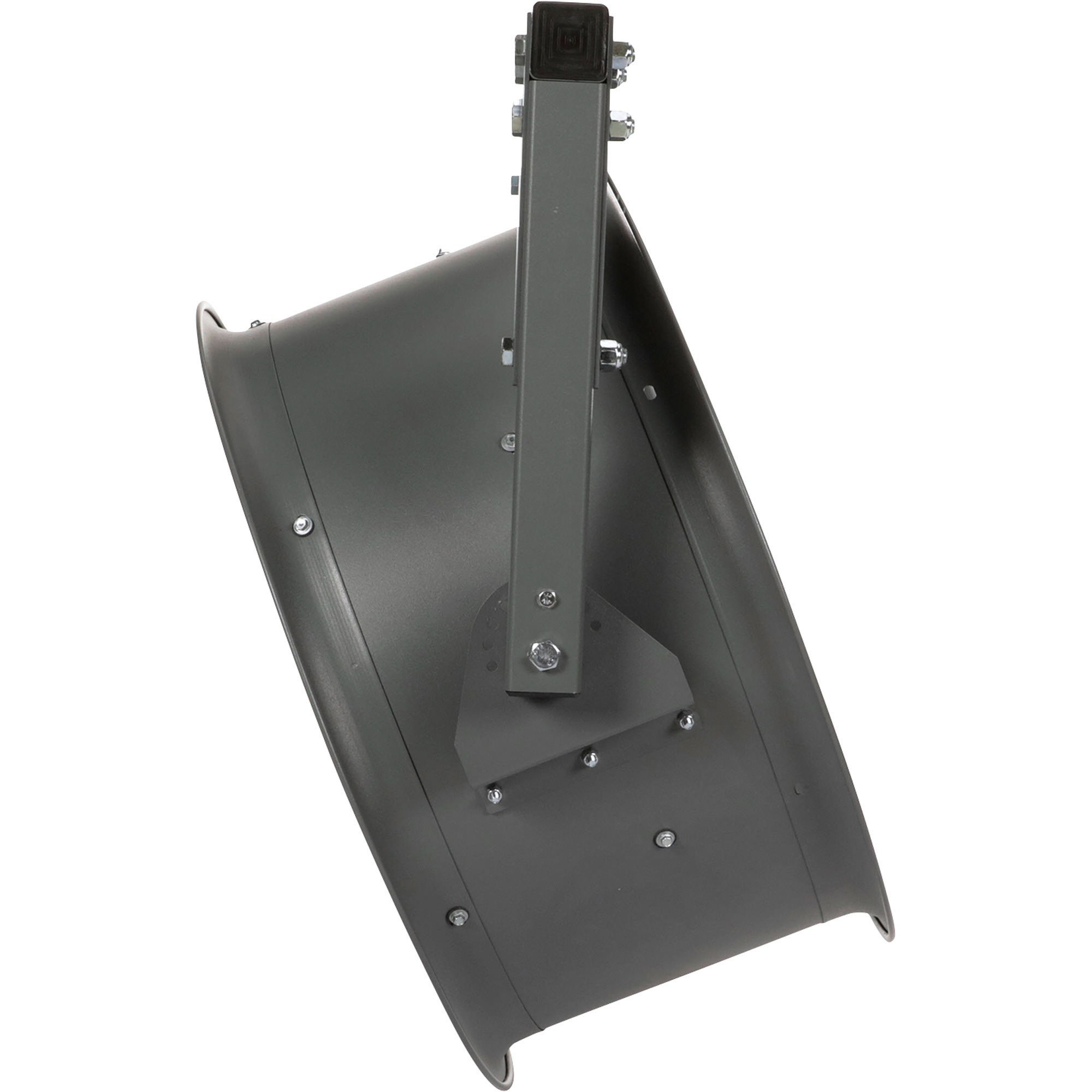

TPI HV Series Wall Mount Air Circulator - 24in. Dia., 5290 CFM, 480V, Model# HV24-480V

Item# 99665
TPI HV Series Wall Mount Air Circulator - 24in. Dia., 5290 CFM, 480V, Model# HV24-480V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI HV Series Wall Mount Air Circulator - 24in. Dia., 5290 CFM, 480V, Model# HV24-480V

Click or Tap image to Zoom

$1278.08

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ideal for indoor spot cooling applications to provide directional high-velocity airflow
  • Front and rear spiral wound grills are OSHA approved and have a black powder-coated finish
  • Shipped fully assembled and ready for hard-wired connections
  • TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments
  • Rated up to 115°F max ambient temperature

See full description

Complete Your Solution

  • TPI HV Series Wall Mount Air Circulator - 24in. Dia., 5290 CFM, 480V, Model# HV24-480V
  • TPI Bracket for HV-18/HV-24 Blowers - Durable Steel, Wall or Ceiling Mount, Model# HV-2
Price for all two:

$1511.68

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The TPI HV Series Industrial High-Velocity Fan is ETL C/US listed for indoor spot cooling applications. It is ideal for warehouse, material handling, and high-shelf areas for directing high volumes of airflow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites, and all types of industrial operations and rugged environments. Its 20-gauge all-steel housing with gray epoxy powder-coated finish is designed to last. The heavy-duty yoke mounting bracket design features a 2in. square steel tubing frame. The direct drive, totally enclosed air-over (TEAO), single-speed motor generates up to 5290 CFMs. The ball bearing, with split capacitor, is permanently lubricated. The motor operates on 60HZ and 1725 RPMs, and requires hard-wired connection to the supplied electrical enclosure is located on the motor housing. Aluminum 3-paddle blade system includes steel hub and cast aluminum spider connections and an 24in. non-oscillating fan head.

What's Included

    (1) High-velocity blower

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Ideal for indoor spot cooling applications to provide directional high-velocity airflow
  • Front and rear spiral wound grills are OSHA approved and have a black powder-coated finish
  • Shipped fully assembled and ready for hard-wired connections
  • TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments
  • Rated up to 115°F max ambient temperature

Key Specs

AttributeSpecification

item#

99665

Brand

TPI

Manufacturer's Warranty

2 year limited warranty

Ship Weight

68.0 LB

Fan Diameter

24 in

Air Delivery

5,290 cfm

Volts

480

Amps

1.1
AttributeSpecification

Speeds (qty.)

1

Max. Fan Speed

1,725 rpm

Power Cord Length

373 ft

Watts

373

Horsepower

0.5 HP

Product Weight

65.0000 lb

Dimensions L x W x H (in.)

13.5 x 33.31 x 31.43 in
