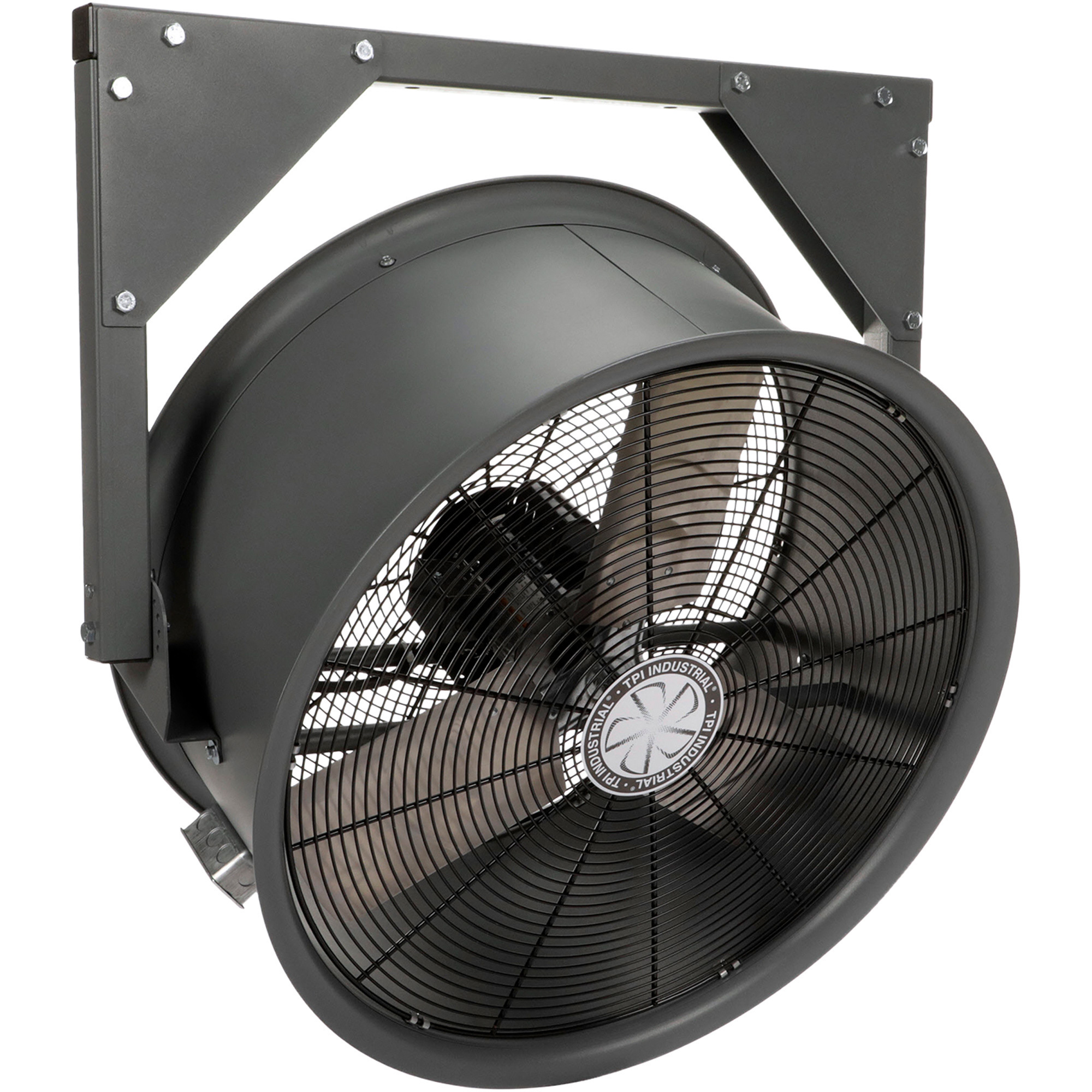

TPI High Velocity Wall-Mount Air Circulator Fan - 30in. Diameter, 9000 CFM, Commercial-Grade, Model# HV30-277V

Item# 99731
TPI High Velocity Wall-Mount Air Circulator Fan - 30in. Diameter, 9000 CFM, Commercial-Grade, Model# HV30-277V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI High Velocity Wall-Mount Air Circulator Fan - 30in. Diameter, 9000 CFM, Commercial-Grade, Model# HV30-277V

Click or Tap image to Zoom

$1847.04

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • ETL C/US listed for indoor spot cooling applications
  • 20-gauge all-steel housing with gray epoxy powder-coated finish

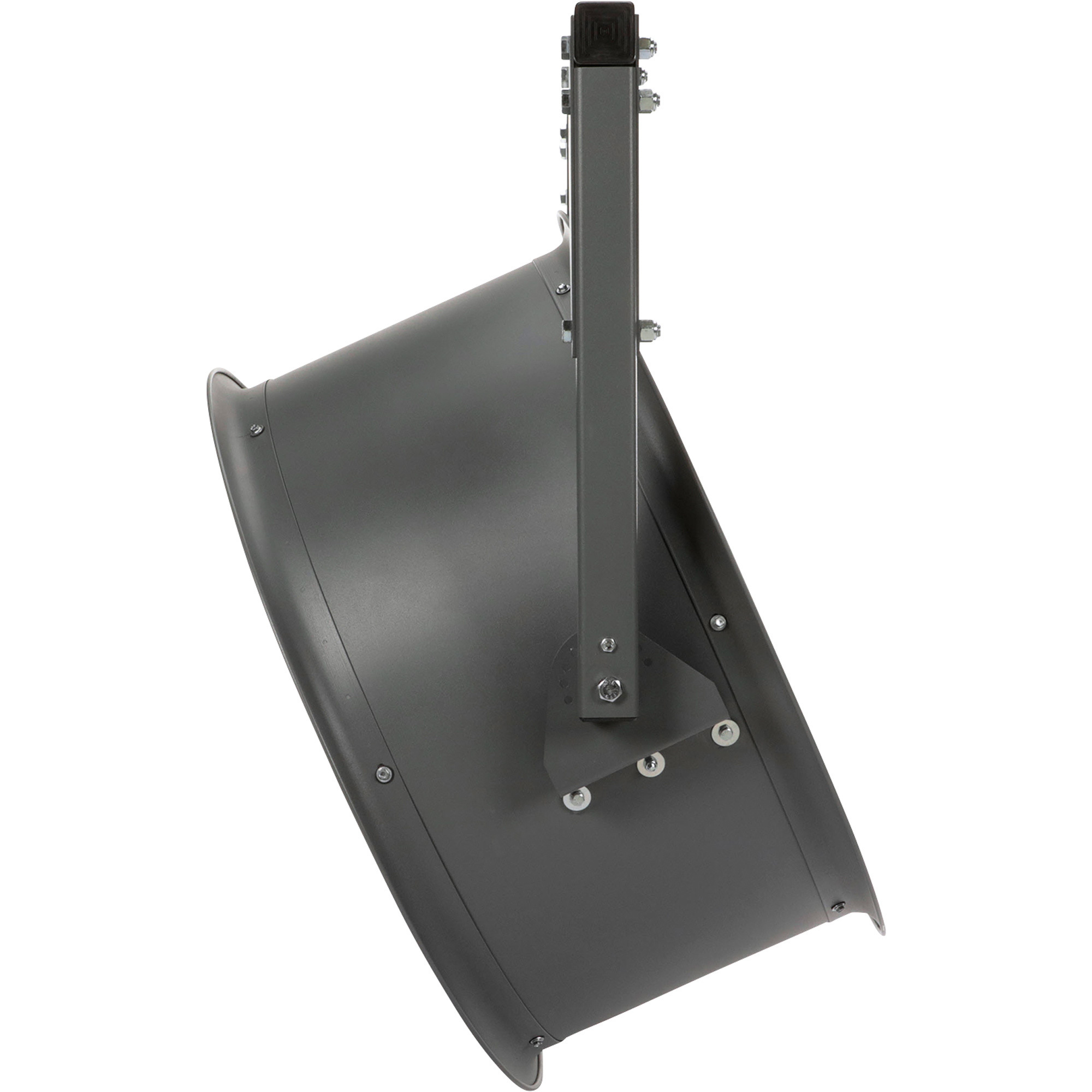

  • Heavy-duty yoke mounting bracket design with 2in. square steel tubing frame
  • Direct drive TEAO motor generates up to 9000 CFMs
  • Single speed, ball bearing, with split capacitor, permanently lubricated motor operates on 60HZ and 1725 RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The TPI High Velocity, Wall-Mount, Commercial- Grade Fan is designed for rugged environments. It is ideal for warehouse, material handling, and high-shelf areas for directing high volumes of air flow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites, and many other types of industrial operations in tough environments. The housing is designed for all types of air circulating applications to provide directional, high velocity airflow. The built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations. Front and rear spiral wound grills are OSHA approved and have a black powder-coated finish. Shipped fully assembled and ready for hard-wired connections. The Totally Enclosed Air-Over (TEAO) motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments. Rated up to 115° F max ambient temperature.

What's Included

    (1) Fan

Downloads

Product Manual
Play Item Video

Features + Benefits

  • ETL C/US listed for indoor spot cooling applications
  • 20-gauge all-steel housing with gray epoxy powder-coated finish
  • Heavy-duty yoke mounting bracket design with 2in. square steel tubing frame
  • Direct drive TEAO motor generates up to 9000 CFMs
  • Single speed, ball bearing, with split capacitor, permanently lubricated motor operates on 60HZ and 1725 RPM
  • Requires hard-wired connection to the supplied electrical enclosure located on the motor housing
  • Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections
  • 30in. non-oscillating fan head
  • 2 year motor warranty

Key Specs

AttributeSpecification

item#

99731

Brand

TPI

Manufacturer's Warranty

2 year limited warranty

Ship Weight

95.0 LB

Fan Diameter

30 in

Air Delivery

9,000 cfm

Volts

277
AttributeSpecification

Amps

3.2

Speeds (qty.)

1

Max. Fan Speed

1,700 rpm

Watts

746

Horsepower

1 HP

Product Weight

90.0000 lb

Dimensions L x W x H (in.)

16.0 x 38.9 x 39.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
