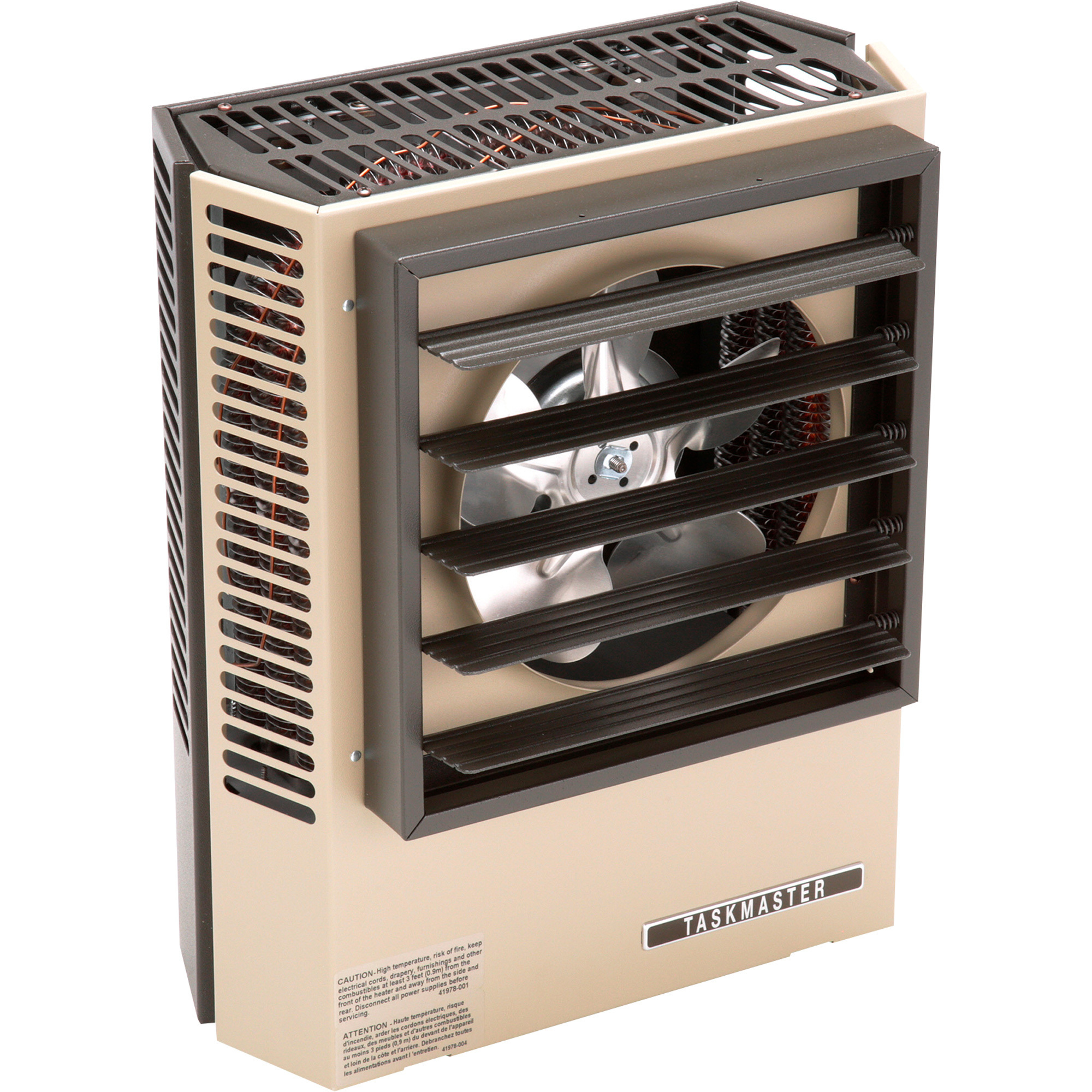

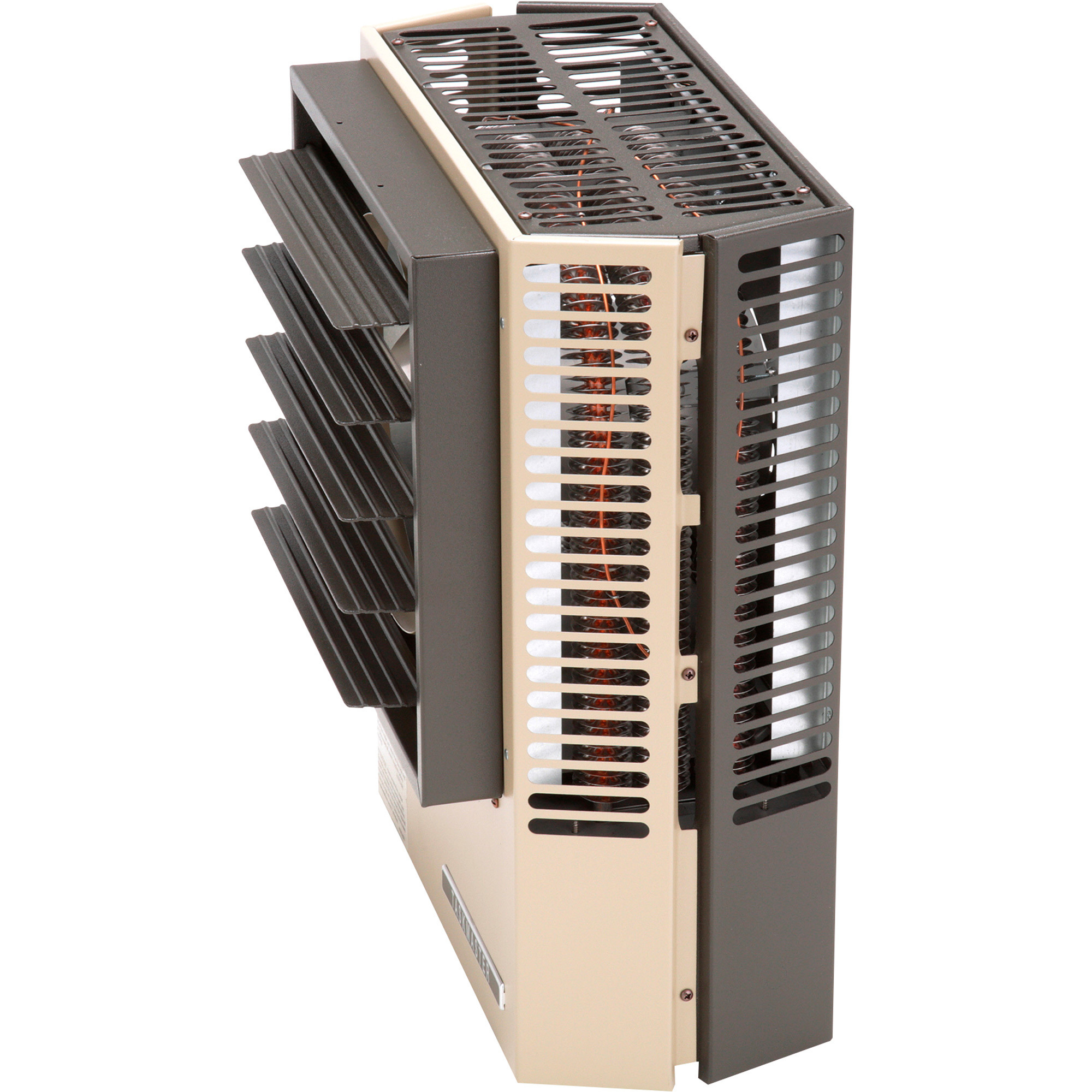

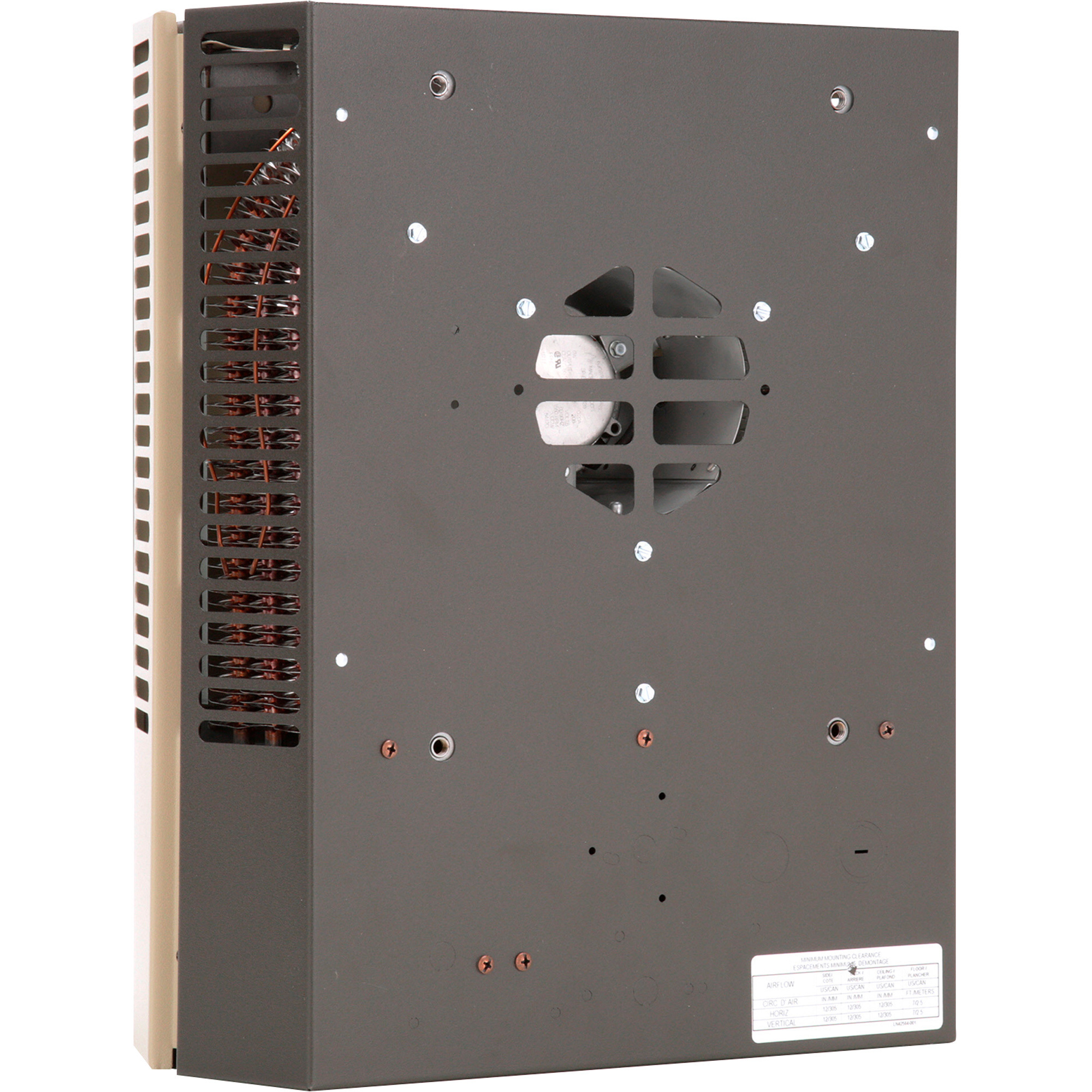

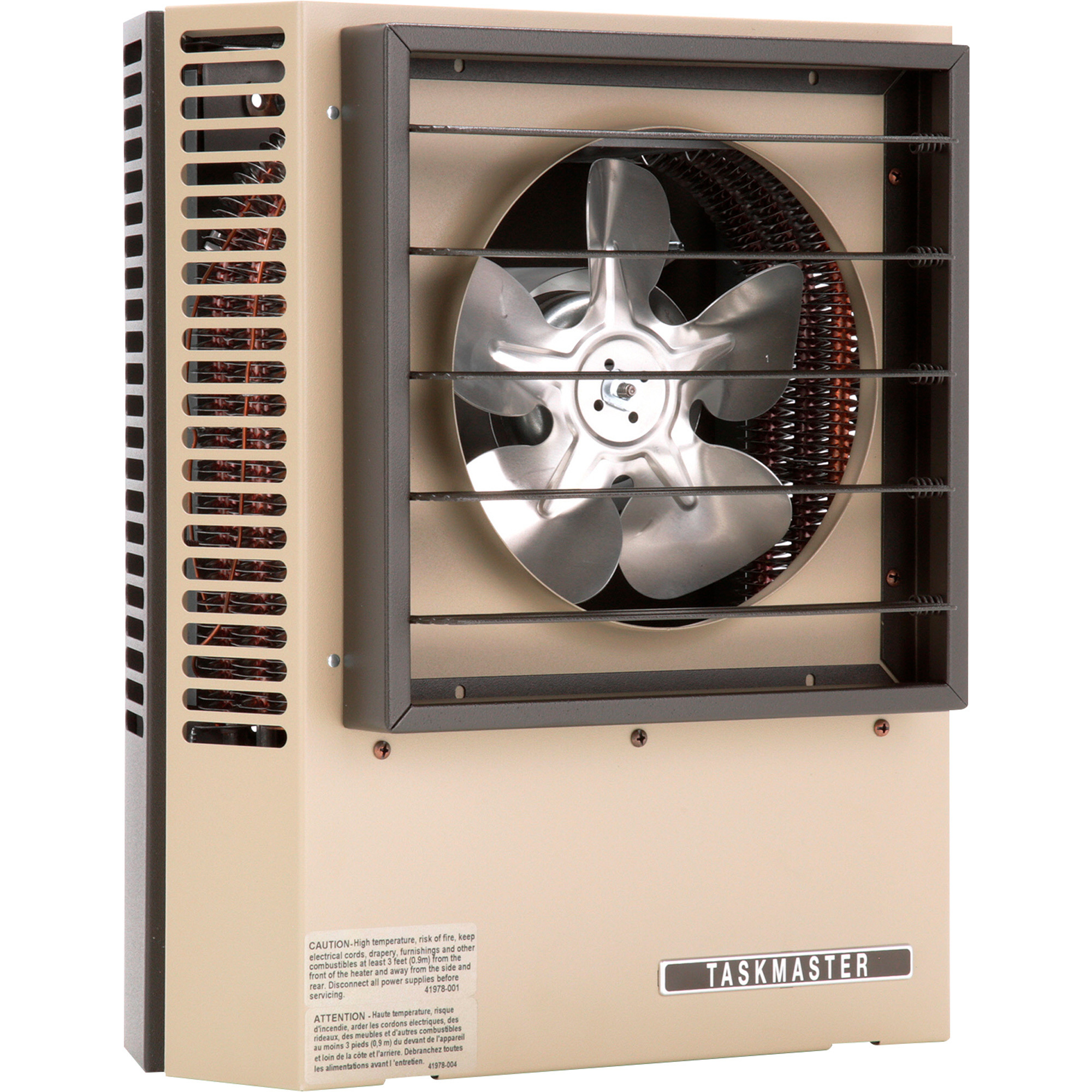

TPI Fan-Forced Electric Unit Heater - 7.5kW, 25600 BTU, 750 sq. ft. Heating Capability, Heavy-Duty Steel, Model# HF2B5107CA1L

Item# 53083
TPI Fan-Forced Electric Unit Heater - 7.5kW, 25600 BTU, 750 sq. ft. Heating Capability, Heavy-Duty Steel, Model# HF2B5107CA1L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Fan-Forced Electric Unit Heater - 7.5kW, 25600 BTU, 750 sq. ft. Heating Capability, Heavy-Duty Steel, Model# HF2B5107CA1L

Click or Tap image to Zoom

$1312.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • ETL C/US listed for indoor commercial and industrial heating applications
  • Idea for high-bay warehouse facilities, maintenance locations, pole barns, storage and government facilities
  • Designed to deliver spot, supplemental or primary comfort heating system
  • Wall- or ceiling-mount with optional mounting bracket, Item# 53077, sold separately
  • Totally enclosed in heavy-duty, 18-gauge, powder-coated steel cabinets with hinged and latched compartment for terminal access board

See full description

Complete Your Solution

  • TPI Fan-Forced Electric Unit Heater - 7.5kW, 25600 BTU, 750 sq. ft. Heating Capability, Heavy-Duty Steel, Model# HF2B5107CA1L

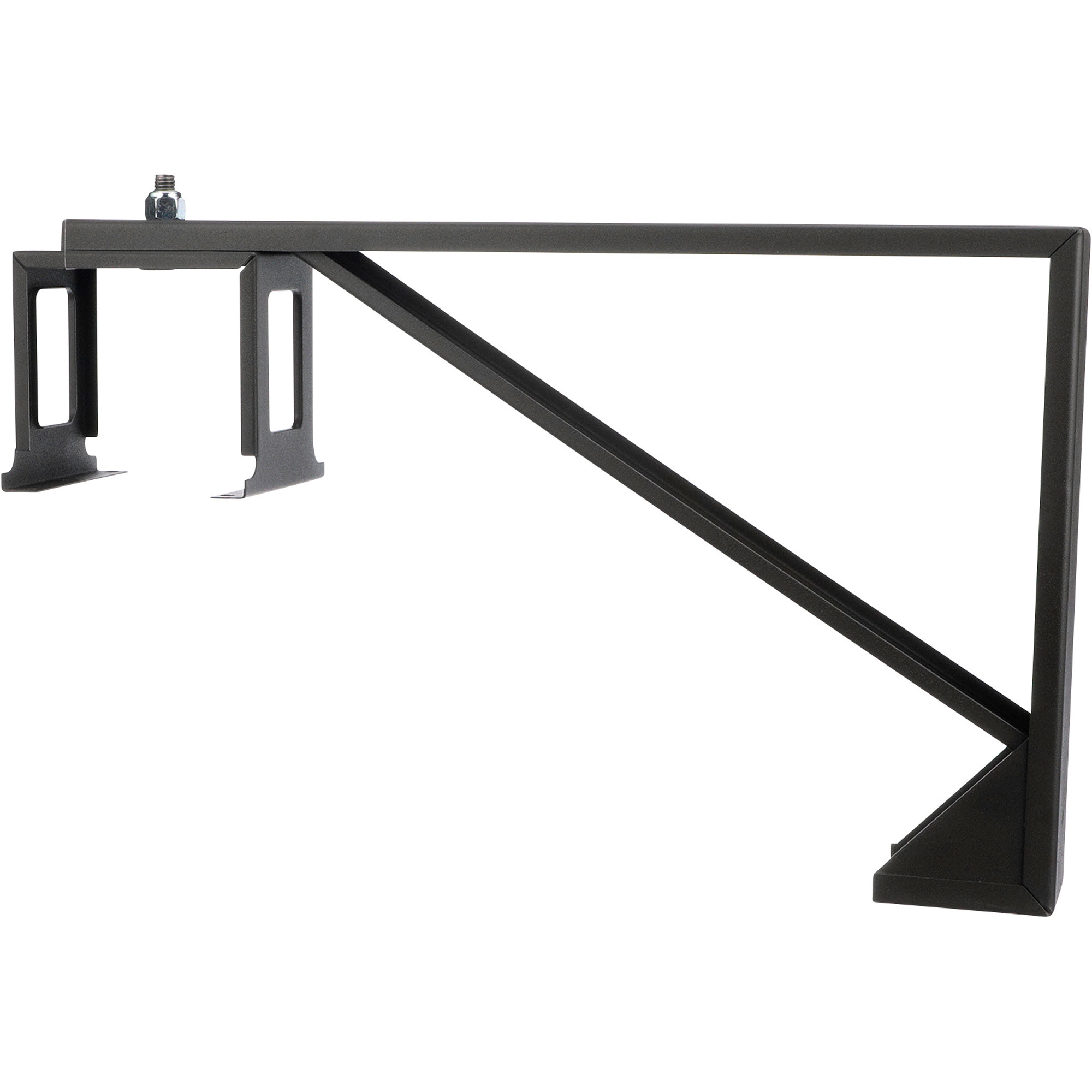

  • TPI Wall/Ceiling Mounting Bracket - Steel, Compatible with 5100 Series Fan-Forced Electric Heaters, Model# A5120
  • TPI Line Voltage Thermostat - SPST, Built-In, 45 to 100°F, 25 Amps, Compatible with 5100 Series Heaters, Model# T5100
Price for all three:

$1603.20

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This TPI Fan-Forced Electric Heater is ETL C/US listed for indoor commercial and industrial heating applications. Ideal for high-bay warehouse facilities, maintenance locations, pole barns, storage and government facilities and other areas that need spot, supplemental or primary comfort heating systems. Designed to mount directly to a wall or ceiling with optional mounting bracket, Item# 53077, sold separately. Totally enclosed in heavy-duty, 18-gauge, powder-coated steel cabinets with hinged and latched control compartment door for terminal board access. Spiral steel elements with continuously brazed steel fins. 1-speed, ball bearing fan motor with auto reset linear thermal protector. Fan override purges residual heat during shutdown cycles to reduce heat buildup inside housing. Louvers are individually adjustable up to 15° for directional control of airflow.

What's Included

    (1) Heater

Downloads

Product Manual

Features + Benefits

  • ETL C/US listed for indoor commercial and industrial heating applications
  • Idea for high-bay warehouse facilities, maintenance locations, pole barns, storage and government facilities
  • Designed to deliver spot, supplemental or primary comfort heating system
  • Wall- or ceiling-mount with optional mounting bracket, Item# 53077, sold separately
  • Totally enclosed in heavy-duty, 18-gauge, powder-coated steel cabinets with hinged and latched compartment for terminal access board
  • Spiral steel elements with continuously brazed steel fins
  • 1-speed, ball bearing fan motor
  • Auto reset linear thermal protector
  • Fan override purges residual heat during shutdown to prevent buildup
  • Louvers adjust up to 15° for directional control of airflow

Key Specs

AttributeSpecification

item#

53083

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

43.0 LB

Heat Output

25,600 Btu/hour

Heating Capability

750 ft²

Heat Type

Forced Air

Hardwired

Yes

Vent-Free

Yes
AttributeSpecification

Assembled Width

21.5 in

Assembled Height

24.5 in

Assembled Depth

6.5 in

Remote Included

No

Thermostat Included

No

Volts

208/240

Needs Direct Venting

No

Watts

7,500

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. What is the item number for wall mounting brackets

    1 answer

    1. The item number for the wall mounting bracket for this heater is #53077, model A5120.

      Helpful?

  2. Plans are to hang heater on wall how high from floor can it be hung

    1 answer

    1. Minimum clearance to the floor in a horizontal discharge will be 8 feet. The minimum clearance to the floor in a vertical discharge is 8 feet.

      Helpful?

  3. What square footage would this cover?

    1 answer

    1. The heater would heat approximately 750 square feet.

      Helpful?

  4. Does this unit have its on thermostat, if so what are the settings

    1 answer

    1. You would need to purchase a thermostat separately for the heater. See our item #4906213, that has range of 50-90 degrees F.

      Helpful?

  5. Amps requered

    1 answer

    1. At 240 V, the amperage is 31.3 Amps. At 208 V, the amperage is 27.1 Amps.

      Helpful?
