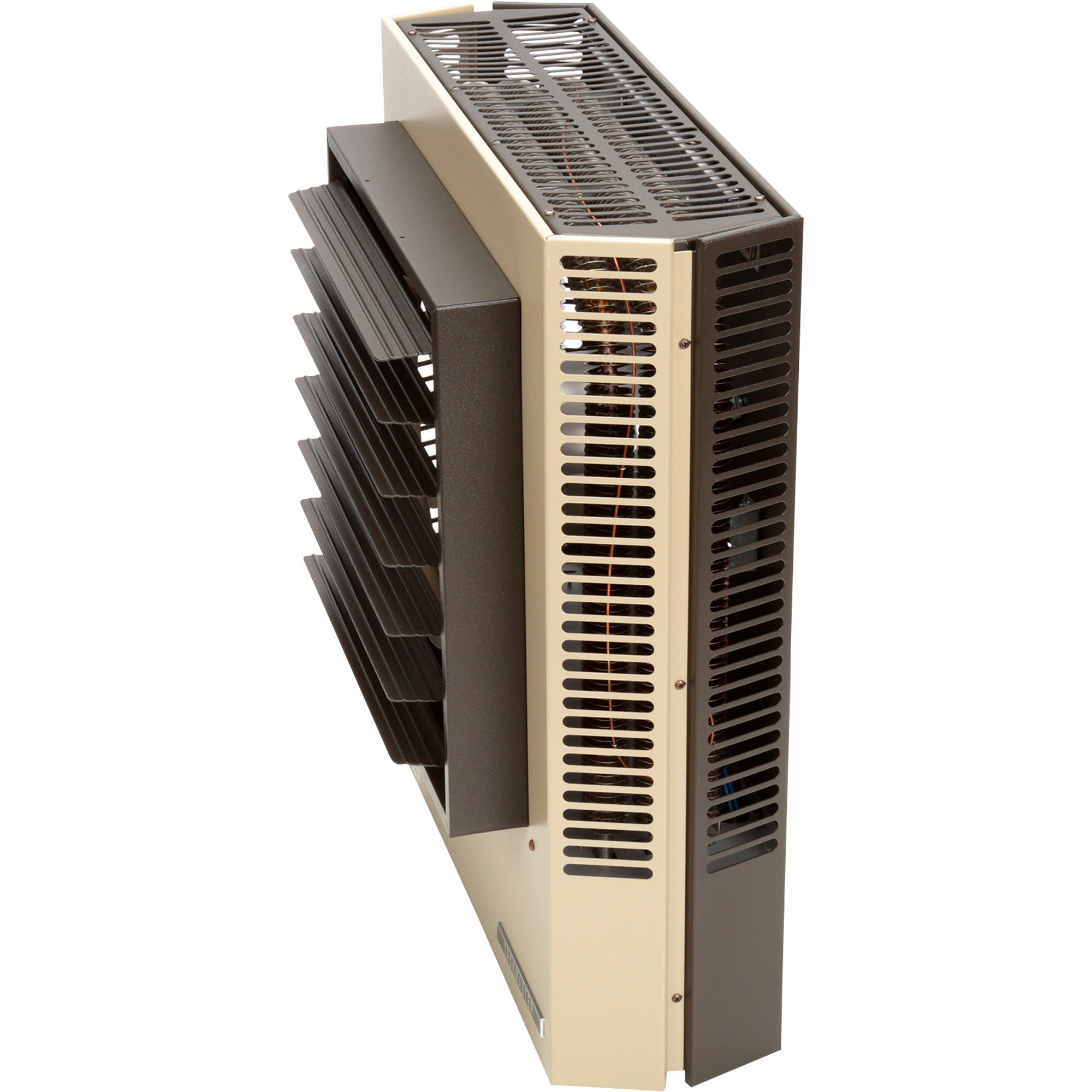

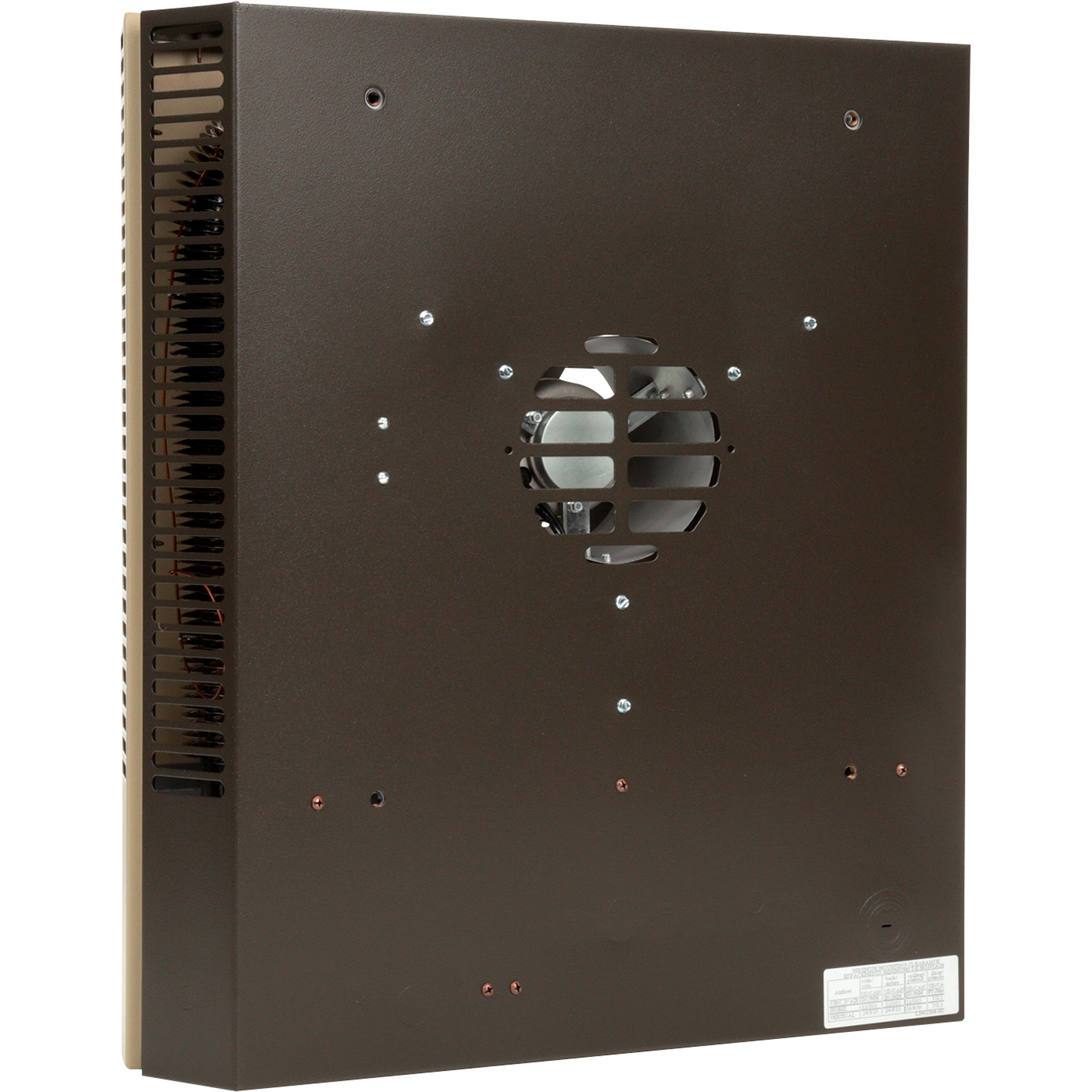

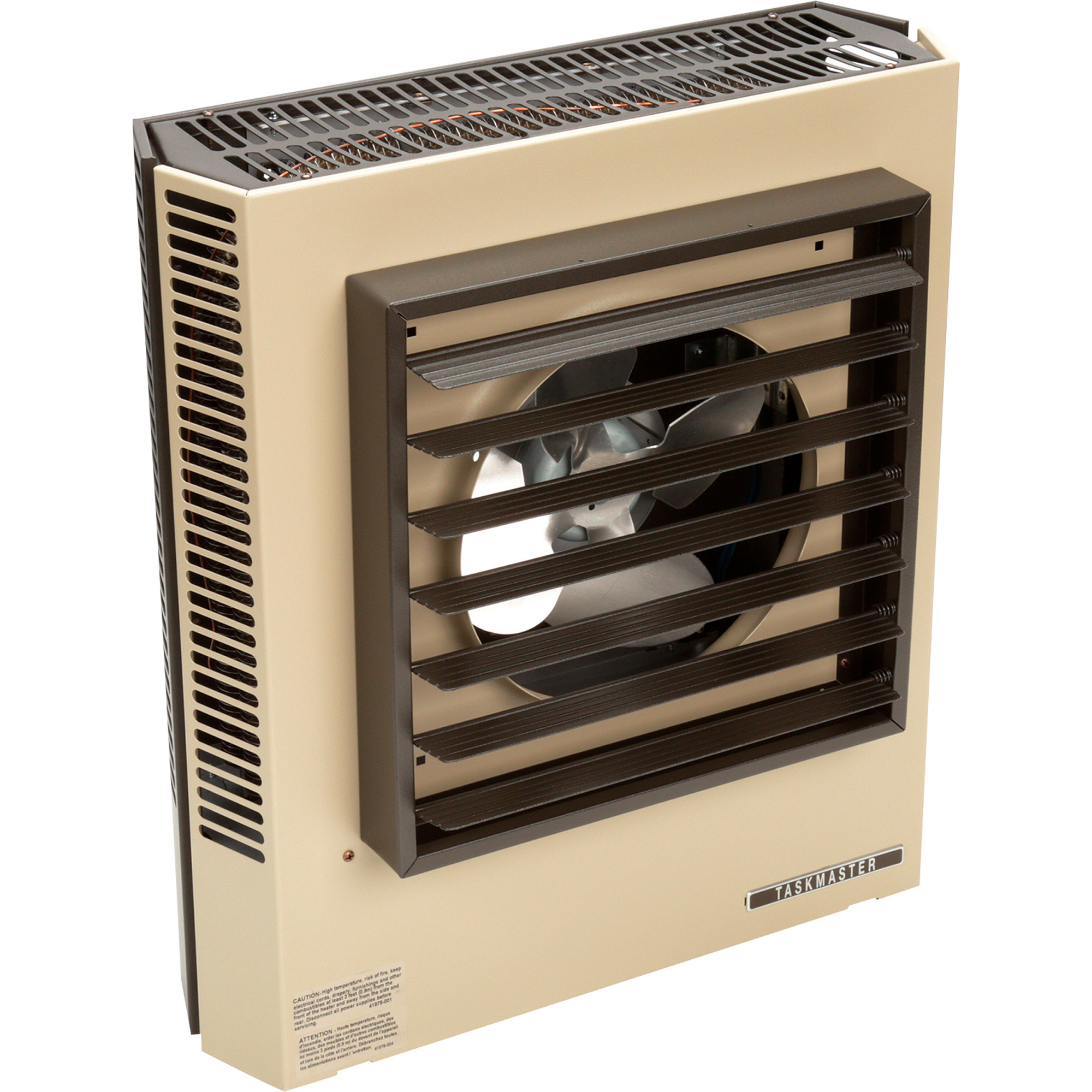

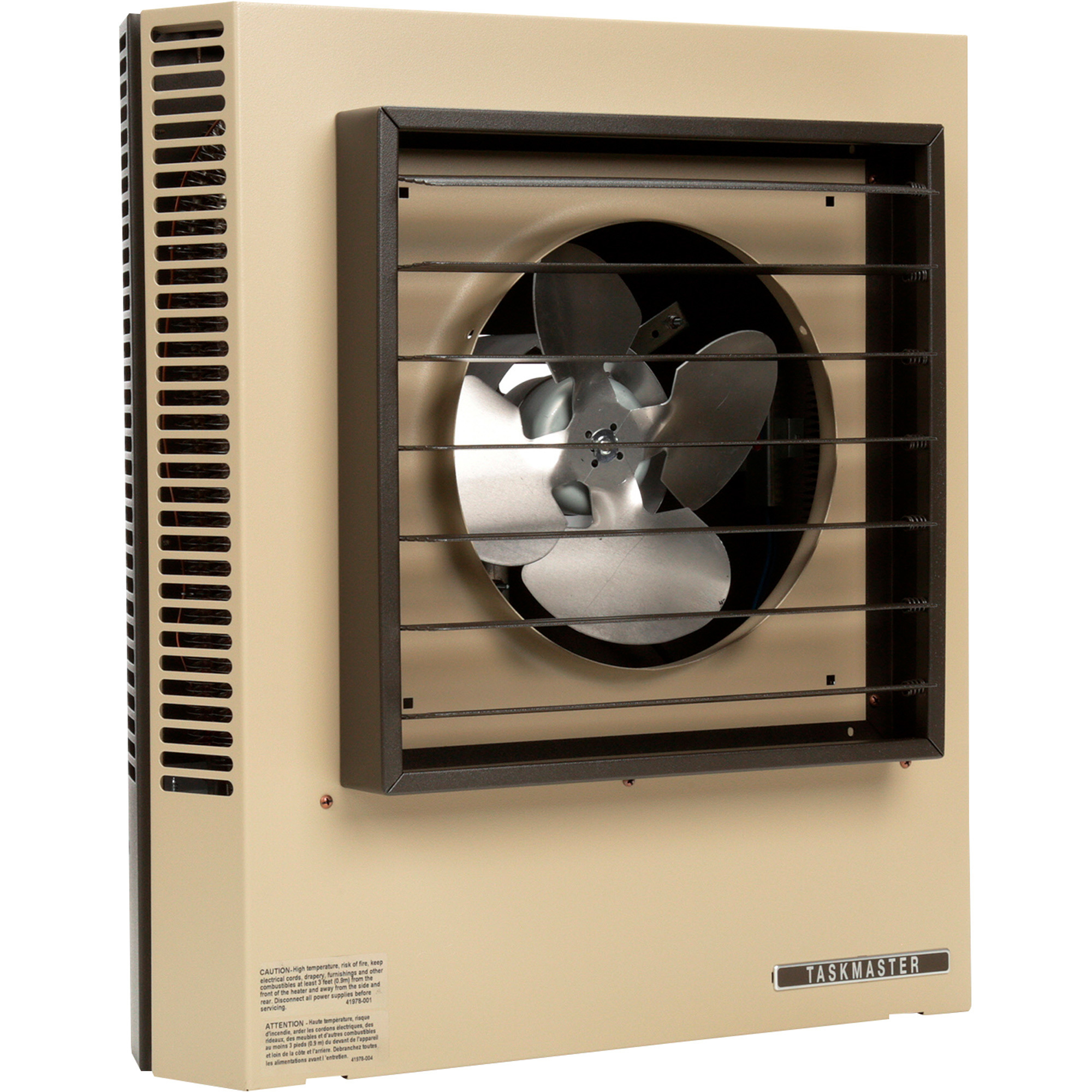

TPI Fan-Forced Electric Heater - 10kW, 34100 BTU, 1000 Sq. Ft. Heating Capability, Powder-Coated Steel, Model# HF2B5110CA1L

Item# 53084
"TPI Fan-Forced Electric Heater - 10kW, 34100 BTU, 1000 Sq. Ft. Heating Capability, Powder-Coated Steel, Model# HF2B5110CA1L"
TPI Fan-Forced Electric Heater - 10kW, 34100 BTU, 1000 Sq. Ft. Heating Capability, Powder-Coated Steel, Model# HF2B5110CA1L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Fan-Forced Electric Heater - 10kW, 34100 BTU, 1000 Sq. Ft. Heating Capability, Powder-Coated Steel, Model# HF2B5110CA1L

Click or Tap image to Zoom

$1445.76

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • ETL C/US listed for indoor commercial and industrial heating applications
  • Idea for high-bay warehouse facilities, maintenance locations, pole barns, storage and government facilities
  • Designed to deliver spot, supplemental or primary comfort heating system
  • Wall- or ceiling-mount with optional mounting bracket, Item# 53077, sold separately
  • Totally enclosed in heavy-duty, 18-gauge, powder-coated steel cabinets with hinged and latched compartment for terminal access board

See full description

Complete Your Solution

  • TPI Fan-Forced Electric Heater - 10kW, 34100 BTU, 1000 Sq. Ft. Heating Capability, Powder-Coated Steel, Model# HF2B5110CA1L
  • TPI Wall/Ceiling Mounting Bracket - Steel, Compatible with 5100 Series Fan-Forced Electric Heaters, Model# A5120
  • TPI Line Voltage Thermostat - SPST, Built-In, 45 to 100°F, 25 Amps, Compatible with 5100 Series Heaters, Model# T5100
Price for all three:

$1736.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This TPI Fan-Forced Electric Heater is ETL C/US listed for indoor commercial and industrial heating applications. Ideal for high-bay warehouse facilities, maintenance locations, pole barns, storage and government facilities and other areas that need spot, supplemental or primary comfort heating systems. Designed to mount directly to a wall or ceiling with optional mounting bracket, Item# 53077, sold separately. Totally enclosed in heavy-duty, 18-gauge, powder-coated steel cabinets with hinged and latched control compartment door for terminal board access. Spiral steel elements with continuously brazed steel fins. 1-speed, ball bearing fan motor with auto reset linear thermal protector. Fan override purges residual heat during shutdown cycles to reduce heat buildup inside housing. Louvers are individually adjustable up to 15° for directional control of airflow.

What's Included

    (1) Heater

Downloads

Product Manual

Features + Benefits

  • ETL C/US listed for indoor commercial and industrial heating applications
  • Idea for high-bay warehouse facilities, maintenance locations, pole barns, storage and government facilities
  • Designed to deliver spot, supplemental or primary comfort heating system
  • Wall- or ceiling-mount with optional mounting bracket, Item# 53077, sold separately
  • Totally enclosed in heavy-duty, 18-gauge, powder-coated steel cabinets with hinged and latched compartment for terminal access board
  • Spiral steel elements with continuously brazed steel fins
  • 1-speed, ball bearing fan motor
  • Auto reset linear thermal protector
  • Fan override purges residual heat during shutdown to prevent buildup
  • Louvers adjust up to 15° for directional control of airflow

Key Specs

AttributeSpecification

item#

53084

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

43.0 LB

Heat Output

34,100 Btu/hour

Heating Capability

1,000 ft²

Heat Type

Forced Air

Hardwired

Yes

Vent-Free

Yes
AttributeSpecification

Assembled Width

21.5 in

Assembled Height

24.5 in

Assembled Depth

6.5 in

Remote Included

No

Thermostat Included

No

Volts

208/240

Needs Direct Venting

No

Watts

10,000

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Hi, I purchased this heater and I am not sure what size wire do I need for it ?

    1 answer

    1. For wiring this heater on 230 volt, single phase, you would use 4/6 AWG wire.

      Helpful?

  2. Can this unit be mounted directly on the wall? Or are there air intakes on the back?

    1 answer

    1. This can be mounted on a wall or ceiling with an optional bracket. Please see "My Product Recommendations" below for the bracket.
