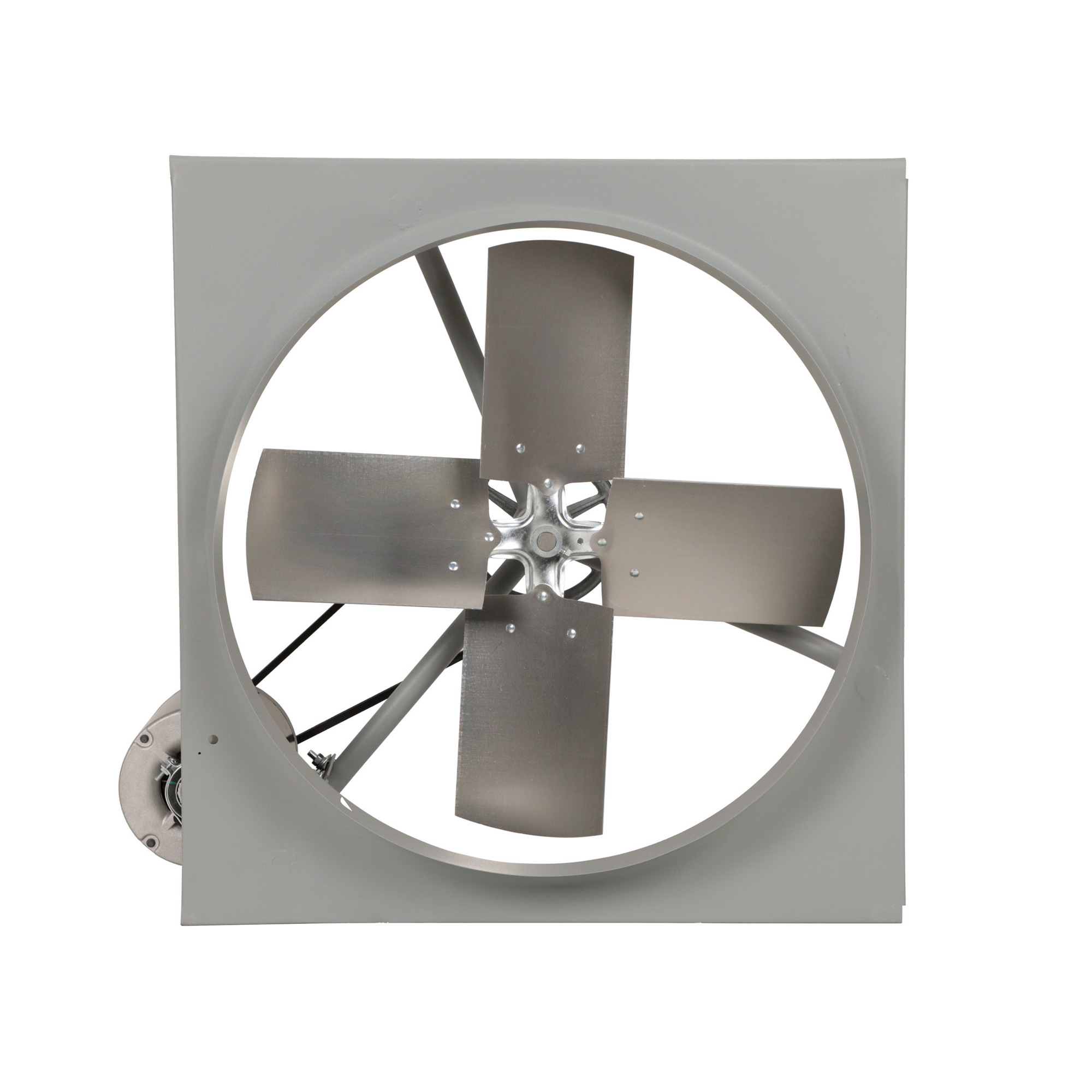

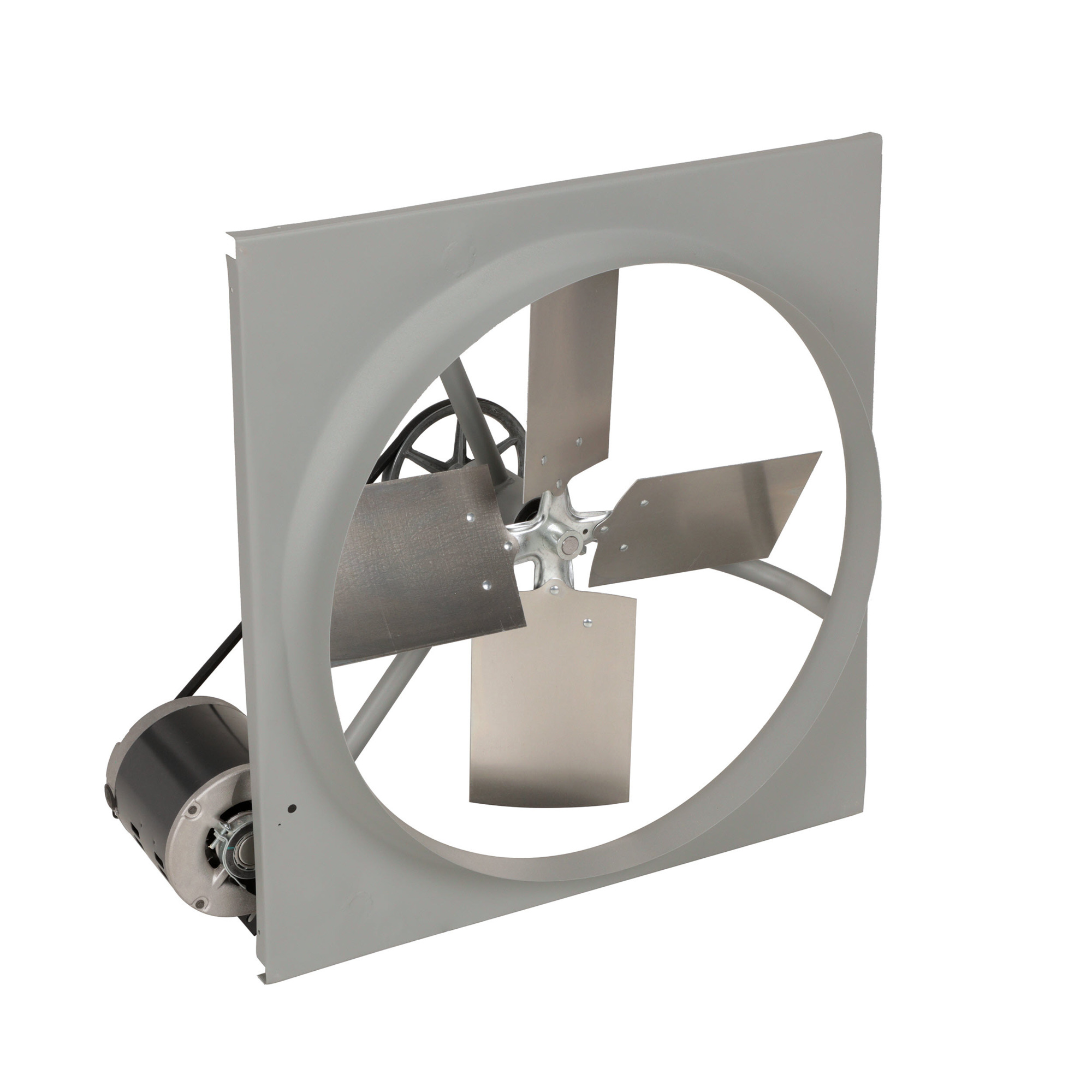

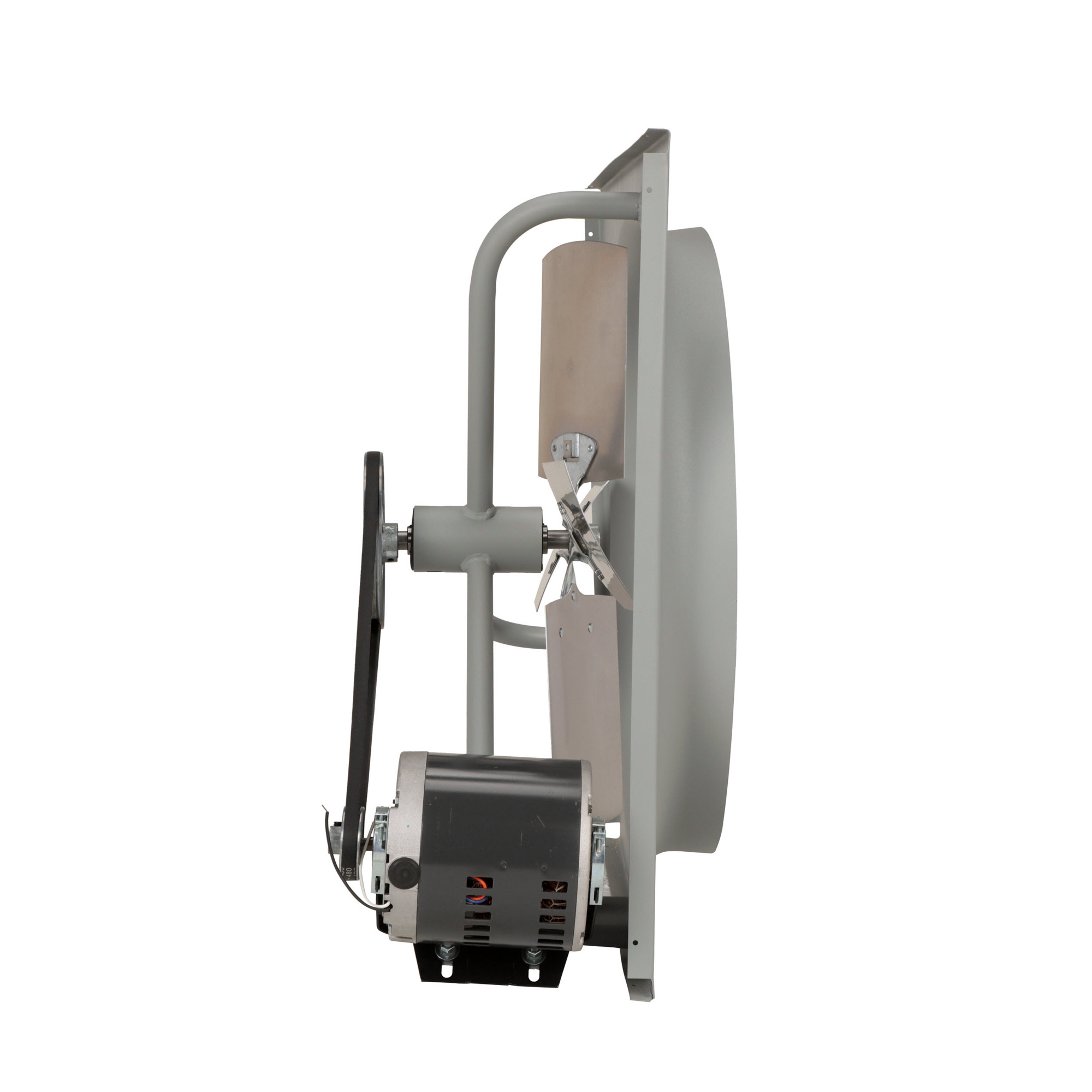

TPI Commercial Exhaust Fan - 24in. Dia., Belt Drive, 10000 CFM, 1/3 HP, Model# CE24B

Item# 4229494
TPI Commercial Exhaust Fan - 24in. Dia., Belt Drive, 10000 CFM, 1/3 HP, Model# CE24B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Commercial Exhaust Fan - 24in. Dia., Belt Drive, 10000 CFM, 1/3 HP, Model# CE24B

Click or Tap image to Zoom

$824.96

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Steel venturi frame exhaust fan, bolts directly to an inside wall or framed / vertical surface
  • Motor is designed for direct wiring connection; NO cord provided
  • Operates at 120-Volts and single-phase generating 5.0-amps using a totally enclosed motor
  • Single speed, 1/3-HP belt drive motor constructed of ball bearing, drip proof motor and permanently lubricated
  • Steel frame has a gray powder coated finish and uses a 24" aluminum 4-paddle blade generating 10,000 CFM's

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Improves air quality and designed for harsh environments

What's Included

    (1) Fan assembled unit

Features + Benefits

  • Steel venturi frame exhaust fan, bolts directly to an inside wall or framed / vertical surface
  • Motor is designed for direct wiring connection; NO cord provided
  • Operates at 120-Volts and single-phase generating 5.0-amps using a totally enclosed motor
  • Single speed, 1/3-HP belt drive motor constructed of ball bearing, drip proof motor and permanently lubricated
  • Steel frame has a gray powder coated finish and uses a 24" aluminum 4-paddle blade generating 10,000 CFM's
  • Can be used with or without external shutter (sold separately)
  • Designed for harsh industrial and commercial environments to improve air quality
  • Belt drive motor allows for quieter operation and higher air volume performance
  • UL recognized motor
  • Proudly Designed, Engineered, Tested and Assembled in the USA

Key Specs

AttributeSpecification

item#

4229494

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

89.0 LB

Drive Type

Belt

Fan Diameter

24 in

Air Delivery

10,000 cfm

Volts

115
AttributeSpecification

Watts

186

Hardwired

Yes

Speeds (qty.)

1,725

Assembly Required

Yes

Outdoor Rated

No

Phase

Single-phase

Product Weight

35.0000 lb

Dimensions L x W x H (in.)

17.75 x 28.0 x 29.5 in

Reviews

Questions & Answers

Questions

  1. Would this work for getting rid of saw dust and other dust and paint fumes?

    1 answer

    1. It would not be recommended for this application. The fan is not explosion proof.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
