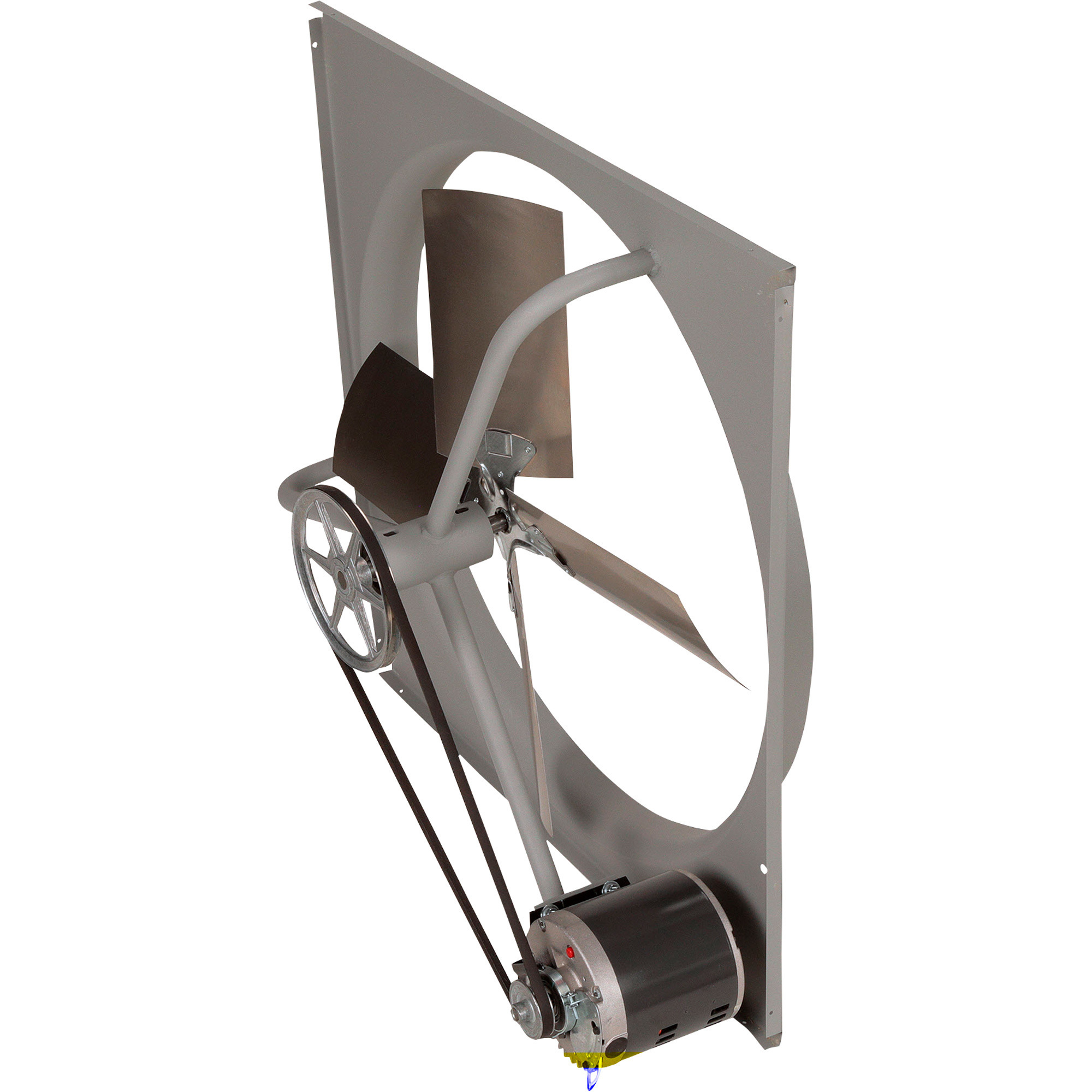

TPI Belt Drive Exhaust Fan - 30in. Dia., 11600 CFM, 1/3 HP, Model# CE-30B

Item# 2507600
TPI Belt Drive Exhaust Fan - 30in. Dia., 11600 CFM, 1/3 HP, Model# CE-30B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Belt Drive Exhaust Fan - 30in. Dia., 11600 CFM, 1/3 HP, Model# CE-30B

Click or Tap image to Zoom

$928.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 11,600 CFM
  • 1,725 RPM
  • 1/3 HP, 6 Amps, 115V motor
  • 1 Phase
  • Aluminum blade

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Move big air with this TPI large diameter exhaust fan. Built for years of trouble-free service in all types of environments. Ball bearing, permanently lubricated, drip proof motor. Permanently lubricated bearings on blade drive shaft.

What's Included

    (1) Fan

Features + Benefits

  • 11,600 CFM
  • 1,725 RPM
  • 1/3 HP, 6 Amps, 115V motor
  • 1 Phase
  • Aluminum blade
  • Powder-coated venturi
  • Motor frame: size 56
  • 5/8in. shaft
  • Dimensions: 35 1/2in. x 34in. x 3/4in. x 17in.

Key Specs

AttributeSpecification

item#

2507600

Brand

TPI

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

99.0 LB

Drive Type

Belt
AttributeSpecification

Fan Diameter

30 in

Air Delivery

11,600 cfm

Volts

115

Horsepower

0.33 HP

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What are the dimensions of the housing?

    1. 35.5" wide x 34" high

      Helpful?

    2. The dimensions measure 35.5" H x 34" W x 17.75"D.

      Helpful?

  2. Can I mount this in ceiling with louvers?

    1 answer

    1. The exhaust fan is designed for a wall mounted installation only.

      Helpful?

  3. Which direction does it flow ? Air flow from motor side, or coming from flare side.

    1 answer

    1. The air will flow out from the motor side.

      Helpful?

  4. What are the frame dimensions? I assume the 30” is the blade diameter?

    1 answer

    1. The overall dimensions for this Direct Drive Exhaust Fan are 35.5 inches tall, 34 inches wide and 17.75 inches deep. fan diameter is 30 inches.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
