TPI, 680 Series "Bulldog" Fan Forced Portable Heater, Heat Output 16384 Btu/hour, Heating Capability 450 ft², Model# HF685TC

Item# 4906037
TPI, 680 Series "Bulldog" Fan Forced Portable Heater, Heat Output 16384 Btu/hour, Heating Capability 450 ft², Model# HF685TC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI, 680 Series "Bulldog" Fan Forced Portable Heater, Heat Output 16384 Btu/hour, Heating Capability 450 ft², Model# HF685TC

Click or Tap image to Zoom

$516.48

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Operates at 240 or 208-Volt, 1-phase, generating 4800-watts and maximum of 16,384 BTU's and 20.0-Amps. Fan-forced heat output with 262-CFM's, 10' airflow throw providing 58-deg.F temperature rise.

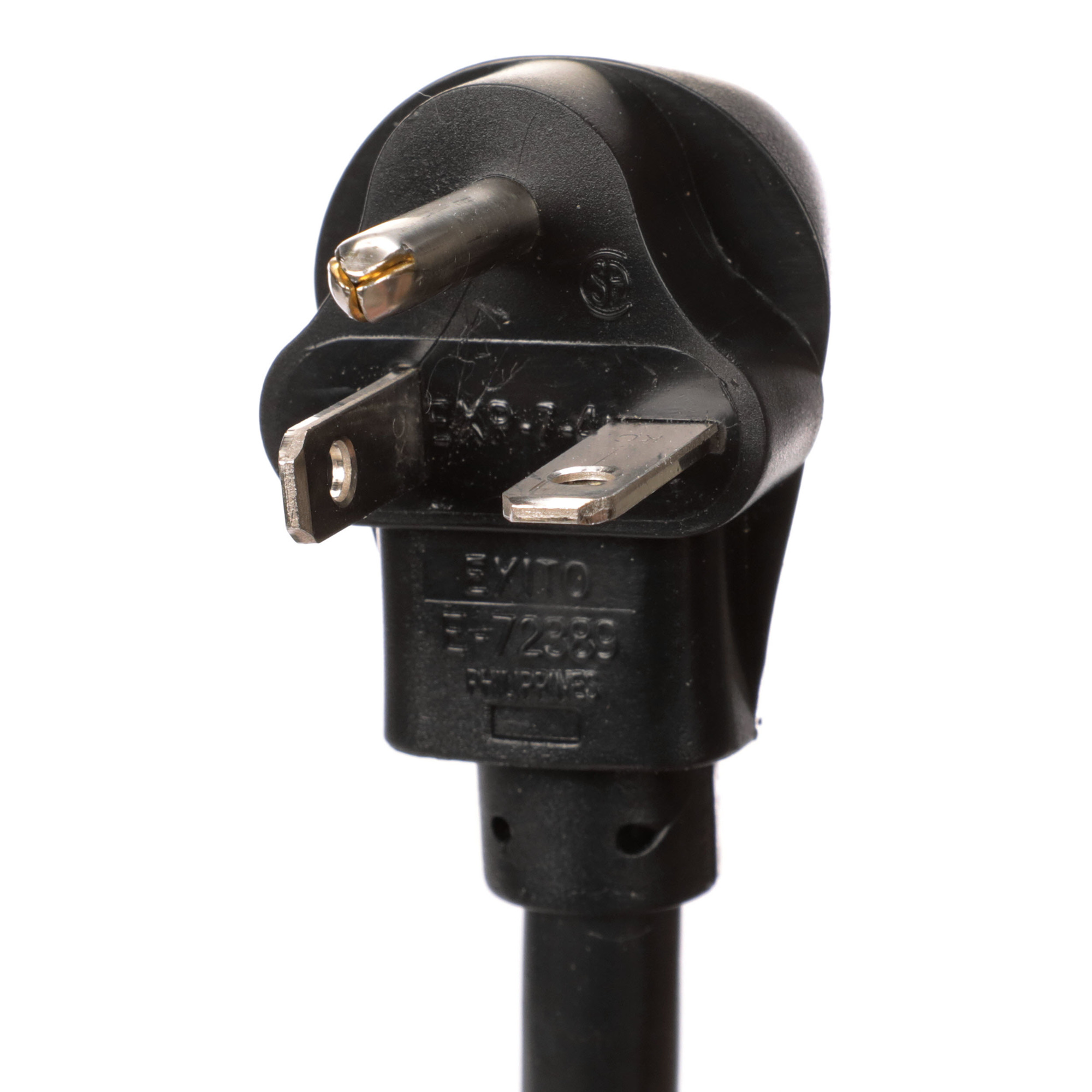

  • Includes 6' long black cord with 30-amp molded plug for quick plug & play connection.
  • Includes built in bi-metal double pole thermostat, 60F to 110F range, with manual control knob.
  • All steel construction with powder coated beige finish includes; steel tubular heating element, wall/ceiling bracket, manual reset safety thermal limit, power on pilot light.

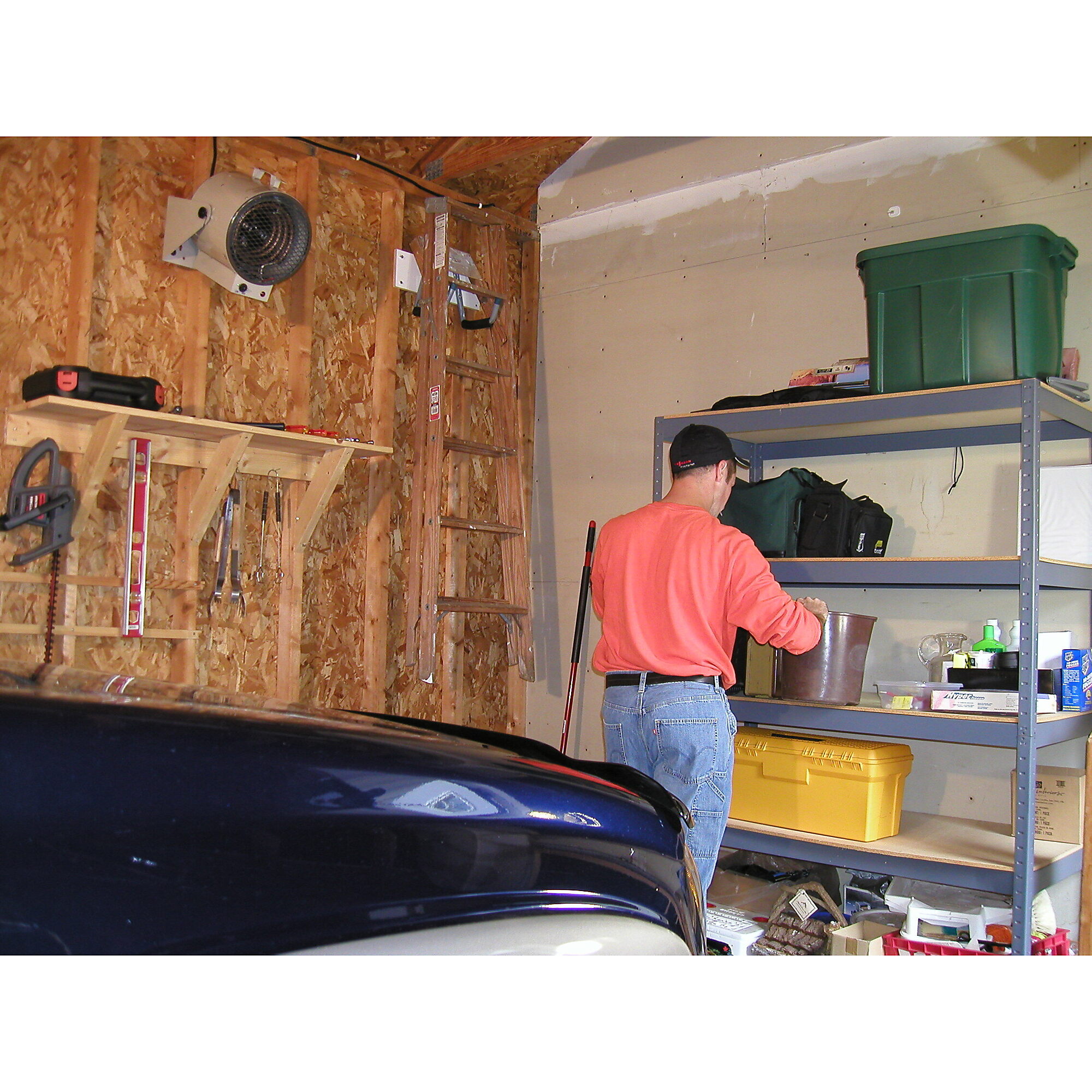

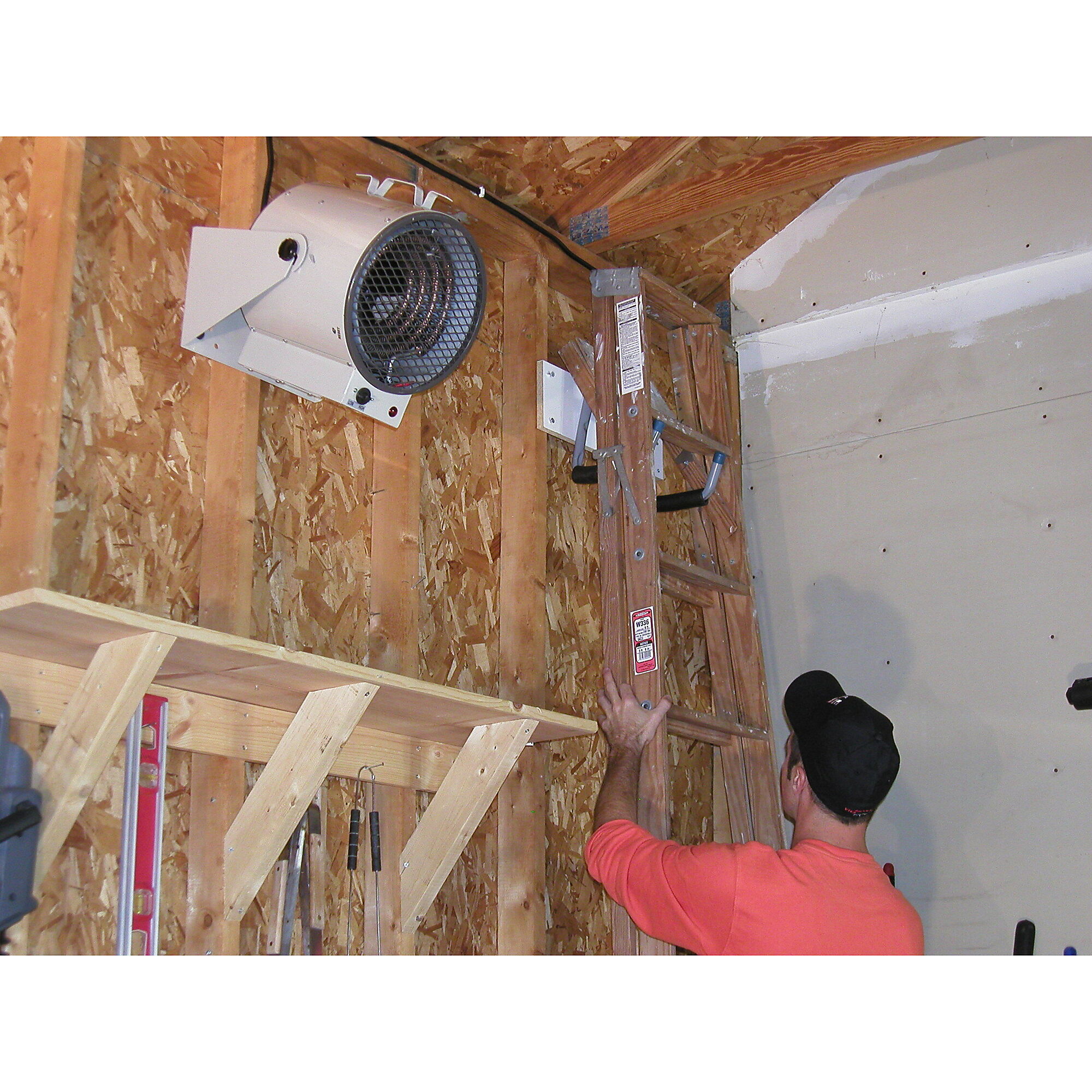

  • UL Listed for USA and Canada for residential, commercial, & industrial heating applications. Provides up to 200 to 480-sq.ft.coverage and operates as portable heater for bench or floor heater, or mount to the wall or ceiling with the supplied bracket.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

680 Series "Bulldog" 240/208 Volt Fan Forced Portable Unit Heater with swivel base allowing unit to be wall, floor or ceiling mounted.

What's Included

    (1) Thermostat, Cord and Mounting Bracket

Features + Benefits

  • Operates at 240 or 208-Volt, 1-phase, generating 4800-watts and maximum of 16,384 BTU's and 20.0-Amps. Fan-forced heat output with 262-CFM's, 10' airflow throw providing 58-deg.F temperature rise.
  • Includes 6' long black cord with 30-amp molded plug for quick plug & play connection.
  • Includes built in bi-metal double pole thermostat, 60F to 110F range, with manual control knob.
  • All steel construction with powder coated beige finish includes; steel tubular heating element, wall/ceiling bracket, manual reset safety thermal limit, power on pilot light.
  • UL Listed for USA and Canada for residential, commercial, & industrial heating applications. Provides up to 200 to 480-sq.ft.coverage and operates as portable heater for bench or floor heater, or mount to the wall or ceiling with the supplied bracket.

Key Specs

AttributeSpecification

item#

4906037

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.0 LB

Heat Output

16,384 Btu/hour

Heat Type

Forced Air

Heating Capability

450 ft²

Needs Direct Venting

No

Blower Included

Yes
AttributeSpecification

Blower CFM

262 cfm

Thermostat Included

Yes

Remote Included

No

Phase

Single-phase

Power Cord Length

6 ft

Volts

Multi

Product Weight

18.0000 lb

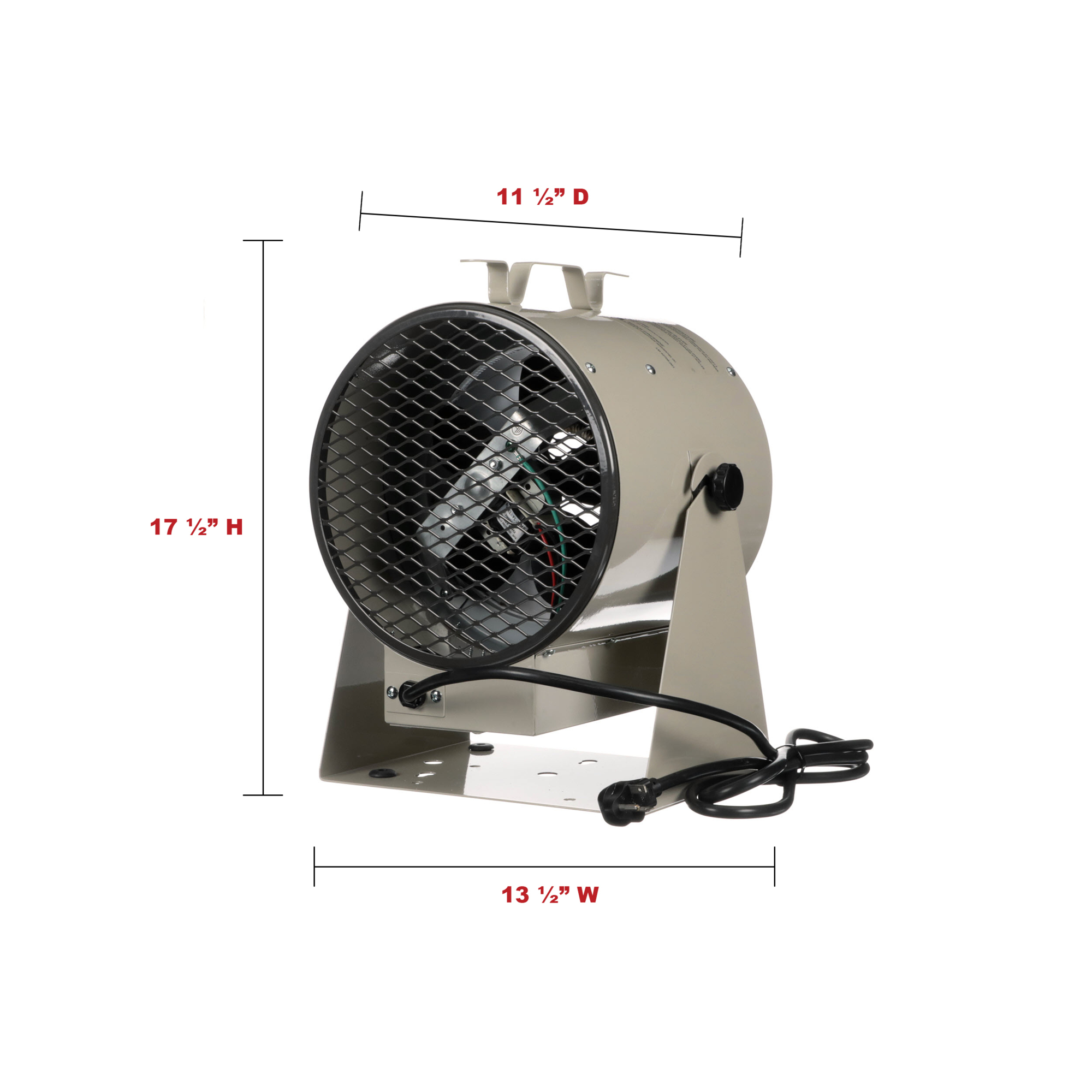

Dimensions L x W x H (in.)

11.5 x 13.5 x 17.5 in

Reviews

Questions & Answers

Questions

  1. how loud is the TPI 680 Series "Bulldog" Fan Forced Portable Heater?

    1 answer

    1. This heater would be rated at 63 decibels (DB).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
