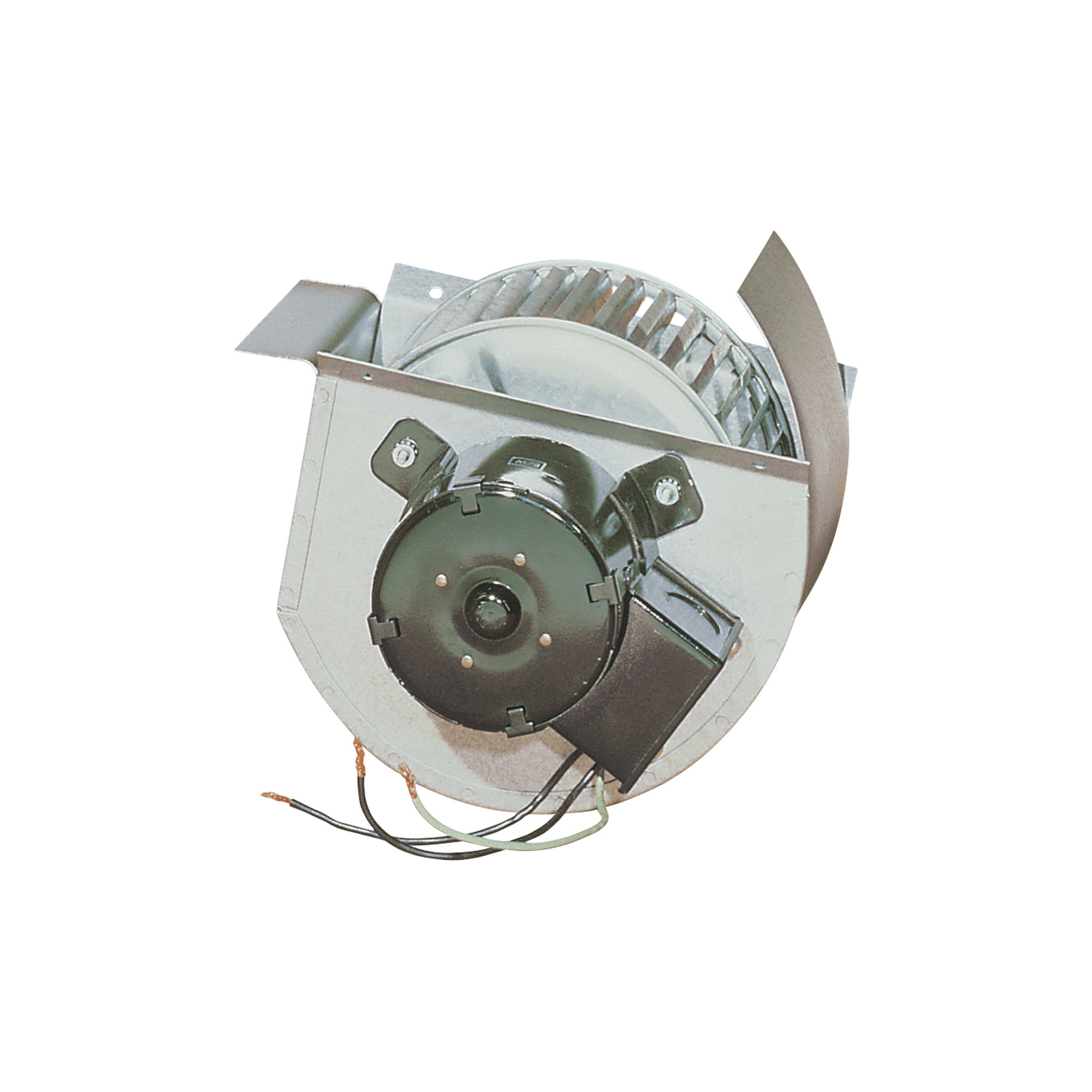

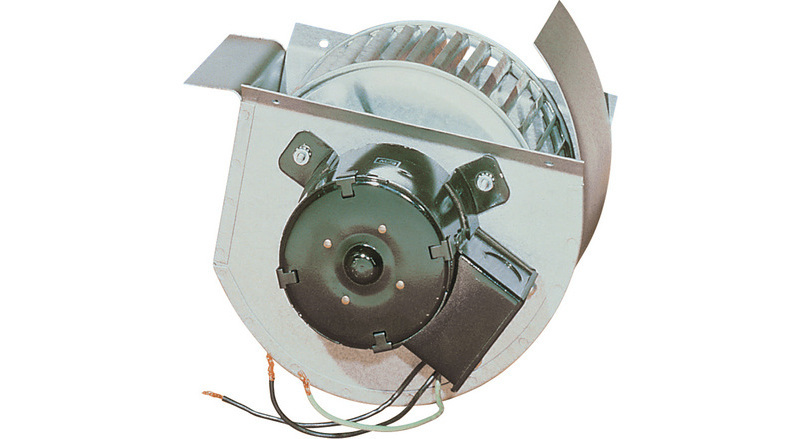

Tjernlund Duct Booster Increases Heating and Cooling Power, 275 CFM

Item# 18000
"Tjernlund Duct Booster Increases Heating and Cooling Power, 275 CFM"
Top Seller
Tjernlund Duct Booster Increases Heating and Cooling Power, 275 CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tjernlund Duct Booster Increases Heating and Cooling Power, 275 CFM

Click or Tap image to Zoom

$164.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Mounting Template: 4in. x 7in

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Increases heated or cooled air flow to problem rooms up to 50%! Squirrel-cage style Duct BoosterÆ installs in ducts 5in. in diameter or more and in rectangular ducts at least 3 1/4in. deep. Dependable 40 Watt Fasco motor moves 275 CFM free air, draws .51 Amps. UL listed.

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Mounting Template: 4in. x 7in

Key Specs

AttributeSpecification

item#

18000

Brand

Tjernlund

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.0 LB

Compatible With

Heating and Cooling Duct
AttributeSpecification

CFM

275 cfm

Amps

0.51

Product Weight

lb

Dimensions L x W x H (in.)

7.0 x 4.0 x in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. How is this wired?

    1 answer

    1. The black motor lead wire is connected to the power source. The green wire is for ground purposes only. Wiring instructions are included with the blower. Wiring can vary per application.

      Helpful?

  2. Can this be be installed on the side of a duct? Head height requirements would not be met if this was hanging down under the duct.

    1 answer

    1. The duct booster must be installed with the motor shaft horizontally. It can be installed either on the bottom or top of a horizontal duct or any side of a vertical duct.

      Helpful?

  3. tjernlund duct booster fan video said use a ps1503 control to hook up to furnace. I can not find this on your web site

    1 answer

    1. The air pressure switch is currently not available online. Please contact our parts department at 1.800.657.0516 and reference part #TJPS1503.

      Helpful?

  4. How loud is the fan? What is the sound rating in sones?

    1 answer

    1. The manufacturer does not have a decibel or sone rating on the fan.

      Helpful?

  5. Will this install with fiberglass duct-board type of duct? Can it be installed from the top? Our central air A/C ducts are in the attic with no access to mount from below.

    1 answer

    1. This cannot be installed in a fiberglass duct-board type of duct. It also cannot be installed from the top.

      Helpful?

  6. What is the maximum temperature air this will handle?

    1 answer

    1. The maximum temperature this duct booster will handle is 200 degrees Fahrenheit.

      Helpful?

  7. can a dedicated 120v wall thermostat be used to control on off of this fan

    1 answer

    1. You would be able to set this up on a dedicated 120 volt wall thermostat.

      Helpful?

  8. What is the RPM of the fan

    1 answer

    1. The RPMS on this Tjernlund duct booster fan is 1550.

      Helpful?

  9. will this item work with a varaible speed control?

    1 answer

    1. This blower motor controller should not be a variable speed tap type, This should be wired to a on off switch or the high speed side of the furnace fan if you have a two speed blower on your furnace.

      Helpful?

  10. What is the overall size. How much does it hang below the duct? length width and height?

    1 answer

    1. The overall dimensions for this unit is 7in. Length and 4in. diameter with a mounting template of 4in. x 7in as well. The item would install in ducts 5in. in diameter or more and in rectangular ducts at east 3 1/4in. deep.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
