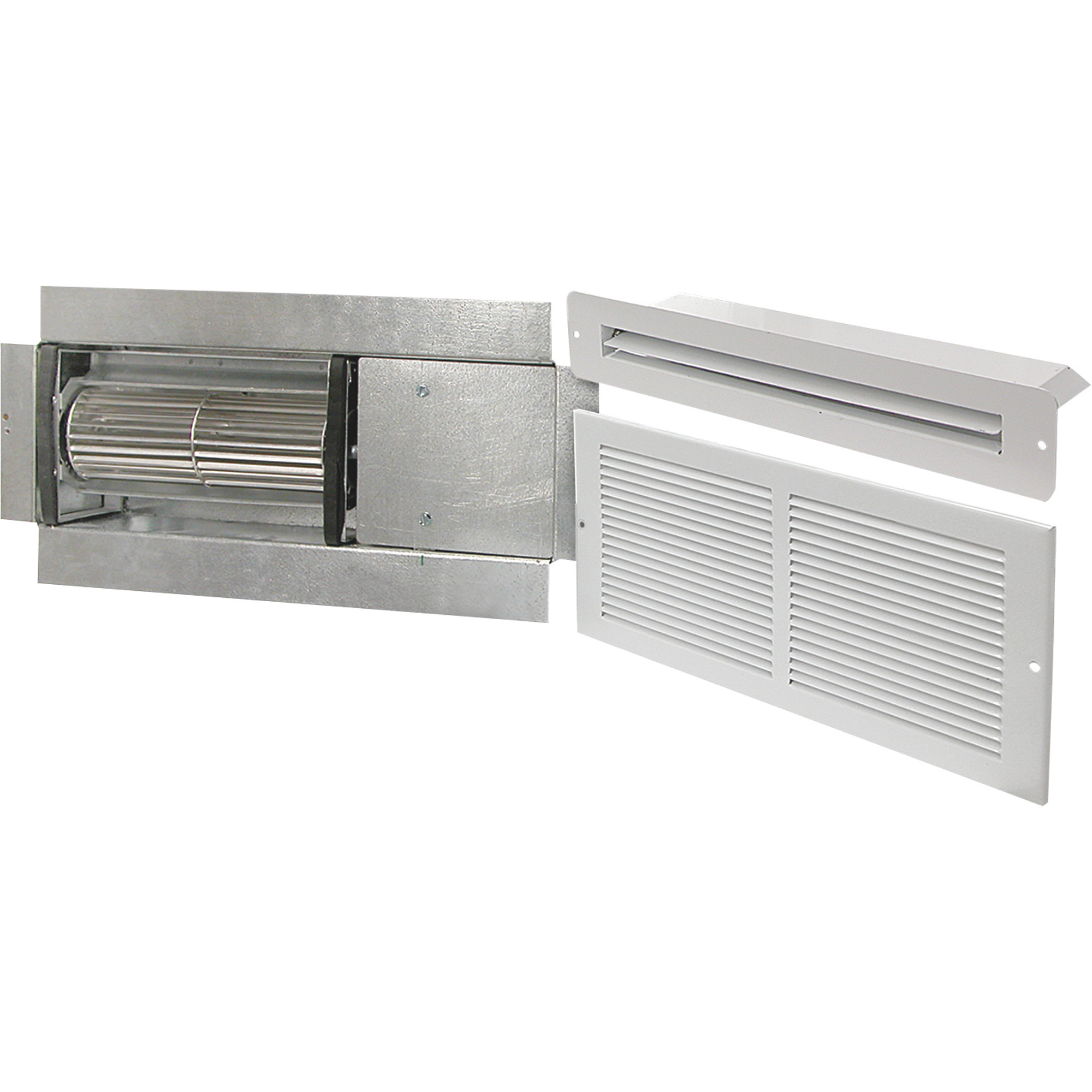

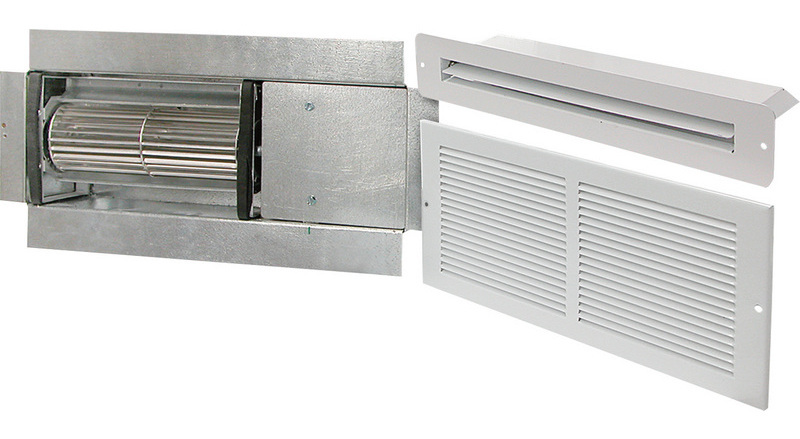

Tjernlund AireShare Room-To-Room Ventilator, Hardwired, Model# AS1

Item# 250747
"Tjernlund AireShare Room-To-Room Ventilator, Hardwired, Model# AS1"
Top Seller
Tjernlund AireShare Room-To-Room Ventilator, Hardwired, Model# AS1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tjernlund AireShare Room-To-Room Ventilator, Hardwired, Model# AS1

Click or Tap image to Zoom

$239.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Moves heated or cooled air from one room to another to improve comfort
  • Hardwired model
  • Requires 120V supply and wall switch or thermostat (not included)
  • Efficient blower
  • Whisper quiet low tone fan cross flow blower

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The AireShare room-to-room ventilator quietly moves heated or cooled air from one room to another to enhance comfort and improve circulation. Pull cool air from floor level or warm air from ceiling level and distribute it high or low. Ideal for homes with wood stoves, space heaters or window air conditioners. U.S.A.

What's Included

    (1) Blower (1) Grille (1) Diffuser (1) Installation hardware pack (1) Template sheet (1) Instructions

Downloads

Product Manual Product Manual2
Additional Product Info
Play Item Video

Features + Benefits

  • Moves heated or cooled air from one room to another to improve comfort
  • Hardwired model
  • Requires 120V supply and wall switch or thermostat (not included)
  • Efficient blower
  • Whisper quiet low tone fan cross flow blower
  • 50% quieter than any other through-wall fan
  • Ventilates a 12ft. x 15ft. room in only 20 minutes
  • Diffuser can be mounted in either top or bottom of wall cavity
  • Classic style blends with any decor
  • Easy to install in any unobstructed interior wall with studs 16in. on center

Key Specs

AttributeSpecification

item#

250747

Brand

Tjernlund

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

9.2 LB
AttributeSpecification

Air Delivery

75 cfm

Outdoor Rated

No

Volts

120

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Wiring to a mini-split

    Can this be wired to operate with a single zone mini-split system?

    1 answer

    1. This unit does not wire into a single zone mini-split system directly but can operate in conjunction with a mini-split system to bring air in from another room. It can be wired to a wall light switch to turn it on and off.

      Helpful?

  2. Can this unit be run 24/7

    I've got a dehumidifier that pulls air from the upper level of my house across the basement and out through a vent in the basement wall. Between the dehumidifier and the upper level vents is a wall that requires a 100 Square inch vent. I have concerns that the vent may not be sufficient to pull enough air into the room where the dehumidifier unit operates. This would require a ventilation fan that can run virtually 24/7.

    1 answer

    1. This ventilator is approved for 24/7 usage, it can be run constantly.

      Helpful?

  3. What are the dimension of the blower AS1?

    I need to mount in a wall but it is not standard 16" OC studs so I 'd like to know the actual dimensions of the unit. Can I move air up or down from room to room? e.g. can the air discharge above or below the fan? Please clarify, and many thanks.

    1 answer

    1. The width dimension of the blower grill is 15 3/4" (flush). The rough opening is 13 7/8" wide.
      The width of the diffuser is 15 1/8" (flush). The rough opening is 13 5/8" wide.
      Air can be moved up or down from one room to another, but not from one floor to another. Air can be discharged either above or below the blower.

      Helpful?

  4. Can I wire the transfer fan to my current HVAC thermostat?

    1 answer

    1. The unit can be wired to an HVAC thermostat.

      Helpful?

  5. what is the sone rating on the AS1 Tjerlund aireshare fan

    1 answer

    1. The Tjernlund AireShare Ventilator has a 1.15 sone rating.

      Helpful?

  6. auto feature

    I am looking for a fan that will turn on when a temp is reached and turn off when the temp drops below a temp.

    Does this have an auto feature like this? If so what are the on and off temp settings?

    1 answer

    1. This room-to-room ventilator does not include a thermostat to control when it turns on and off; however, a 120 volt thermostat or a wall switch is required. At this time, Northern Tool does not offer a thermostat or switch for this ventilator. One could be obtained through the manufacturer or locally. Having a certified electrician complete the installation is recommended.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
