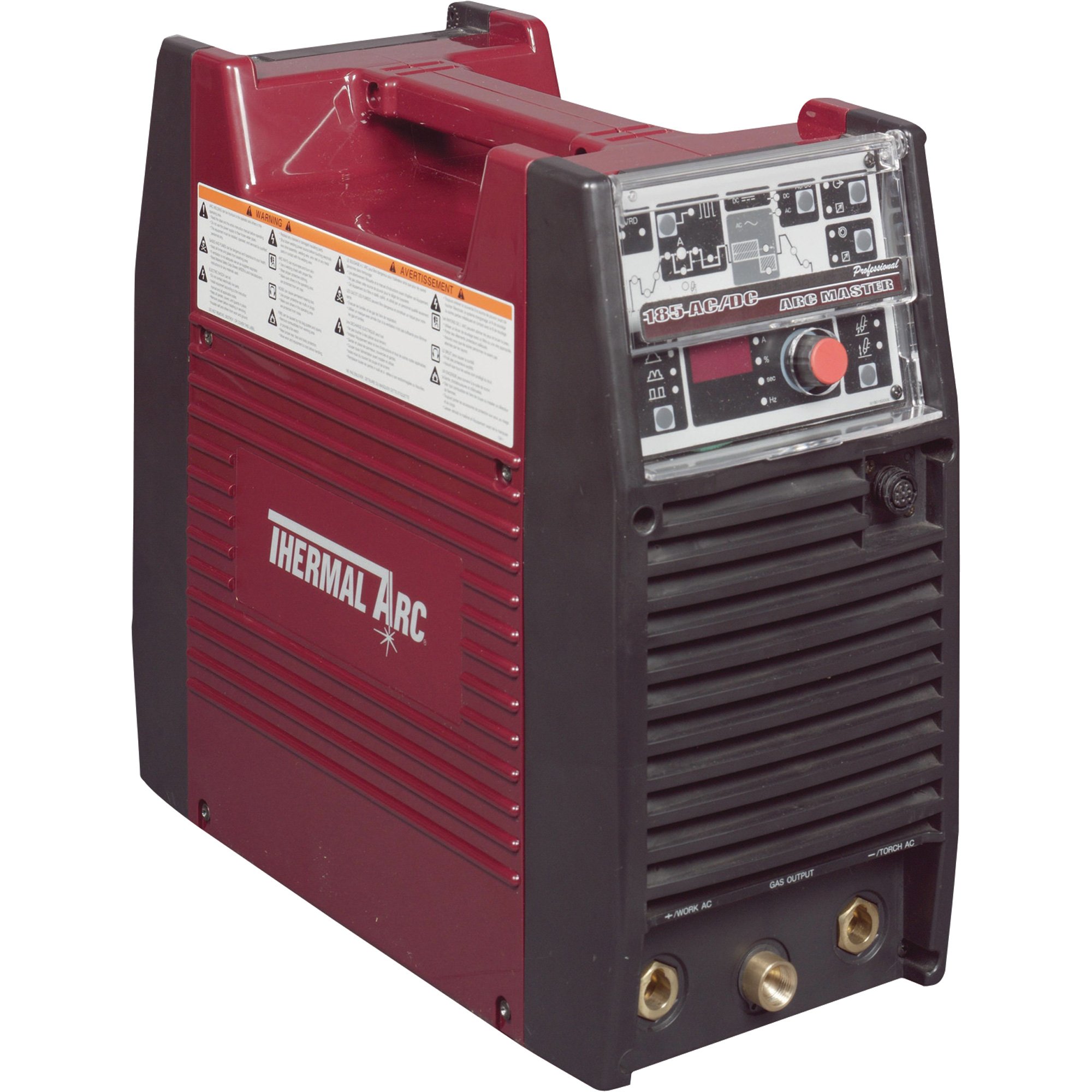

Thermal Arc ArcMaster 185 230V Inverter-Based AC/DC Stick Welder/TIG Welder — 185 Amp AC/DC TIG Ouput, 160 Amp AC/DC Stick Output, Model# ArcMaster 185 ACDC

Item# 1640122
Thermal Arc ArcMaster 185 230V Inverter-Based AC/DC Stick Welder/TIG Welder — 185 Amp AC/DC TIG Ouput, 160 Amp AC/DC Stick Output, Model# ArcMaster 185 ACDC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Thermal Arc ArcMaster 185 230V Inverter-Based AC/DC Stick Welder/TIG Welder — 185 Amp AC/DC TIG Ouput, 160 Amp AC/DC Stick Output, Model# ArcMaster 185 ACDC

Click or Tap image to Zoom

  • Smart Logic® eliminates damage if the machine is accidentally installed to the wrong voltage
  • Thermal Overload Protection: Indicator alerts the operator if duty cycle is exceeded or airflow is blocked
  • Locking Plug Output Terminals: For easy polarity reversal and cable change
  • Remote Receptacle Fitted: Allows remote devices to be connected for controlling amperage and output contactor
  • Job Save & Load: Allows operator to store up to 5 exact optimized welding parameters then digitally recall them with perfect repeatability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The ArcMaster 185 AC/DC is a multivoltage, full-digital control, AC/DC, Stick/Lift TIG/HF TIG inverter power supply. You get exceptional performance from the embedded microprocessor with digital controls, delivering perfectly smooth, stable arc characteristics for E6010 Cellulose and low hydrogen electrodes. Standards Compliant Integrated VRD: Voltage Reduction Device reduces the OCV when the power supply is not in use. This all but eliminates the risk of electric shock to the operator from the secondary welding circuit.

What's Included

  • (1) Power source
  • (1) Stick electrode holder with 15ft. cable
  • (1)TIG torch and accessory kit
  • (1) Argon regulator
  • (1) Foot control
  • (1) Work clamp with 15ft. cable
  • (2) Dinse 25mm plugs
  • (1) 12ft. gas hose
  • (1) Carrying strap

Features + Benefits

  • Smart Logic® eliminates damage if the machine is accidentally installed to the wrong voltage
  • Thermal Overload Protection: Indicator alerts the operator if duty cycle is exceeded or airflow is blocked
  • Locking Plug Output Terminals: For easy polarity reversal and cable change
  • Remote Receptacle Fitted: Allows remote devices to be connected for controlling amperage and output contactor
  • Job Save & Load: Allows operator to store up to 5 exact optimized welding parameters then digitally recall them with perfect repeatability
  • Smart Warning Diagnostics: Alerts operator to power supply abnormalities
  • AC Frequency gives operator control over weld bead shape
  • AC Balance allows you to fine tune the AC welding cycle
  • Rapid pulse output provides precision control over pulse on/off, pulse frequency, peak % time, background and peak amperage, initial and final slope times, and amperage
  • Intelligent heat sensing fan operates as needed to cool components & reduce airborne contaminants pulled through the power source
  • Rated Output (STICK): 160 Amp at 27V, 40% Duty Cycle
  • Rated Output (TI): 185 Amp at 17.4V, 30% Duty Cycle

Key Specs

AttributeSpecification

item#

1640122

Brand

Thermal Arc

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

42.0 LB
AttributeSpecification

Volts

Multi

Max. Amps

185

Multi-process

Yes

Duty Cycle

Stick: 40% at 160A; TIG: 30% at 185A
