Trans-Atlantic SVB Series Standard Duty Commercial Cylindrical Storeroom Door Knob with Lock — Stainless Steel, Grade 2, Model# DL-SVB80-US32D

Item# 83641

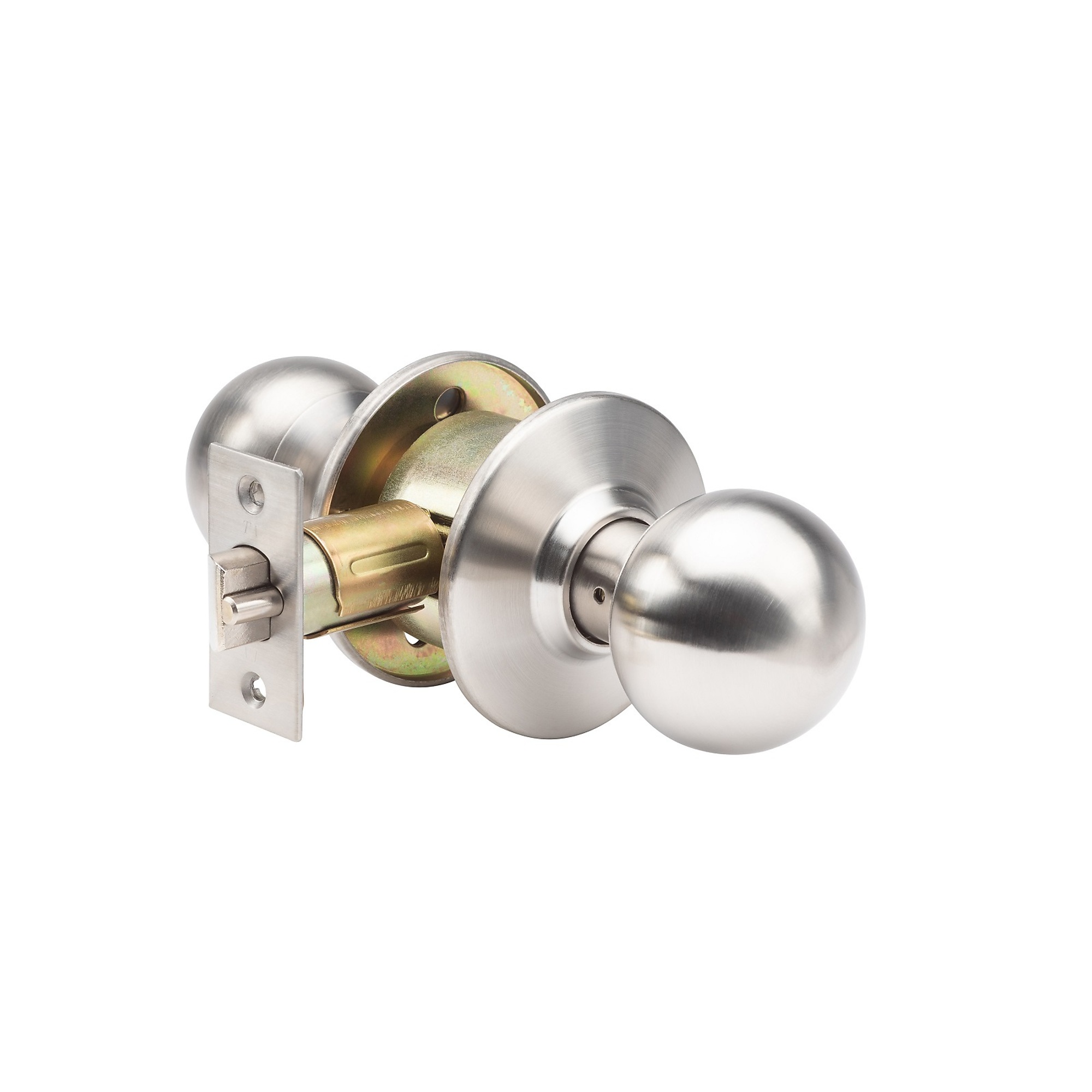

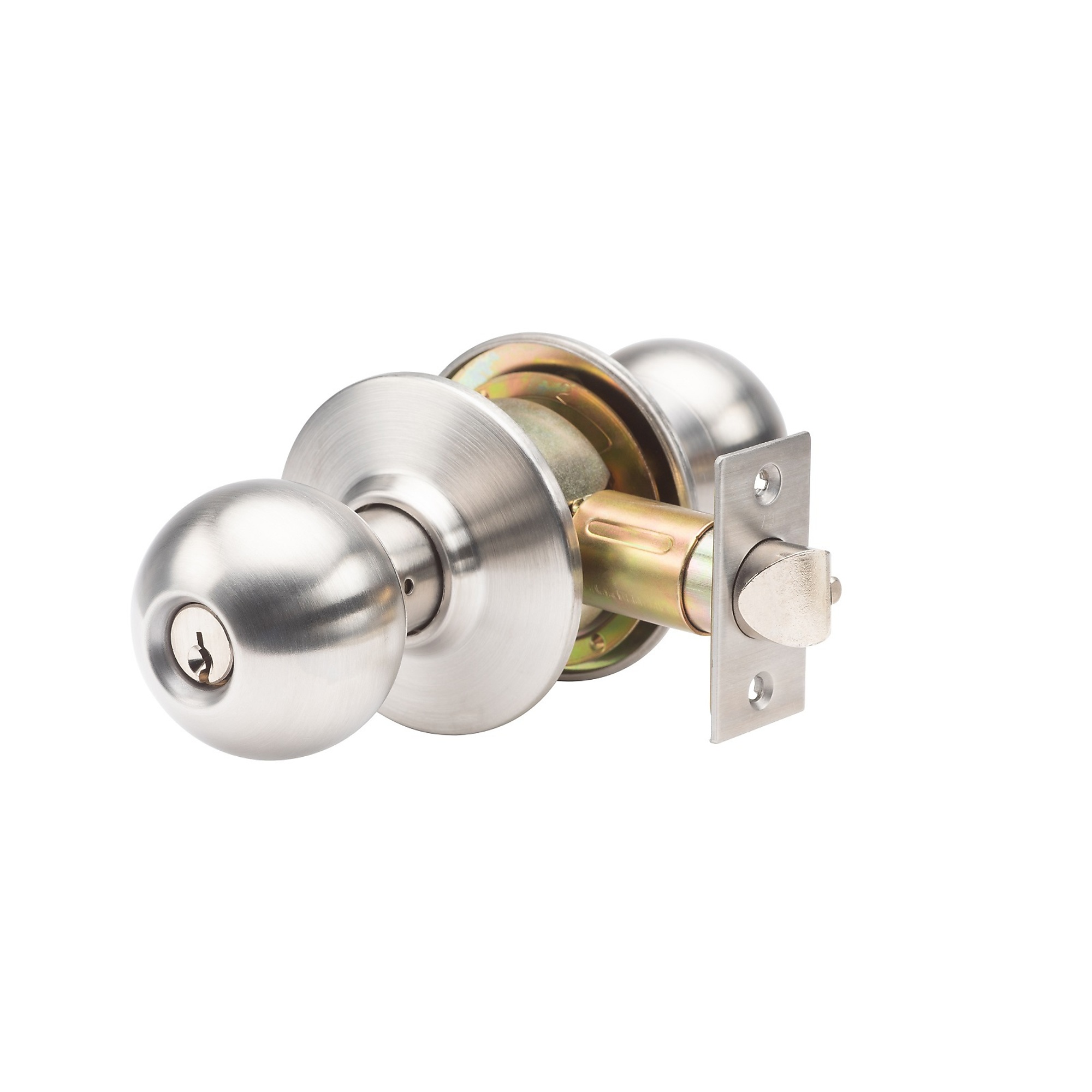

Trans-Atlantic SVB Series Standard Duty Commercial Cylindrical Storeroom Door Knob with Lock — Stainless Steel, Grade 2, Model# DL-SVB80-US32D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans-Atlantic SVB Series Standard Duty Commercial Cylindrical Storeroom Door Knob with Lock — Stainless Steel, Grade 2, Model# DL-SVB80-US32D

Click or Tap image to Zoom

$41.93

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Knob automatically locks from the outside when closed
  • ANSI A156.2 Grade 2 Certified
  • Non-handed/reversible - fits doors 1-3/4" to 2" thick
  • Cylinder: Schlage "C" keyway
  • Keying: 2 Nickel-plated Schlage 6 pin keyed

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Trans-Atlantic SVB Series Stainless Steel Standard Duty Commercial Cylindrical Storeroom Door Knob is designed for use on all Grade 2 Commercial and Residential door applications. Featuring a non-handed/reversible knob made of stainless steel, this lockset was designed with durability in mind. Choose between the Passage, Privacy, Entry, Classroom, Storeroom, or Dummy function in either our Stainless Steel or Bright Brass finish to complete any home project.

What's Included

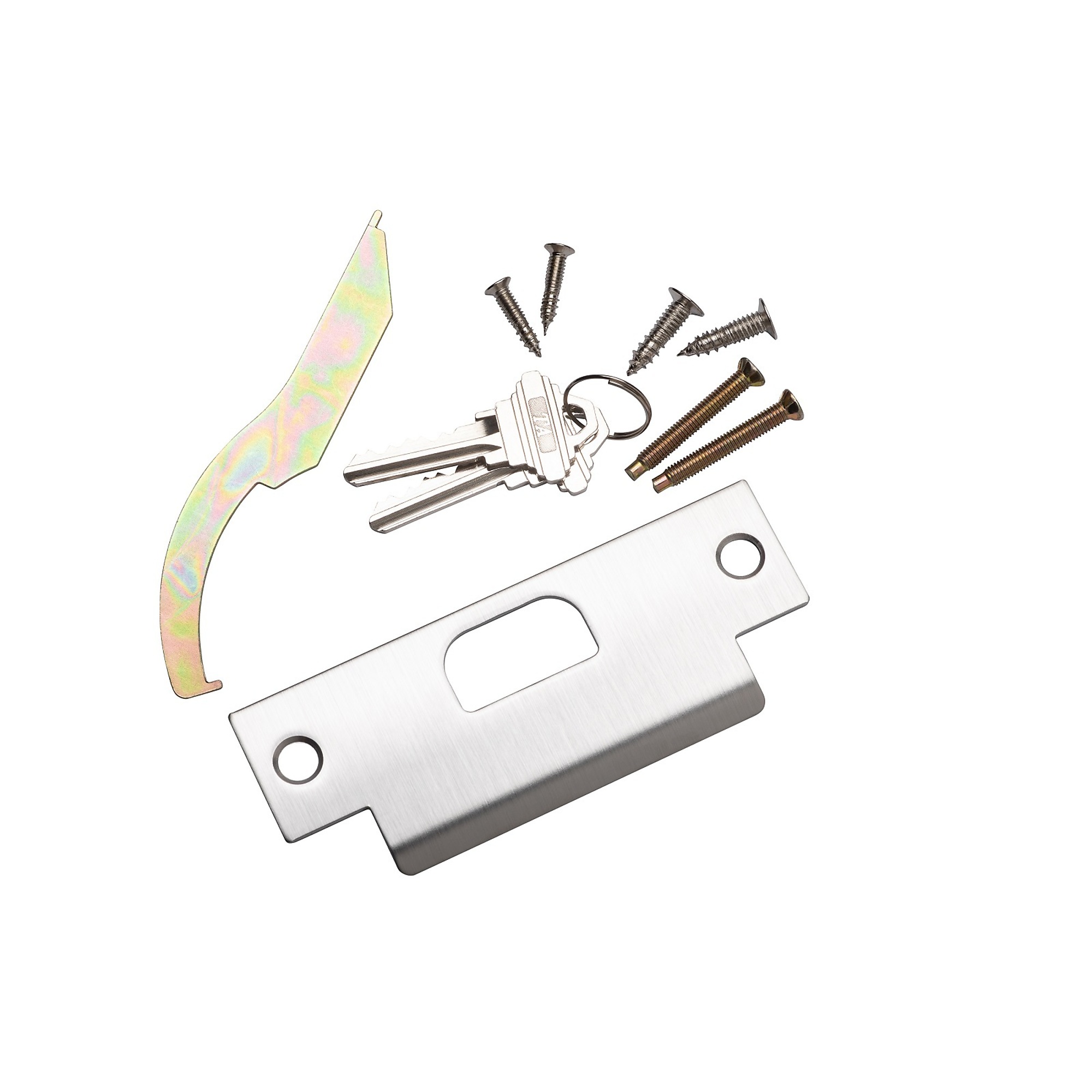

    (1) Storeroom Function Lockset

Downloads

Product Manual

Features + Benefits

  • Knob automatically locks from the outside when closed
  • ANSI A156.2 Grade 2 Certified
  • Non-handed/reversible - fits doors 1-3/4" to 2" thick
  • Cylinder: Schlage "C" keyway
  • Keying: 2 Nickel-plated Schlage 6 pin keyed
  • Backset: 2-3/4 in.
  • Stainless steel latch: 1/2 in. projection
  • Face: 1 1/8 x 2 1/4 in. (Optional 3 hour UL R14879)
  • Fits 161 Prep doors
  • 2-1/8 in. bore hole retrofits all cylindrical locksets
  • Strike: ANSI 1-1/4 x 4-7/8
  • 1 year mechanical and finish warranty
  • Stainless steel finish

Key Specs

AttributeSpecification

item#

83641

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.2 LB

Keyed

KD

Product Type

Knobset
AttributeSpecification

Material

Metal

Color

Silver

Product Weight

3.2000 lb

Dimensions L x W x H (in.)

7.0 x 7.0 x 3.0 in

Product Weight

3.2000 lb

Dimensions L x W x H (in.)

7.0 x 7.0 x 3.0 in
