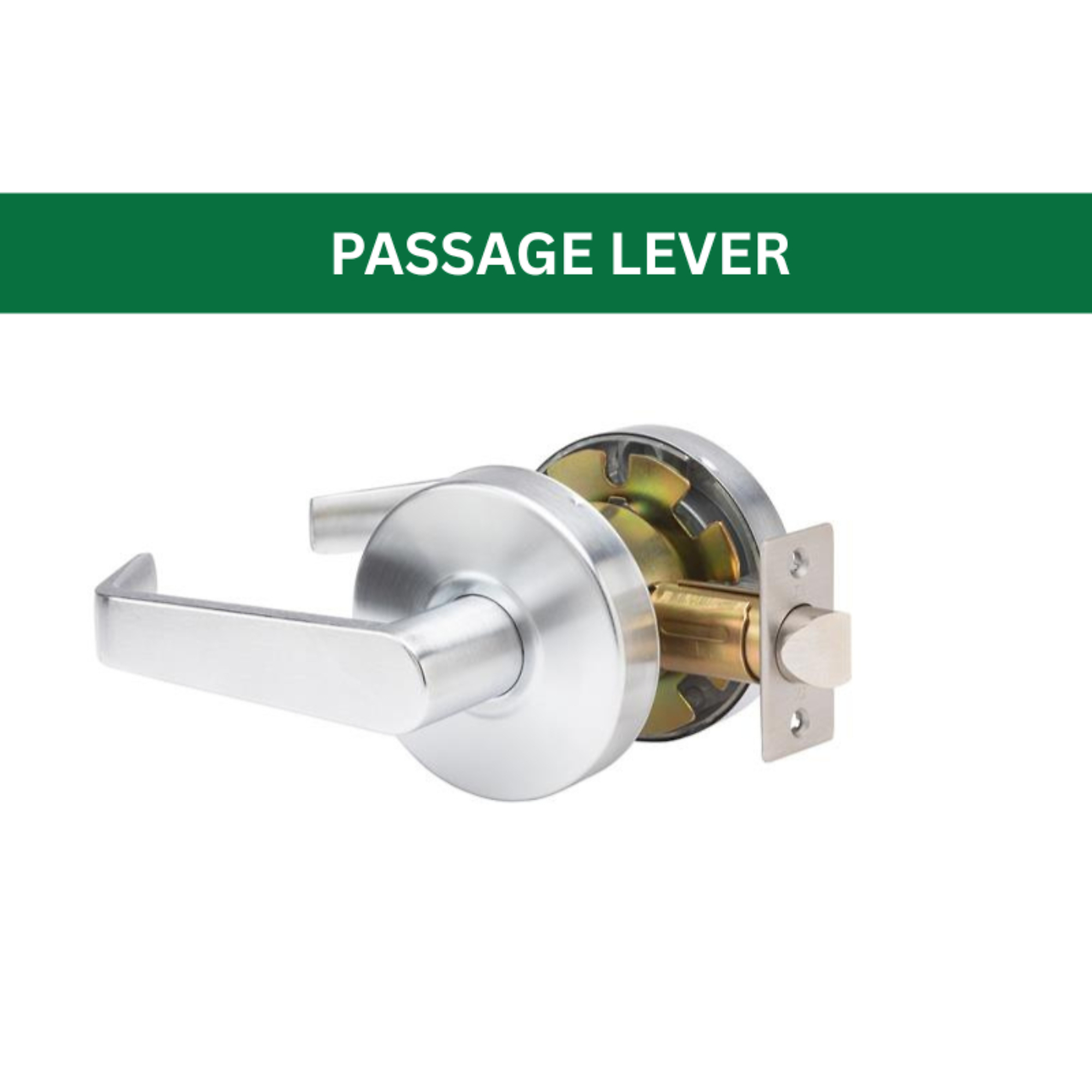

Trans Atlantic Global Door Controls Eiffel Cylindrical Passage Door Handle — Brushed Chrome, ADA Compliant, Grade 2, Model# GAL-1110L-R-626

Item# 83663
Trans Atlantic Global Door Controls Eiffel Cylindrical Passage Door Handle — Brushed Chrome, ADA Compliant, Grade 2, Model# GAL-1110L-R-626

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans Atlantic Global Door Controls Eiffel Cylindrical Passage Door Handle — Brushed Chrome, ADA Compliant, Grade 2, Model# GAL-1110L-R-626

Click or Tap image to Zoom

$70.43

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Non-locking lever used for interior closet, hall & basement doors
  • ANSI A156.2 Grade 2 Certified
  • Freewheeling clutch lever mechanism for added safety
  • Fits doors with 1-3/8 to 1-5/8 in. thickness
  • Removable Thru-Bolts to prevent lock rotation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Global Door Controls GAL cylindrical passage leverset comes in a brushed chrome finish and includes an ANSI strike. This passage door handle is designed for use on hallways and closets that do not require a locking function. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. It includes all necessary hardware and instructions, resulting in an easy installation process.

What's Included

    (1) Passage Door Handle

Downloads

Product Manual

Features + Benefits

  • Non-locking lever used for interior closet, hall & basement doors
  • ANSI A156.2 Grade 2 Certified
  • Freewheeling clutch lever mechanism for added safety
  • Fits doors with 1-3/8 to 1-5/8 in. thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)
  • Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
  • Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
  • 1 year mechanical and finish warranty
  • Latch: 5/8 in. projection Stainless Steel 3 hour UL R20759
  • Bore: 2-1/8 in. hole retrofits all cylindrical locksets
  • Construction: Steel, Zinc Dichromated resists corrosion
  • ADA compliant
  • Fits 161 door prep
  • Individual spring on each side prevents lever sag
  • Individual spring on each side prevents lever sag

Key Specs

AttributeSpecification

item#

83663

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.2 LB

Keyed

Schlage 6-pin

Product Type

Leverset
AttributeSpecification

Material

Stainless Steel

Product Weight

4.2000 lb

Dimensions L x W x H (in.)

7.25 x 7.25 x 4.0 in

Product Weight

4.2000 lb

Dimensions L x W x H (in.)

7.25 x 7.25 x 4.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
