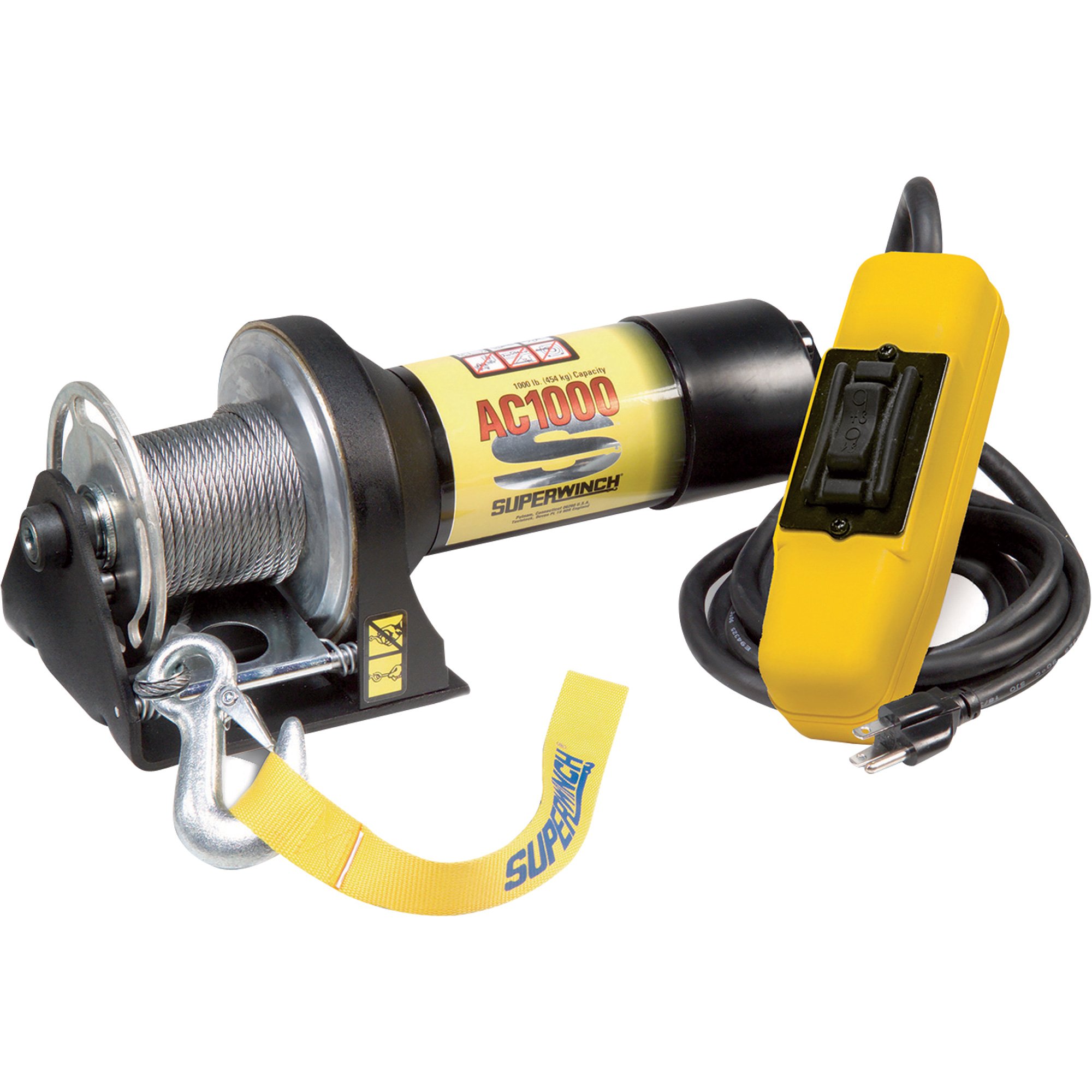

Superwinch 110 Volt AC Powered Electric Utility Winch — 1,000-Lb. Capacity, Galvanized Wire Rope, Model# AC1000

Item# 14009
Superwinch 110 Volt AC Powered Electric Utility Winch — 1,000-Lb. Capacity, Galvanized Wire Rope, Model# AC1000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Superwinch 110 Volt AC Powered Electric Utility Winch — 1,000-Lb. Capacity, Galvanized Wire Rope, Model# AC1000

Click or Tap image to Zoom

  • Cable tension plate
  • Includes hand-saver strap and mounting hardware
  • Line pull: 0 lbs. 3 Amps Motor Draw / 23 FPM
  • Line Pull: 1,000 lbs. 10 Amps Motor Draw / 13 FPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Superwinch AC1000 Utility Winch is your choice when AC power is the only option. Features an all-steel planetary geartrain, dynamic brake and circuit breaker protection.

What's Included

  • (1) Winch with 45-ft. wire rope
  • (1) 6-ft. remote control
  • (1) Mounting hardware kit

Downloads

Product Manual

Features + Benefits

  • Cable tension plate
  • Includes hand-saver strap and mounting hardware
  • Line pull: 0 lbs. 3 Amps Motor Draw / 23 FPM
  • Line Pull: 1,000 lbs. 10 Amps Motor Draw / 13 FPM

Key Specs

AttributeSpecification

item#

14009

Brand

Superwinch

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

19.8 LB

Horsepower

0.6 HP

Capacity (Line Pull)

1,000 lb

Gear Type

Planetary
AttributeSpecification

Line Speed

13 ft./min.

Gear Ratio

159:1

Rope Length

45 ft

Rope Diameter

5/32 in

Rope Material

Galvanized Steel

Remote

Yes

Remote Cord Length

6 ft

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can this accommodate a 100 ft cable?

    It looks like there is room for more cable, what’s the longest cable possible?

    1 answer

    1. This winch cannot accommodate 100' of cable. It is only designed to work with 45' of 5/32" cable.

      Helpful?

  2. Is it weather proof?

    1 answer

    1. The winch is not weather proof.

      Helpful?

  3. Is the run time only 20 seconds as it states in the description?

    1 answer

    1. The run time is 1-1 1/2 mins. at 1000 lbs. with 5-10 mins. cool down time. You would want to keep an eye on the the motor because this will vary depending on the load.

      Helpful?

  4. 1

    can you tell me what the mounting plates are drilled for, size, distance between bolts and how it is mounted, steel plate ETC. or even what the mounting hardwae looks like

    Thanks Rich

    1 answer

    1. The mounting bolt pattern distance measures 3.69" center to center for the two holes. The mounting plate is made of steel and has Hex Head bolts.

      Helpful?

  5. Power for winch

    Is this unit powered for both directions?

    1 answer

    1. Yes, the Superwinch 110V AC Utility Winch does have both power in and power out.

      Helpful?
