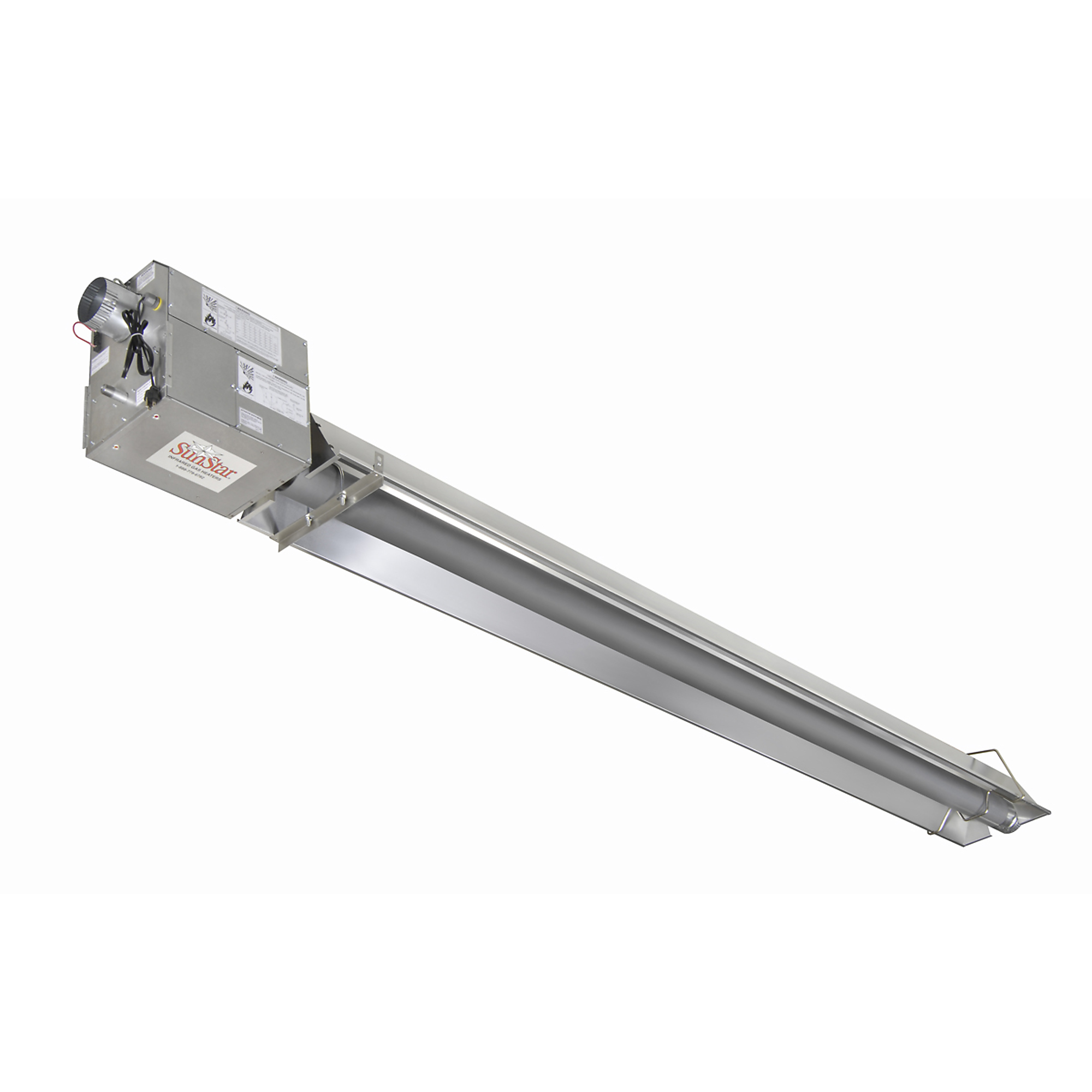

SunStar, Tough Guy Straight Positive Pressure Tube Heater, Fuel Type Propane, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SPS75-20-TG-L5

Item# 4774687
SunStar, Tough Guy Straight Positive Pressure Tube Heater, Fuel Type Propane, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SPS75-20-TG-L5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar, Tough Guy Straight Positive Pressure Tube Heater, Fuel Type Propane, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SPS75-20-TG-L5

Click or Tap image to Zoom

$1279.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 20 Foot Emitter Tube Length. Positive pressure- Push Through System pressurizes the products of combustion though the emitter tubes utilizing a blower inside the burner box.
  • Ideal for complete building heating using multiple heaters. When a single heater is utilized for building space heating (e.g. spot heating) always use a u-tube heater for more uniform energy distribution. Ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments.
  • Tough Guy Constuction utilizes heat treated aluminized steel tube construction for unsurpassed corrosion resistance, higher operating temperatures, higher surface emissivity and longer life expectancy. Standard 4" flue and 4" outside combustion air supply.
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 6in. above, 60in. below and 22in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar, Tough Guy Straight Positive Pressure Tube Heater, Fuel Type Propane, Heat Output 75000 Btu/hour, Heat Type Infrared, Model# SPS75-20-TG-L5
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
Price for all three:

$1360.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Offers fuel savings up to 50%. Tough Guy Straight Tube heaters are ideal for complete building heating. Positive pressure system pressurizes the combustion chamber. The emitter tubes are made of heat treated aluminized steel. All gas and electrical connection at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40ft. of ducting in fresh air or 40ft. sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise (less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. Mount heaters as high as possible. Tough Guy Series is ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar's Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater and the model that's right for you, view the Heat Loss Estimating Chart for proper heater selection.

What's Included

    (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors

Features + Benefits

  • 20 Foot Emitter Tube Length. Positive pressure- Push Through System pressurizes the products of combustion though the emitter tubes utilizing a blower inside the burner box.
  • Ideal for complete building heating using multiple heaters. When a single heater is utilized for building space heating (e.g. spot heating) always use a u-tube heater for more uniform energy distribution. Ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments.
  • Tough Guy Constuction utilizes heat treated aluminized steel tube construction for unsurpassed corrosion resistance, higher operating temperatures, higher surface emissivity and longer life expectancy. Standard 4" flue and 4" outside combustion air supply.
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 6in. above, 60in. below and 22in. from the sides of the heater

Key Specs

AttributeSpecification

item#

4774687

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

130.0 LB

Heat Output

75,000 Btu/hour

Heat Type

Infrared

Heating Capability

1,000 ft²
AttributeSpecification

Blower Included

Yes

Amps

2

Thermostat Included

No

Volts

120

Product Weight

104.0000 lb

Dimensions L x W x H (in.)

252.0 x 13.0 x 8.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Looking at it does the exhaust come out at the left or at the right of the unit or is the left side the intake

    1 answer

    1. The end with the box is the burner end, the exhaust is on the opposite end of the burner.

      Helpful?

  2. what thermostat do we use for this

    1 answer

    1. This heater would require a high humidity thermostat. The thermostat part number 30525000 for this heater would be available direct from the manufacturer.
