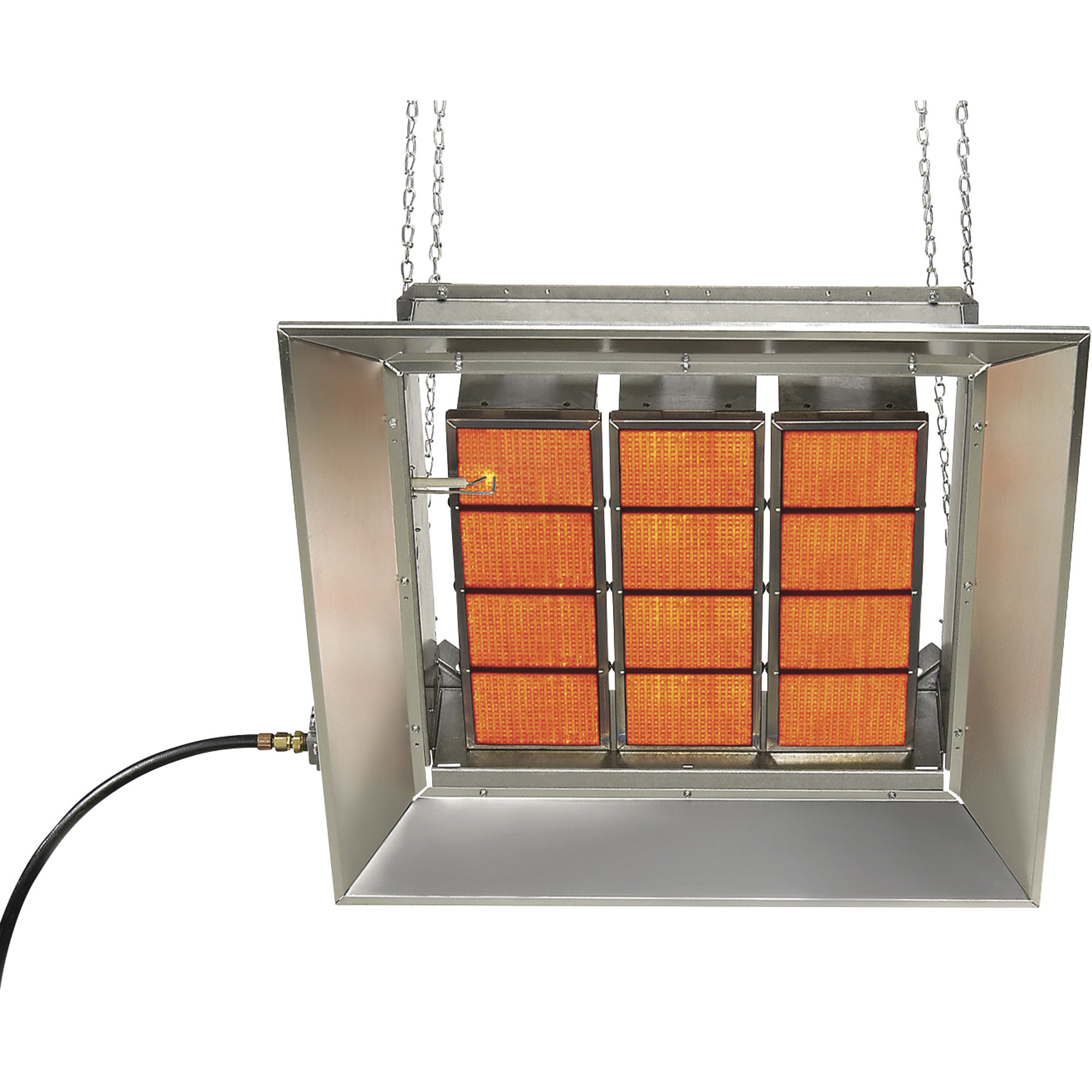

SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 80,000 BTU, Model# SG8-N

Item# 16302
SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 80,000 BTU, Model# SG8-N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 80,000 BTU, Model# SG8-N

Click or Tap image to Zoom

$517.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 14ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 49in. above, 99in. below and 49in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 80,000 BTU, Model# SG8-N
  • SunStar Heating Products 24 Volt Thermostat Relay Kit, Model# 43274020
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
Price for all four:

$623.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is an energy-saving Direct Spark Ignition heater and can be controlled by a line voltage or 24V thermostat (sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc.) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 14ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 49in. above, 99in. below and 49in. from the sides of the heater
  • The minimum supply gas pressure is 7.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16302

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

16.0 LB

Heat Output

80,000 Btu/hour
AttributeSpecification

Heat Type

Infrared

Blower Included

No

Amps

1

Thermostat Included

No

Remote Included

No

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. I have building 4,000 sq.f. how much BTU do I need and if 2 units will be enough??

    1 answer

    1. To determine the correct heater size for your space, please use the following formula:

      How large is the area being heated in cubic feet? Calculate area dimensions (Length x Width x Height) = Total Cubic Feet

      What is the desired temperature increase to be gained by the heater? Calculate (Desired temperature(with Heater) - Area temperature(without heater)) = Desired Temperature Increase

      Calculate the BTU's required to achieve desired temperature. Calculate ((Total Cubic Feet x .133) x Desired Temperature Increase) = BTU's Required

      Helpful?

  2. I've seen this type of heater mounted at 45 degree angle, this one calls for no more than 35 degrees, can it be angled more than 35?

    1 answer

    1. 35 degrees would be the max. It cannot be angled more than 35 degrees.

      Helpful?

  3. Is this heater ventless

    1 answer

    1. This heater requires ventilation.

      Helpful?

  4. What is the rated efficiency of this heater?

    1 answer

    1. While there is not an official efficiency rating for radiant heat heaters, this heater is would be very effective in the 1,000–3,000 square footage range.

      Helpful?

  5. is heater safe to use in a wood shop

    1 answer

    1. The heater is not recommended to be used in a wood shop.

      Helpful?

  6. WILL THIS HEATER OPERATE ON THE GAS PRESSURE DELIVERED TO HOMES

    1 answer

    1. We recommend consulting the local gas company to ensure the proper pressure is delivered to the heater. The minimum supply pressure required for this heater is 7" water column (W.C.) and the maximum supply pressure is 14" W.C. If the incoming pressure is higher than the maximum, a regulator is required.

      Helpful?

  7. how do i convert to lp.

    1 answer

    1. The heater is designed for natural gas only. There is not an LP version of the 80,000 BTU available. The LP versions available will be model SG6-L (item number 16298) 65,000 BTU or the model number SG10-L (item number 16307) 100,000 BTU.

      Helpful?

  8. Does this heater require its own power source?

    1 answer

    1. This heater requires a 120 volt power supply.

      Helpful?

  9. What are the dimensions and is the pilot light lit all of the time or is it electronic? Does wind effect the Pilot light?

    1 answer

    1. The SunStar Ceramic Heater is 31 inches long by 28 inches wide by 11 inches high. It features a direct spark ignition system not a pilot light and will operate in windy conditions.

      Helpful?
