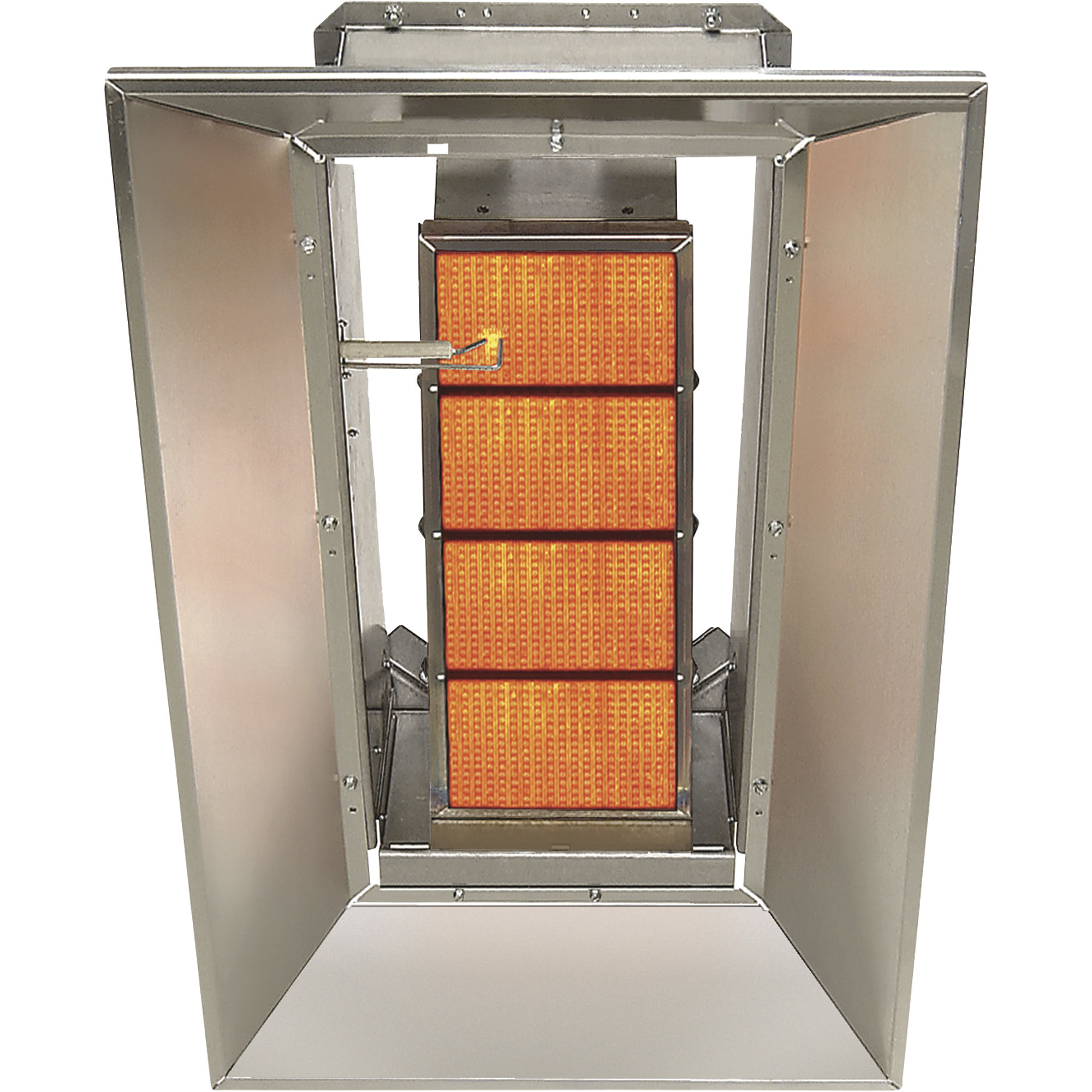

SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 60,000 BTU, Model# SG6-N

Item# 16296
SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 60,000 BTU, Model# SG6-N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 60,000 BTU, Model# SG6-N

Click or Tap image to Zoom

$569.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 49in. above, 99in. below and 49in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 60,000 BTU, Model# SG6-N
  • SunStar Heating Products 24 Volt Thermostat Relay Kit, Model# 43274020
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
Price for all four:

$675.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is an energy-saving Direct Spark Ignition heater and can be controlled by a line voltage or 24V thermostat (sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc.) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 49in. above, 99in. below and 49in. from the sides of the heater
  • The minimum supply gas pressure is 7.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16296

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.0 LB

Heat Output

60,000 Btu/hour
AttributeSpecification

Heat Type

Infrared

Blower Included

No

Amps

0.6

Thermostat Included

No

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. Would this product work in a garage with 8 foot tall side walls?

    1 answer

    1. This model requires a minimum mounting height of 13 feet above the finished floor.

      Helpful?

  2. I don't understand what you mean about account second stage regulator, does it come with a gas regulator?

    1 answer

    1. This heater is equipped with a snap-opening, combination gas valve. The maximum supply pressure to the appliance is 14” W.C. or 1/2 P.S.I. It would require the regulator rated for up to 2 PSIG, part number 3307260, or a regulator rated above 2 PSIG, part number 3483070, depending on the maximum supply pressure when heater is installed. Both items can be purchased through the manufacturer directly.

      Helpful?

  3. Does this work with propane also?

    1 answer

    1. This heater is designed for natural gas only. The propane version is item 16298.

      Helpful?

  4. Ignitor

    We are looking for a heater that has 75,000 btu and we need the controller to be in line with the other units that we currently use. Can these be set up to be turned on/off by a switch?

    1 answer

    1. This particular heater can be hooked in line with your existing heaters and be turned on/off with a switch. This heater being only 60,000 BTUs is less than the 75,000 BTUs that you are looking for. I will list a heater below that can be turned on/off with a switch and meets your BTU requirement.

      Helpful?

  5. It states that it is not vent free. How do you vent?

    It states that it is not vent free. How do you vent unit?

    1 answer

    1. The SunStar ceramic heater does not have a direct venting option for venting pipe, the building this unit is installed in requires venting. For example installing exhaust fans in the building this unit is installed in should be sufficient enough for venting.

      Helpful?
