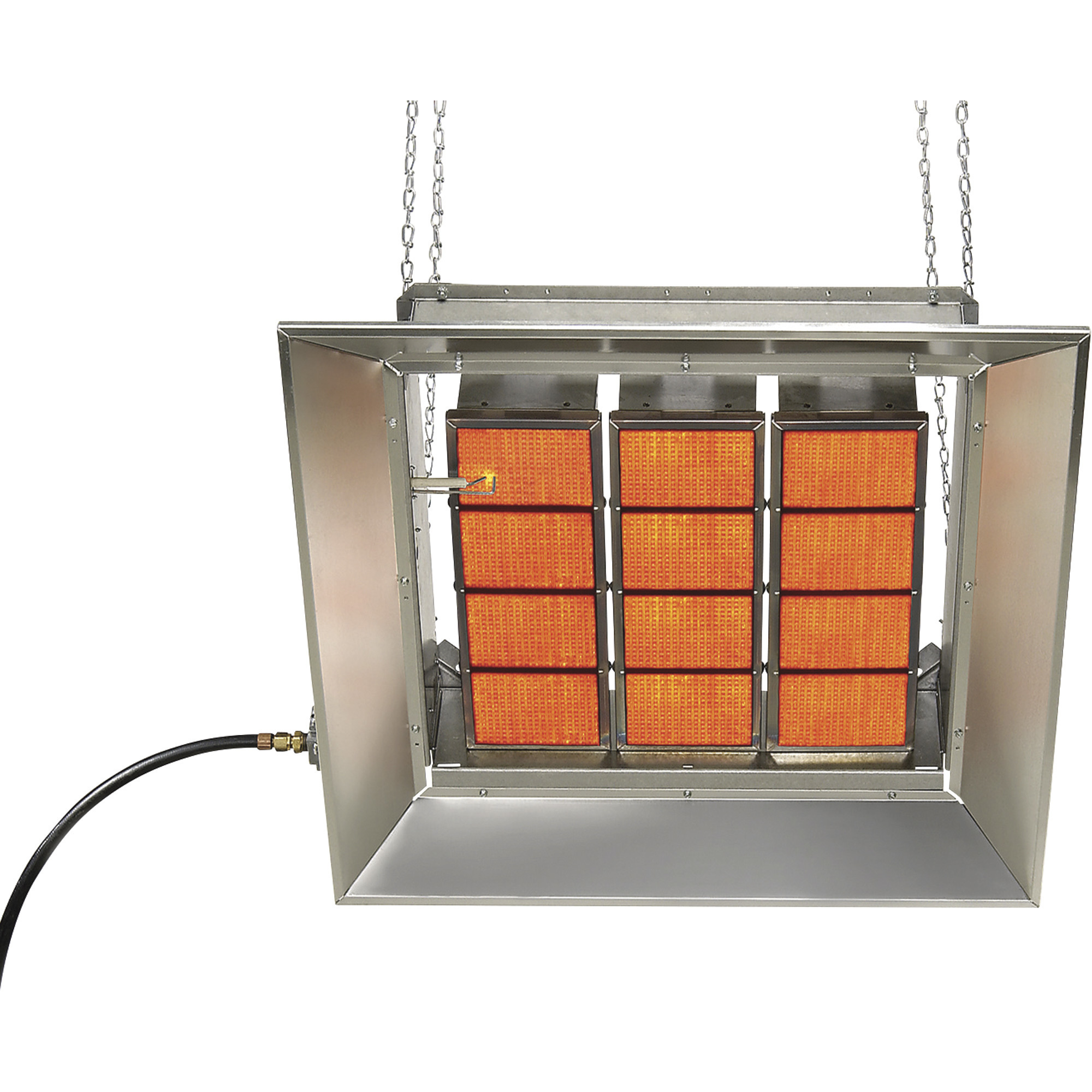

SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 30,000 BTU, Model# SG3-N

Item# 16292
"SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 30,000 BTU, Model# SG3-N"
SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 30,000 BTU, Model# SG3-N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 30,000 BTU, Model# SG3-N

Click or Tap image to Zoom

$435.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 12ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 37in. above, 73in. below and 31in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Natural Gas, 30,000 BTU, Model# SG3-N
  • SunStar Heating Products 24 Volt Thermostat Relay Kit, Model# 43274020
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
Price for all four:

$541.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is an energy-saving Direct Spark Ignition heater and can be controlled by a line voltage or 24V thermostat (sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc.) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 12ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 37in. above, 73in. below and 31in. from the sides of the heater
  • The minimum supply gas pressure is 7.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16292

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.62 LB

Heat Output

30,000 Btu/hour
AttributeSpecification

Heat Type

Infrared

Blower Included

No

Amps

0.3

Thermostat Included

No

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. I have a 8 foot ceiling can I use this heater

    1 answer

    1. The heater could not be installed on an 8 foot ceiling. It would not be able to meet the required clearances.

      Helpful?

  2. does this unit come with a second nozzle in case you need more btu's

    1 answer

    1. This heater does not come with additional nozzles to increase the BTU output.

      Helpful?

  3. does this unit have to be vented

    1 answer

    1. This heater can be used in Unvented mode. The term Unvented actually means Indirect Vented. While the products of combustion are expelled into the building, national codes require ventilation in the building to dilute these products of combustion. This ventilation may be provided by gravity or mechanical means.

      Helpful?

  4. can you use propone

    1 answer

    1. There is not a conversion kit available for propane usage. Recommended item 16293 will be 32,000 BTU in propane.

      Helpful?

  5. How is this heater mounted to a wall?

    1 answer

    1. This heater can be mounted to a wall by using angle brackets. These brackets can be found at a local hardware store. When mounting off the wall you will want to follow the recommended clearances from any combustible material. These clearances are 37" above, 73" below, 20" from the rear and 31" from the sides of the heater.

      Helpful?

  6. Does this heater require electric to work or can it be manually lit?

    Does this heater require electric to work or can it be manually lit? there is no electric available where i want to use the heater. I was wondering if i could use a grill igniter to light this heater?

    1 answer

    1. This SunStar heater will require 120 volt electricity to operate. We have Mr. Heater brand infrared heaters that will operate without electricity (see below).

      Helpful?
