Strongway Mini Electric Chain Hoist, 500-Lb. Capacity, 16.4ft. Lift

Item# 99077
Top Seller
Strongway Mini Electric Chain Hoist, 500-Lb. Capacity, 16.4ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Mini Electric Chain Hoist, 500-Lb. Capacity, 16.4ft. Lift

Click or Tap image to Zoom

$899.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Single-phase carbon brush motor
  • High-performance durable friction clutch integrated with load brake to prevent overload and over-travel
  • Operates on standard 110V power for ease of use
  • Upper/lower limit switches also prevent over-travel
  • Built-in chain bag to protect chain, keeping it out of the way

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Strongway Mini Electric Chain Hoist, 500-Lb. Capacity, 16.4ft. Lift
  • Strongway Manual Push Trolley, 1/2-Ton, 1100-Lb. Capacity, Adjustable Width, ANSI/ASME Certified
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
  • Tianchen, Electronic Crane Scale, Capacity 2200 lb, Model# OCS-S1
Price for all four:

$1134.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Strongway Mini Electric Chain Hoist features a single-phase carbon brush motor. The high-performance durable friction clutch is integrated with the load brake to prevent overloading and over-travel that could damage the hoist. This unit operates on standard 110V power, so it's easy to power in a variety of situations. Upper and lower limit switches also prevent over-travel. The built-in chain bag helps protect the chain and keeps it neatly out of the way during operation.

What's Included

    (1) Electric chain hoist

Downloads

Product Manual

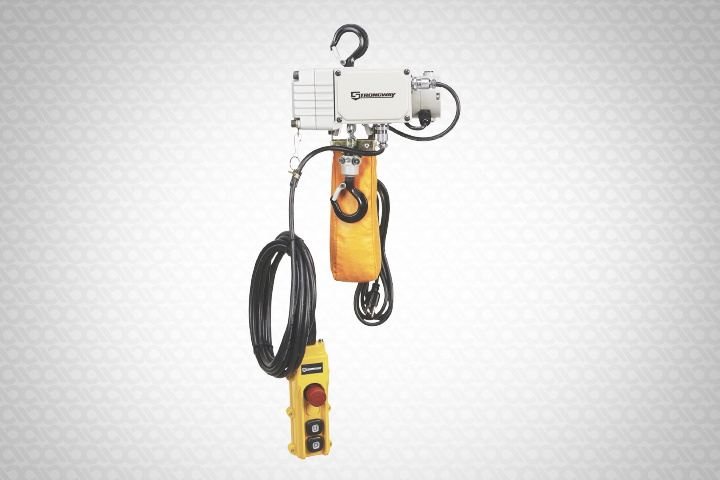

COMPACT AND POWERFUL

The Strongway MINI ELECTRIC CHAIN HOIST COMBINES a compact design with powerful lifting capabilities, capable of handling up to 500 LBS. effortlessly, making it suitable for a wide range of light-duty lifting tasks

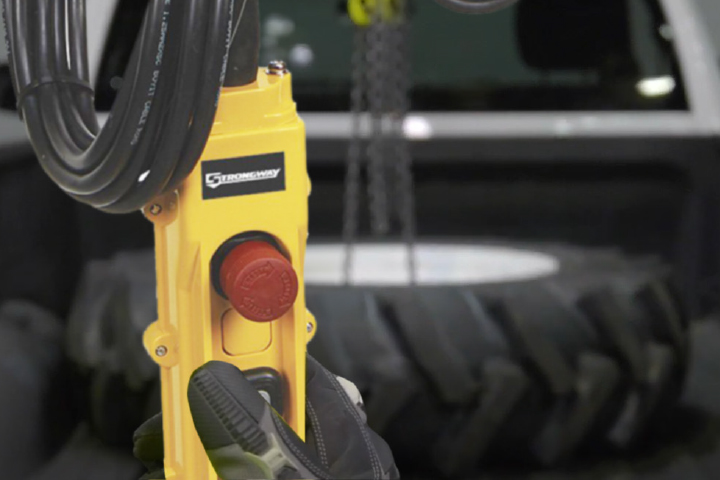

INTEGRATED SAFETY FEATURES

This hoist is engineered with CRITICAL SAFETY MECHANISMS, including a FRICTION CLUTCH and LOAD BRAKE that work together to prevent the risks associated with overload and excessive travel

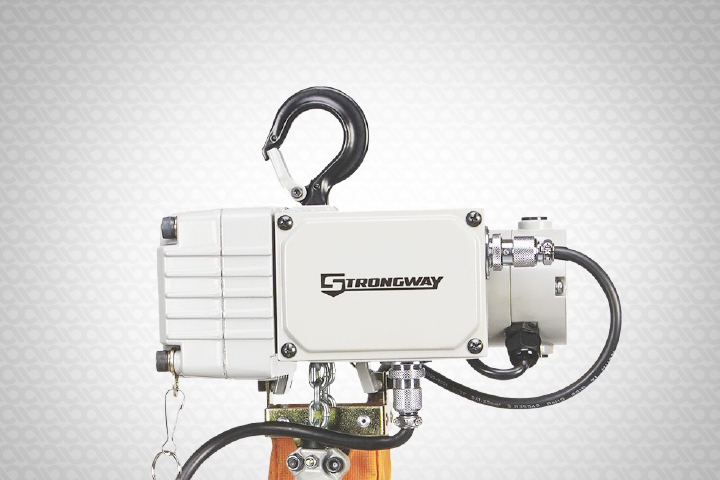

ADVANCED MOTOR TECHNOLOGY

Powered by a ROBUST SINGLE-PHASE CARBON BRUSH MOTOR, this hoist provides steady and reliable lifting power, suitable for continuous industrial use

Features + Benefits

  • Single-phase carbon brush motor
  • High-performance durable friction clutch integrated with load brake to prevent overload and over-travel
  • Operates on standard 110V power for ease of use
  • Upper/lower limit switches also prevent over-travel
  • Built-in chain bag to protect chain, keeping it out of the way

Key Specs

AttributeSpecification

item#

99077

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

26.9 LB

Capacity

500 lb

Lift Height

16.4 ft

Lift Speed

12.47 ft./min.

Duty Cycle

30 %
AttributeSpecification

Volts

110

Brake Type

Combination

Control Type

Push Button

Chain Bag Included

Yes

Required Head Room

11.02 in

Watts

200

Motor Output

0.268

Thermal Overload Protection

No

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Is this hoist weather resistant?

    1 answer

    1. This chain hoist is not weather-resistant and should be used in a location protected from the elements.

      Helpful?

  2. How many feet per minutes

    1 answer

    1. This hoist has a lifting speed of 12.47 feet per minute.

      Helpful?

  3. How long is the chain?

    1 answer

    1. This hoist has a 16-3/8 foot long chain.

      Helpful?

  4. Would you please give me the hoist dimensions

    1 answer

    1. The overall dimensions of this hoist are 9.41" long x 5.71" wide x 11.02" high from hook to hook. It includes a 16.4' long control cable.

      Helpful?

  5. What are the dimensions from the top hook to the bottom hook with the hoist fully raised?

    1 answer

    1. When fully retracted, the height from the top hook to the bottom hook is 9.84".

      Helpful?

  6. Will this motor operate inverted, motor down/chain up?

    1 answer

    1. This chain hoist is not designed to be used upside down with the motor on the bottom.

      Helpful?

  7. How long is the controller cable?

    1 answer

    1. The controller cable is 16.4 feet long.

      Helpful?

  8. hello, where can I find replacement parts on this hoist?

    1 answer

    1. Parts for this product are not available directly through Northern Tool + Equipment. Parts for this may be available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com. To obtain the part numbers you need, please first contact our Parts Department at 1-800-657-0516.

      Helpful?

  9. Is there a way to adjust the limit switch. I have the item #99077

    1 answer

    1. This limit switch for this Strongway chain hoist cannot be adjusted.

      Helpful?

  10. Is this variable speed?

    1 answer

    1. The lifting speed can be slightly affected by the load; however, it cannot be controlled or adjusted by the user.

      Helpful?
