The legs are 59.65 inches long.
Strongway Hydraulic Engine Hoist/Shop Crane, 1-Ton Capacity, 2.95in.–76.77in. Lift Range
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$289.99
- 2.95in.–76.77in. lift range handles loads up to 2,000 lbs. for engines, transmissions and other heavy components
- High-grade steel construction built to exacting standards for lasting durability
- Foldable, compact design allows easy storage and helps free valuable shop space
- Lead-free, oil-, grease- and dirt-resistant paint applied after chemical wash for long-term corrosion protection
- QT450 nodular iron hydraulic pump delivers superior strength and durability
See full description
Price for all four:
$617.96
What's Included
- (1) Strongway Hydraulic Engine Hoist/Shop Crane
Downloads
Features + Benefits
- 2.95in.–76.77in. lift range handles loads up to 2,000 lbs. for engines, transmissions and other heavy components
- High-grade steel construction built to exacting standards for lasting durability
- Foldable, compact design allows easy storage and helps free valuable shop space
- Lead-free, oil-, grease- and dirt-resistant paint applied after chemical wash for long-term corrosion protection

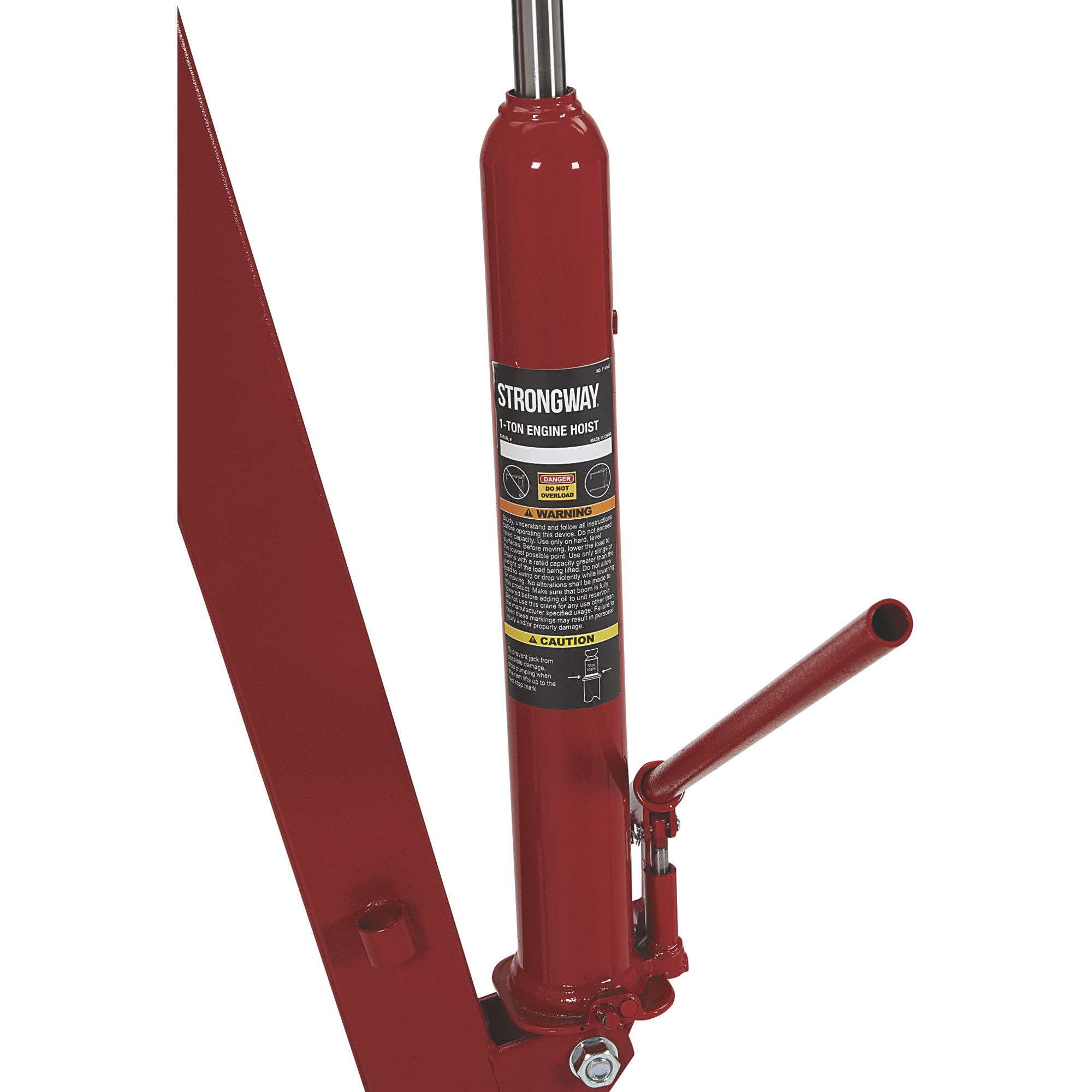

- QT450 nodular iron hydraulic pump delivers superior strength and durability
- Treated, polished piston ram resists skiving for smoother operation
- Y-style polyurethane sealing ring with backup ring prevents slow load drift or oil bypass
- High-quality hydraulic oil delivers corrosion resistance and dependable performance from 40°–105°F
- Fully adjustable boom slides to 4 load positions for versatile lifting setups
- 6 smooth-rolling 3-1/2in. solid steel casters and user-friendly handle improve maneuverability
- Manufactured in ISO-certified facilities using aerospace- and automotive-grade engineering processes
- Meets ASME PASE 2019 safety standards
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Engine Hoists
See All Strongway Engine Hoists
Currently Viewing This Product
Specifications
Specifications
Strongway Hydraulic Engine Hoist/Shop Crane, 1-Ton Capacity, 2.95in.–76.77in. Lift Range
American Forge & Foundry Engine Crane — 2-Ton Capacity, Heavy-Duty, Telescopic Booms, Swivel Casters, Model# 3583
American Forge & Foundry Engine Crane — 3 Ton Capacity, Heavy-Duty, Telescopic Boom, Model# 3584
American Forge & Foundry Engine Support Bar — Adjustable, 1,100-Lb. Capacity, Model# 583
Capacity
Same
2,000 lbs.
4,000 lb
6,000 lb
1,100 lb
Max. Boom Height
Same
76.77in.
88.1 in
86.1 in
-
Min. Boom Height
Same
2.95in.
9.4 in
9.4 in
-
Foldable
Same
Yes
Yes
No
No
Material
Same
Steel
Steel
Steel
Steel
Wheels (qty.)
Same
6
6
4
-
Caster Size
Same
3-1/2
Multiple
Multiple
-
Dimensions L x W x H (in.)
Same
59.65 x 39.37 x 56.89
63.5 x 12.5 x 28.5 in
56.0 x 9.0 x 36.0 in
43.0 x 3.0 x 9.0 in
Power Type
Same
-
Hydraulic
Hydraulic
Manual
Telescoping Boom
Same
-
Yes
Yes
-
Adjustable Legs
Same
-
Yes
Yes
-
Product Weight
Same
-
225.0000 lb
359.0000 lb
38.0000 lb
