Strongway Electric Cable Hoist, 880-Lb. Single-Line Capacity/1760-Lb. Double-Line Capacity, 38ft./19ft. Lift

Item# 4584162
"Strongway Electric Cable Hoist, 880-Lb. Single-Line Capacity/1760-Lb. Double-Line Capacity, 38ft./19ft. Lift"
Top SellerOn Sale
Strongway Electric Cable Hoist, 880-Lb. Single-Line Capacity/1760-Lb. Double-Line Capacity, 38ft./19ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Electric Cable Hoist, 880-Lb. Single-Line Capacity/1760-Lb. Double-Line Capacity, 38ft./19ft. Lift

Click or Tap image to Zoom

$249.99
Reg $299.99Save $50.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Rugged, efficient 120V/60 Hz hoist for easy lifting
  • Lifts loads up to 38ft. at speeds up to 33 FPM with a single line or up to 19ft. with speeds up to 16-1/2 FPM with a double line
  • Spring shock function to keep things safe
  • 120 Volt, 1.9 HP motor for long 10-minute duty cycles @ 20%
  • Easy-access 360° swivel hook for attaching and removing loads easily from any angle

See full description

Complete Your Solution

  • Strongway Electric Cable Hoist, 880-Lb. Single-Line Capacity/1760-Lb. Double-Line Capacity, 38ft./19ft. Lift
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all four:

$284.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Strongway Electric Cable Hoist is a rugged, efficient 120V/60 Hz unit that makes lifting easy. It lifts loads up to 38ft. at speeds up to 33 FPM with a single line or up to 19ft. with speeds up to 16-1/2 FPM with a double line. The spring shock function keeps things safe. The 1.9 HP motor leads to long 10-minute duty cycles @ 20%. The easy-access 360° swivel hook allows you to attach and remove loads easily from any angle. A heavy-duty 3-button control allows easy operation. Includes 38ft.L x 0.2in. diameter cable.

What's Included

    (1) Strongway Electric Cable Hoist (1) Mounting kit (1) Pulley hook

Downloads

Product Manual

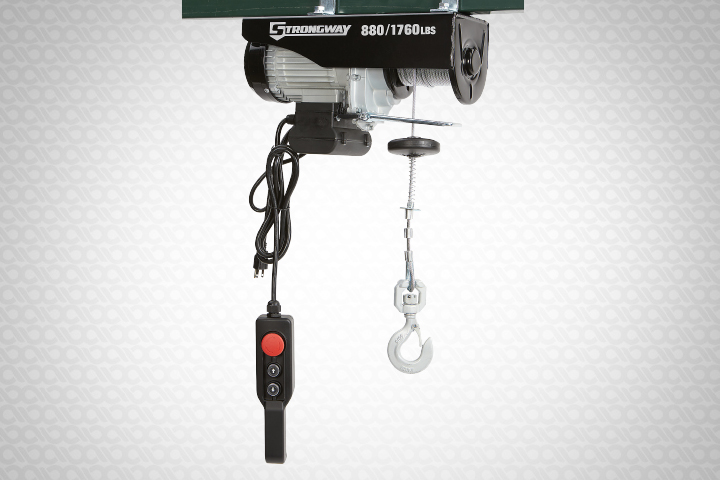

HIGH-PERFORMANCE LIFTING

The Strongway ELECTRIC CABLE HOIST is built to facilitate easy and efficient lifting, capable of moving HEAVY LOADS QUICKLY with its ROBUST MOTOR and effective cable system

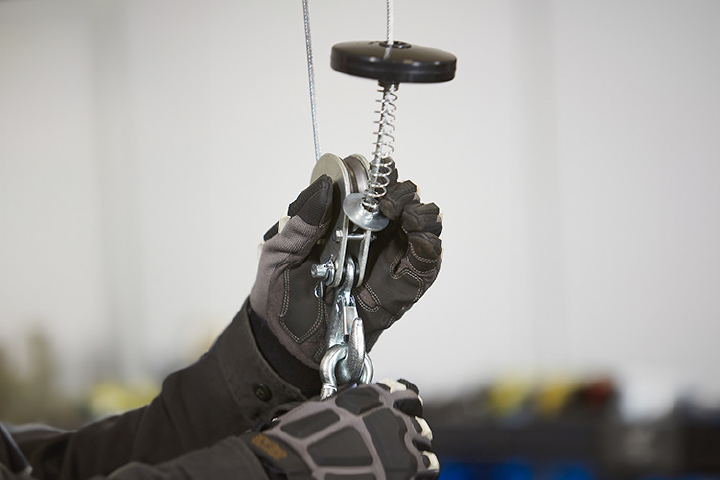

VERSATILE OPERATION

Offering both SINGLE and DOUBLE LINE CONFIGURATIONS, this hoist provides flexibility to adapt to different lifting needs, making it suitable for a wide range of industrial applications

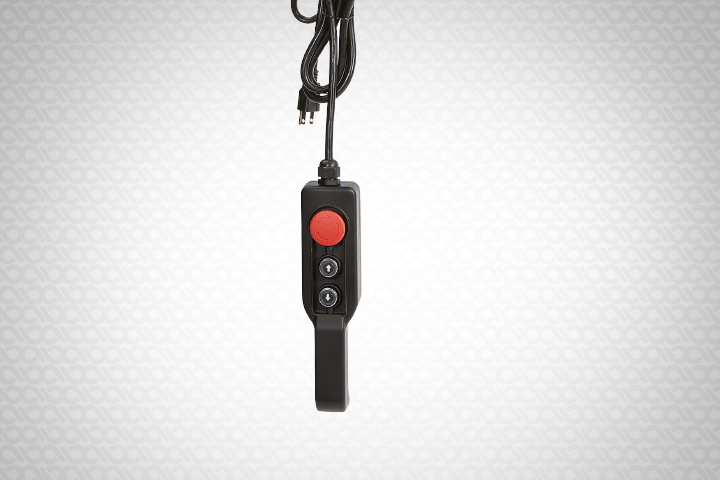

SAFETY AND CONTROL

Designed with CRITICAL SAFETY MECHANISMS, including a spring shock function and an emergency stop button, this hoist ensures safe operation under all conditions

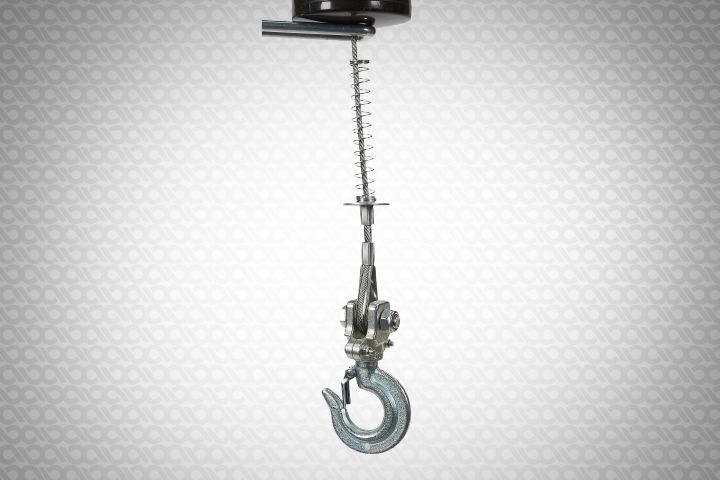

CONVENIENT USABILITY

The 360° SWIVEL HOOK and intuitive 3-BUTTON CONTROL PANEL make operation easy and accessible, enhancing user experience and operational efficiency

Features + Benefits

  • Rugged, efficient 120V/60 Hz hoist for easy lifting
  • Lifts loads up to 38ft. at speeds up to 33 FPM with a single line or up to 19ft. with speeds up to 16-1/2 FPM with a double line
  • Spring shock function to keep things safe
  • 120 Volt, 1.9 HP motor for long 10-minute duty cycles @ 20%
  • Easy-access 360° swivel hook for attaching and removing loads easily from any angle
  • Heavy-duty 3-button control for easy operation
  • Emergency stop button for emergency hazard handling
  • Includes 19ft.L x 0.2in. diameter cable

Key Specs

AttributeSpecification

item#

4584162

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

43.0 LB

Amps

12

Single Line Lift Capacity

880 lb

Double Line Lift Capacity

1,760 lb

Single Line Lift Height

38 ft

Double Line Lift Height

19 ft
AttributeSpecification

Single Line Lift Speed

33 ft./min.

Double Line Lift Speed

16.5 ft./min.

Cable Length

38 ft

Cable Diameter

1/5 in

Duty Cycle

20%-10min min

Phase

Single-phase

Product Weight

41.5800 lb

Dimensions L x W x H (in.)

16.14 x 9.45 x 6.1 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 15 Questions
Sort by:

  1. Where can I buy replacement cable?

    1 answer

    1. The replacement 40 ft cable is part number SNW4584162.13. Parts are no longer available through Northern Tool. Please contact our sister company Jacks Small Engines for pricing and availability through the link provided. https://www.jackssmallengines.com/

      Helpful?

  2. What are the dimensions of this hoist? length, width, height

    1 answer

    1. This hoist is 16.14" long x 9.45" wide x 6.1" high.

      Helpful?

  3. Weird question. How loud is the Winch? I would be using in an environment that has acoustical challenges.

    1 answer

    1. The sound load for the hoist is 71 decibels (dB).

      Helpful?

  4. Is it variable speed?

    1 answer

    1. The lifting speed will vary per single line speed of 33 ft./min or double line speed of 16.5 ft./min.

      Helpful?

  5. Where can I get a replacement handset

    1 answer

    1. The replacement remote control assembly is part number SNW4584162-RCA. To order, please contact our sister company Jack's Small Engine at 877-737-2787.

      Helpful?

  6. Can this be used outdoors?

    1 answer

    1. This hoist can be mounted and used in an outdoor environment; however, it will need to be fully protected from the elements to prevent damage.

      Helpful?

  7. Can it be mounted on an i-beam?

    1 answer

    1. Northern Tool does not currently offer a trolley designed to use this hoist on an I-beam.

      Helpful?

  8. what is the spacing of the mounting brackets

    1 answer

    1. The mounting holes are 9.06" apart center to center, left to right and 3.94" apart center to center, front to back. The brackets can accommodate a pipe or tube up to 46 mm x 46 mm.

      Helpful?

  9. how do you connect pulley hook for double line operation

    1 answer

    1. To set up the double line on the hoist, for the 1,760 lb. capacity, the cable needs to go through a snatch block. Then attach the cable hook to the frame of the hoist on the opposite side that the cable feeds from. An example of this is shown in the second photo on the product page.

      Helpful?

  10. How long is the cord for the controller

    1 answer

    1. The remote cable is 5.25' long.

      Helpful?
