The base plate is not square. When looking at the label and the handle is on the right side, it is 121 mm from the right edge to the center and 86mm from the left edge to the center of the piston ram head. It is 97mm from the front edge to the center and 88mm from the back edge to the center of the piston ram head.
Strongway 50-Ton Hydraulic Bottle Jack with Welded Base
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$174.99
- Welded base does not leak oil or other fluid
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt resistant for easy cleanup
- High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
See full description
Price for all three:
$276.93
What's Included
- (1) Strongway 50-Ton Hydraulic Bottle Jack with Welded Base (1) Handle

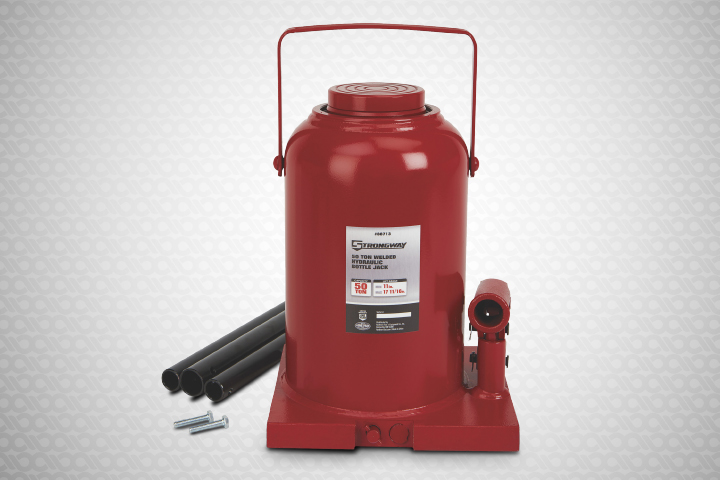

ROBUST CONSTRUCTION
BUILT WITH QT450 NODULAR IRON, the hydraulic pump offers SUPERIOR STRENGTH and LONGEVITY, making this jack a solid investment for demanding applications

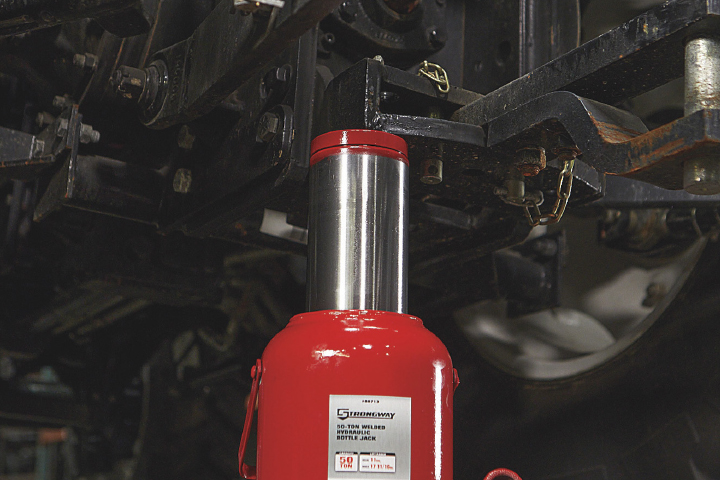

CORROSION AND WEAR RESISTANCE
The piston-ram is treated and polished, equipped with a Y-STYLE POLYURETHANE SEALING RING and a backup ring to PREVENT SLOW DROPS or BYPASS OIL DRIFT, enhancing the jack’s reliability and service life

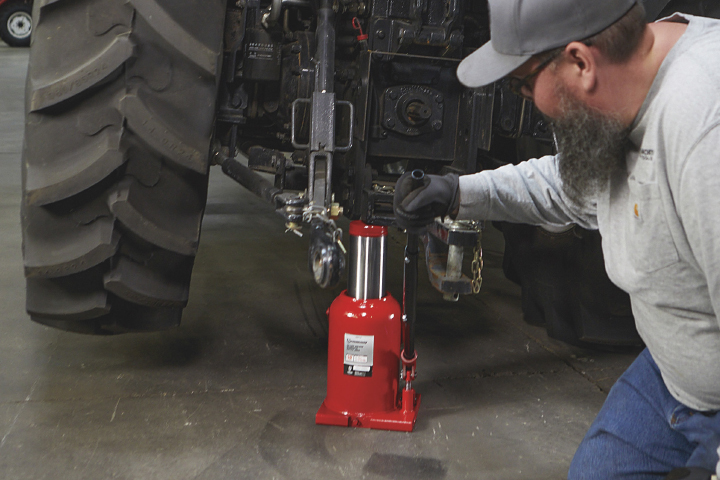

TEMPERATURE VERSATILE OPERATION
Operational between 40°F and 105°F thanks to high-quality oil that provides excellent corrosion resistance and ADAPTS TO BOTH HIGH and LOW TEMPERATURE CONDITIONS

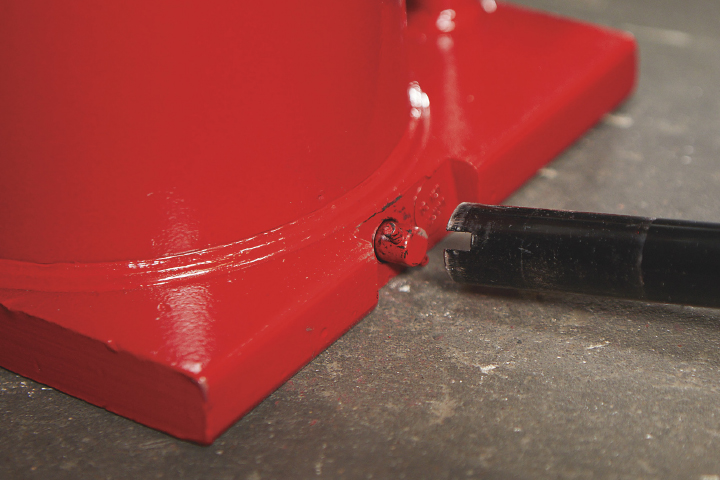

EASE OF USE
The HEAT-TREATED PAD and QUICK CONNECT LIFTING HANDLE ensure durability and ease of setup respectively, making this jack not only powerful but also USER-FRIENDLY

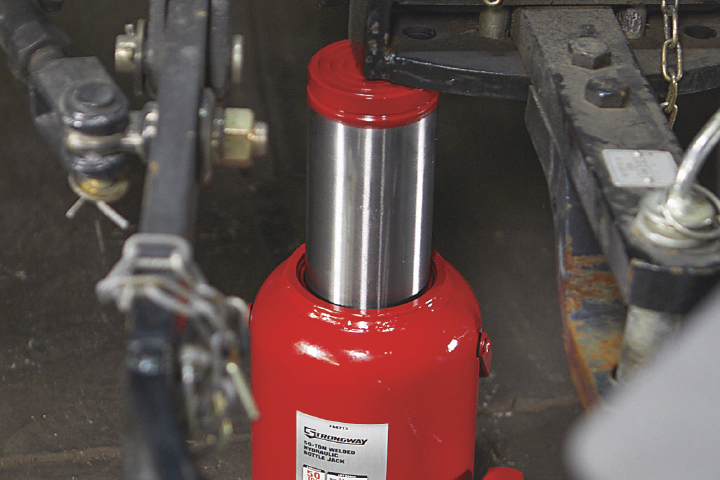

INDUSTRIAL-GRADE MATERIALS
Constructed in ISO-CERTIFIED facilities USING AEROSPACE TECHNOLOGY SYSTEMS, this jack is engineered for peak performance and safety
Features + Benefits
- Welded base does not leak oil or other fluid
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt resistant for easy cleanup
- High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Piston ram is treated and polished to resist skiving
- Piston ram utilizes a Y-style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
- Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
- Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40°–105°F
- Heat-treated pad offers durability
- Lifting handle is sectional and connects quickly making storage easier
- Convenient steel carrying handle makes it easy to transport the jack
- Wide, rugged base adds stability and strength
- Built in ISO-certified facilities and engineered using the same systems as aerospace technologies and the automotive OEM sector
- Meets ASME PALD 2019 standard
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Bottle Jacks
See All Strongway Bottle Jacks
Currently Viewing This Product
Specifications
Specifications
Strongway 50-Ton Hydraulic Bottle Jack with Welded Base
JET Jack Handles
Stronghold 20-Ton Air/Hydraulic Bottle Jack, Model# 61202
Omega 20-Ton Low Profile Air Actuated Bottle Jack,Model# 18209
Lift Capacity
Same
50 Tons
-
20 Tons
20 Tons
Max. Lift Height
Same
17.69 in
-
20 in
15.5 in
Min. Lift Height
Same
11 in
-
10.25 in
8.13 in
Ram Travel
Same
6.69 in
-
6.63 in
-
Handle Included
Same
Yes
-
Yes
-
Product Weight
Same
56.83 lb
-
33.0600 lb
-
Dimensions L x W x H (in.)
Same
8.15 x 7.25 x 11.12 in
-
9.05 x 6.89 x 10.24 in
-
Screw Top Adjustment
Same
-
-
3.13 in
-
