Under no load, mine takes about 5-1/2 strokes to move the ram 1". As the load increases, the ram movement decreases per handle stroke, making it work more like a normal jack.

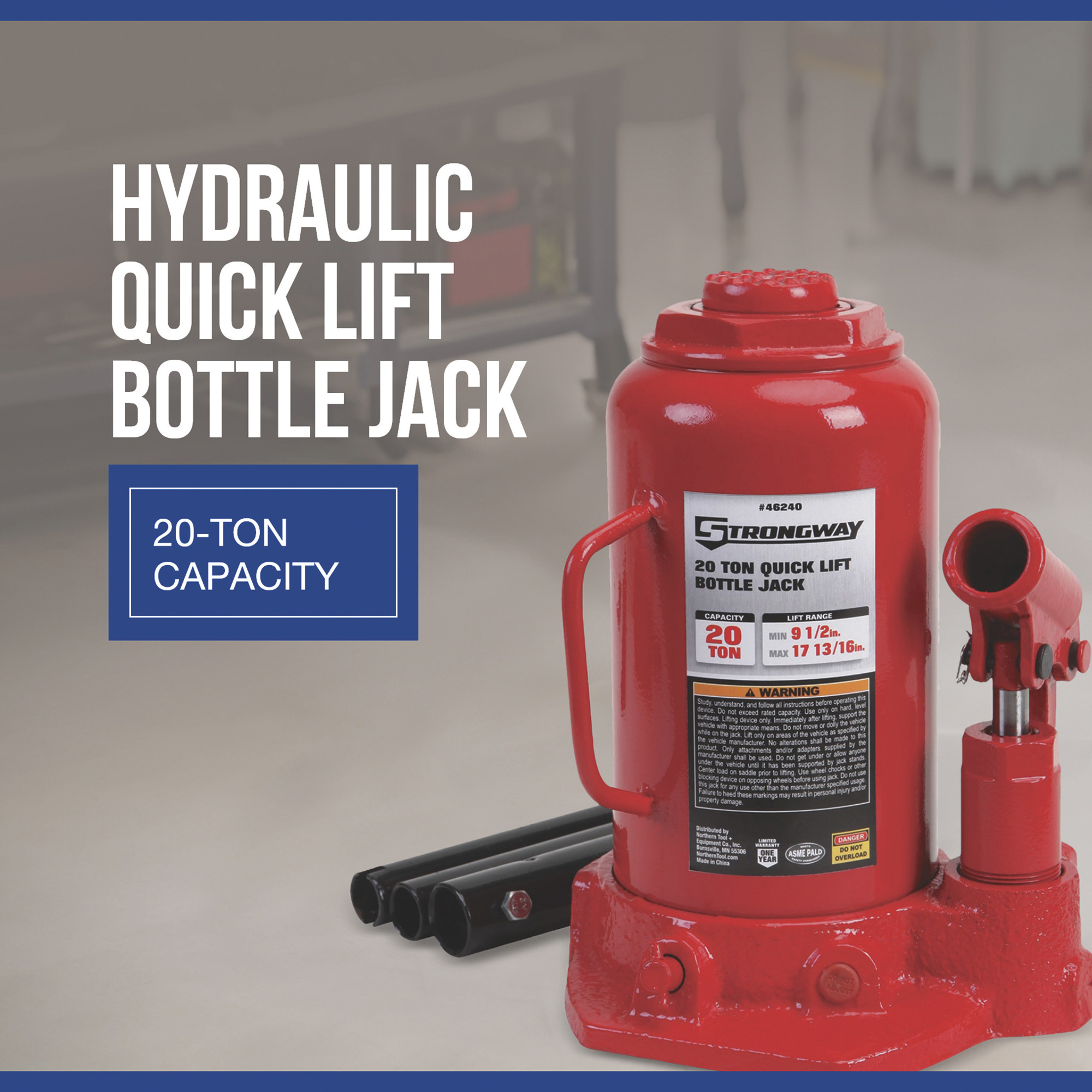

Strongway 20-Ton Hydraulic Quick-Lift Bottle Jack
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$99.99
- Quick-Lift Hydraulic Design: Oversized pump piston lifts loads up to 6x faster than standard bottle jacks
- High-Grade Steel Construction: Built to exacting standards for strength and long-term durability
- Lead-Free Paint Finish: Applied after chemical washing to resist rust and corrosion
- Oil, Grease + Dirt Resistant: Coated surfaces allow easy cleanup and reduced maintenance
- Large-Diameter Hydraulic Cylinder: Lowers required oil pressure to reduce wear and extend service life
See full description
Price for all four:
$729.97
What's Included
- (1) Strongway 20-Ton Hydraulic Quick-Lift Bottle Jack (1) Handle
Downloads

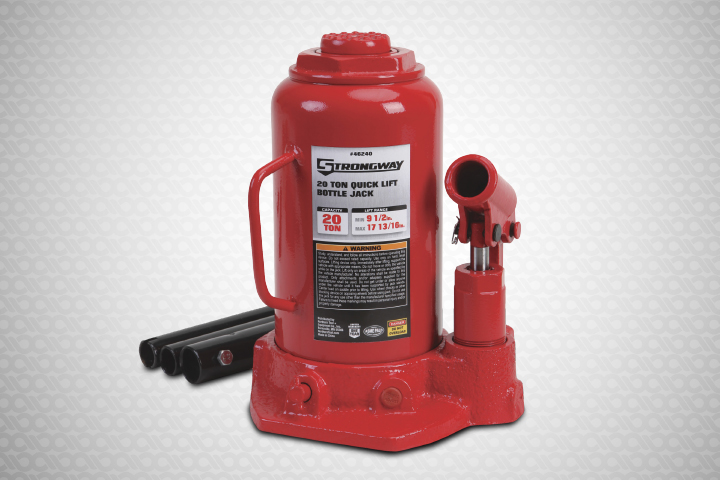

EFFICIENT OPERATION
The QUICK-LIFT FUNCTIONALITY significantly speeds up tasks, making this bottle jack IDEAL FOR RESIDENTIAL and COMMERCIAL USE
ROBUST MATERIAL CONSTRUCTION
The QT450 NODULAR IRON HYDRAULIC PUMP offers superior strength and DURABILITY compared to other irons, underpinning the jack’s robust construction

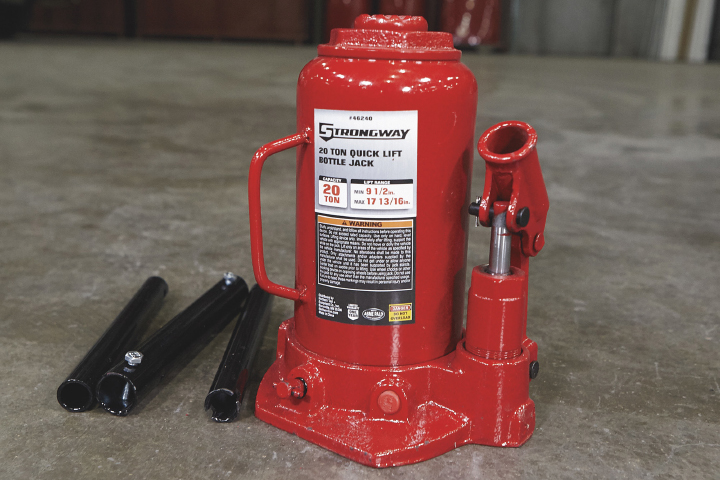

OPERATIONAL VERSATILITY
Operates effectively across a temperature range from 40°F TO 105°F, thanks to high-quality oil that enhances CORROSION RESISTANCE and maintains flexibility in varying temperatures

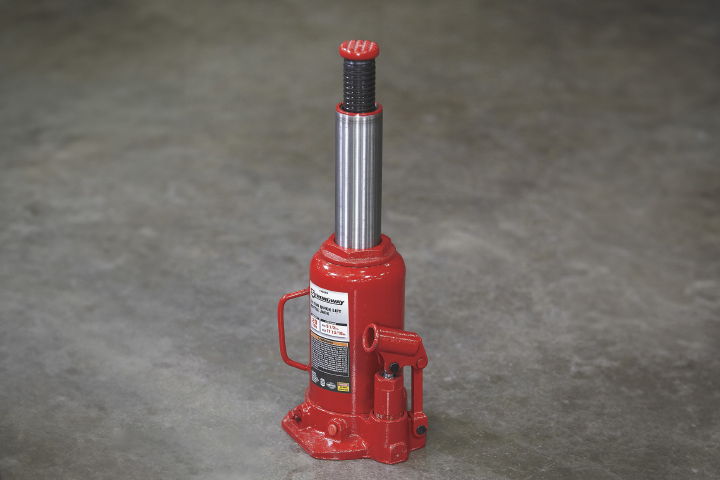

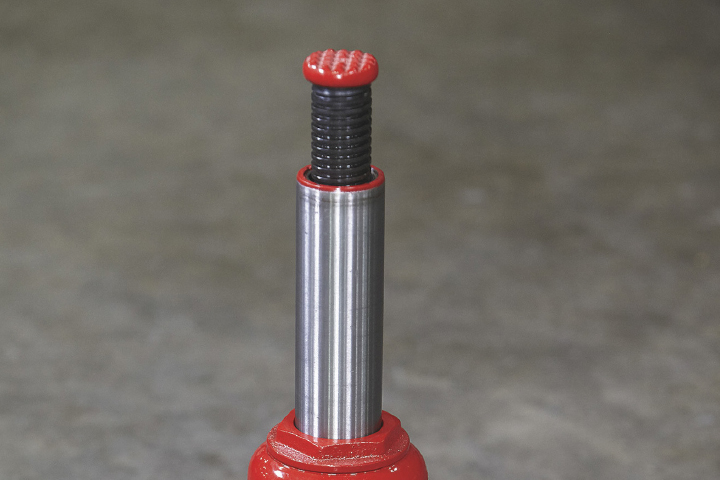

PRECISION LIFTING
The treated and polished piston-ram, equipped with a Y-STYLE SEALING RING and BACKUP, ensures precise lifting and load holding without any drift
Features + Benefits
- Quick-Lift Hydraulic Design: Oversized pump piston lifts loads up to 6x faster than standard bottle jacks
- High-Grade Steel Construction: Built to exacting standards for strength and long-term durability
- Lead-Free Paint Finish: Applied after chemical washing to resist rust and corrosion
- Oil, Grease + Dirt Resistant: Coated surfaces allow easy cleanup and reduced maintenance
- Large-Diameter Hydraulic Cylinder: Lowers required oil pressure to reduce wear and extend service life
- Polished Piston Ram: Treated to resist skiving for smooth consistent operation
- Y-Style Polyurethane Sealing Ring: Includes backup ring to prevent oil bypass and slow load descent
- QT450 Nodular Iron Pump: High-strength construction delivers increased durability
- Premium Hydraulic Oil: Corrosion-resistant formula operates efficiently from 40°–105°F
- Heat-Treated Adjustable Pad: Knurled pad with 2-5/16in. screw adjustment adds versatility
- Sectional Lifting Handle: Connects quickly for easier storage
- Steel Carrying Handle: Allows convenient transport around the jobsite
- Integrated Safety Valves: Bypass and overload valves provide added protection
- Wide Stable Base: Enhances strength and load stability
- Aerospace-Grade Engineering: Built in ISO-certified facilities using automotive OEM systems
- Safety Compliance: Meets ASME PALD 2019 standards
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Item # 547021
$1.99
Reg $4.99Save 60%
Order today to get this price.
See All Bottle Jacks
See All Strongway Bottle Jacks
Currently Viewing This Product
Specifications
Specifications
Strongway 20-Ton Hydraulic Quick-Lift Bottle Jack
Stronghold 20-Ton Air/Hydraulic Bottle Jack, Model# 61202
JET 17 1/2-Ton Hydraulic Bottle Jack, Model# JHJ-17-1/2
Blackhawk 12-Ton Hydraulic Shorty Bottle Jack, Model# BH2125B
Lift Capacity
Same
20 Tons
20 Tons
17 Tons
12 Tons
Max. Lift Height
Same
17.81 in
20 in
20 in
11.13 in
Min. Lift Height
Same
9.5 in
10.25 in
10.38 in
6.25 in
Ram Travel
Same
6 in
6.63 in
9.63 in
4.88 in
Screw Top Adjustment
Same
2.31 in
3.13 in
-
1.63 in
Handle Included
Same
Yes
Yes
Yes
Yes
Dimensions L x W x H (in.)
Same
6.6 x 5.68 x 9.53 in
9.05 x 6.89 x 10.24 in
8.0 x 4.625 x 11.31 in
5.75 x 5.625 x 10.25 in
Product Weight
Same
-
33.0600 lb
23.8000 lb
13.7500 lb
Safety Valve
Same
-
-
No
-
