The piston/ram measures 24.5" from the center of the top hole to the bottom center of the clevis hole.

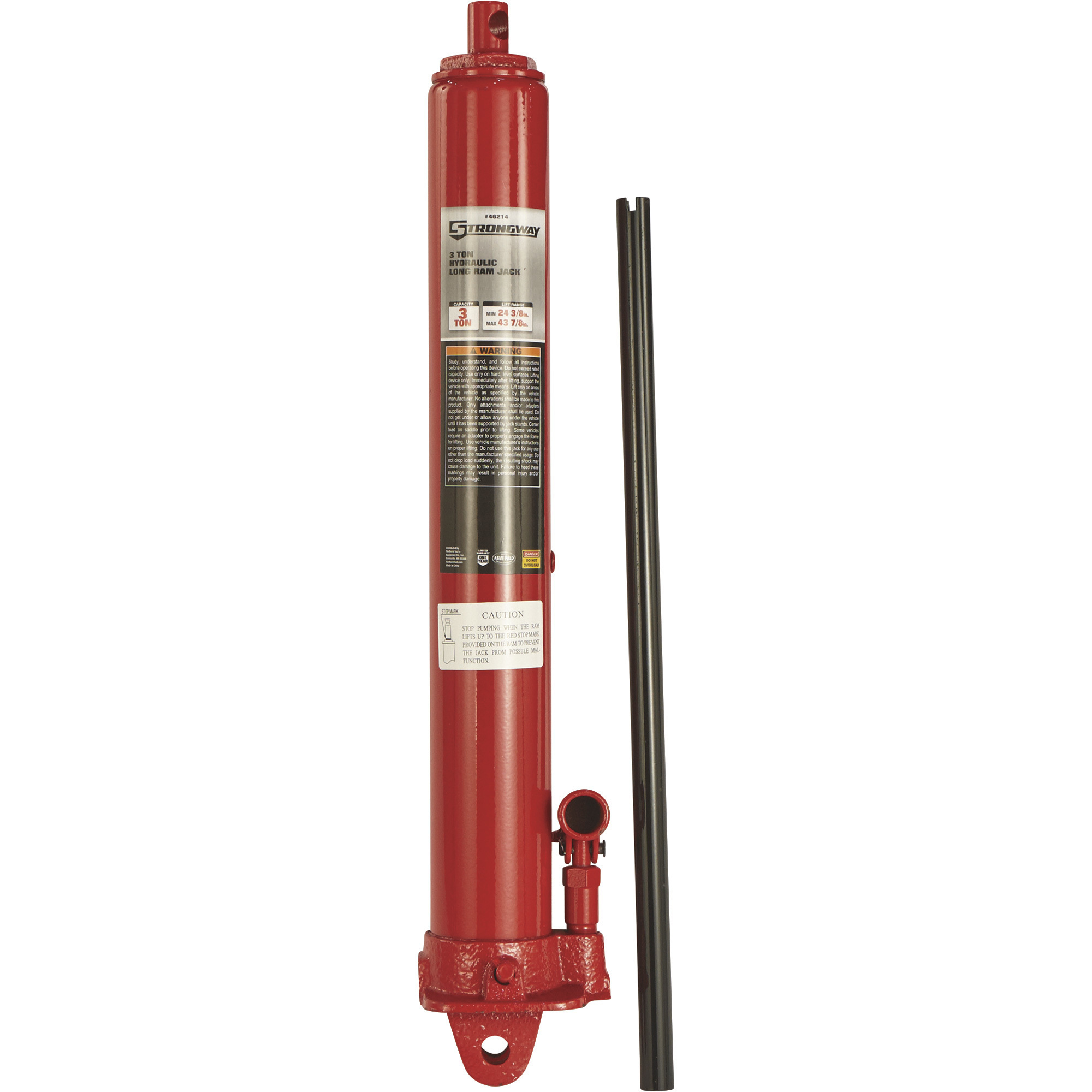

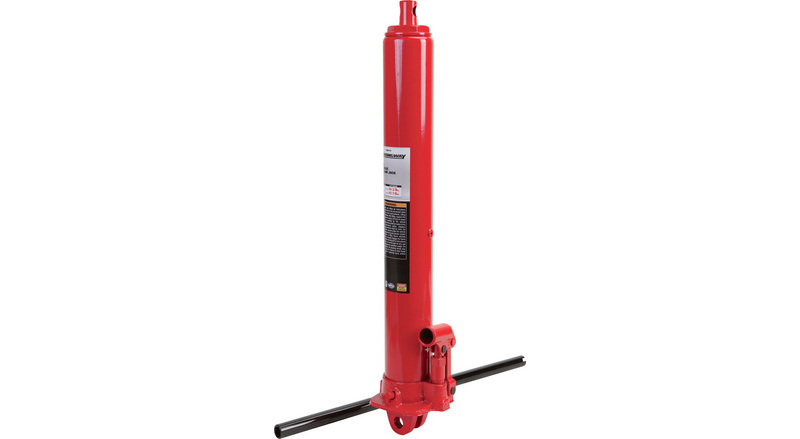

Strongway 3-Ton Long Ram Hydraulic Jack, Single Piston, Clevis Base, 24-3/8in.–43-7/8in. Lift Range
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$59.99
- 3-Ton Capacity: Designed for lifting applications on shop cranes and engine hoists
- 24-3/8in.–43-7/8in. Lift Range: Provides extended reach for a variety of lifting tasks
- Clevis-Style Base: 4-1/2in. x 4-15/16in. base mounts to compatible equipment
- Hydraulic Cylinder + Ram System: Large-diameter cylinder reduces pressure and wear; polished piston with seal system helps prevent drift and oil bypass
- Controlled Release + Lift Handle: Smooth lowering with handle for controlled lifting and positioning
See full description
Price for all three:
$429.97
What's Included
- (1) Strongway 3-Ton Long Ram Hydraulic Jack (1) Handle
Downloads
Quality, Safety and Certified For Service
Built With The Best Components

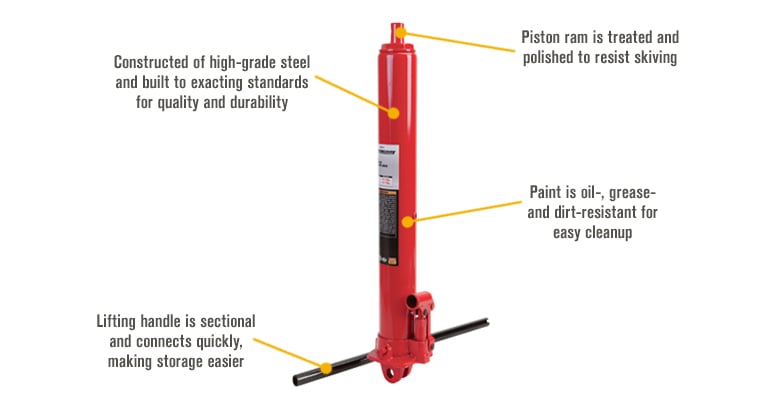

From the highest grades of rugged steel, to the wear-resistant Y-style sealing rings, to the super strong QT 450 Nodular Iron hydraulic pump, right down to the high/low temperature-resistant (40°F to 105°F) hydraulic oil, Strongway depends on quality components built to exacting standards to deliver top performance and reliability.
Reliability You Can Count On
The long-wearing performance of this jack starts with the piston-ram. It's treated and polished to resist thinning over time and utilizes a Y-style polyurethane sealing ring with a backup ring. This Y-ring keeps the jack solidly raised in the desired position, preventing the load from falling slowly or bypassing oil drift.
Certified Performance
Each Strongway jack is built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector. The Hydraulic Long Ram Jack is also tested for reliability and safety to meet strict ASME PALD 2009 standards and requirements.
Makes Just About Any Job Easier
A Versatile Base Delivers the Right Angles
Not all things sit at a perfect 90 degree angle on the floor. That's why the 4.52in. x 4.94in. clevis-style base on this jack is so special. It mounts directly onto a shop crane, features a slow release function and adjusts to the angle you need, allowing you to safely use the jack at the ideal angle for your project.
Long Lift Range
If you need to lift a load high, you've come to the right place. The long ram design on this jack provides an extensive reach, allowing you to raise your desired load from 24 3/8in. to 43 7/8in.
Use It Day In And Day Out
This jack is designed for durability. A rugged high-grade steel frame is teamed with a lead-free paint finish that covers the entire surface to ensure long-lasting wear and help prevent rust. The paint is oil-, grease- and dirt-resistant for easy cleanup no matter how often you put this jack to work.
Lift With Confidence
Expert Answers Are Available
Northern Tool + Equipment is here to help you succeed. Our field-trained, dedicated team of welding experts is ready to help — call or email and you'll get a prompt response.
The Strongway Advantage
This Strongway 3-Ton Long Ram Jack is built to last and perform. But to give you extra peace of mind, Northern Tool + Equipment stands behind this product with a 1-year limited warranty.
Guaranteed Satisfaction
Shop in complete confidence, knowing that Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need.
Features + Benefits
- 3-Ton Capacity: Designed for lifting applications on shop cranes and engine hoists
- 24-3/8in.–43-7/8in. Lift Range: Provides extended reach for a variety of lifting tasks
- Clevis-Style Base: 4-1/2in. x 4-15/16in. base mounts to compatible equipment
- Hydraulic Cylinder + Ram System: Large-diameter cylinder reduces pressure and wear; polished piston with seal system helps prevent drift and oil bypass
- Controlled Release + Lift Handle: Smooth lowering with handle for controlled lifting and positioning
- Wide Operating Range: Hydraulic oil supports operation from 40°F to 105°F with corrosion resistance
- High-Grade Steel + Coated Finish: Polished steel with lead-free coating resists oil, grease, dirt and corrosion
- Manufacturing + Safety Standards: Built in ISO-certified facilities and meets ASME PALD 2009 requirements
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Strongway Hydraulic Engine Hoist/Shop Crane with Load Leveler, 2-Ton Capacity, 1in.–82-5/8in. Lift Range
Item # 46219
$359.99
Reg $369.99Save $10.00
Order today to get this price.
3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Item # 547021
$1.99
Reg $4.99Save 60%
Order today to get this price.
See All Long Ram Jacks
See All Strongway Long Ram Jacks
Currently Viewing This Product
Specifications
Specifications
Strongway 3-Ton Long Ram Hydraulic Jack, Single Piston, Clevis Base, 24-3/8in.–43-7/8in. Lift Range
American Forge & Foundry Long Ram — 3 Ton, Fixed Clevis, 24.25in. to 45in. Length, Model# LRC3B
American Forge & Foundry Long Ram — 8-Ton Capacity, Flat Base, Compressed Length 24.25in., Extended Length 45in., Model# LRC8B
Blackhawk Automotive 8-Ton Long Ram Air/Manual Hydraulic Jack, Single Piston, Flat Base, Model# BH2081
Lift Capacity
Same
3 Tons
3 Tons
8 Tons
8 Tons
Max. Lift Height
Same
44.88 in
45 in
45 in
43.25 in
Min. Lift Height
Same
25.98 in
24.25 in
24.25 in
24.125 in
Base Dimensions
Same
4.5 in
-
-
7.125 in
Pistons (qty.)
Same
1
1
1
1
Material
Same
-
Steel
Steel
-
Product Weight
Same
-
25.0000 lb
36.0000 lb
-
Dimensions L x W x H (in.)
Same
-
28.0 x 5.0 x 6.0 in
28.0 x 6.0 x 7.0 in
-
