This jack is all aluminum and weighs in at 56 pounds.

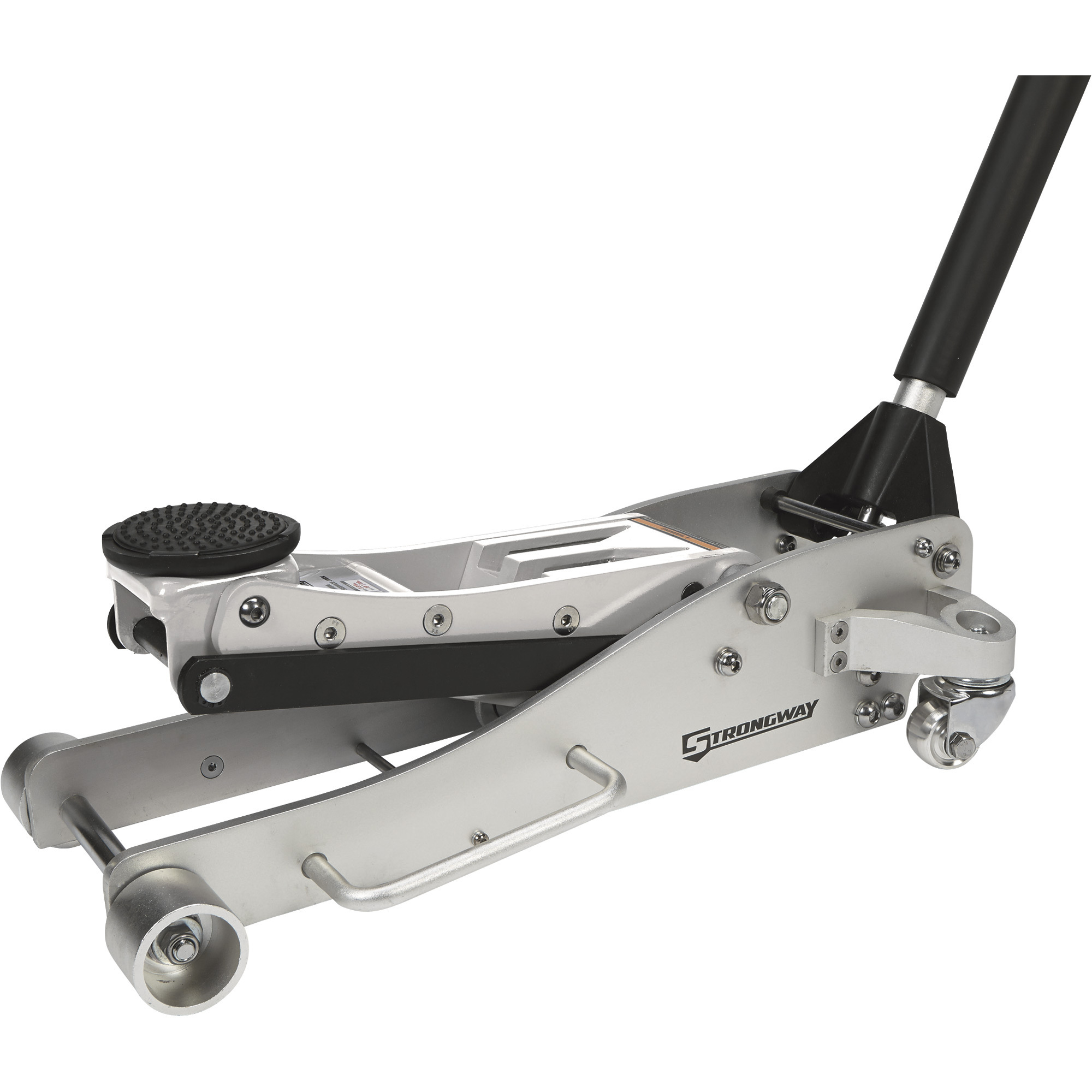

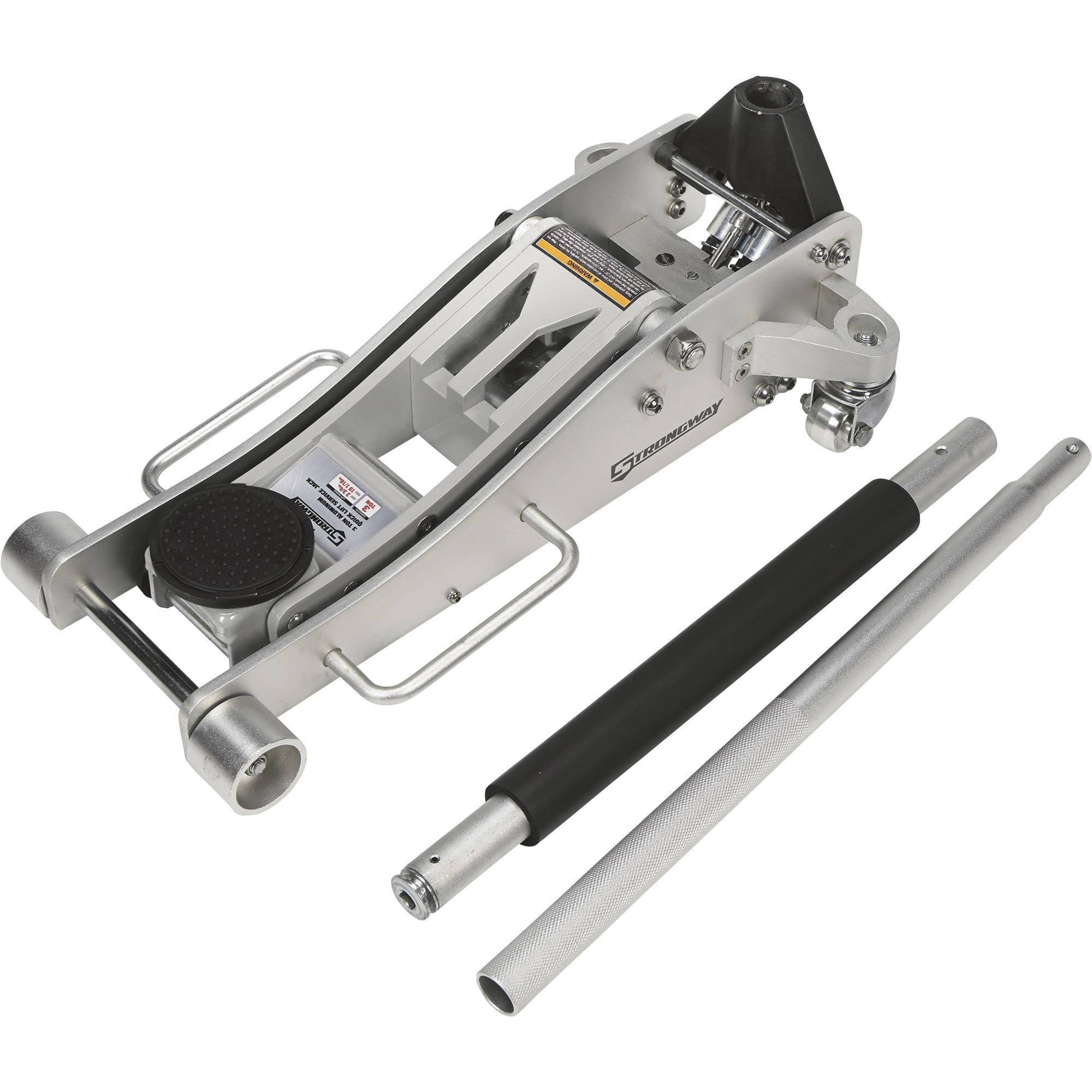

Strongway 3-Ton Aluminum Hydraulic Quick Lift Low-Profile Service Floor Jack
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Frame is constructed of high-grade steel and built to exacting standards for quality and durability
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life
- Piston-ram is treated and polished to resist skiving
- Piston-ram utilizes a Y-style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
- Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
See full description
What's Included

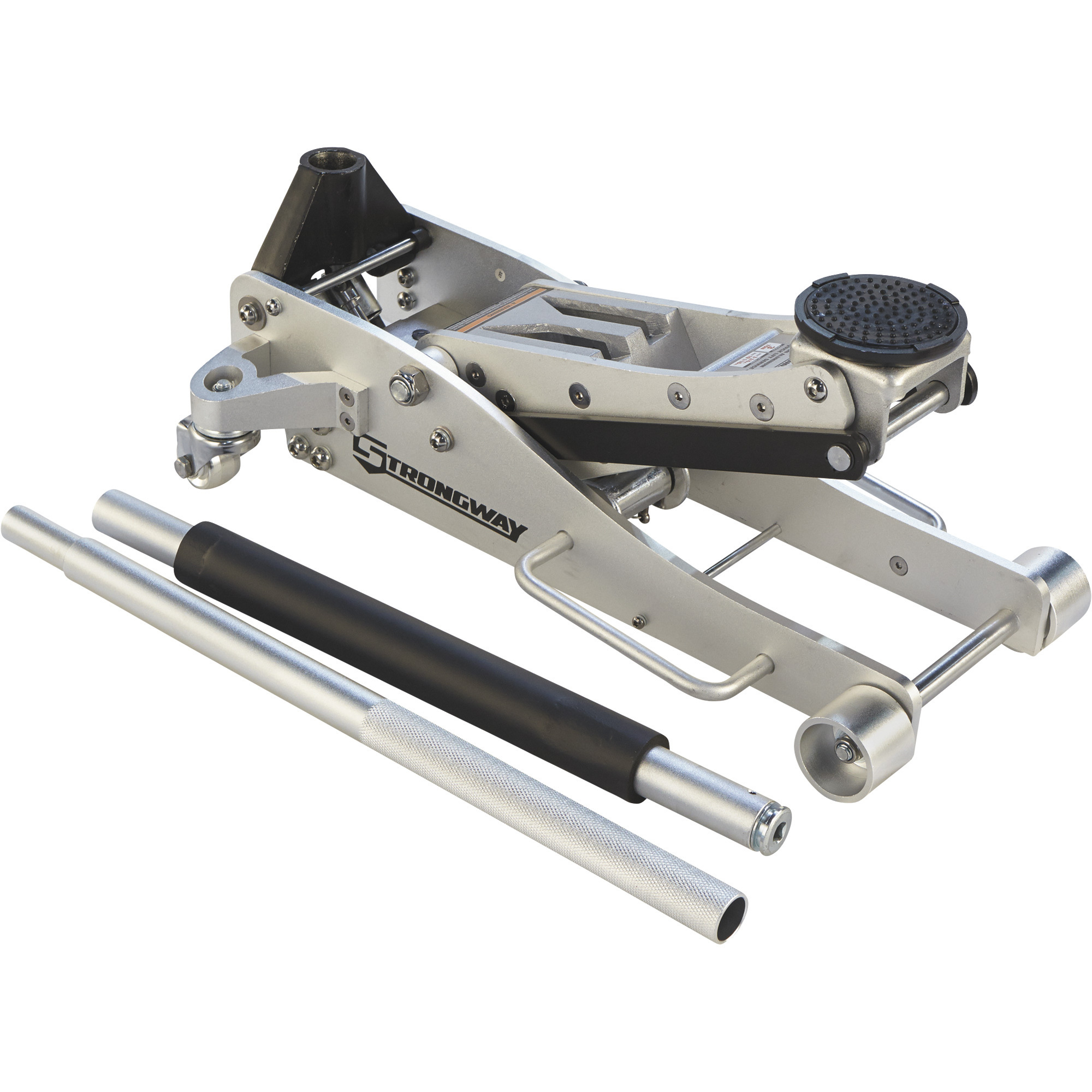

- (1) Hydraulic aluminum service floor jack (1) 2-pc. handle
Downloads
Features + Benefits
- Frame is constructed of high-grade steel and built to exacting standards for quality and durability
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life
- Piston-ram is treated and polished to resist skiving
- Piston-ram utilizes a Y-style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
- Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
- Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
- Dual roller pistons deliver fast rising action
- A widened front stance makes the jack more stable
- Oversized saddle provides increased contact area with the load being lifted
- Rolls easily on strong aluminum wheels and casters with high quality bearings to ensure long life
- Bypass and built-in safety overload system prevents use beyond its rated capacity
- Universal joint release mechanism provides precise control
- Built-in side carrying handle for easy transport
- Includes 2-pc. lift handle for easy storage
- Handle features an oversized knurled area for secure grip and increased leverage
- Lift handle also includes a bumper pad to help protect vehicle from damage
- Quick lock feature for engagement and disengagement of handle halves
- Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
- Meets ASME PALD 2009 standard
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Floor Jacks
See All Strongway Floor Jacks
Currently Viewing This Product
Shipping: Sold Out
Specifications
Specifications
Strongway 3-Ton Aluminum Hydraulic Quick Lift Low-Profile Service Floor Jack
Hein-Werner Automotive 25-Ton Axle Floor Jack, Model# HW93735A
Blackhawk Automotive 30-Ton Air-Actuated Axle Floor Jack, Model# BH6301
Omega 22-Ton Air Axle Floor Jack, Model# 23222C
Lift Capacity
Same
3 Tons
25 Tons
30 Tons
22 Tons
Max. Lift Height
Same
19.06 in
18 in
18 in
15 in
Product Type
Same
Service Jack
Axle Jack
Axle Jack
Axle Jack
Min. Lift Height
Same
3.75 in
8 in
11 in
9.88 in
Safety Valve
Same
Yes
Yes
-
-
Product Weight
Same
58.4000 lb
-
-
96.0000 lb
Dimensions L x W x H (in.)
Same
28.75 x 13.0 x 6.56 in
-
-
20.0 x 13.25 x in
Power Source
Same
-
Air/Hydraulic
-
-
Low Profile
Same
-
No
Yes
Yes
Material
Same
-
Steel
-
-
Ram Travel
Same
-
5 in
-
-
Screw Top Adjustment
Same
-
7 in
-
-
Handle Included
Same
-
Yes
-
-
